DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit
>>
Wiring Diagram
DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit: Wiring Diagram
w/ Seat Position Memory

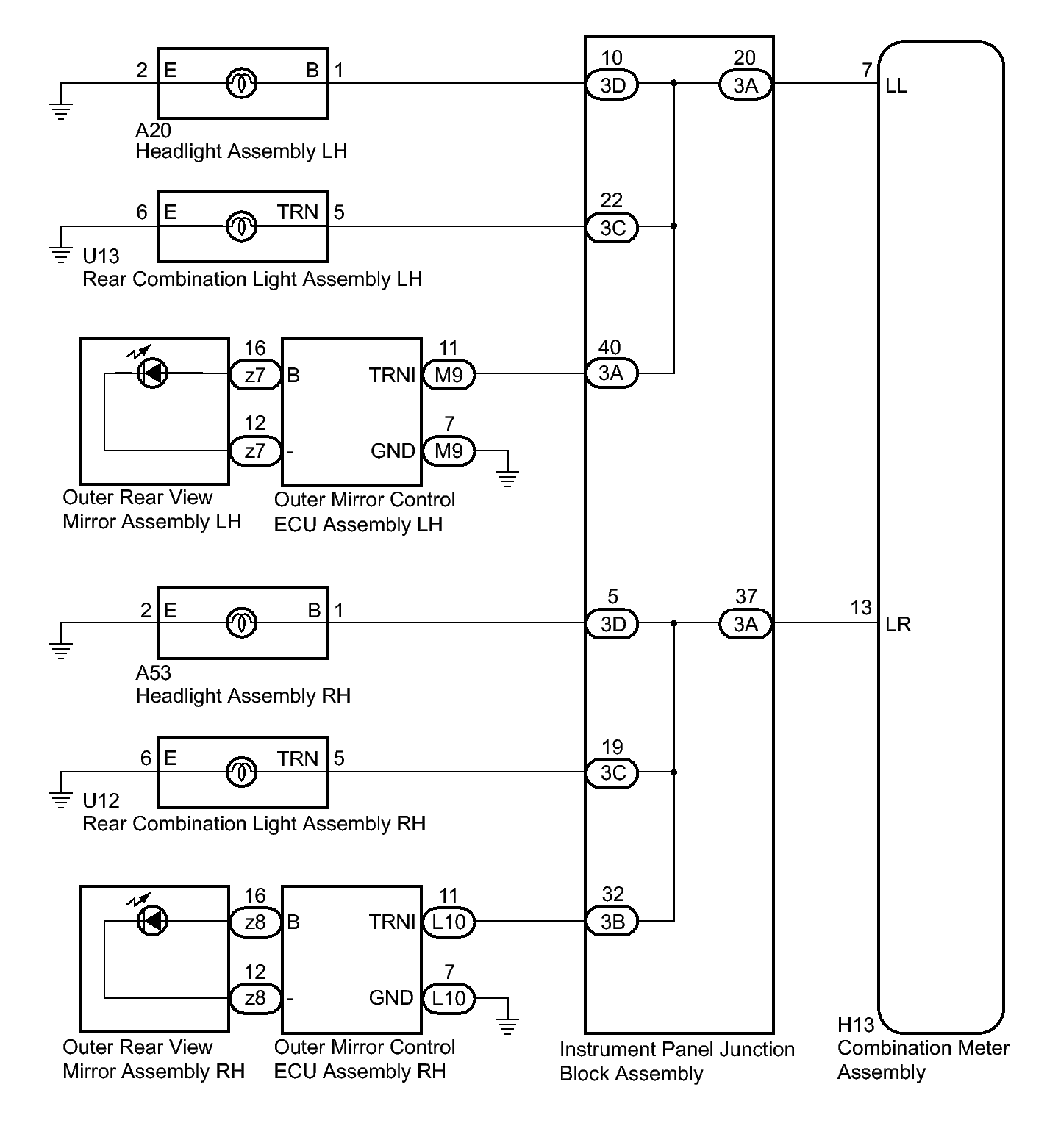

Fig 1: Turn Signal / Hazard Flasher Circuit Wiring Diagram (W/ Seat Position Memory)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Seat Position Memory

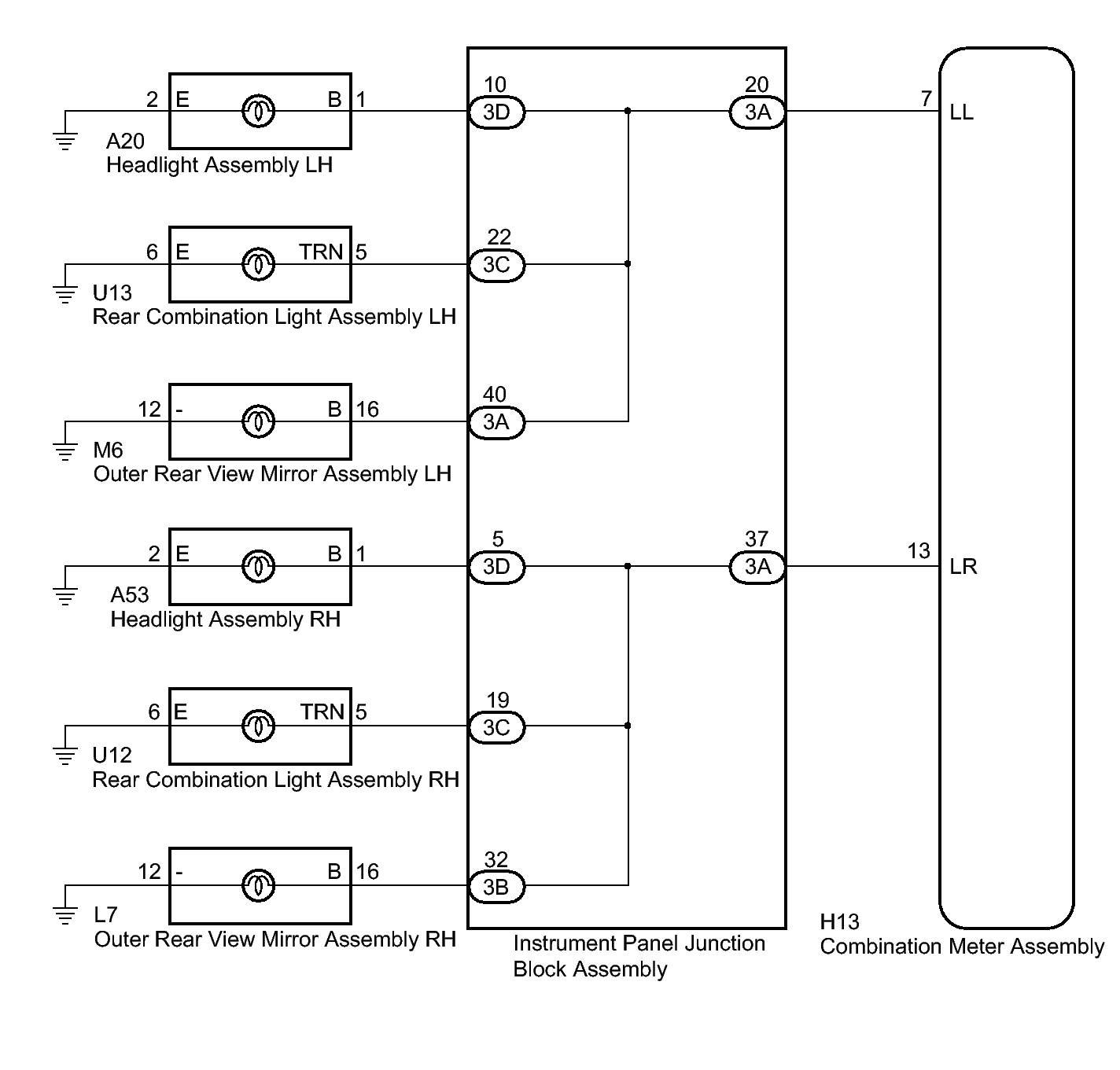

Fig 2: Turn Signal / Hazard Flasher Circuit Wiring Diagram (W/O Seat Position Memory)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
