SRS Warning Light does not Come ON: Wiring Diagram

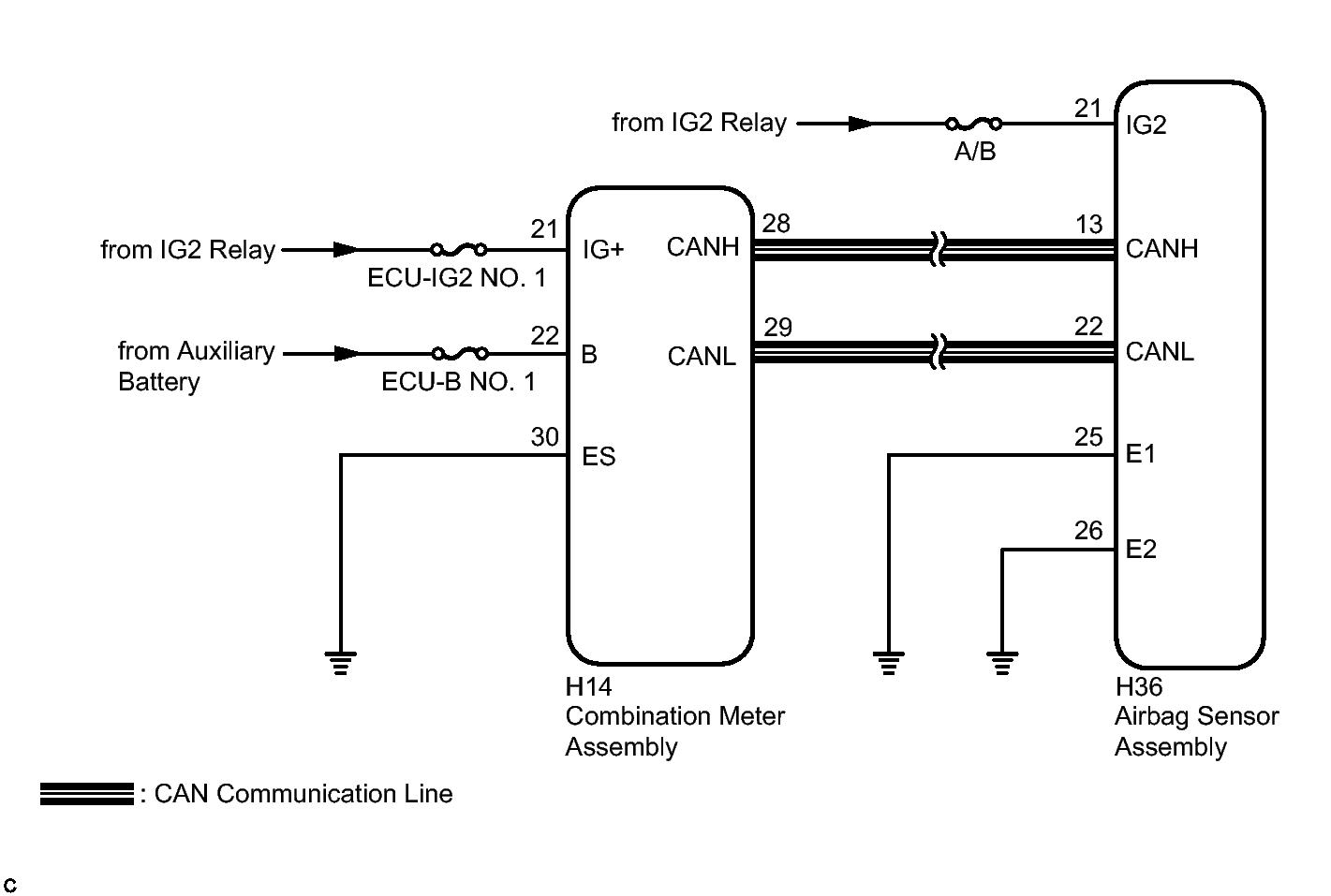

Fig 1: SRS Warning Light Wiring Diagram

GTY416831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
