Multiplex Communication System (CAN)

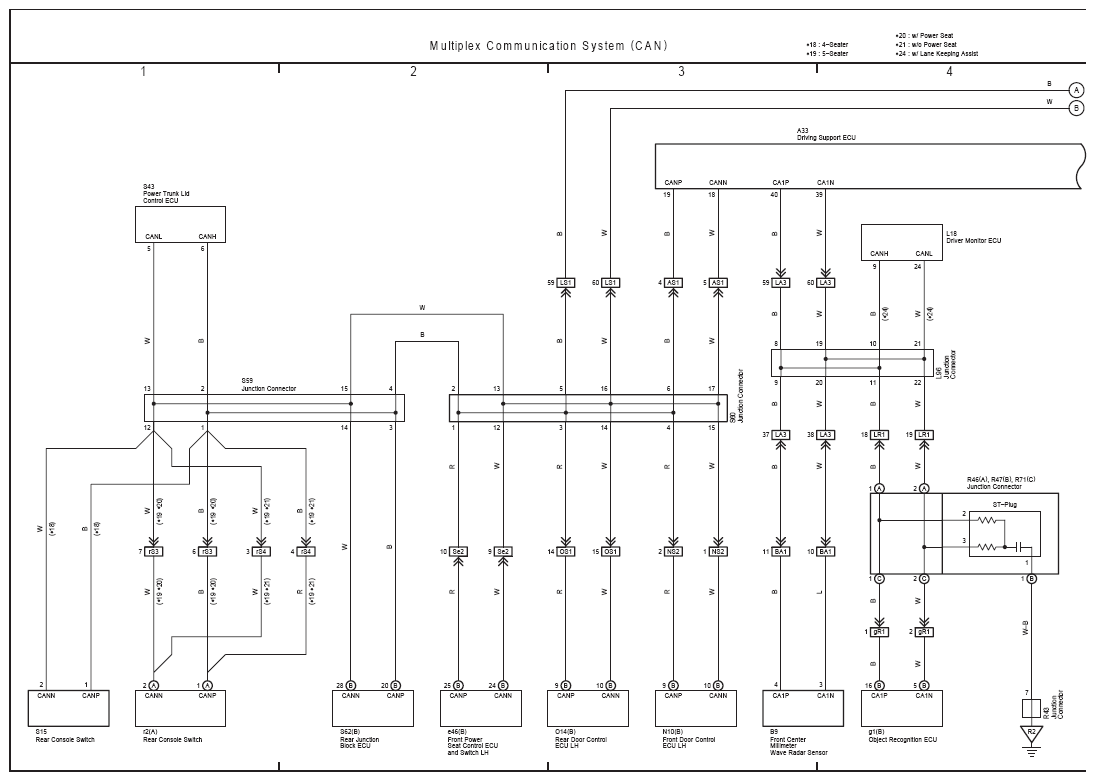

Fig 1: Multiplex Communication System (CAN) Electrical Wiring Diagram (1 Of 34)

G08941769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

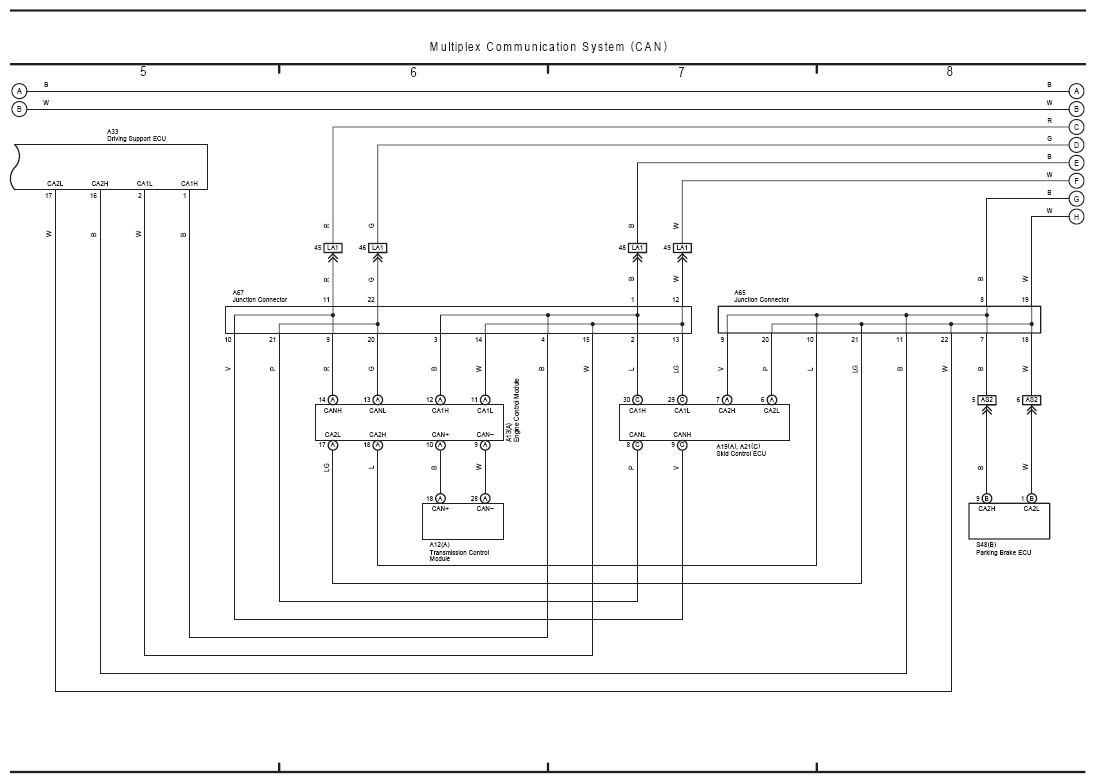

Fig 2: Multiplex Communication System (CAN) Electrical Wiring Diagram (2 Of 34)

G08941770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

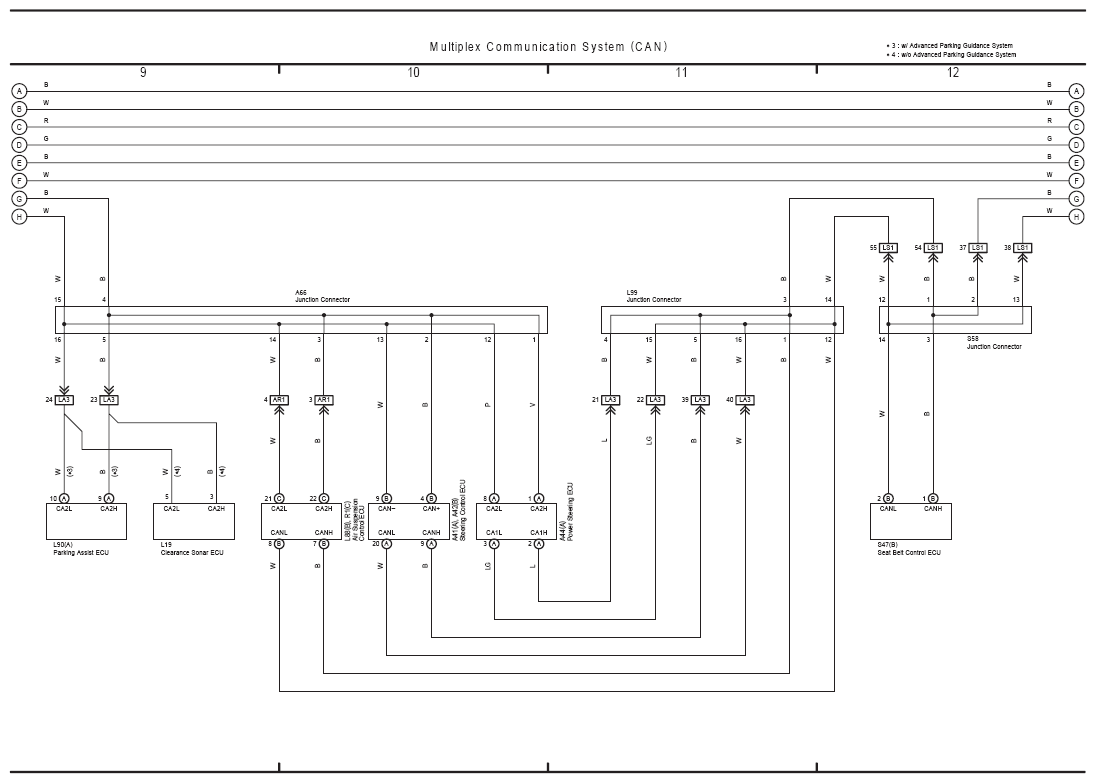

Fig 3: Multiplex Communication System (CAN) Electrical Wiring Diagram (3 Of 34)

G08941771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

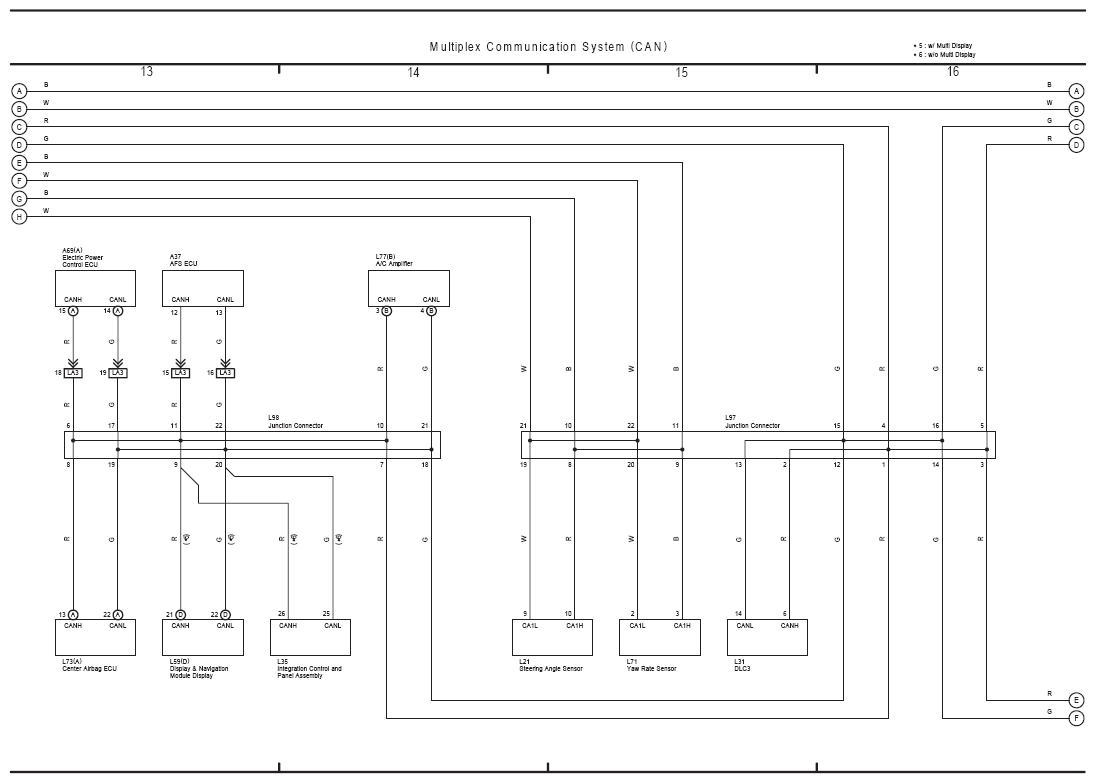

Fig 4: Multiplex Communication System (CAN) Electrical Wiring Diagram (4 Of 34)

G08941772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

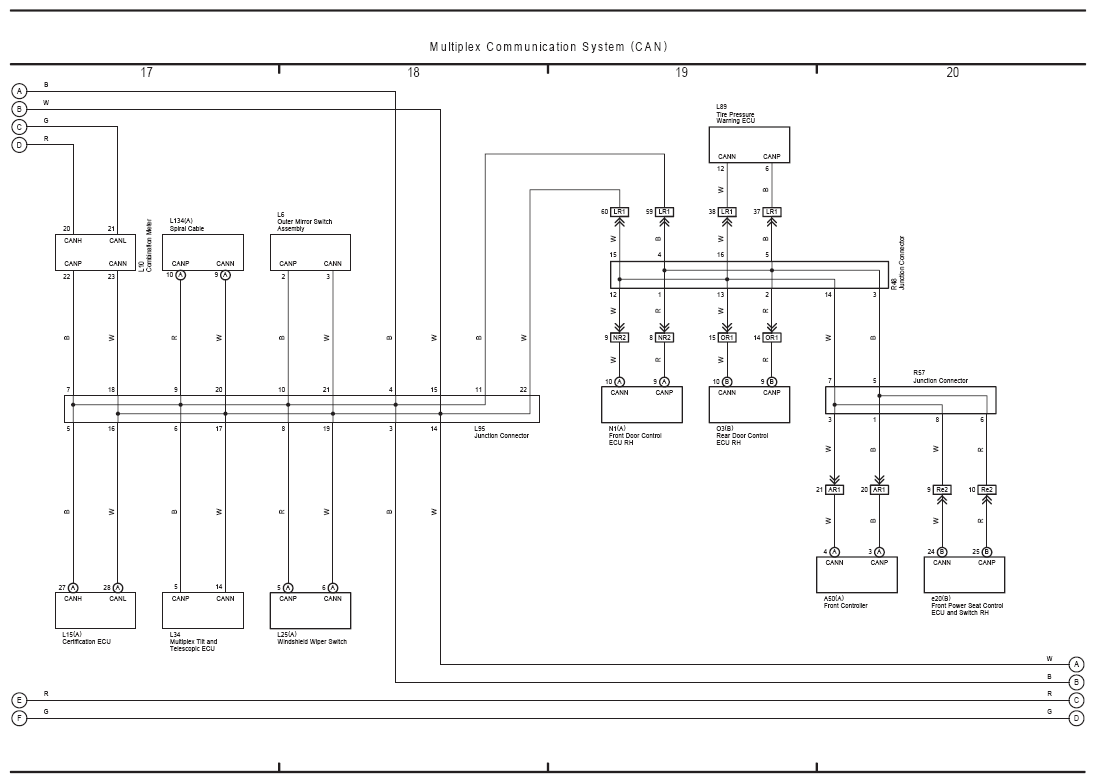

Fig 5: Multiplex Communication System (CAN) Electrical Wiring Diagram (5 Of 34)

G08941773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

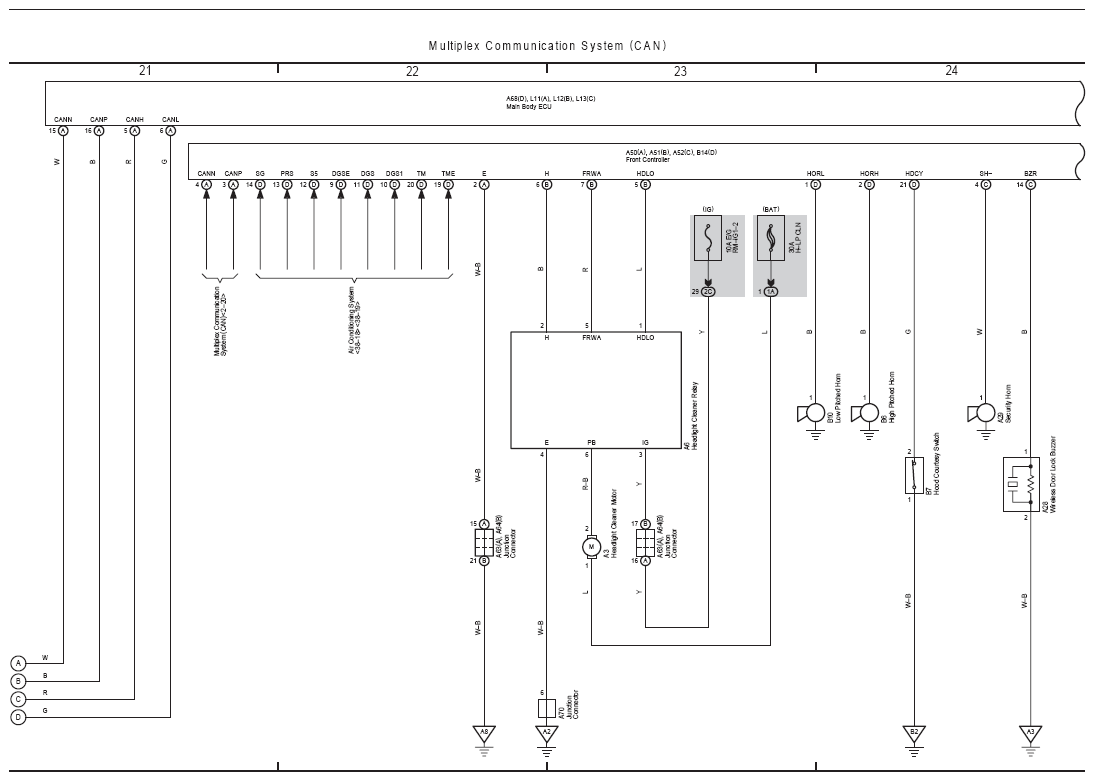

Fig 6: Multiplex Communication System (CAN) Electrical Wiring Diagram (6 Of 34)

G08941774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

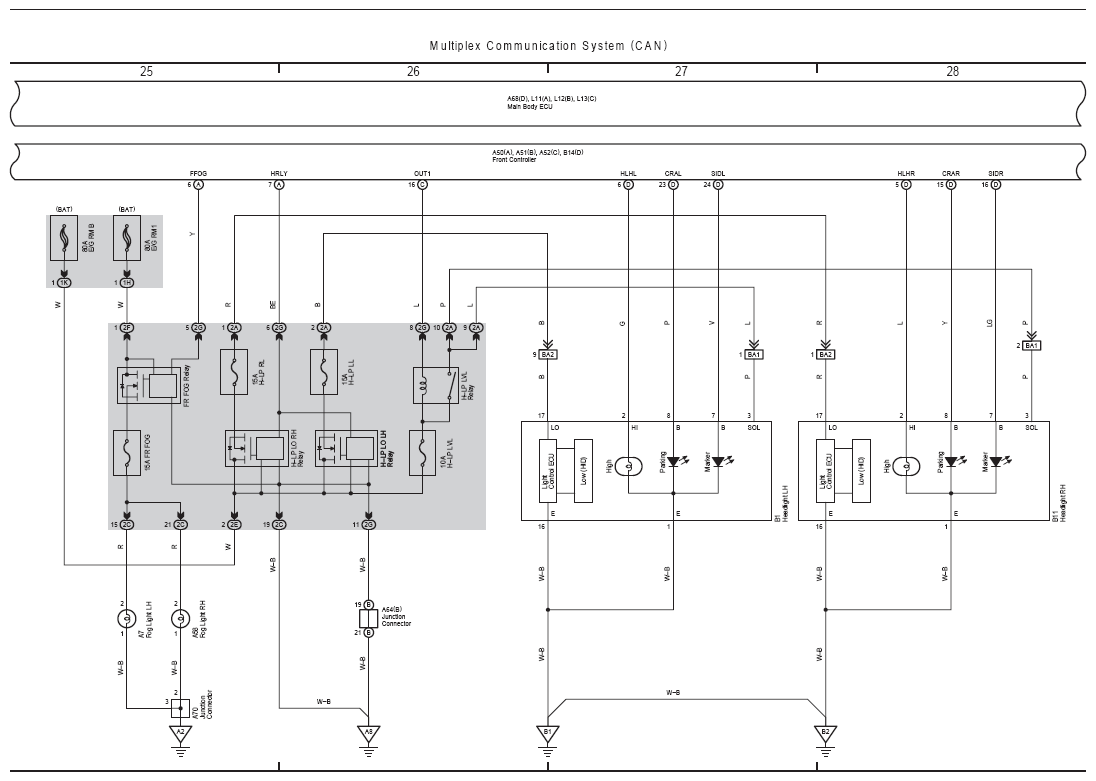

Fig 7: Multiplex Communication System (CAN) Electrical Wiring Diagram (7 Of 34)

G08941775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

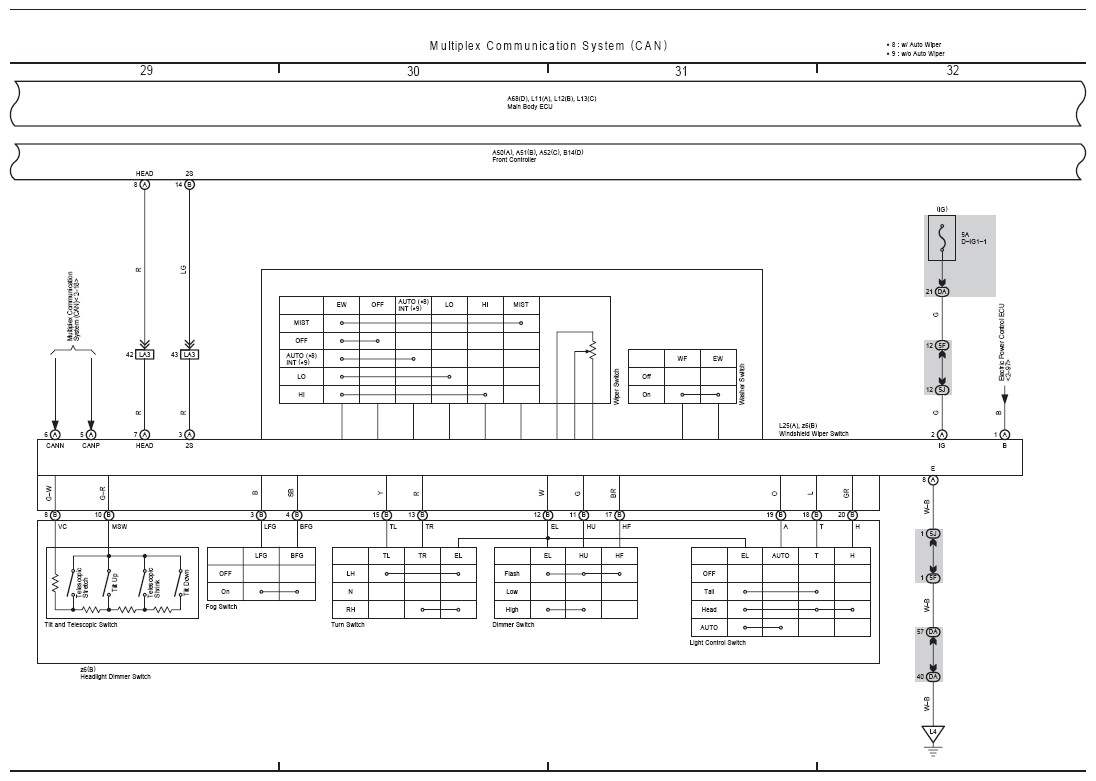

Fig 8: Multiplex Communication System (CAN) Electrical Wiring Diagram (8 Of 34)

G08941776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

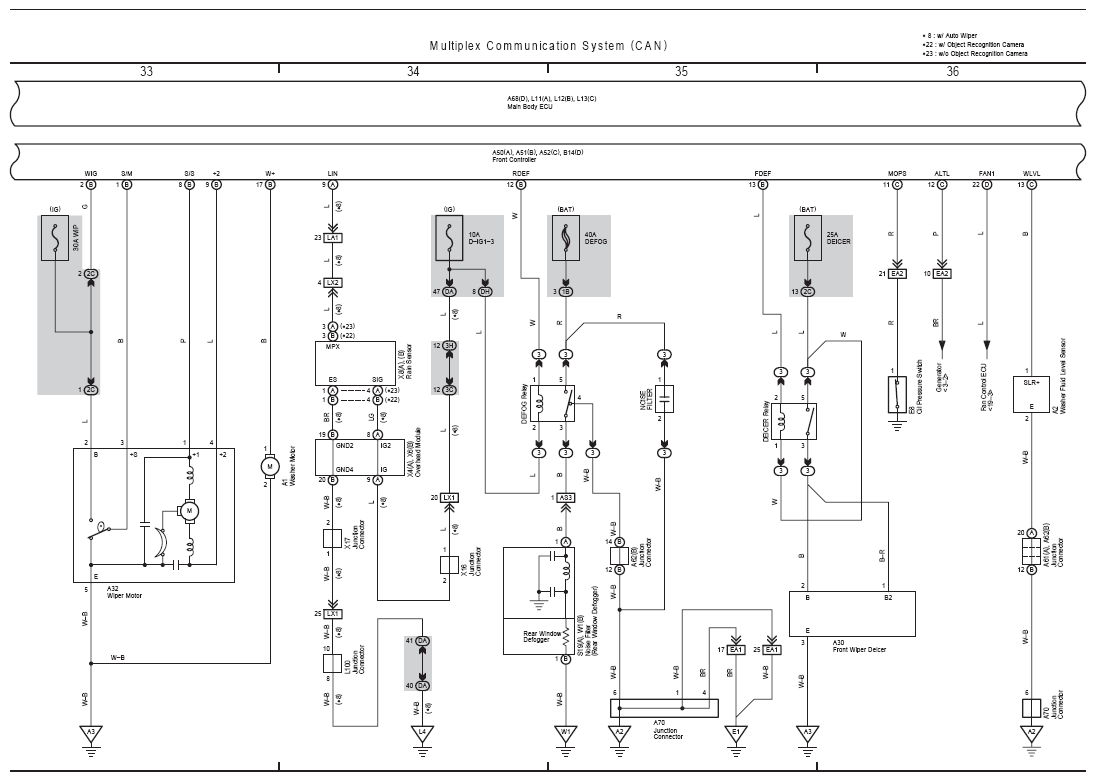

Fig 9: Multiplex Communication System (CAN) Electrical Wiring Diagram (9 Of 34)

G08941777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

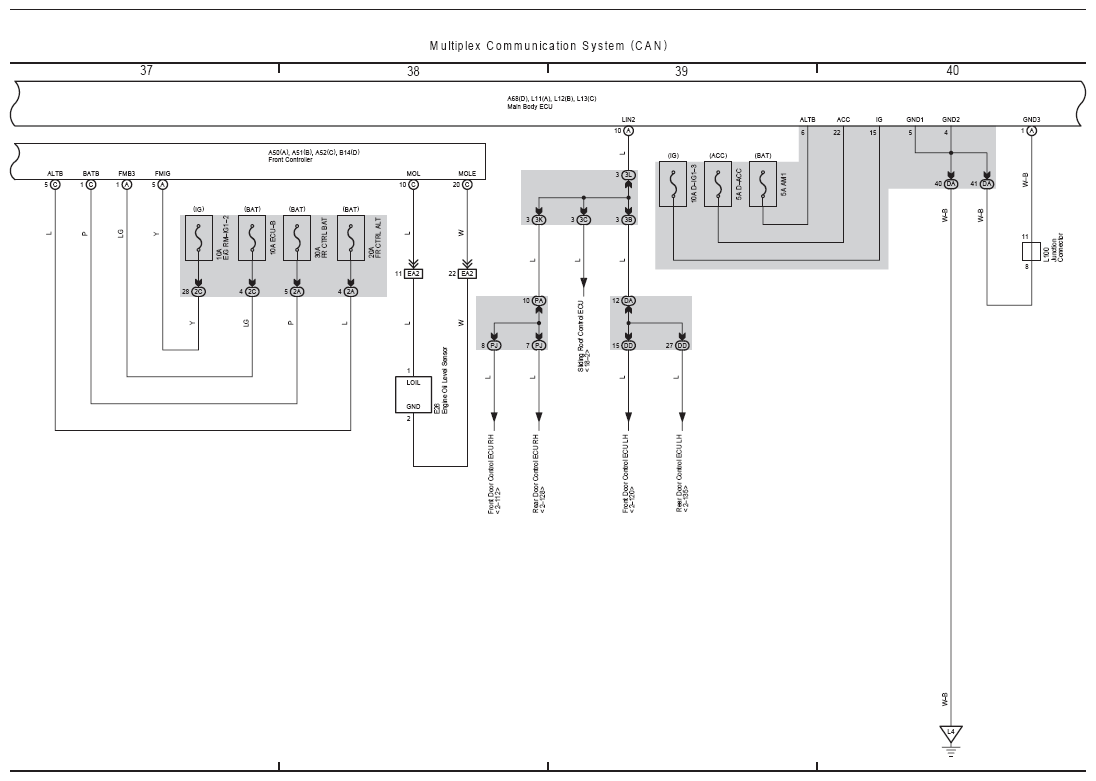

Fig 10: Multiplex Communication System (CAN) Electrical Wiring Diagram (10 Of 34)

G08941778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

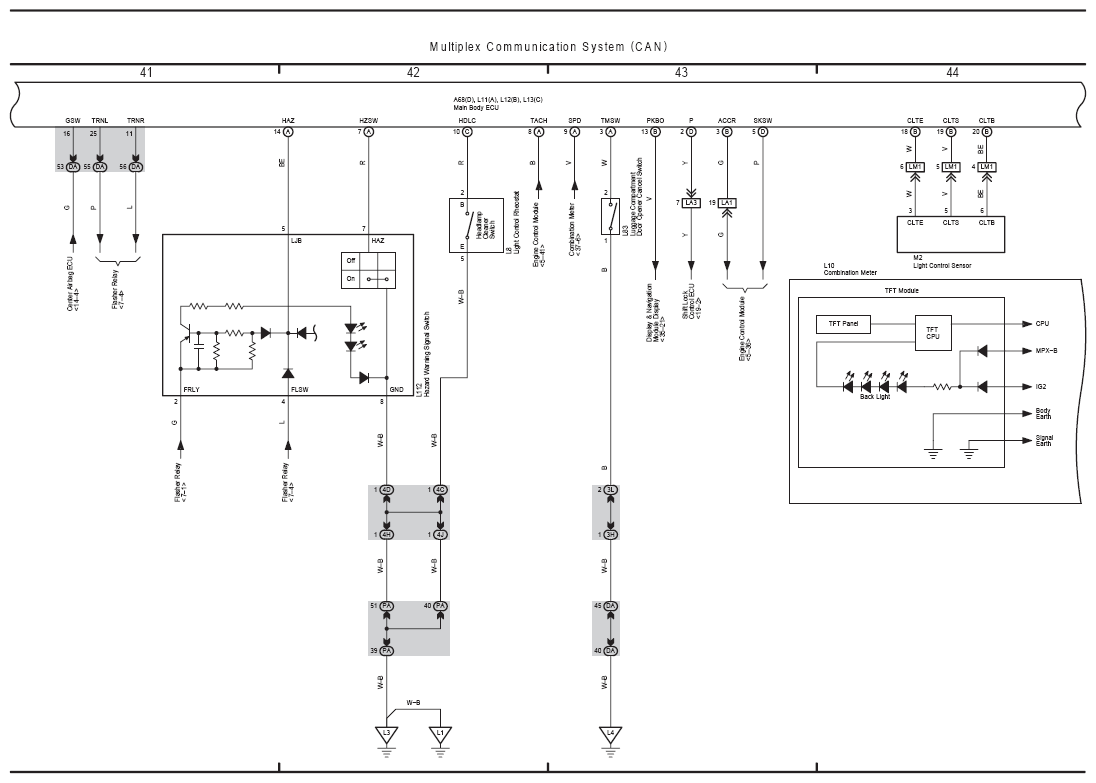

Fig 11: Multiplex Communication System (CAN) Electrical Wiring Diagram (11 Of 34)

G08941779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

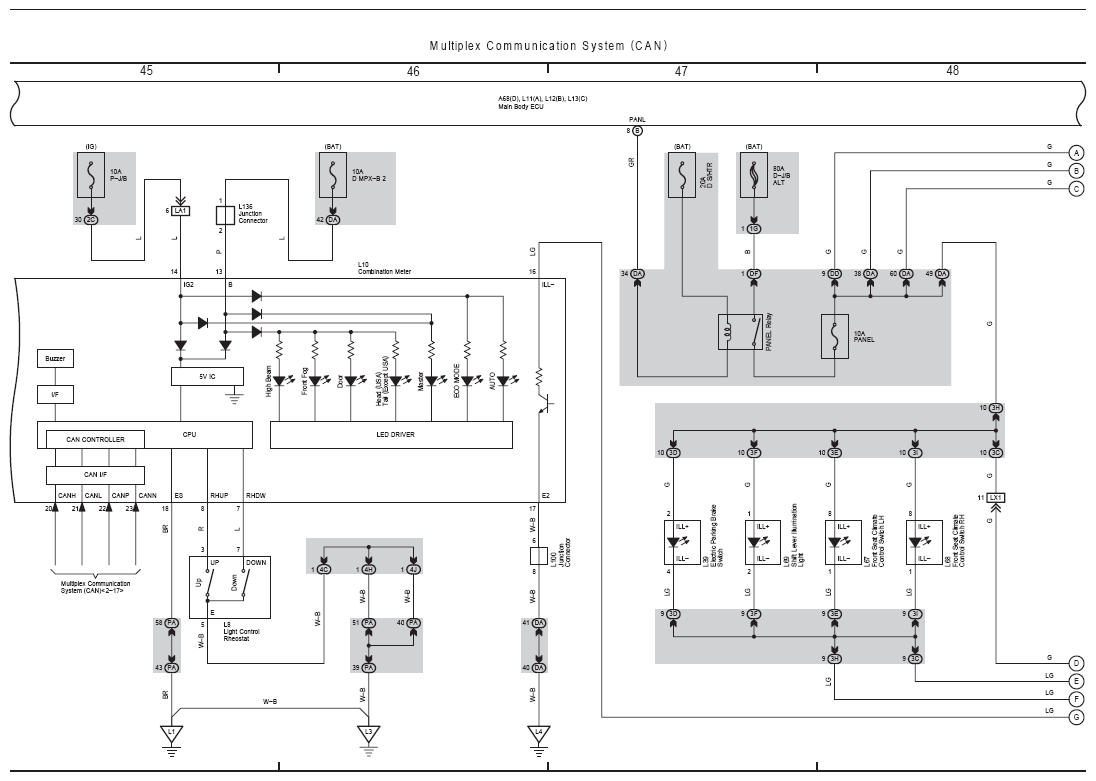

Fig 12: Multiplex Communication System (CAN) Electrical Wiring Diagram (12 Of 34)

G08941780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

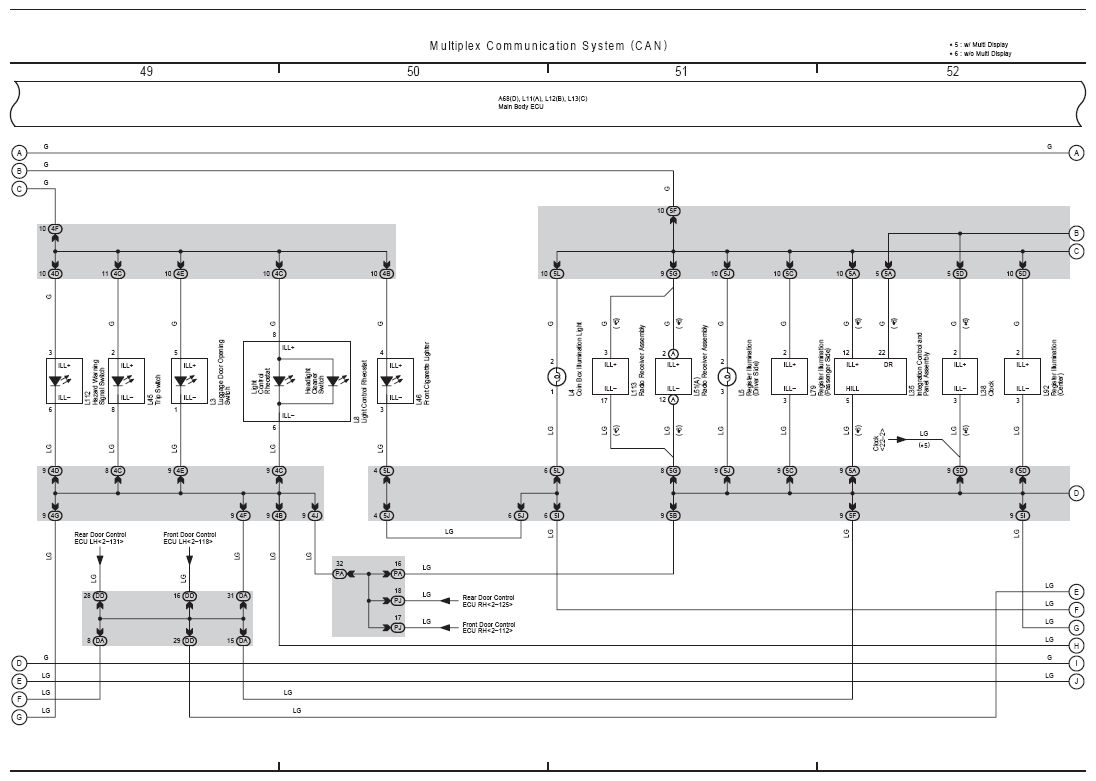

Fig 13: Multiplex Communication System (CAN) Electrical Wiring Diagram (13 Of 34)

G08941781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

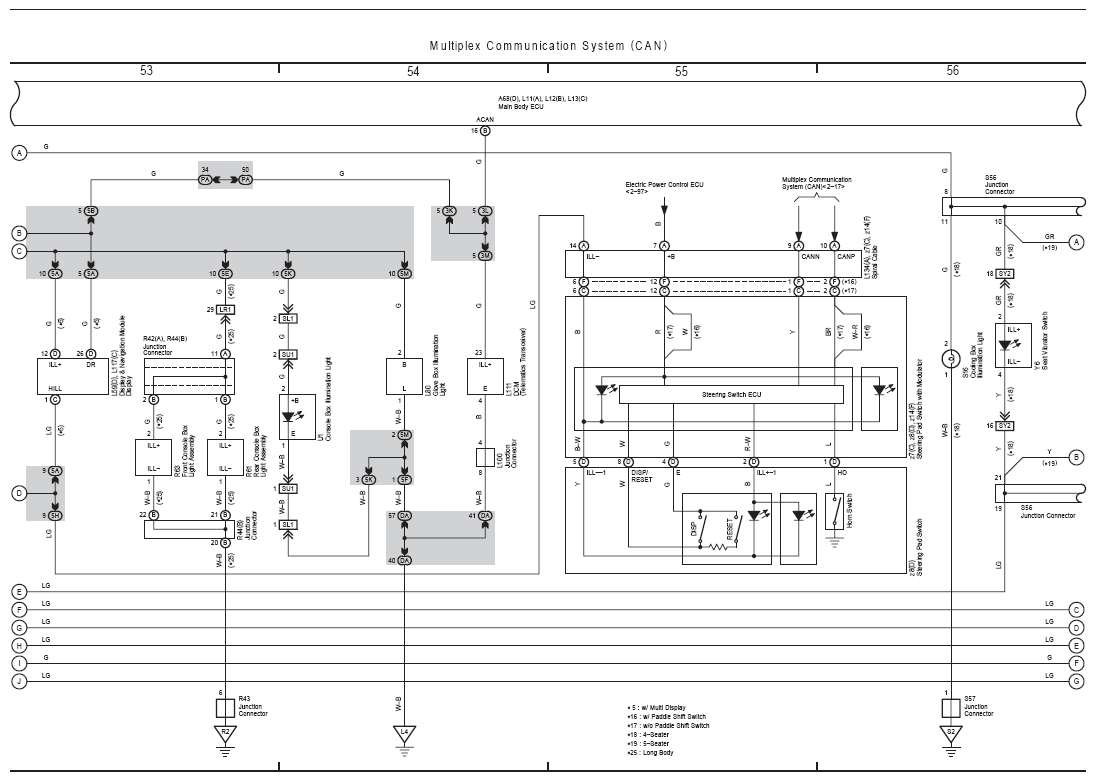

Fig 14: Multiplex Communication System (CAN) Electrical Wiring Diagram (14 Of 34)

G08941782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

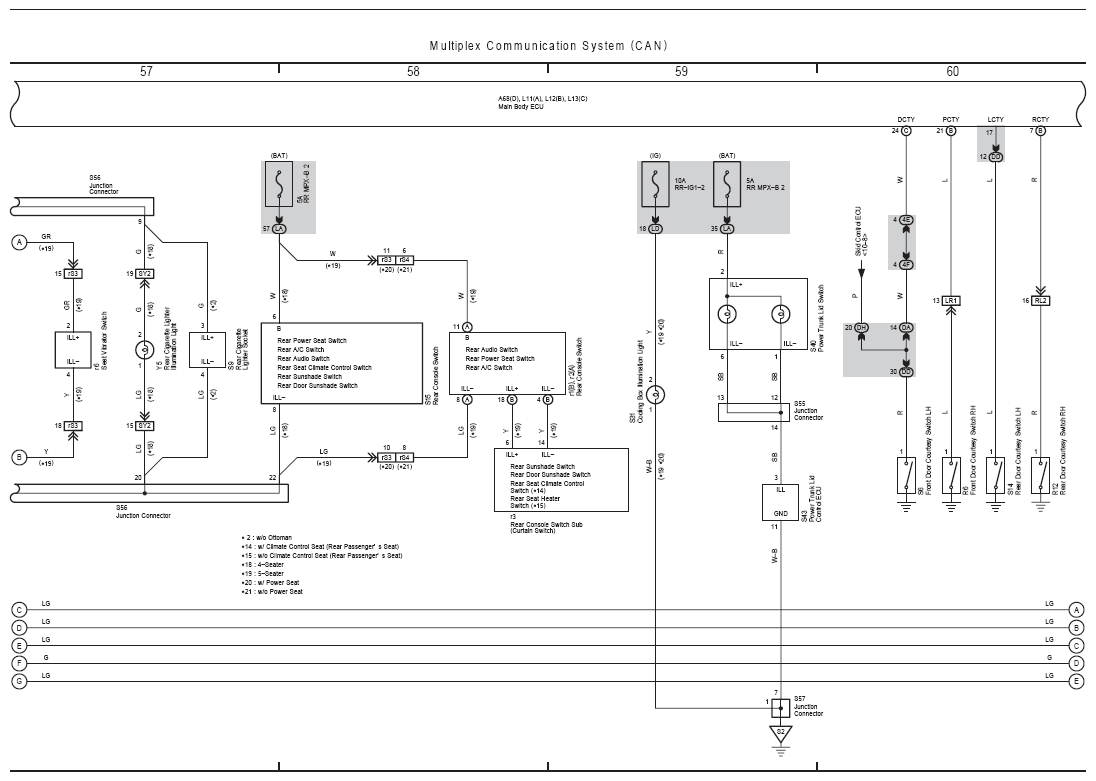

Fig 15: Multiplex Communication System (CAN) Electrical Wiring Diagram (15 Of 34)

G08941783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

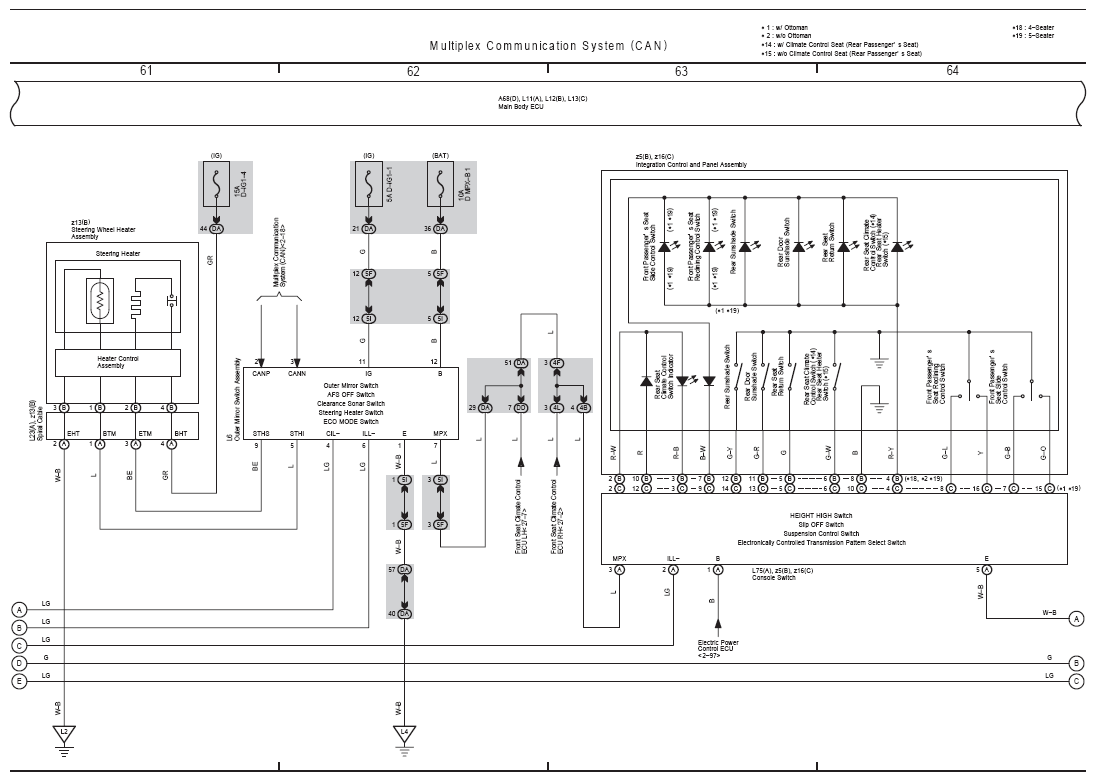

Fig 16: Multiplex Communication System (CAN) Electrical Wiring Diagram (16 Of 34)

G08941784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

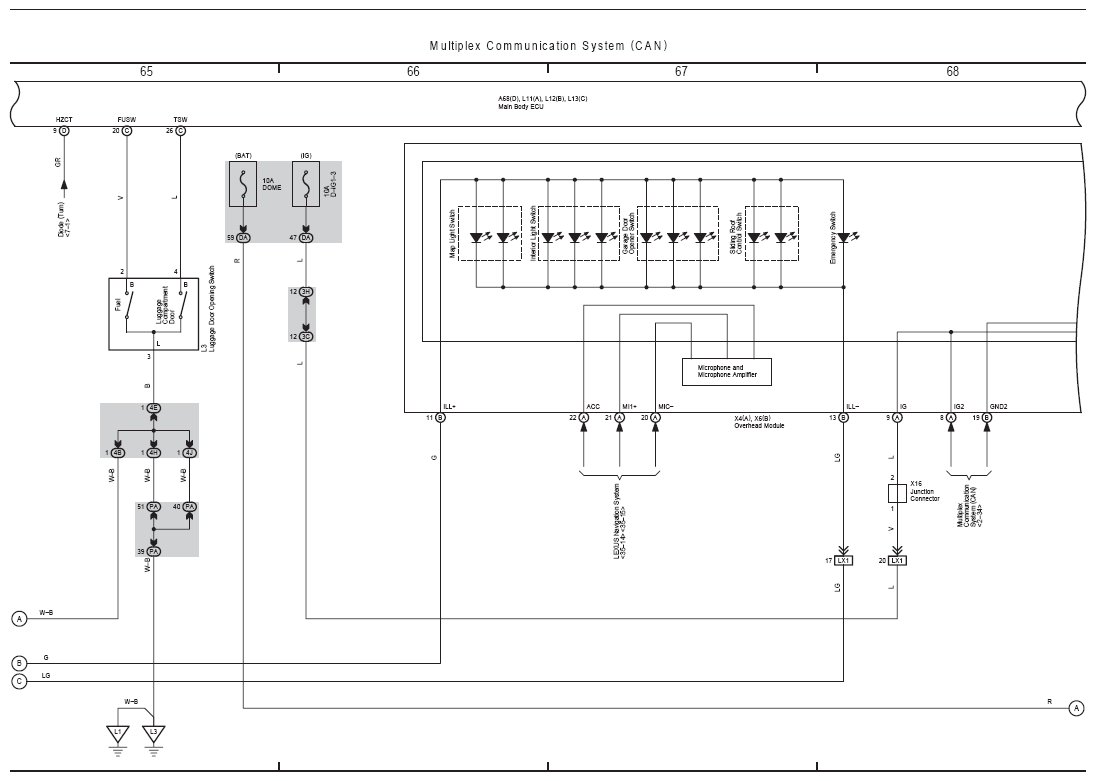

Fig 17: Multiplex Communication System (CAN) Electrical Wiring Diagram (17 Of 34)

G08941785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

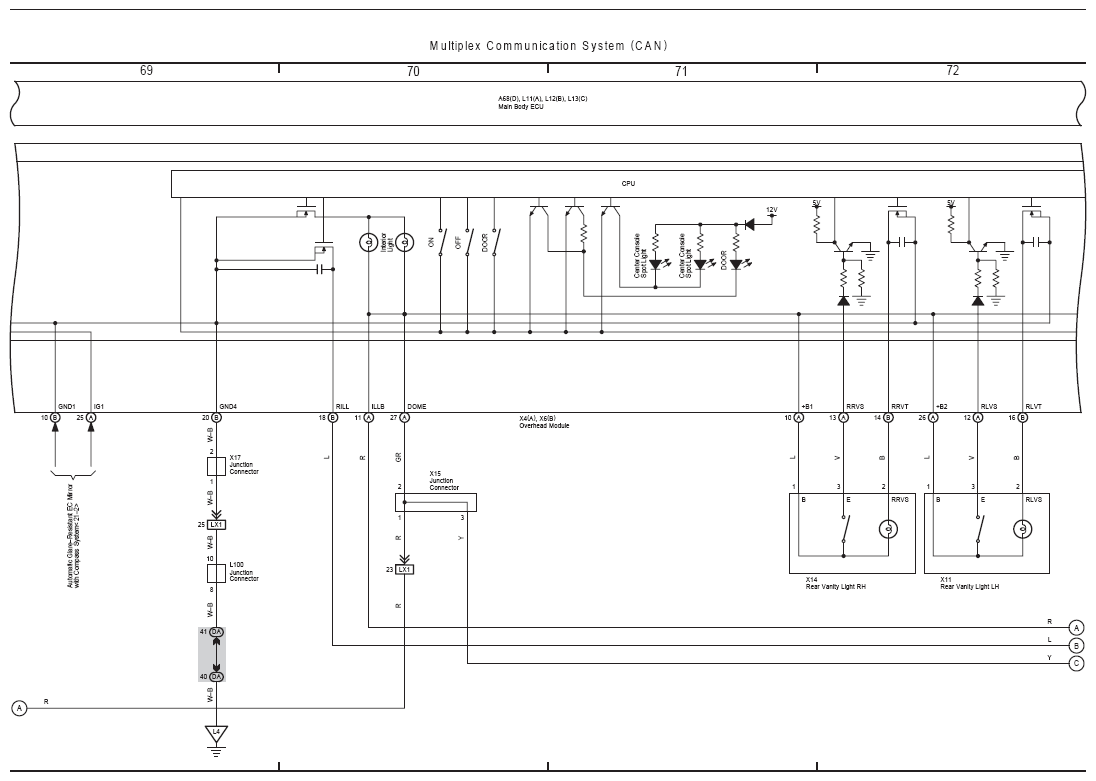

Fig 18: Multiplex Communication System (CAN) Electrical Wiring Diagram (18 Of 34)

G08941786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

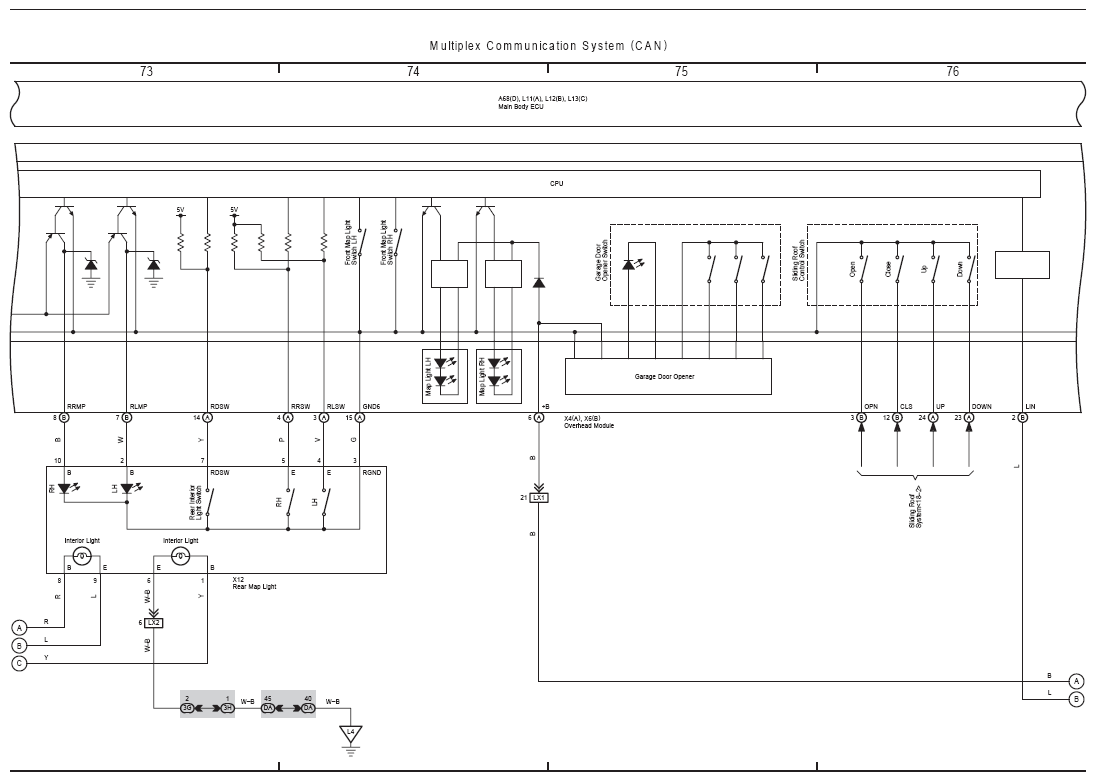

Fig 19: Multiplex Communication System (CAN) Electrical Wiring Diagram (19 Of 34)

G08941787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

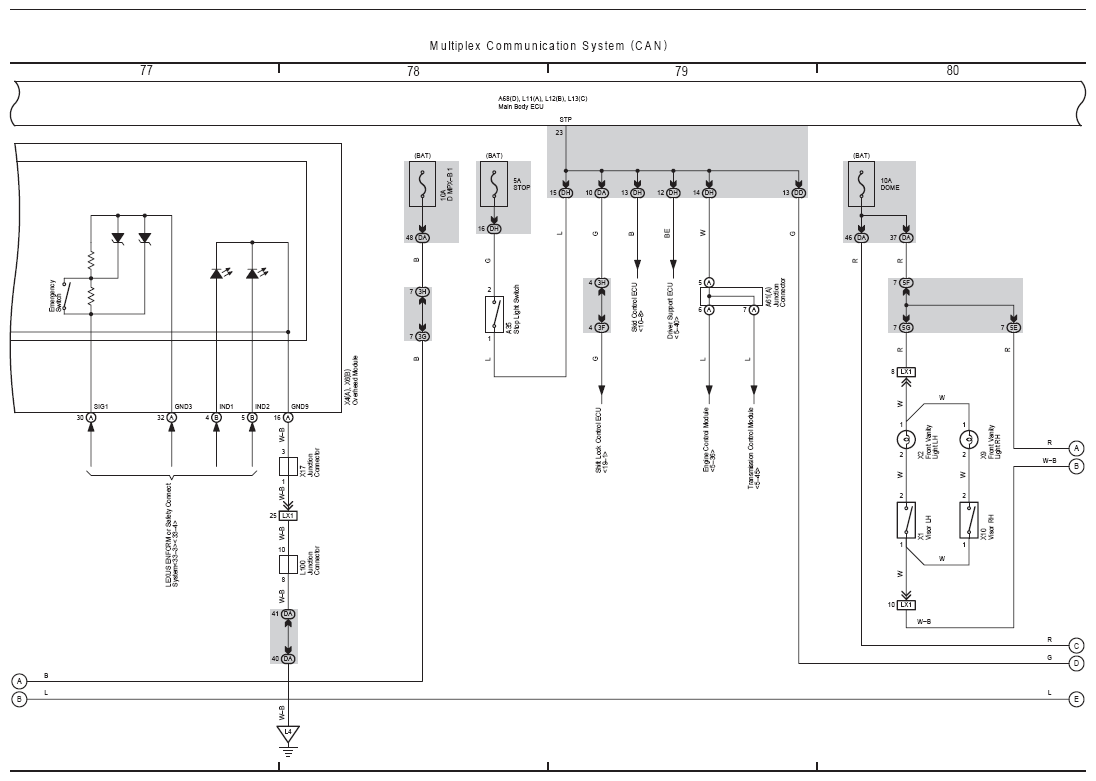

Fig 20: Multiplex Communication System (CAN) Electrical Wiring Diagram (20 Of 34)

G08941788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

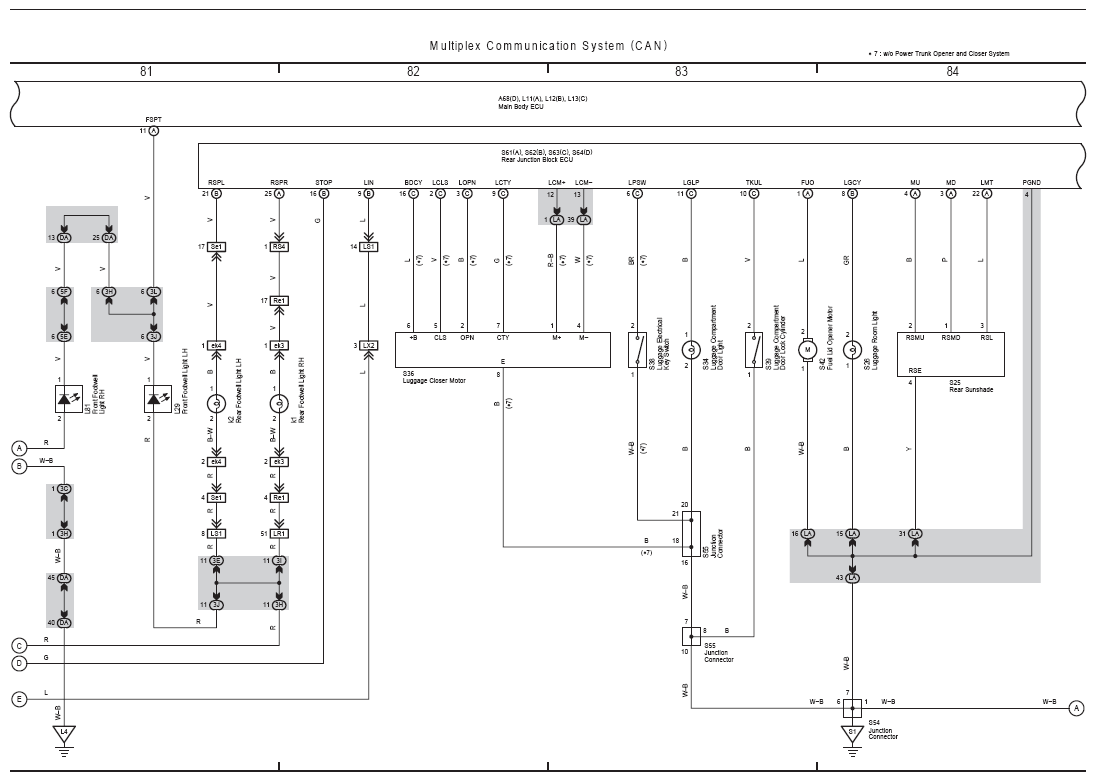

Fig 21: Multiplex Communication System (CAN) Electrical Wiring Diagram (21 Of 34)

G08941789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

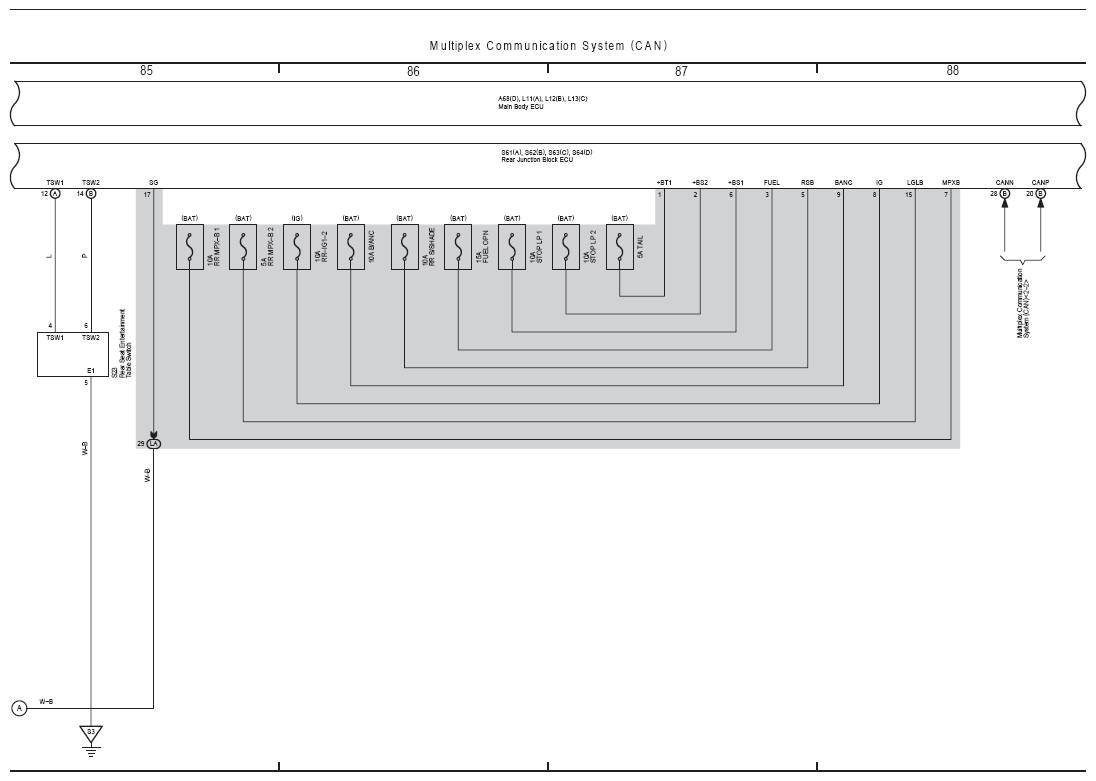

Fig 22: Multiplex Communication System (CAN) Electrical Wiring Diagram (22 Of 34)

G08941790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

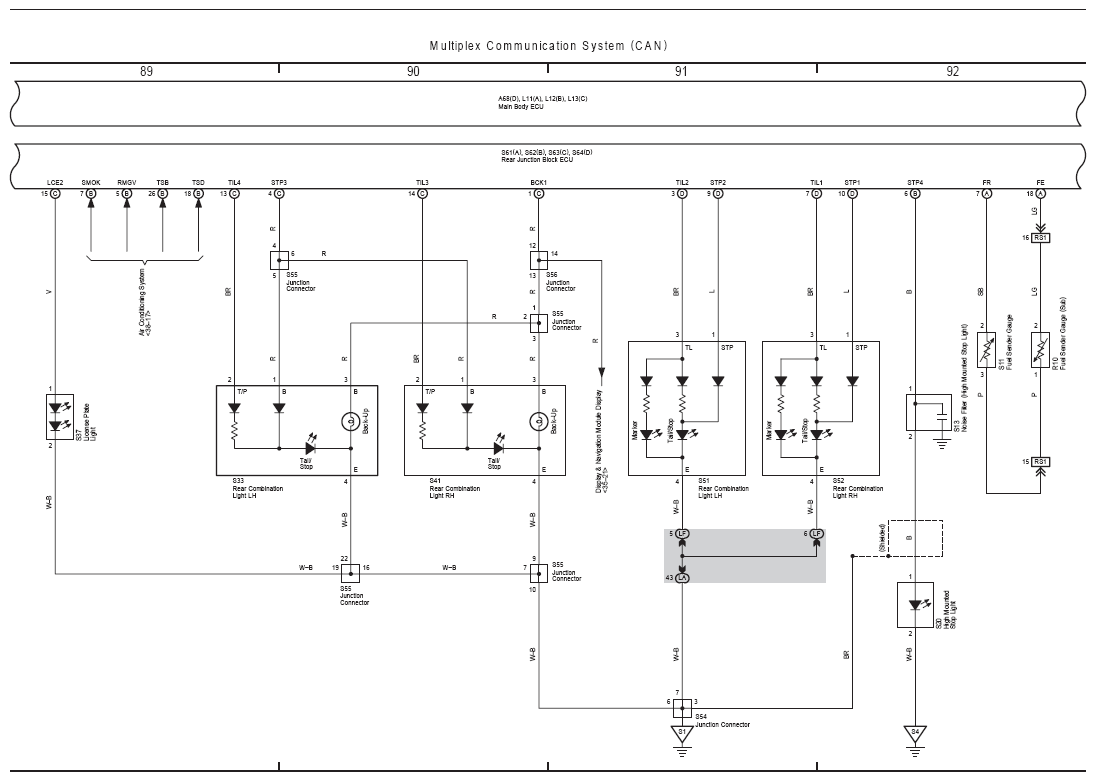

Fig 23: Multiplex Communication System (CAN) Electrical Wiring Diagram (23 Of 34)

G08941791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

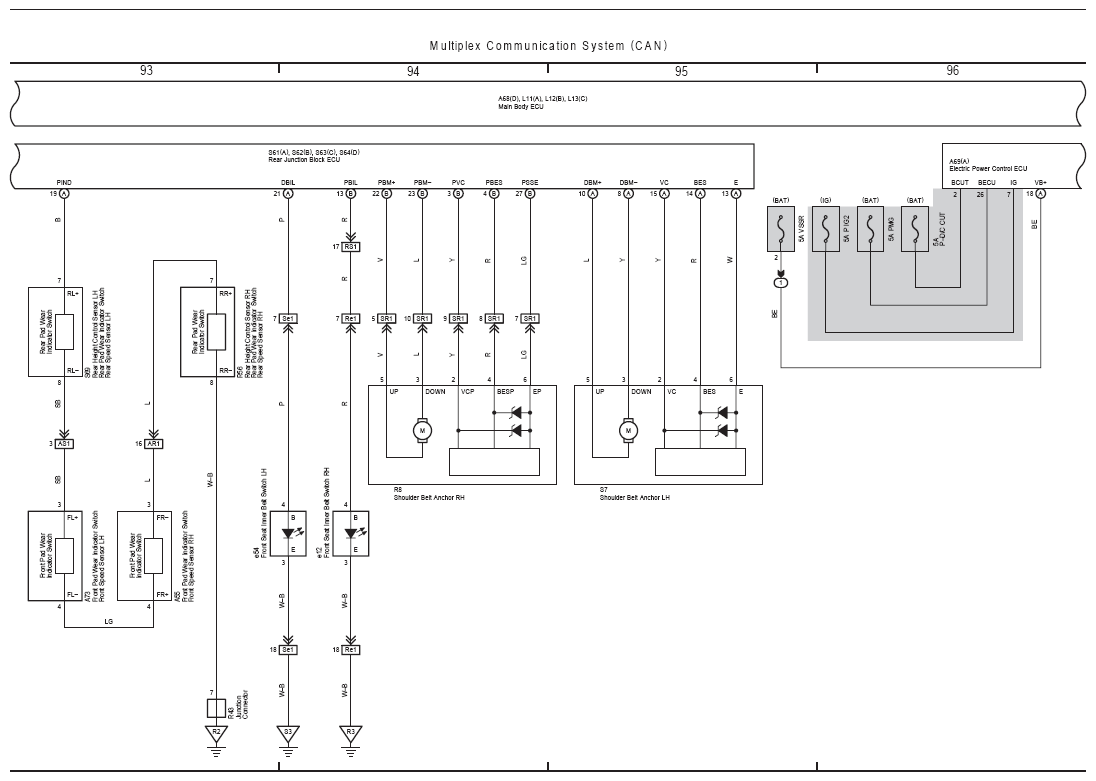

Fig 24: Multiplex Communication System (CAN) Electrical Wiring Diagram (24 Of 34)

G08941792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

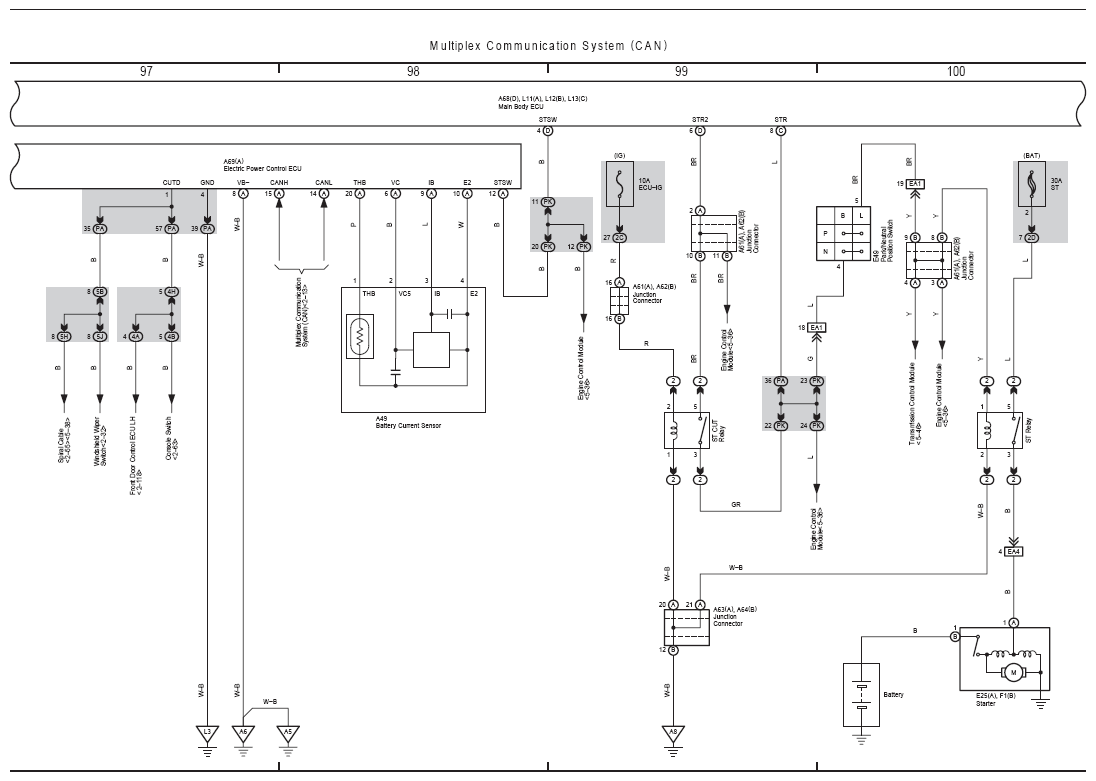

Fig 25: Multiplex Communication System (CAN) Electrical Wiring Diagram (25 Of 34)

G08941793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

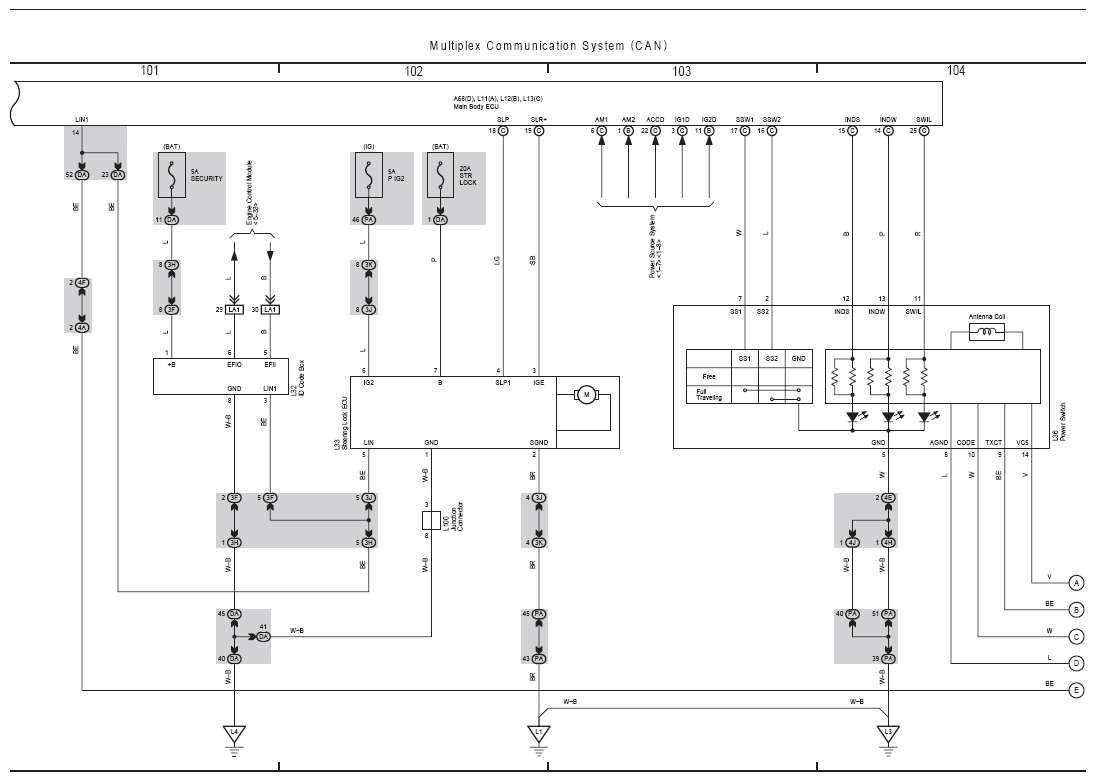

Fig 26: Multiplex Communication System (CAN) Electrical Wiring Diagram (26 Of 34)

G08941794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

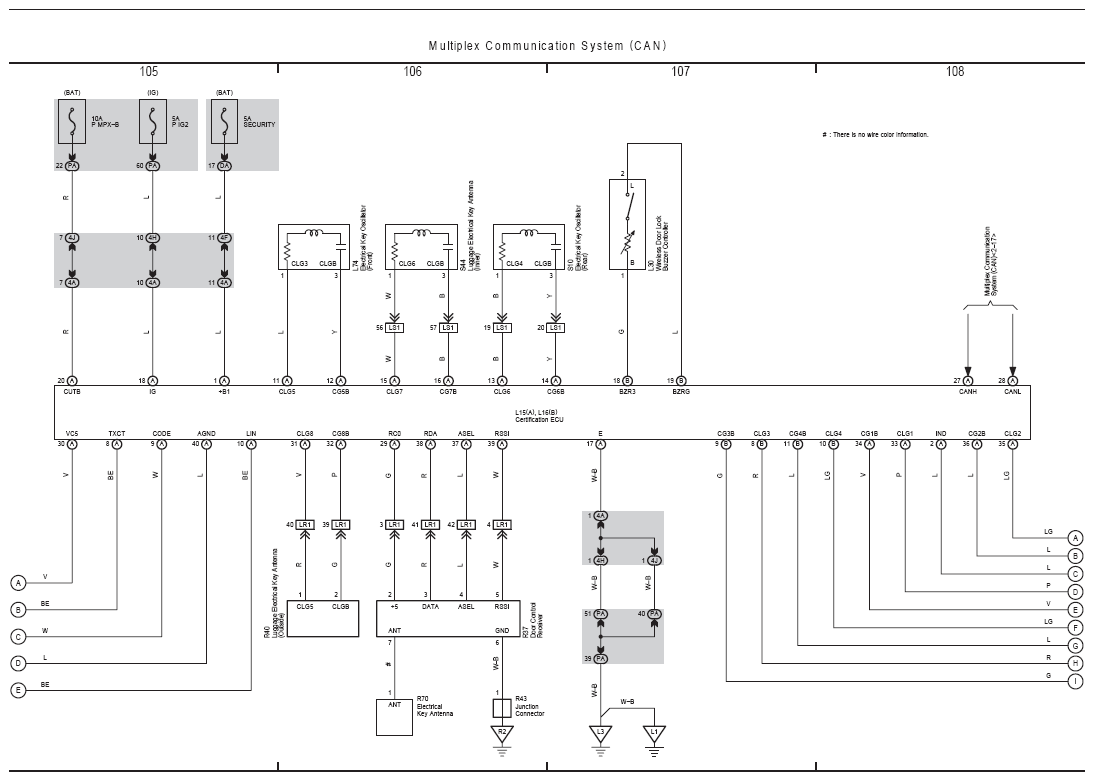

Fig 27: Multiplex Communication System (CAN) Electrical Wiring Diagram (27 Of 34)

G08941795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

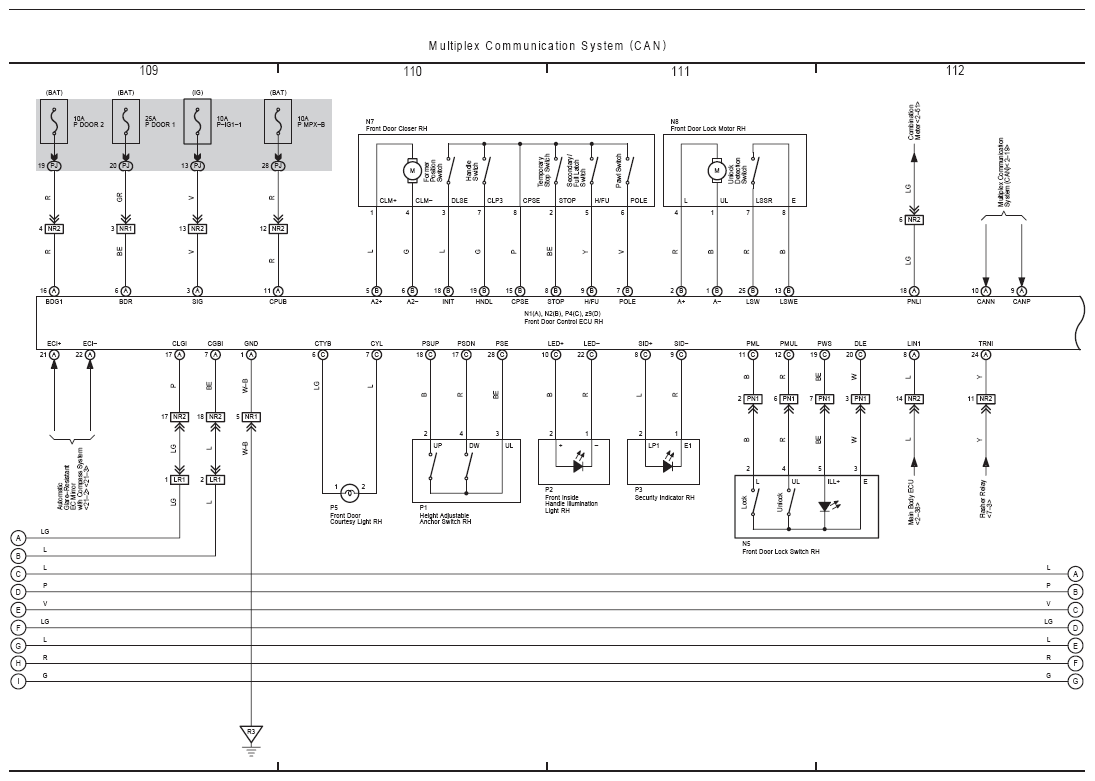

Fig 28: Multiplex Communication System (CAN) Electrical Wiring Diagram (28 Of 34)

G08941796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

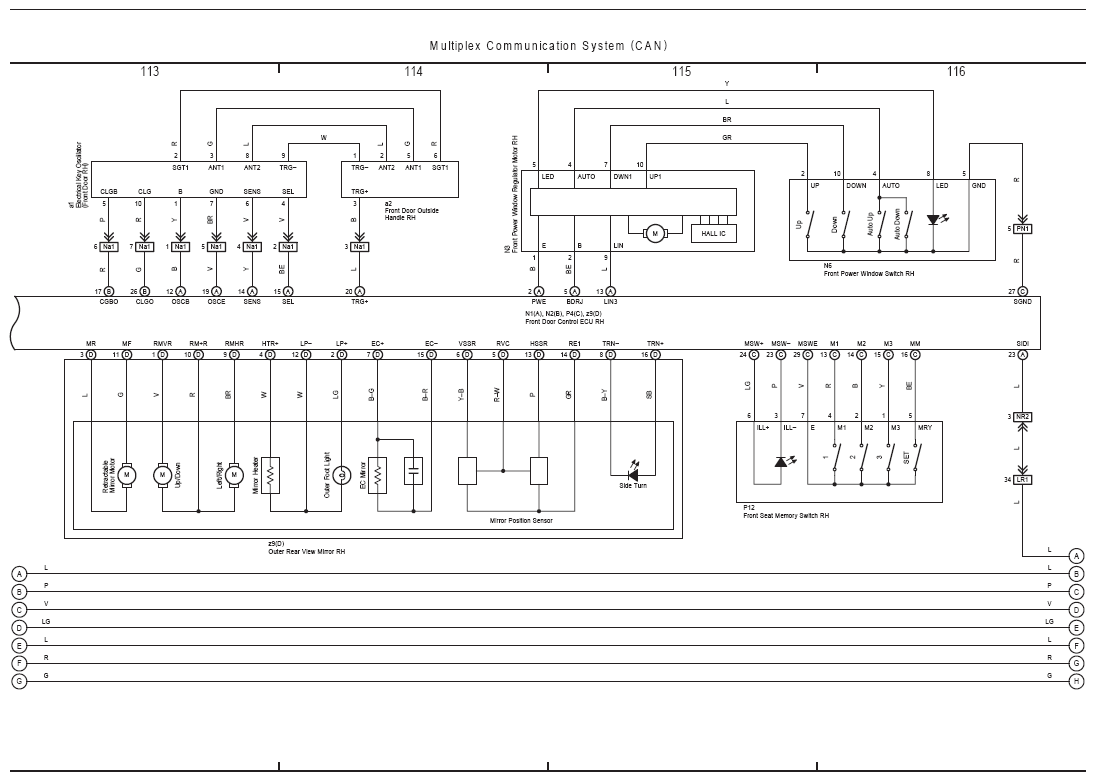

Fig 29: Multiplex Communication System (CAN) Electrical Wiring Diagram (29 Of 34)

G08941797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

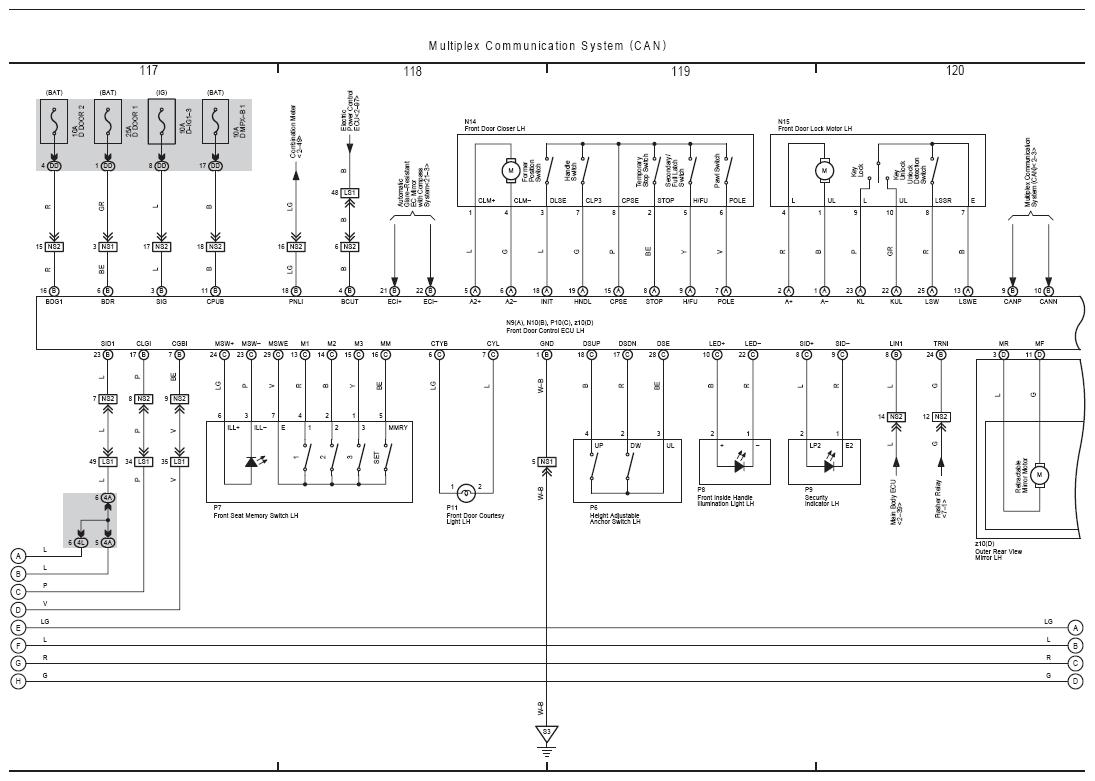

Fig 30: Multiplex Communication System (CAN) Electrical Wiring Diagram (30 Of 34)

G08941798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

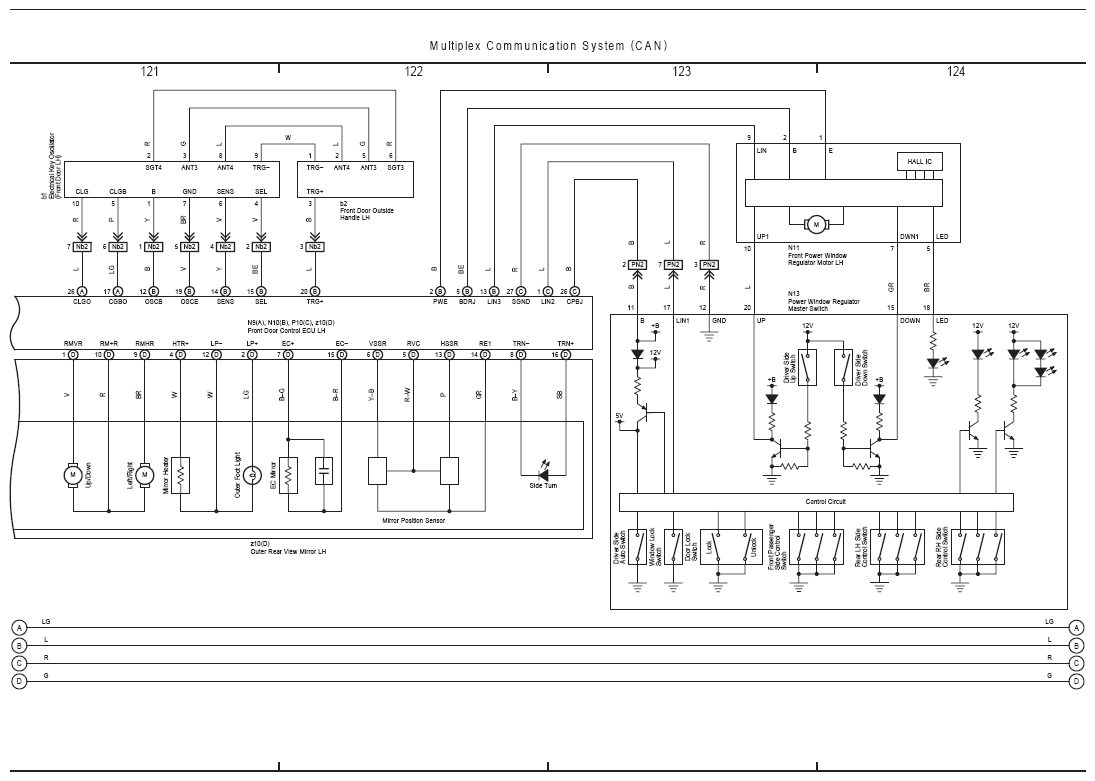

Fig 31: Multiplex Communication System (CAN) Electrical Wiring Diagram (31 Of 34)

G08941799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

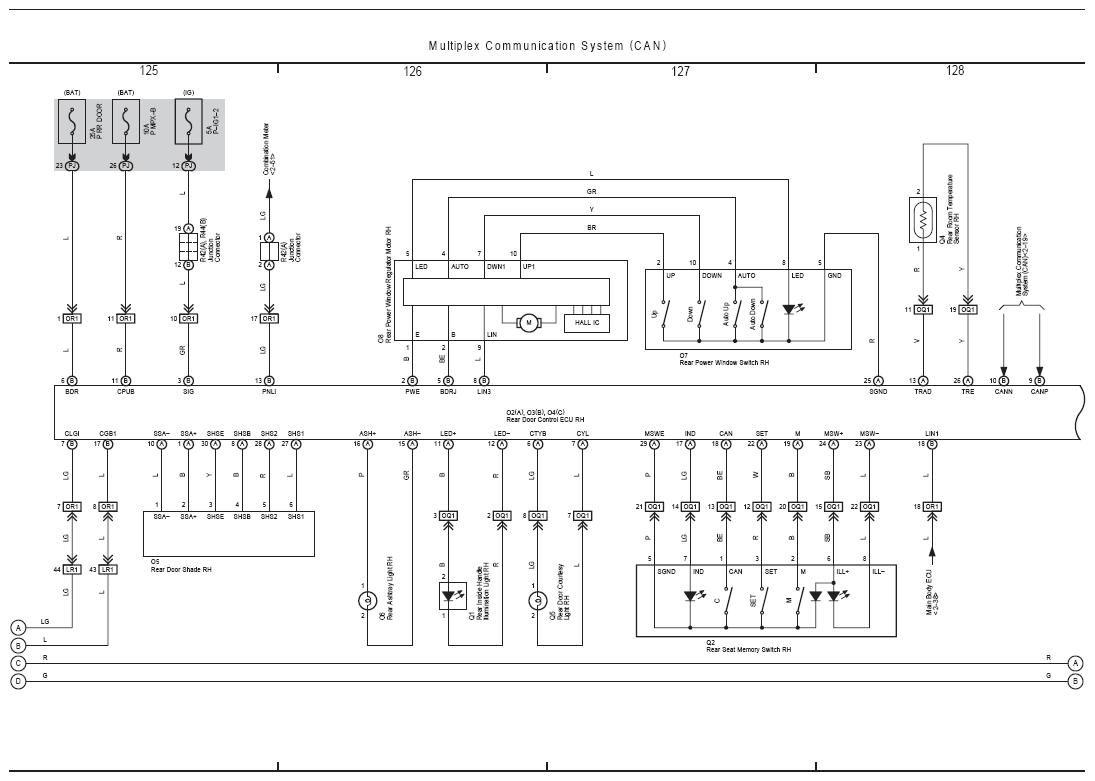

Fig 32: Multiplex Communication System (CAN) Electrical Wiring Diagram (32 Of 34)

G08941800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

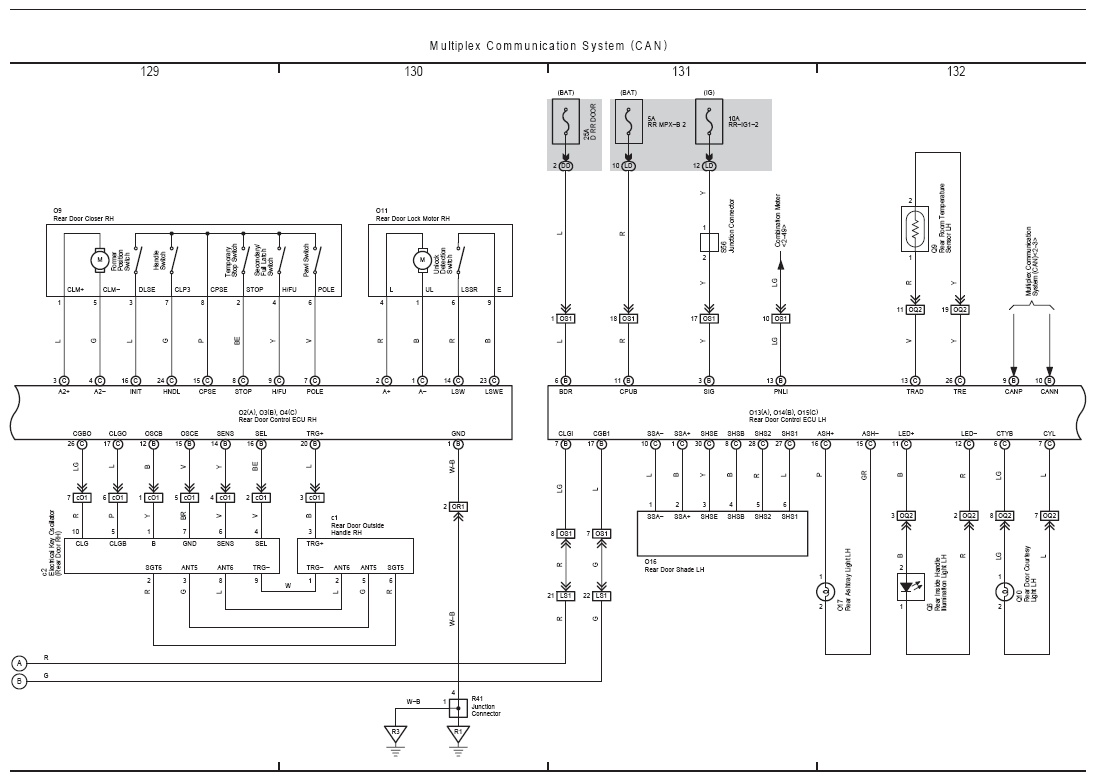

Fig 33: Multiplex Communication System (CAN) Electrical Wiring Diagram (33 Of 34)

G08941801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

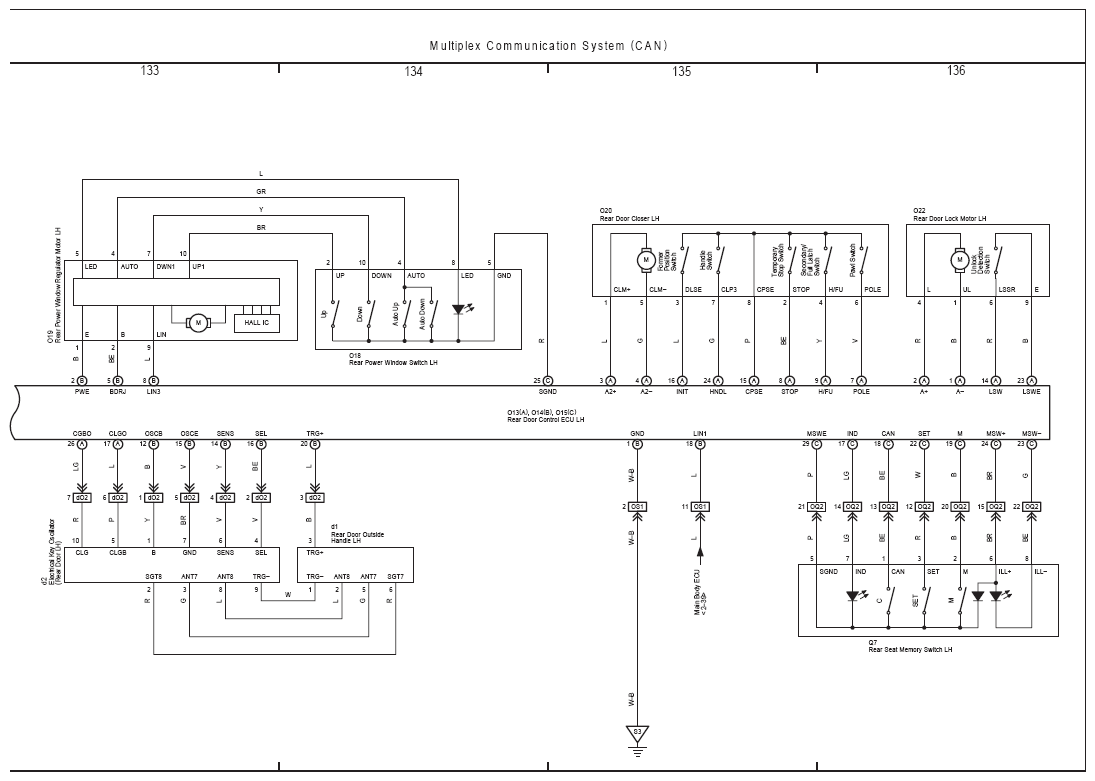

Fig 34: Multiplex Communication System (CAN) Electrical Wiring Diagram (34 Of 34)

G08941802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
