Overall Electrical Wiring Diagram: EPS

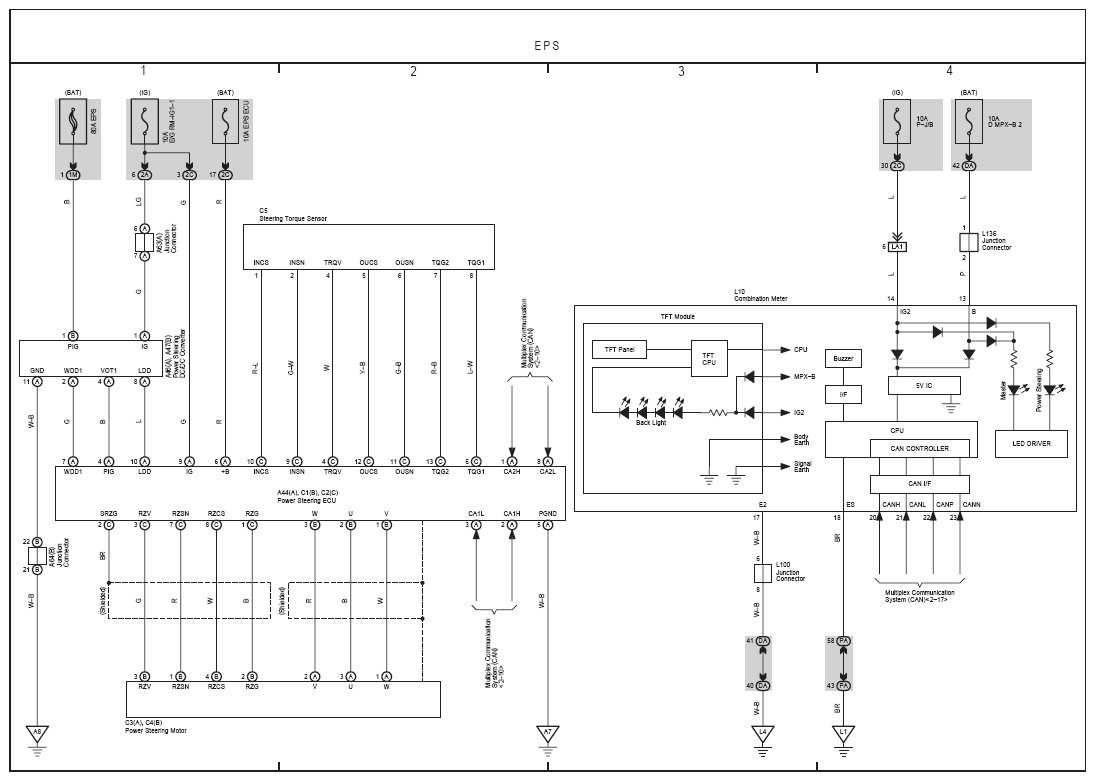

Fig 1: EPS Electrical Wiring Diagram

G08941830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
