Combination Meter

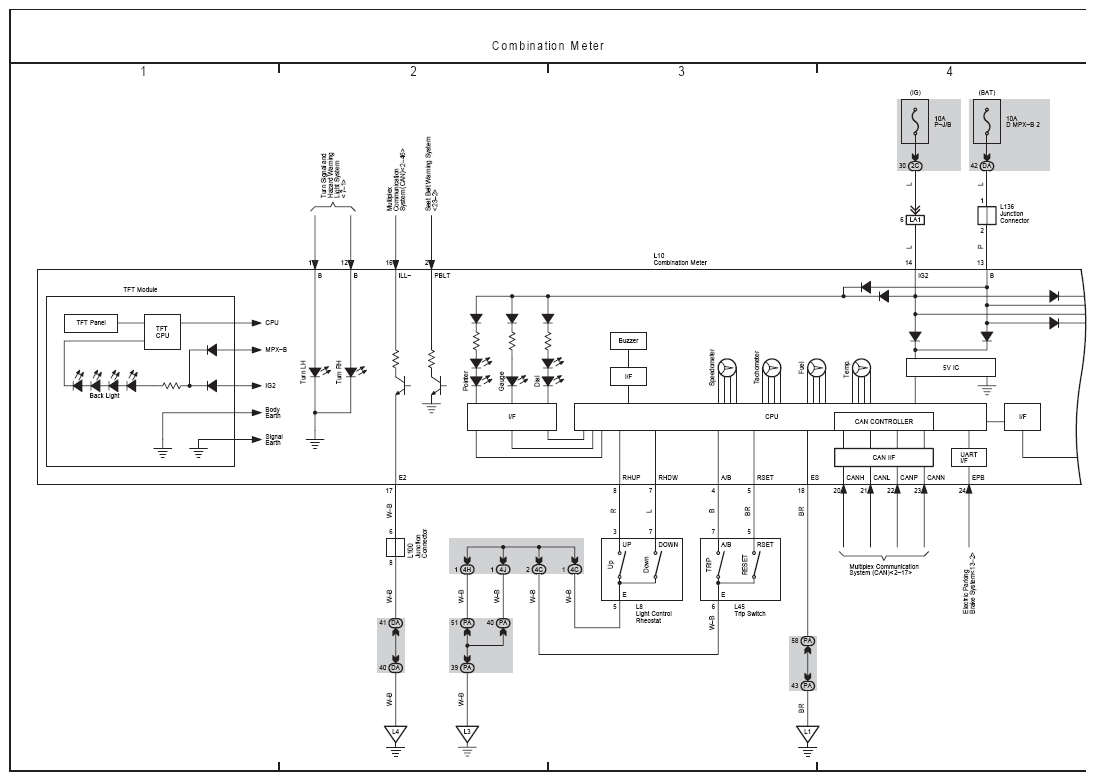

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 3)
G08941879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

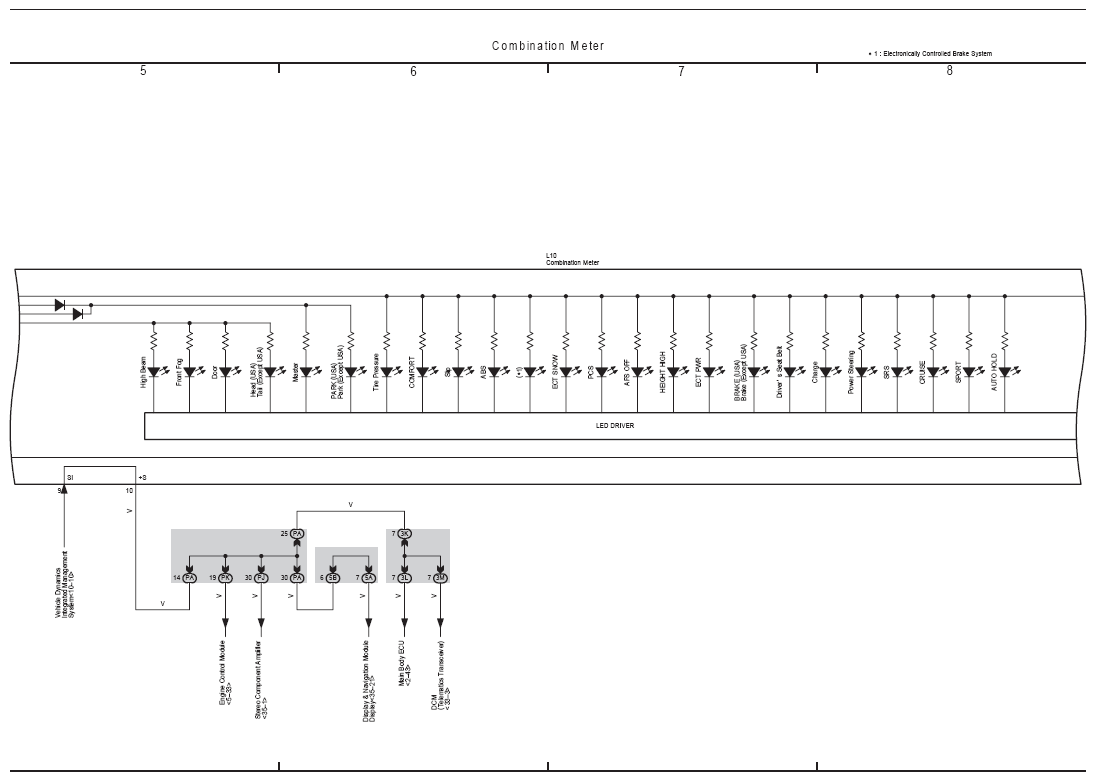

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 3)
G08941880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Combination Meter Electrical Wiring Diagram (3 Of 3)
G08941881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
