Air Conditioning — 2012 Lexus LS 460 AWD Service Manual ~ LEMON Manuals

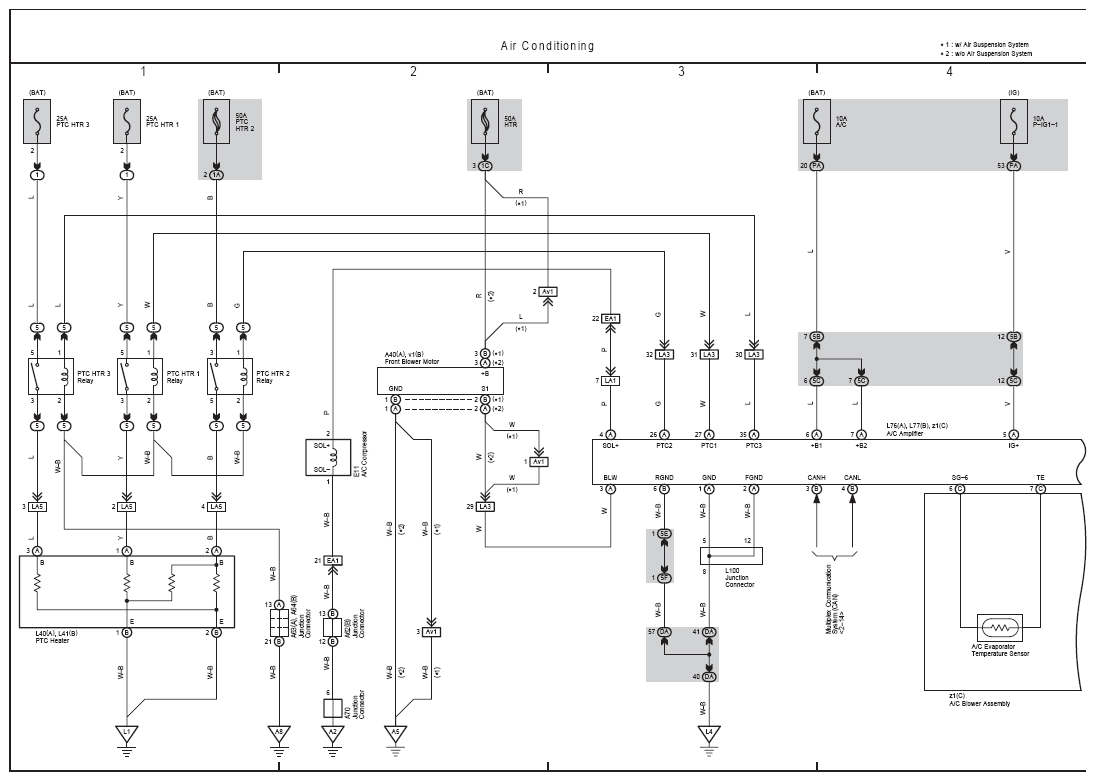

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

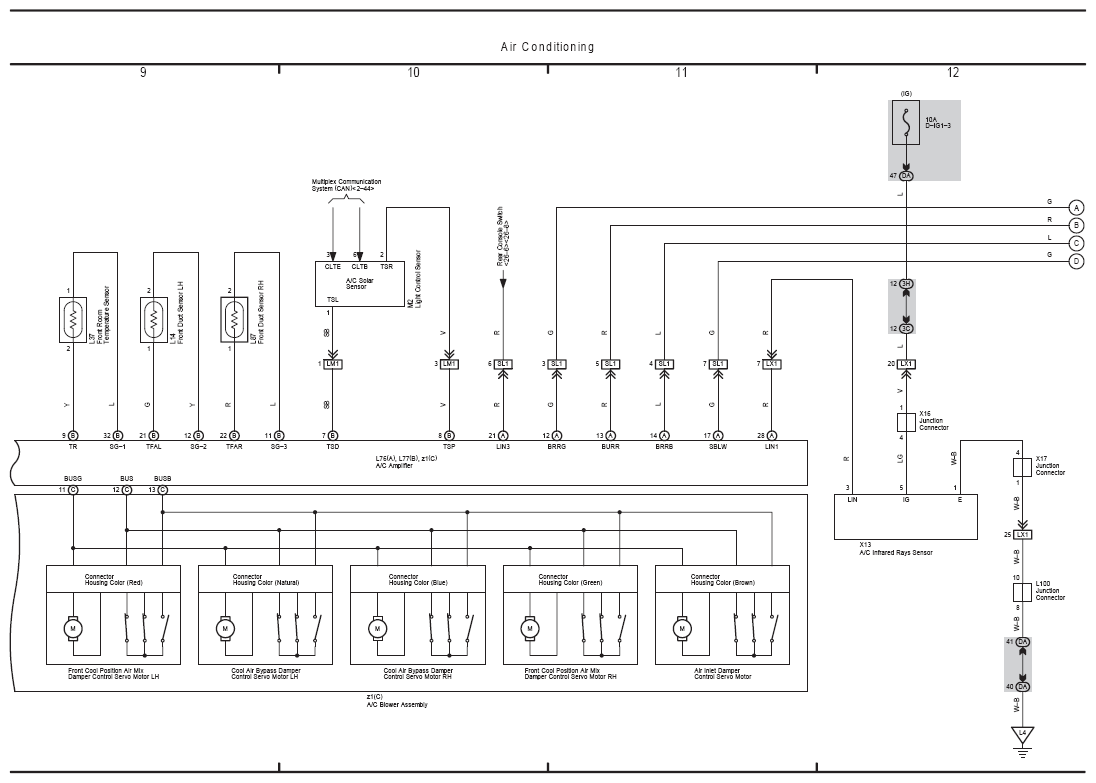

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

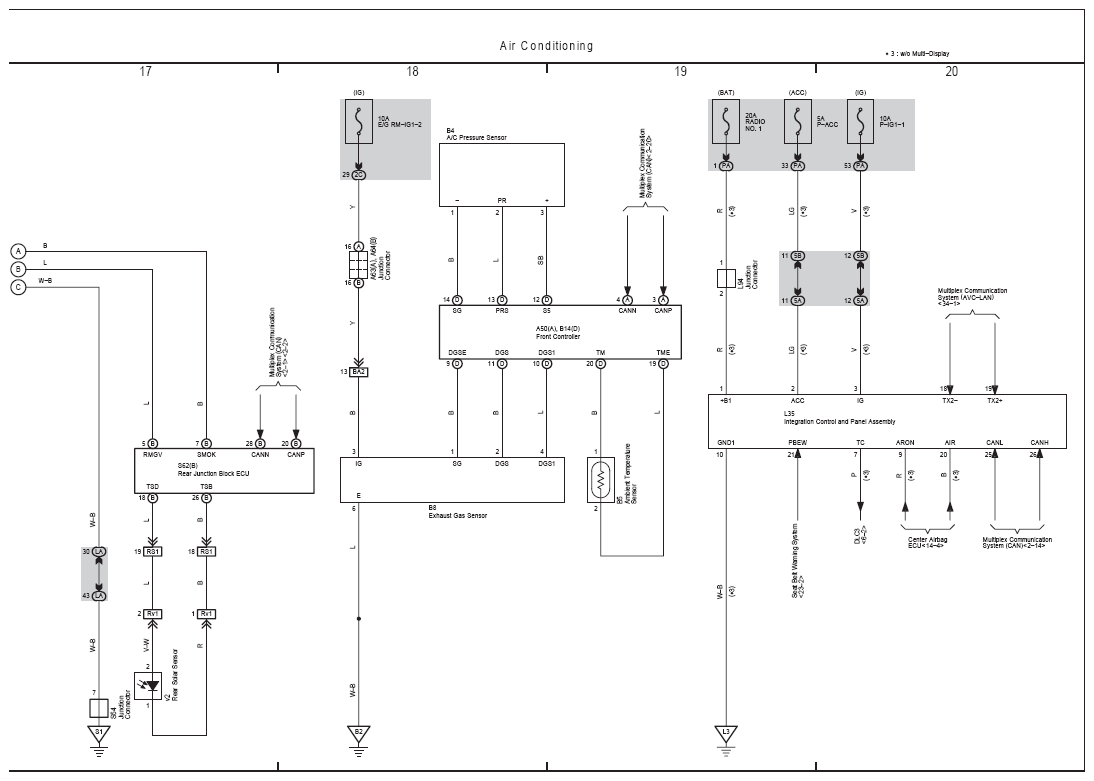

Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

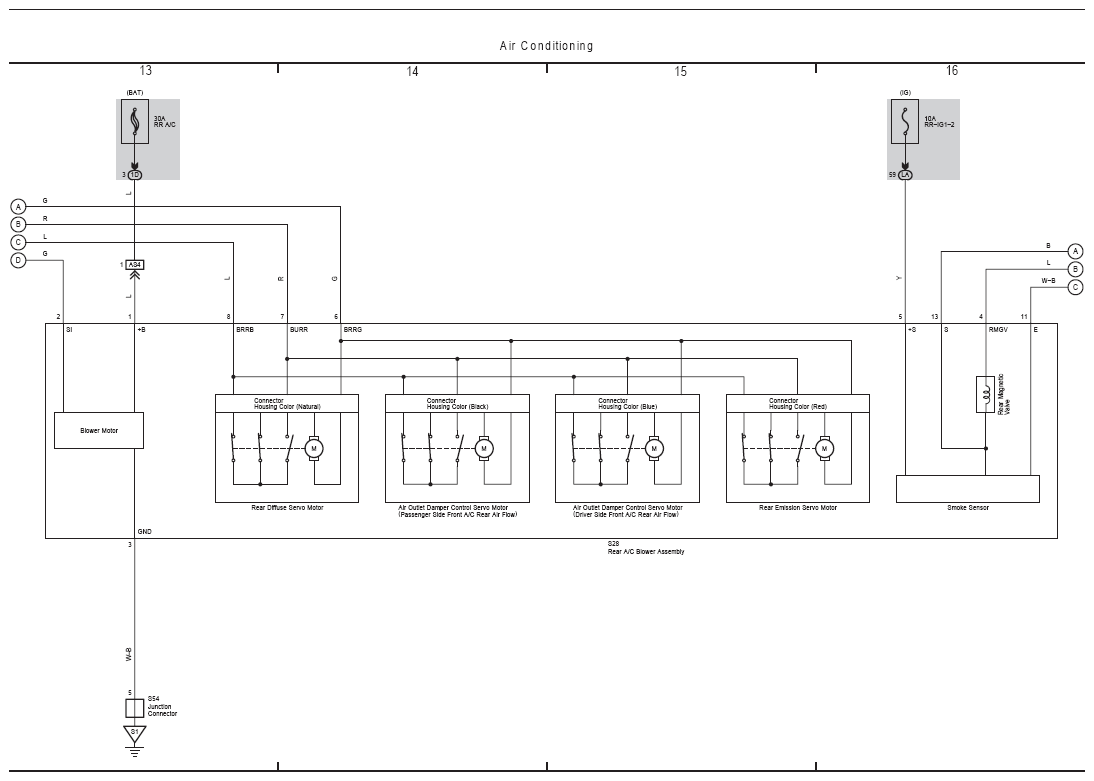

Fig 4: Air Conditioning Electrical Wiring Diagram (4 Of 5)

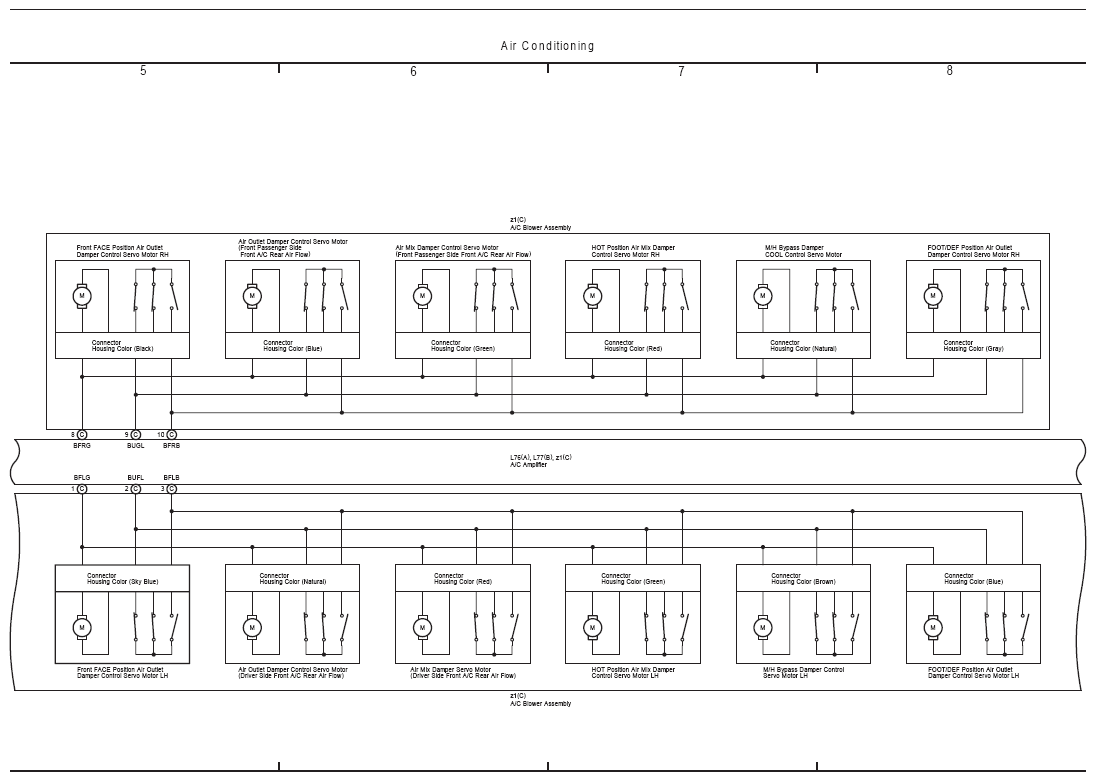

Fig 5: Air Conditioning Electrical Wiring Diagram (5 Of 5)
