: Location of Ground Points

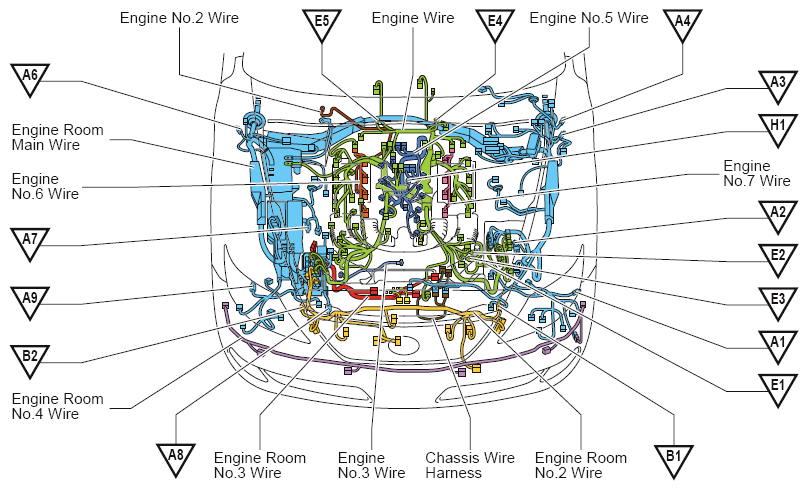

Fig 1: Locating Ground Points
G08940539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

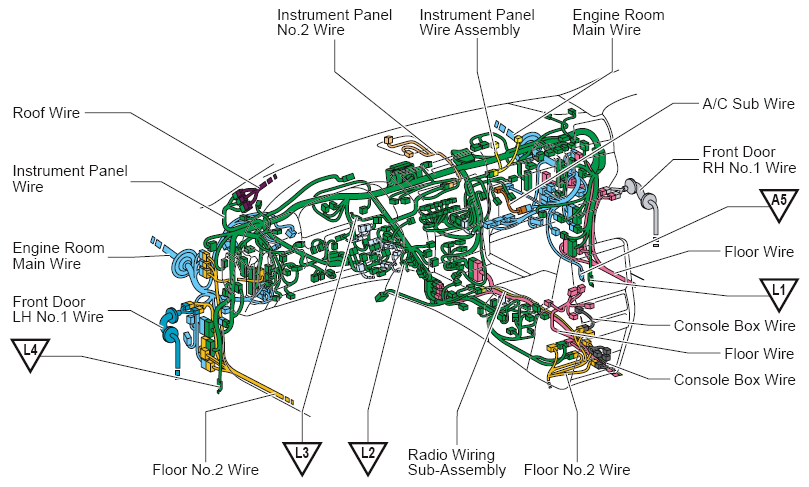

Fig 1: Locating Ground Points
G08940541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Ground Points
G08940543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
