Parts Location: Illustration

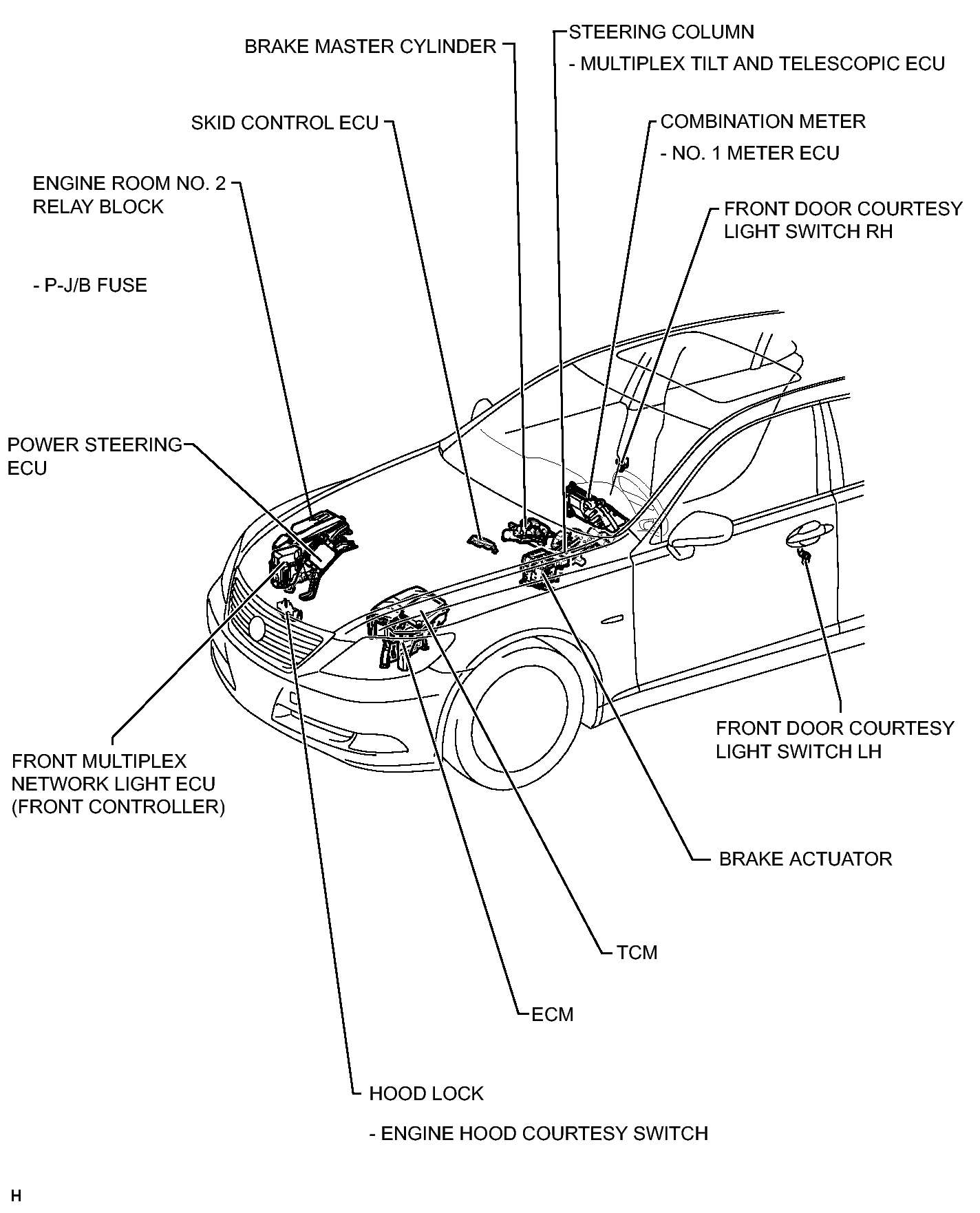

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 8)
GTY352267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (2 Of 8)
GTY152735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

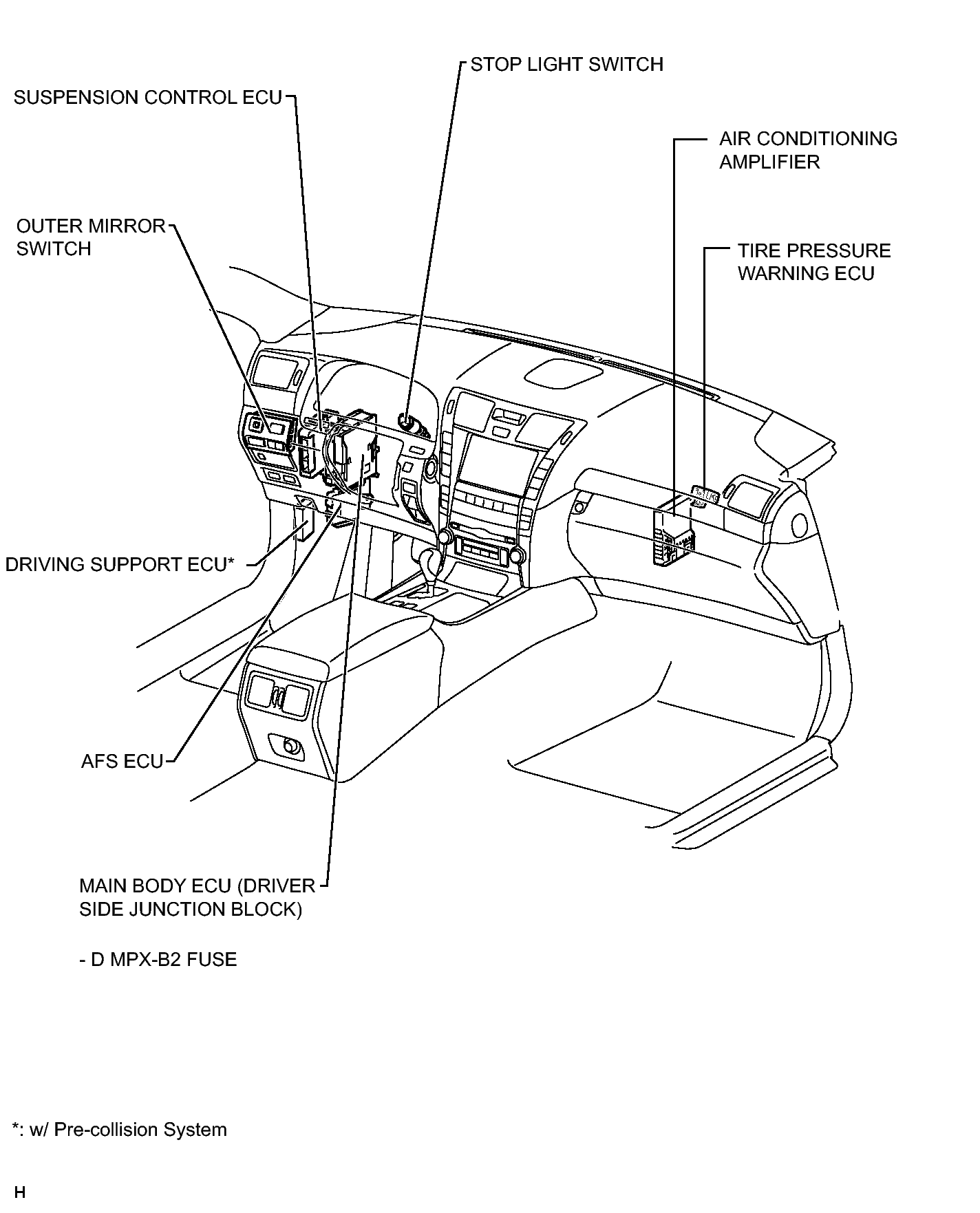

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 8)
GTY355458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (4 Of 8)
GTY122454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (5 Of 8)
GTY152952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

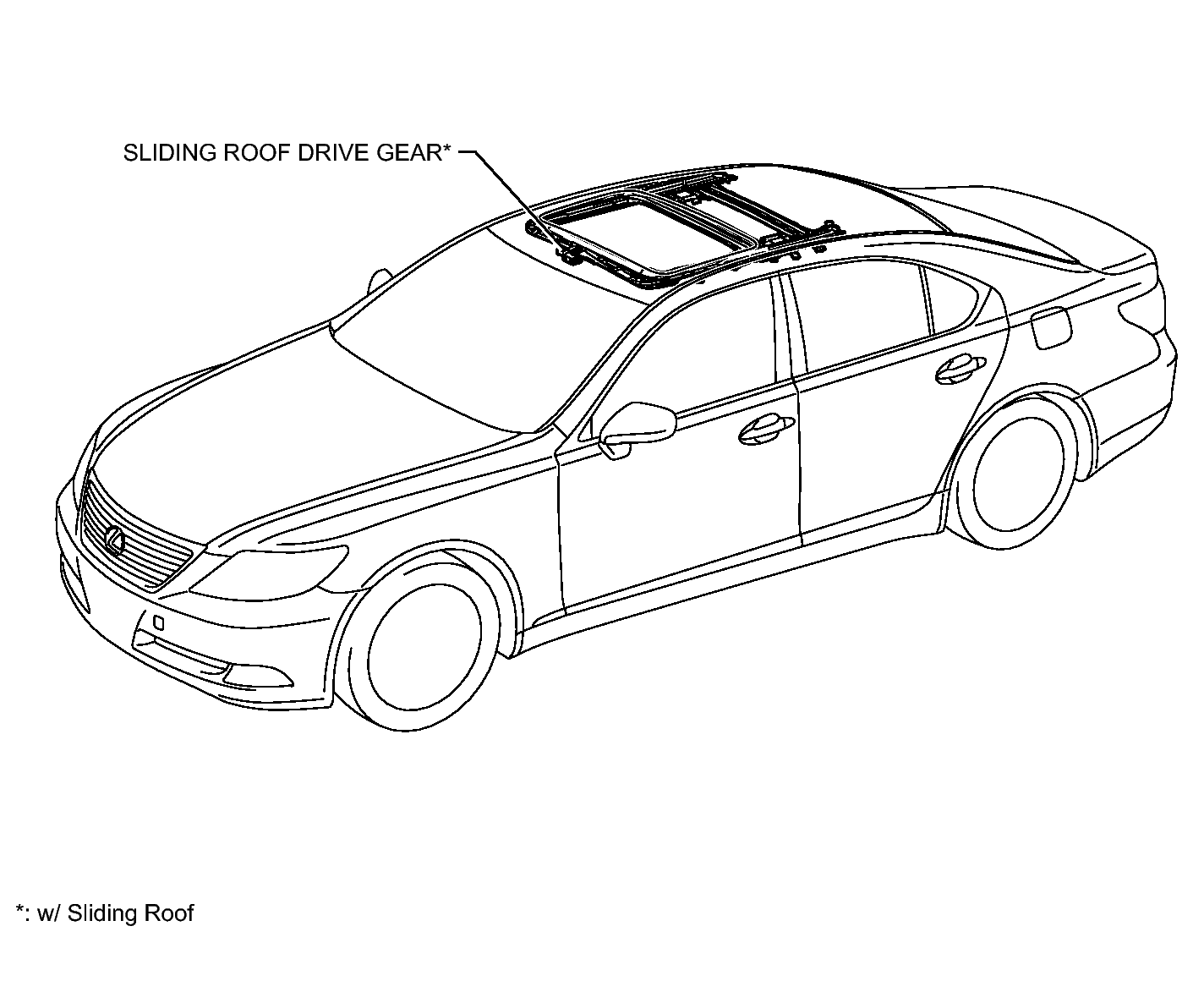

Fig 1: Identifying Meter / Gauge System Components Location (6 Of 8)
GTY269348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

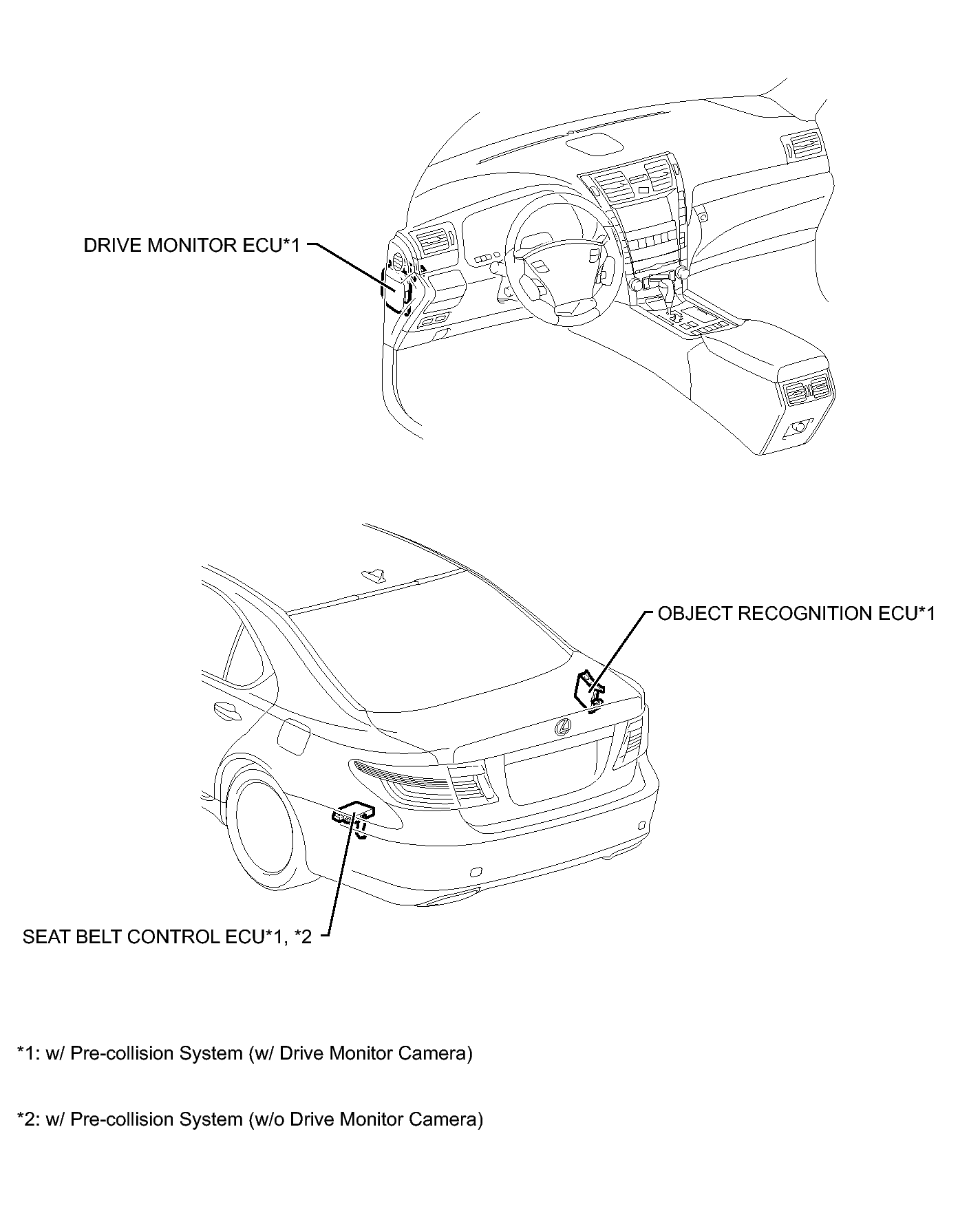

Fig 1: Identifying Meter / Gauge System Components Location (7 Of 8)
GTY284368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (8 Of 8)
GTY287852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
