POWER OUTLET SOCKET (For 5-Passenger With Ottoman): Components: Illustration

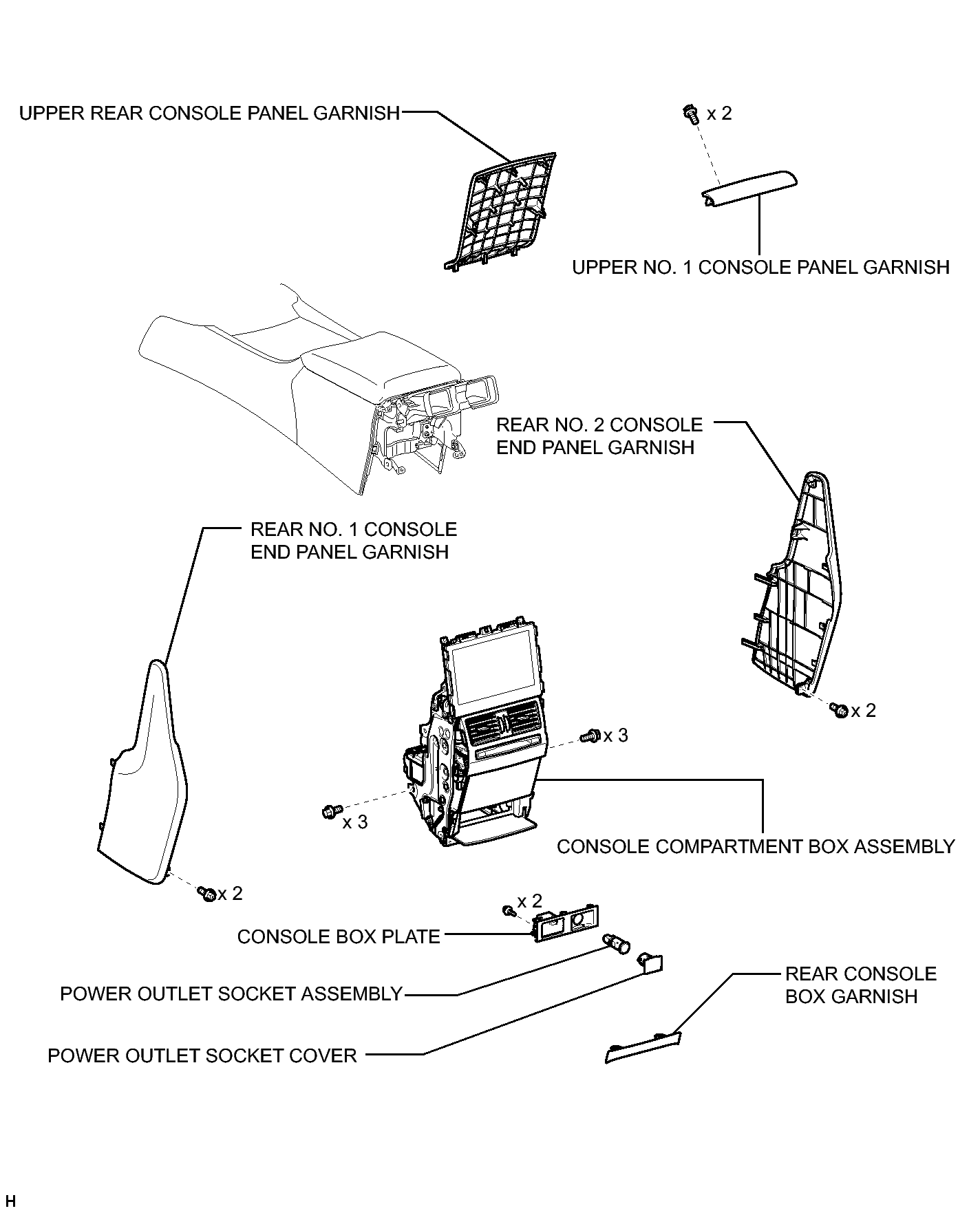

Fig 1: Identifying Power Outlet Socket (For 5-Passenger With Ottoman) Replacement Components
GTY275393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
