Vibration Seat

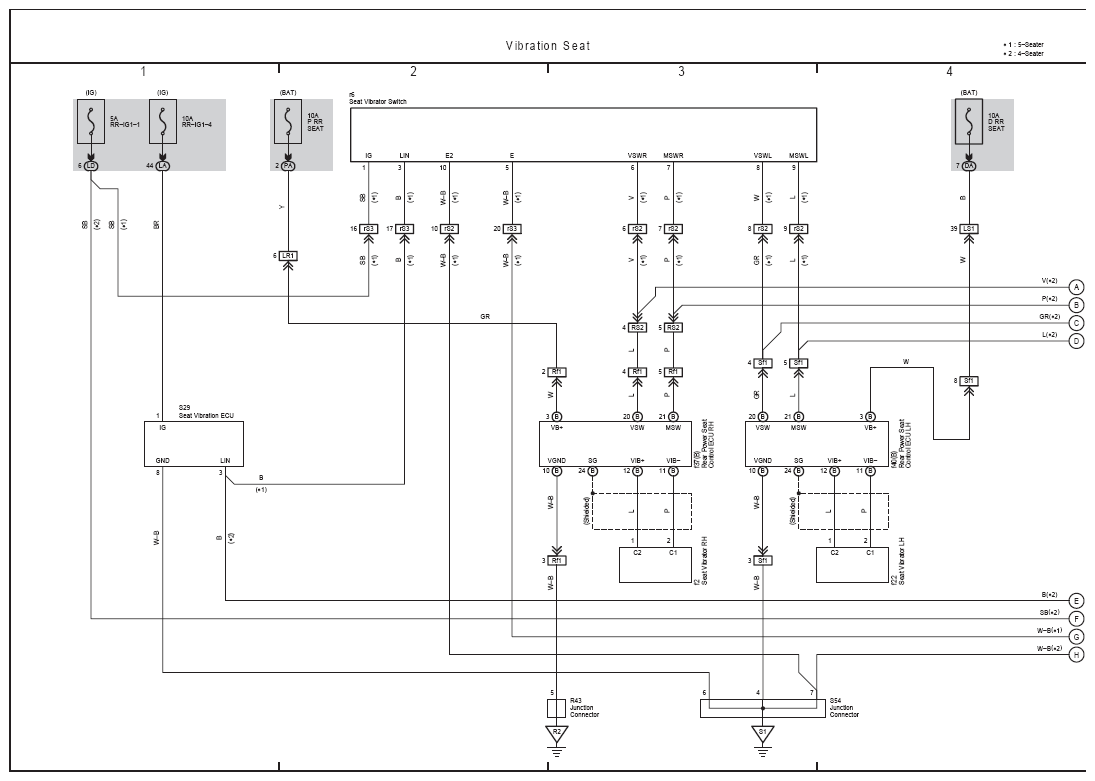

Fig 1: Vibration Seat Electrical Wiring Diagram (1 Of 2)
G08941859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Vibration Seat Electrical Wiring Diagram (2 Of 2)
G08941860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
