Lexus
>>
2012
>>
LS 460 AWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Seat Heater (Rear Passenger's Seat)
Seat Heater (Rear Passenger's Seat)

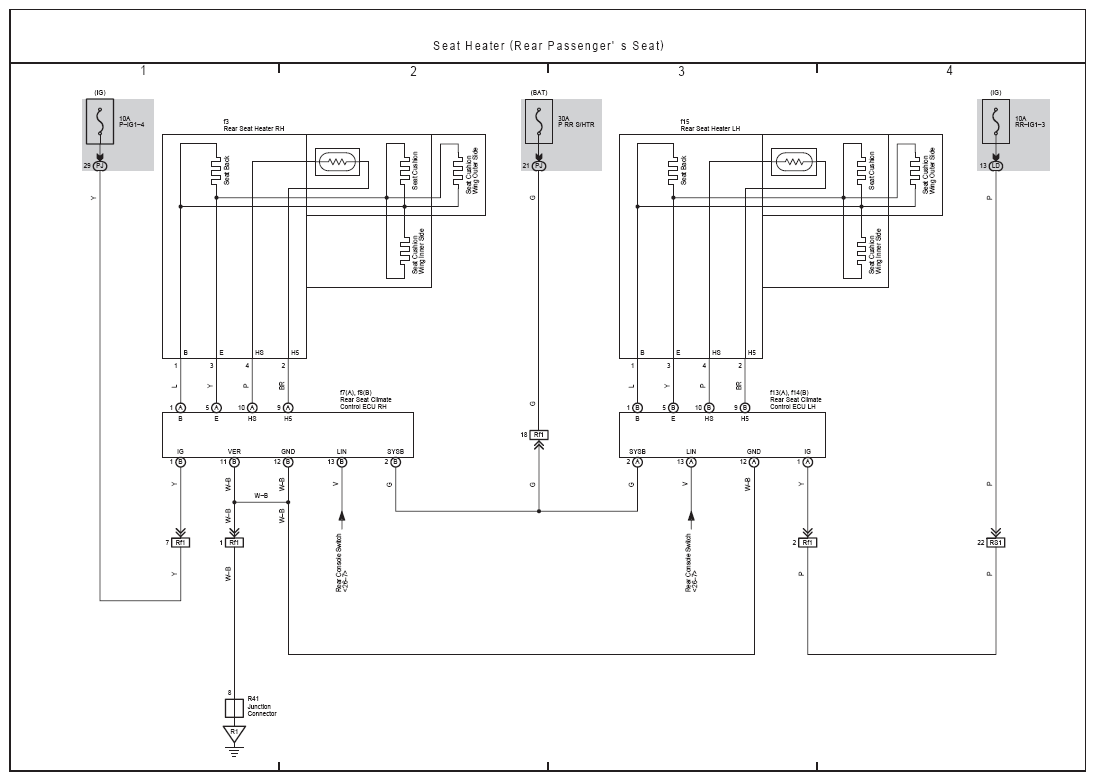

Fig 1: Seat Heater (Rear Passenger's Seat) Electrical Wiring Diagram
