Overall Electrical Wiring Diagram: SRS

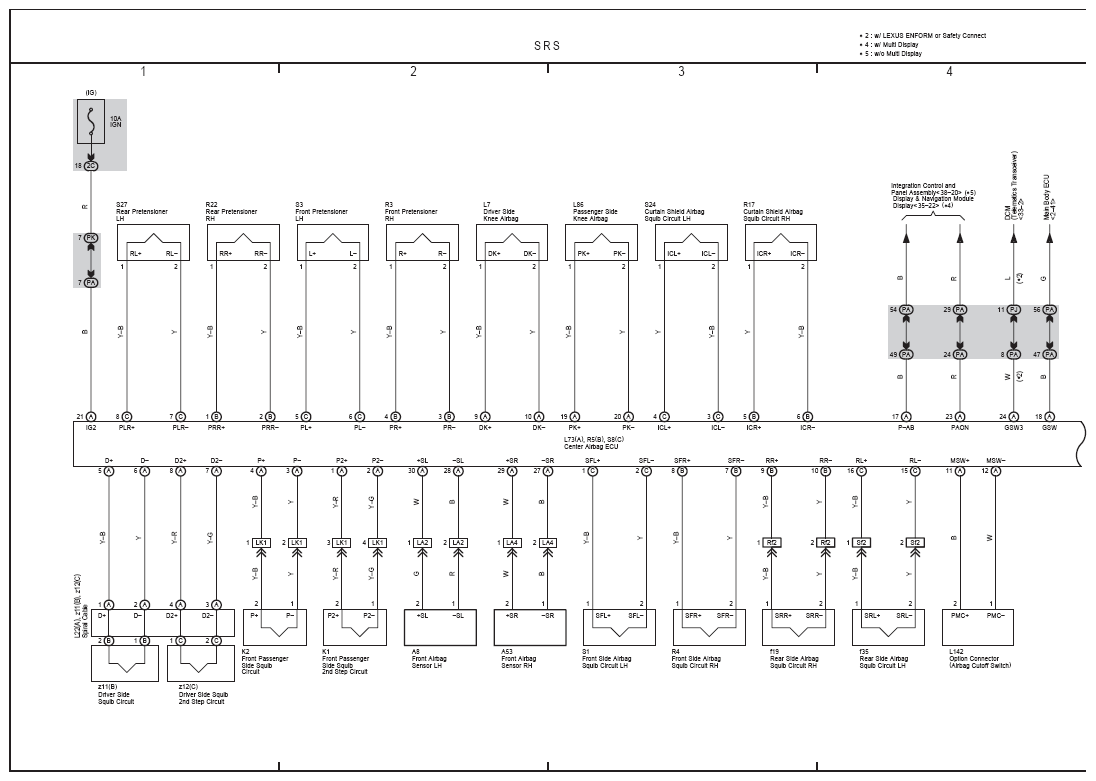

Fig 1: SRS Electrical Wiring Diagram (1 Of 3)
G08941833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

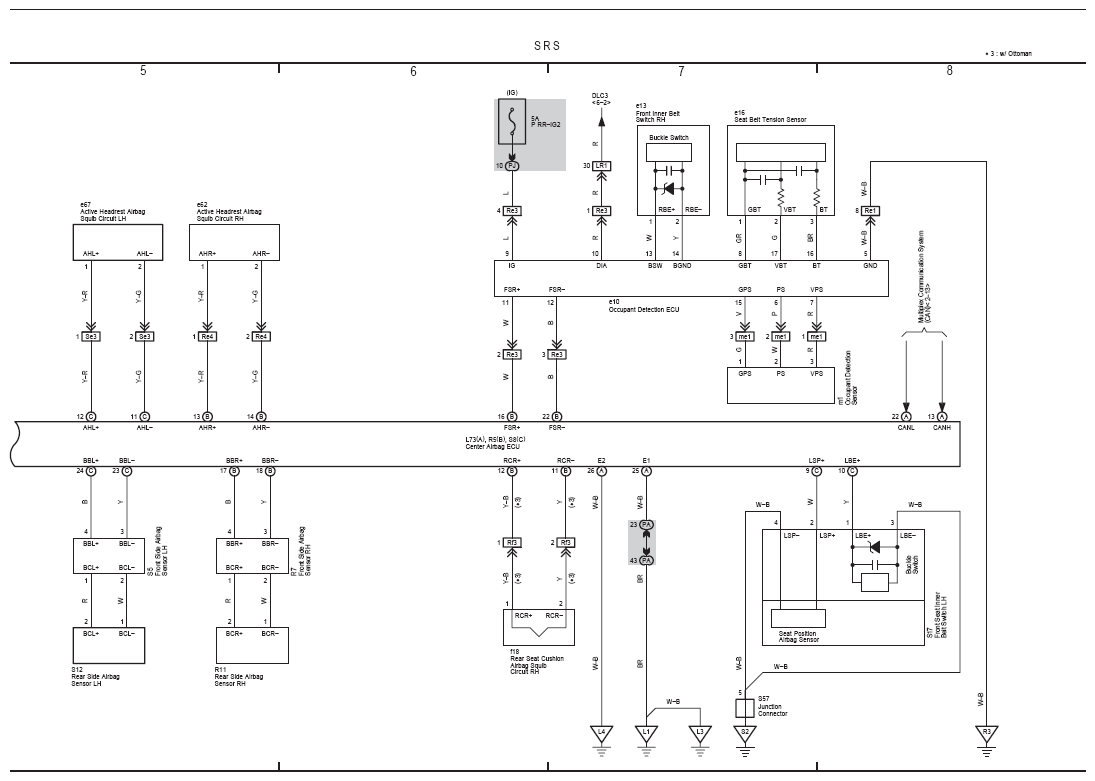

Fig 2: SRS Electrical Wiring Diagram (2 Of 3)
G08941834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

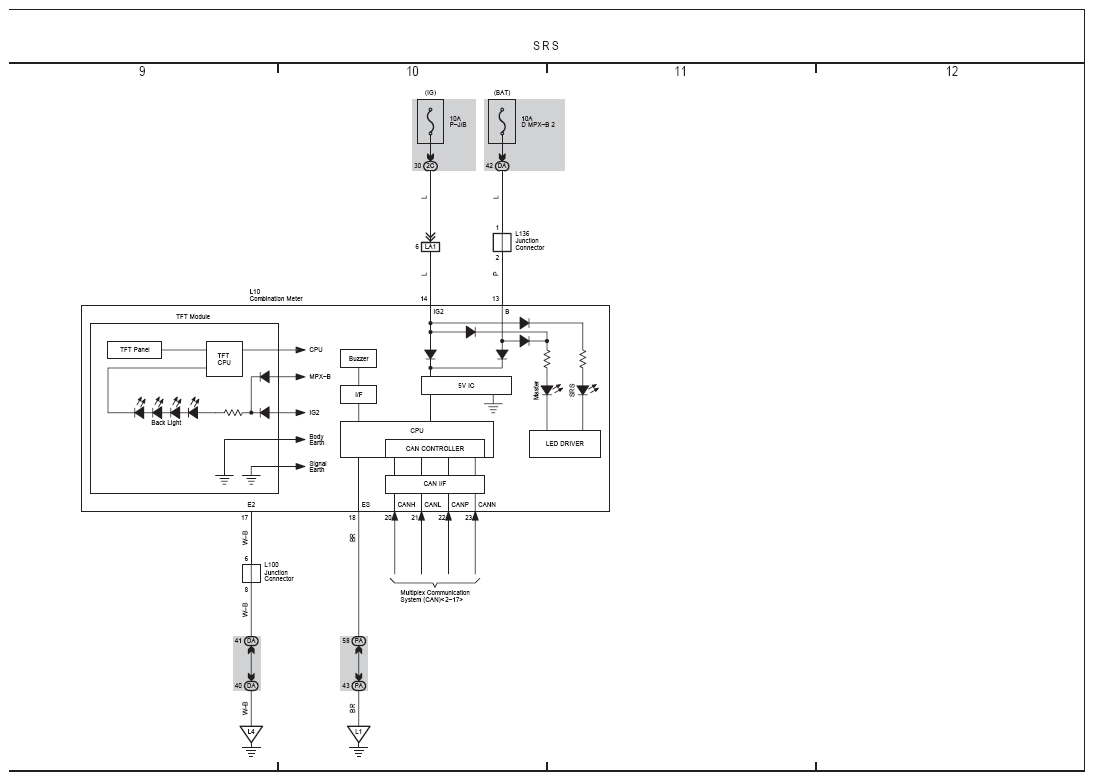

Fig 3: SRS Electrical Wiring Diagram (3 Of 3)
G08941835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
