Rear Seat Entertainment System

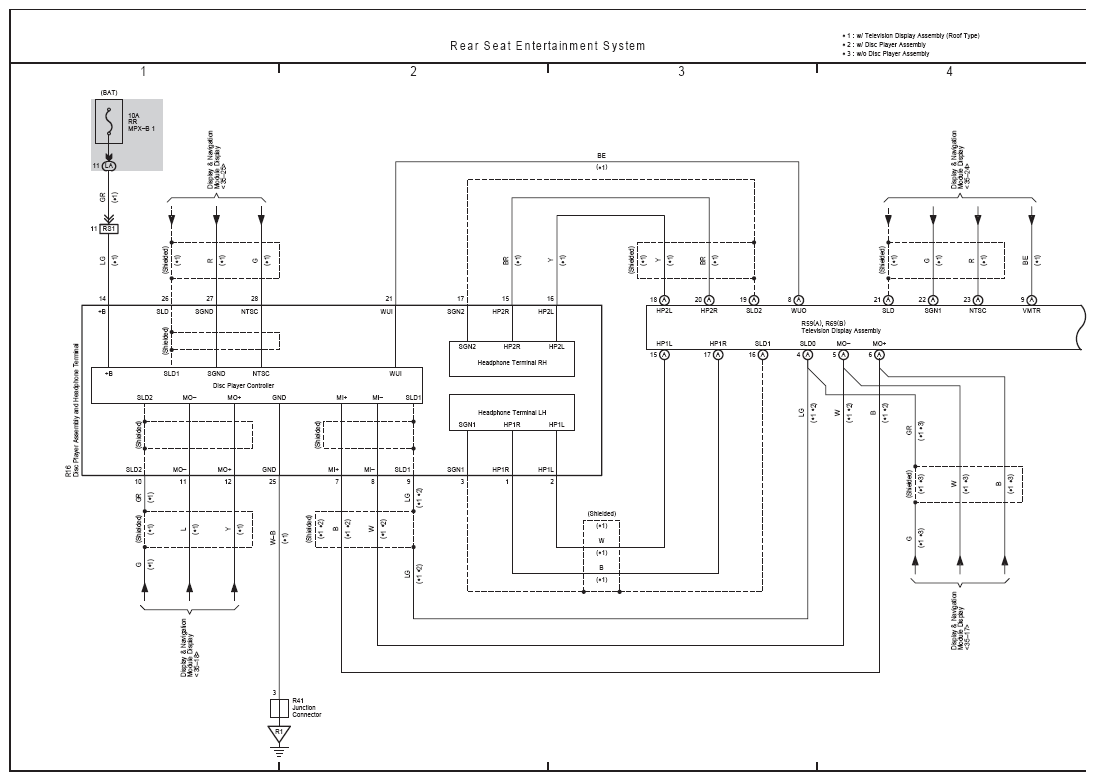

Fig 1: Rear Seat Entertainment System Electrical Wiring Diagram (1 Of 3)
G08941876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

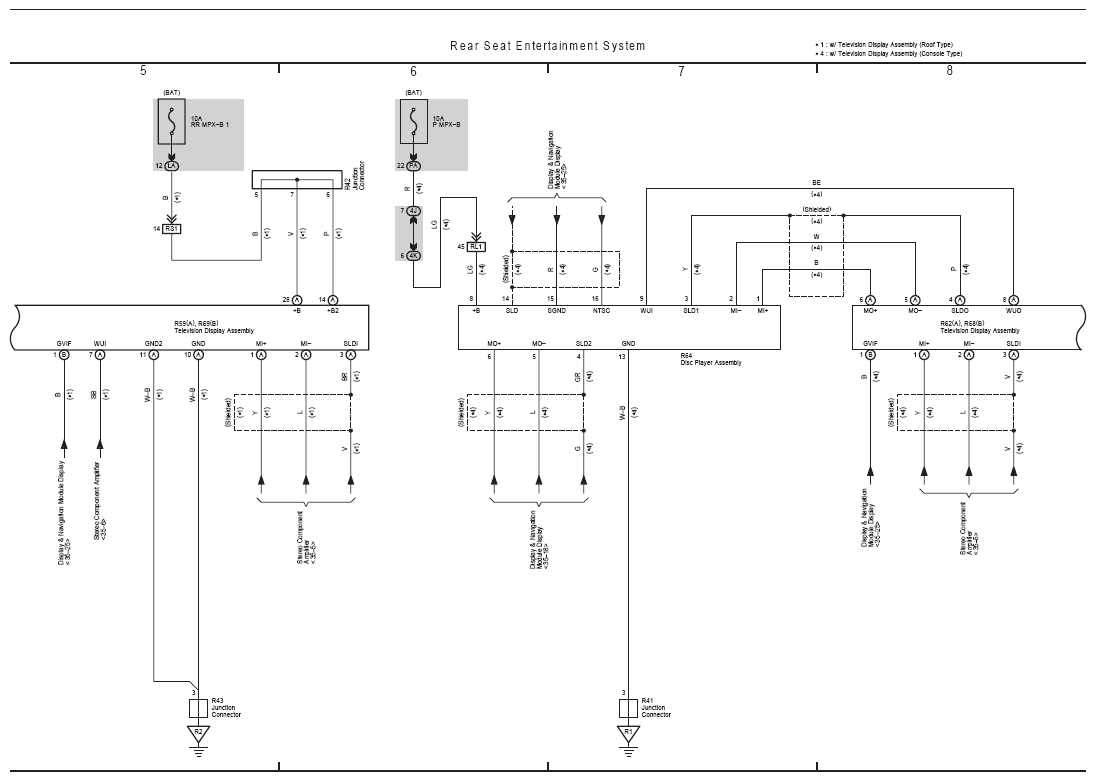

Fig 2: Rear Seat Entertainment System Electrical Wiring Diagram (2 Of 3)
G08941877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

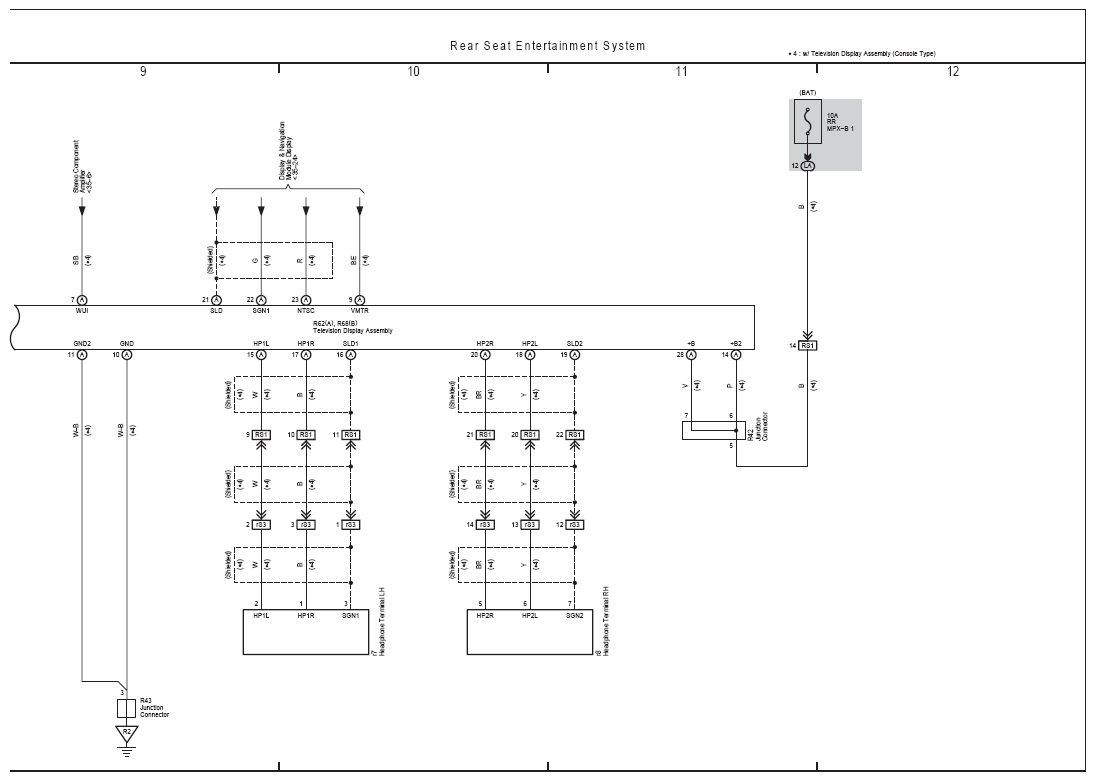

Fig 3: Rear Seat Entertainment System Electrical Wiring Diagram (3 Of 3)
G08941878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
