Power Seat (Front Passenger's Seat)

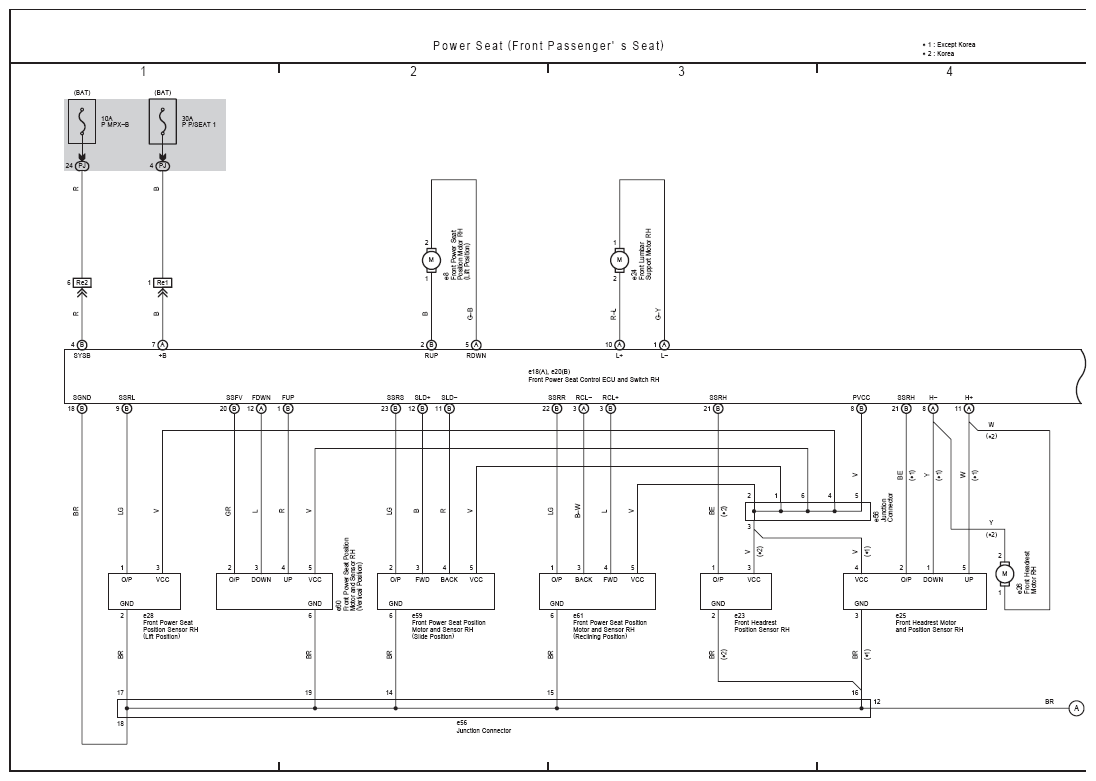

Fig 1: Power Seat (Front Passenger's Seat) Electrical Wiring Diagram (1 Of 2)
G08941849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Seat (Front Passenger's Seat) Electrical Wiring Diagram (2 Of 2)
G08941850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
