Power Outlet (115V), Power Trunk Opener And Closer

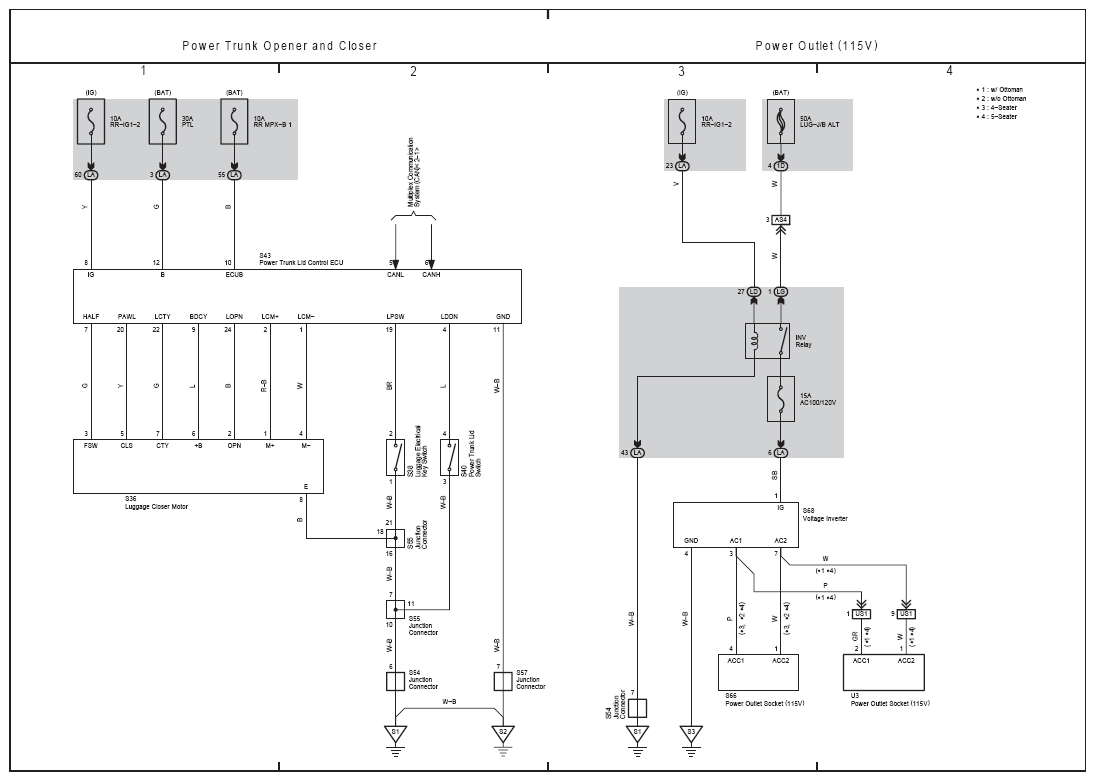

Fig 1: Power Trunk Opener And Closer And Power Outlet (115V) Electrical Wiring Diagram

G08941841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
