Electric Parking Brake

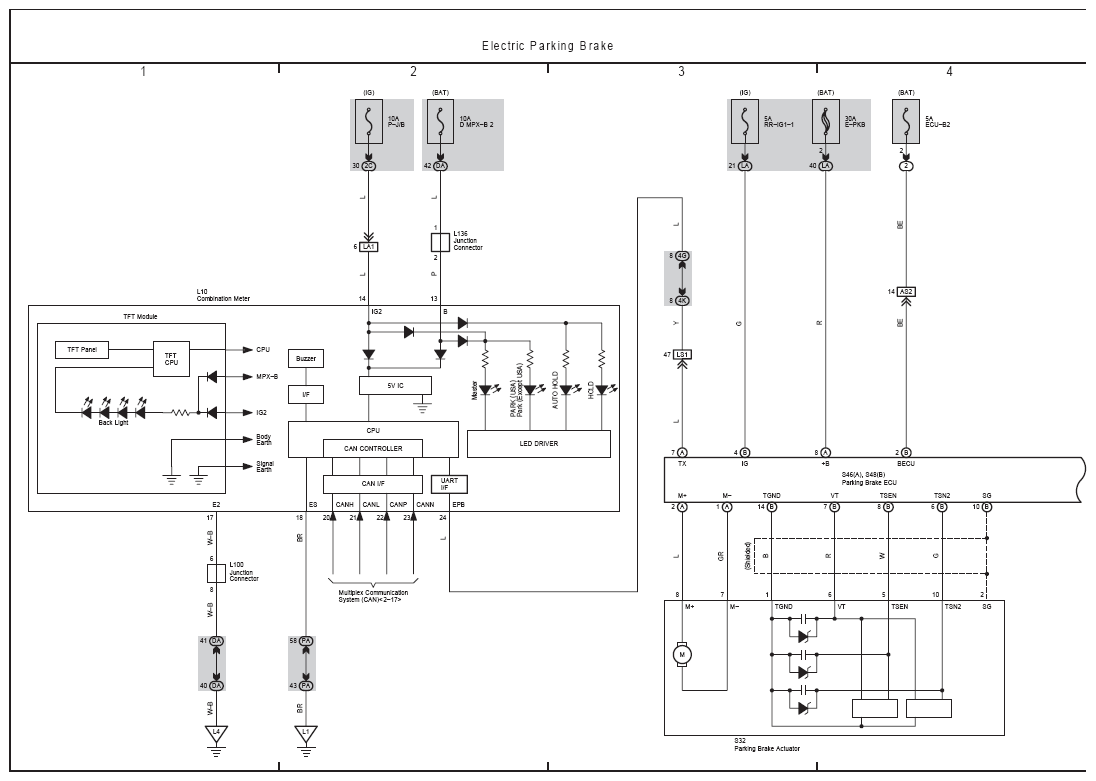

Fig 1: Electric Parking Brake Electrical Wiring Diagram (1 Of 2)
G08941831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

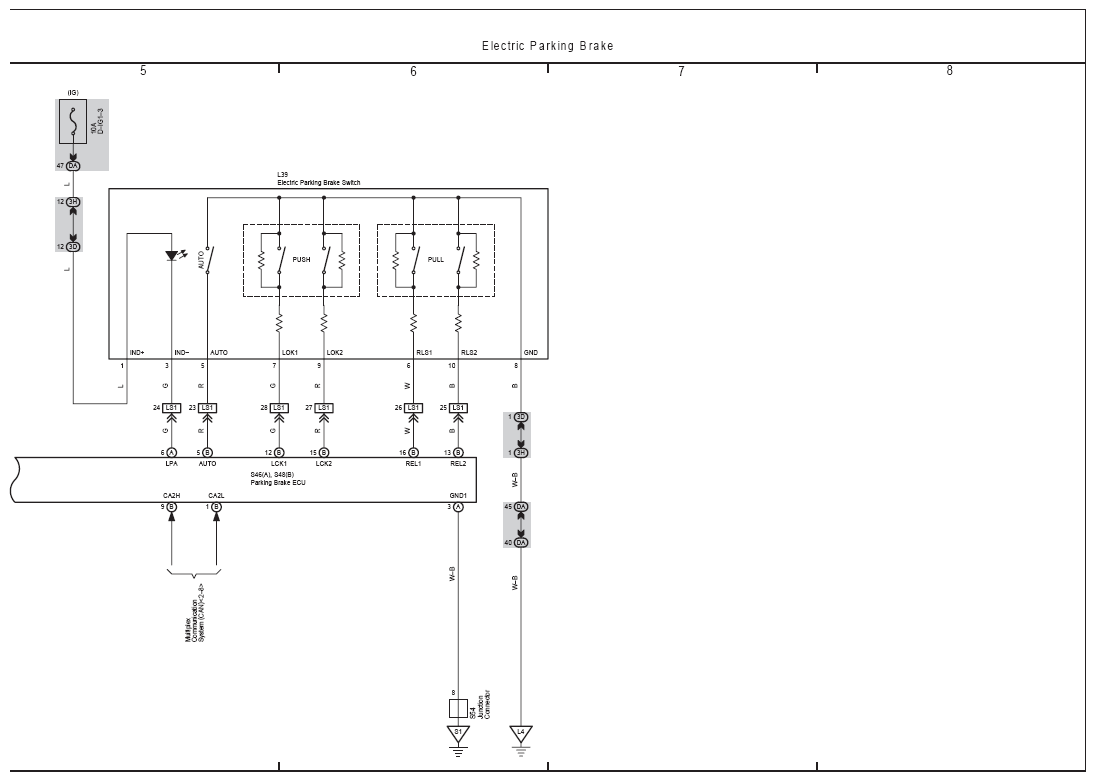

Fig 2: Electric Parking Brake Electrical Wiring Diagram (2 Of 2)
G08941832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
