Climate Control Seat (Rear Passenger's Seat)

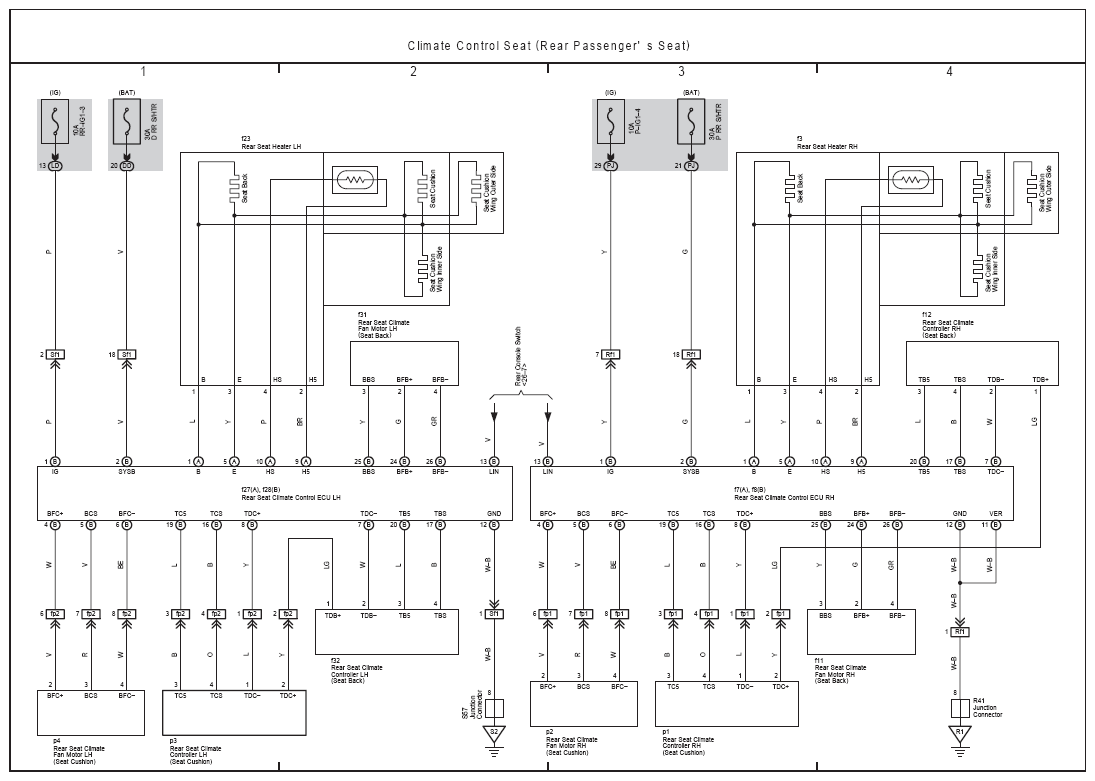

Fig 1: Climate Control Seat (Rear Passenger's Seat) Electrical Wiring Diagram

G08941857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
