Climate Control Seat (Driver's Seat And Front Passenger's Seat)

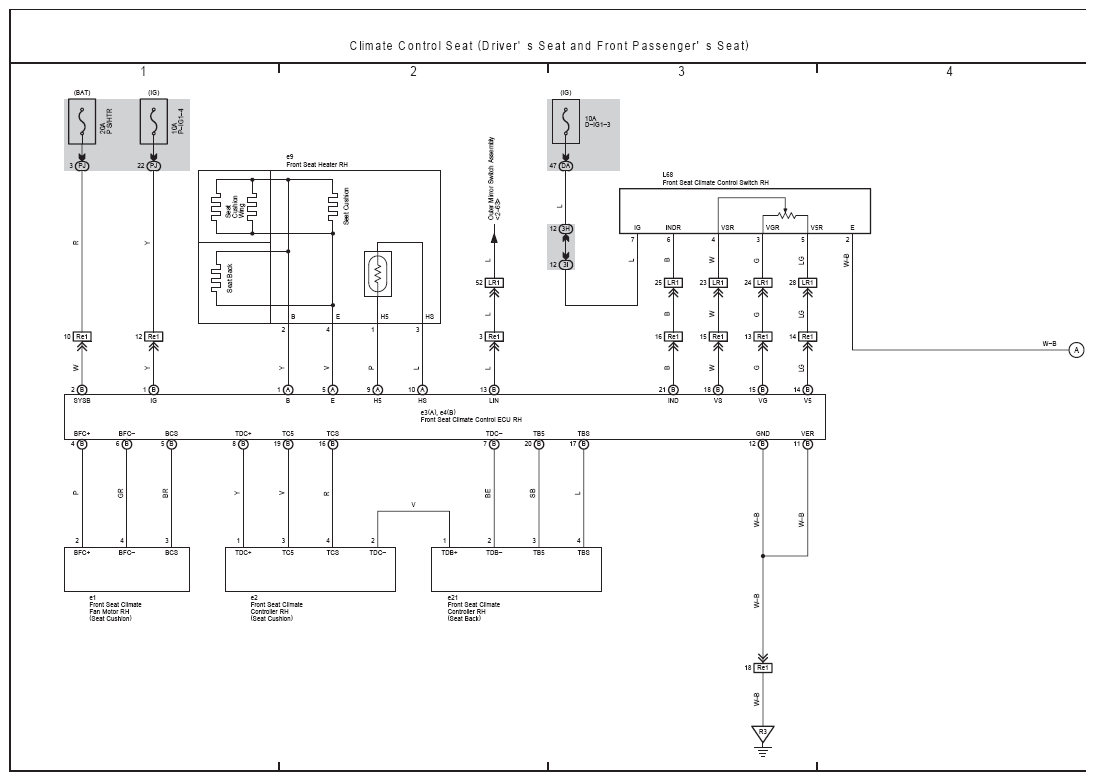

Fig 1: Climate Control Seat (Driver's Seat And Front Passenger's Seat) Electrical Wiring Diagram (1 Of 2)
G08941855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

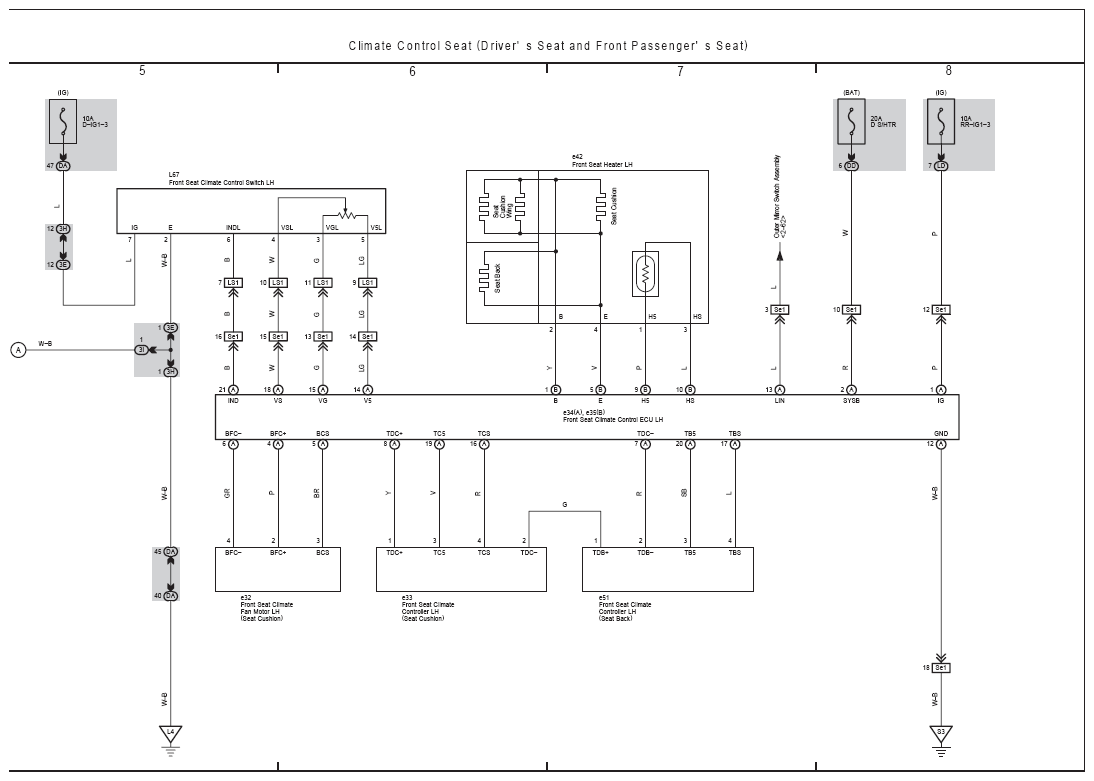

Fig 2: Climate Control Seat (Driver's Seat And Front Passenger's Seat) Electrical Wiring Diagram (2 Of 2)
G08941856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
