Cigarette Lighter, Clock, Electric Tension Reducer

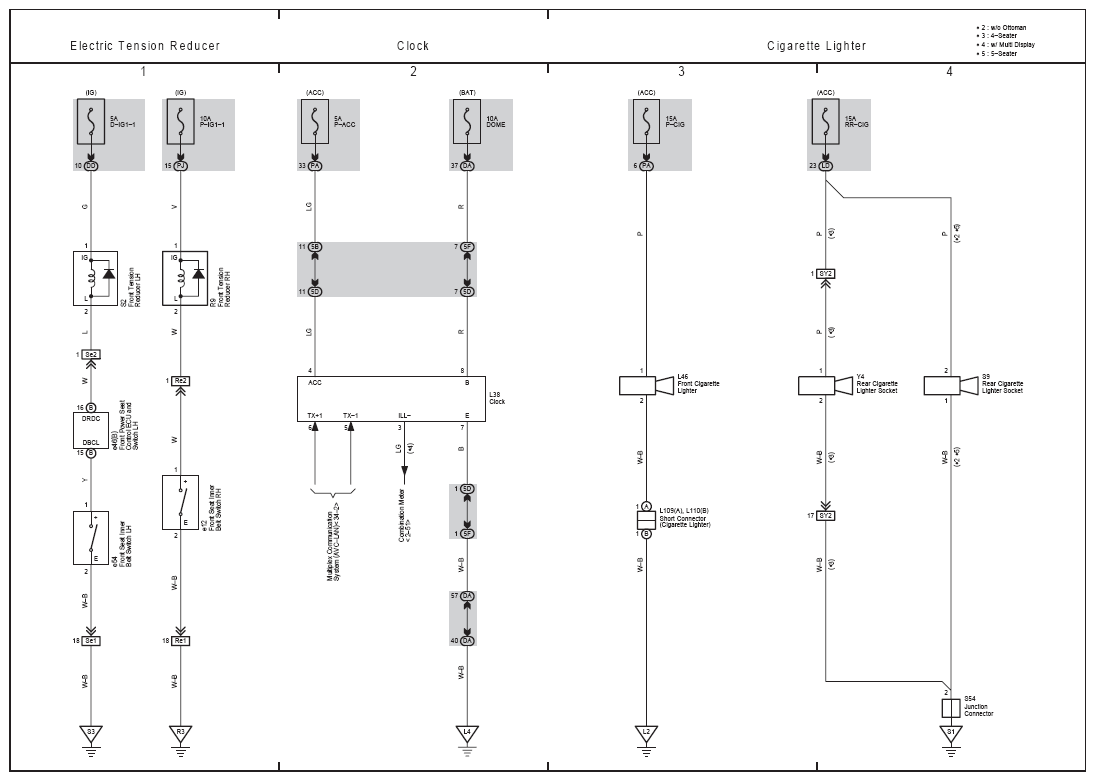

Fig 1: Cigarette Lighter, Clock And Electric Tension Reducer Electrical Wiring Diagram

G08941846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
