Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror With Compass, Power Outlet (12V)
Automatic Glare-Resistant EC Mirror With Compass, Power Outlet (12V)

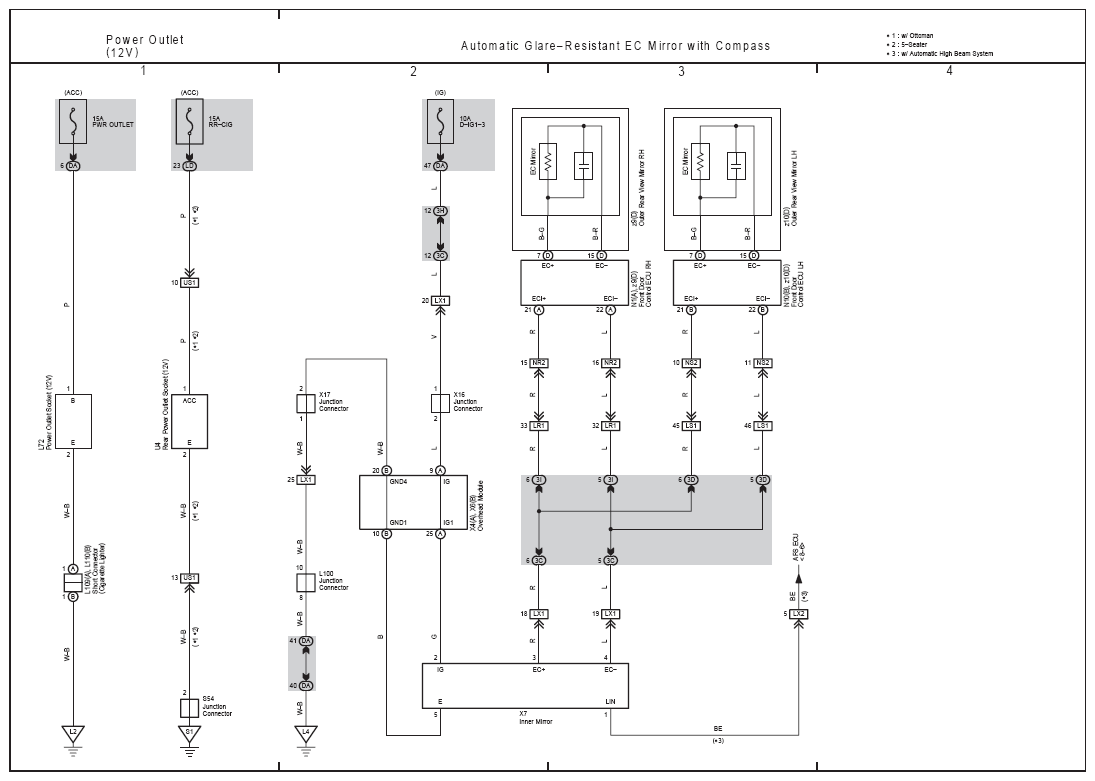

Fig 1: Power Outlet (12V) And Automatic Glare-Resistant EC Mirror With Compass Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
