Air Suspension

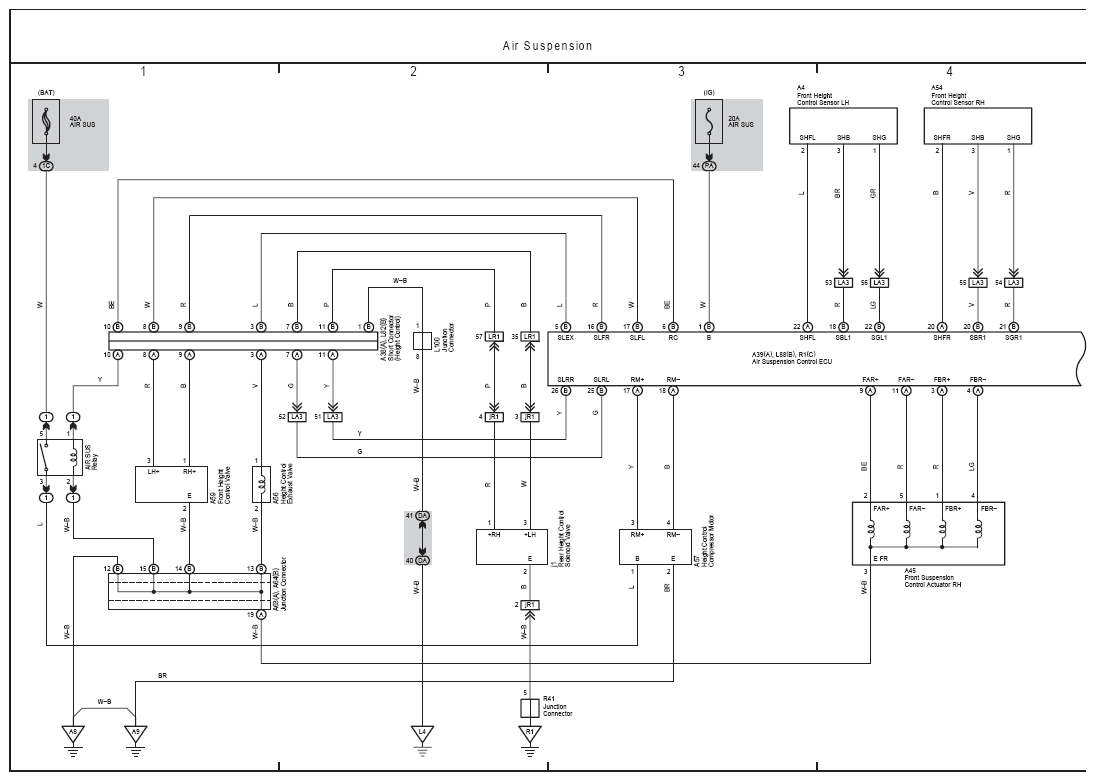

Fig 1: Air Suspension Electrical Wiring Diagram (1 Of 3)
G08941822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

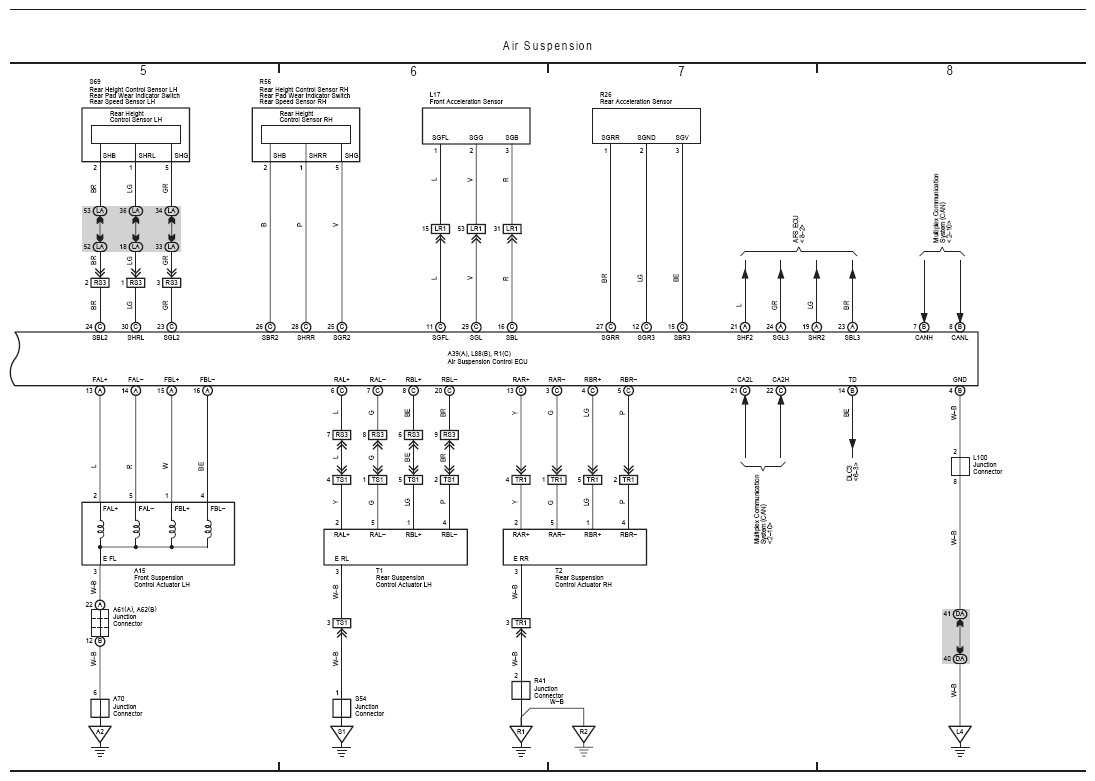

Fig 2: Air Suspension Electrical Wiring Diagram (2 Of 3)
G08941823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

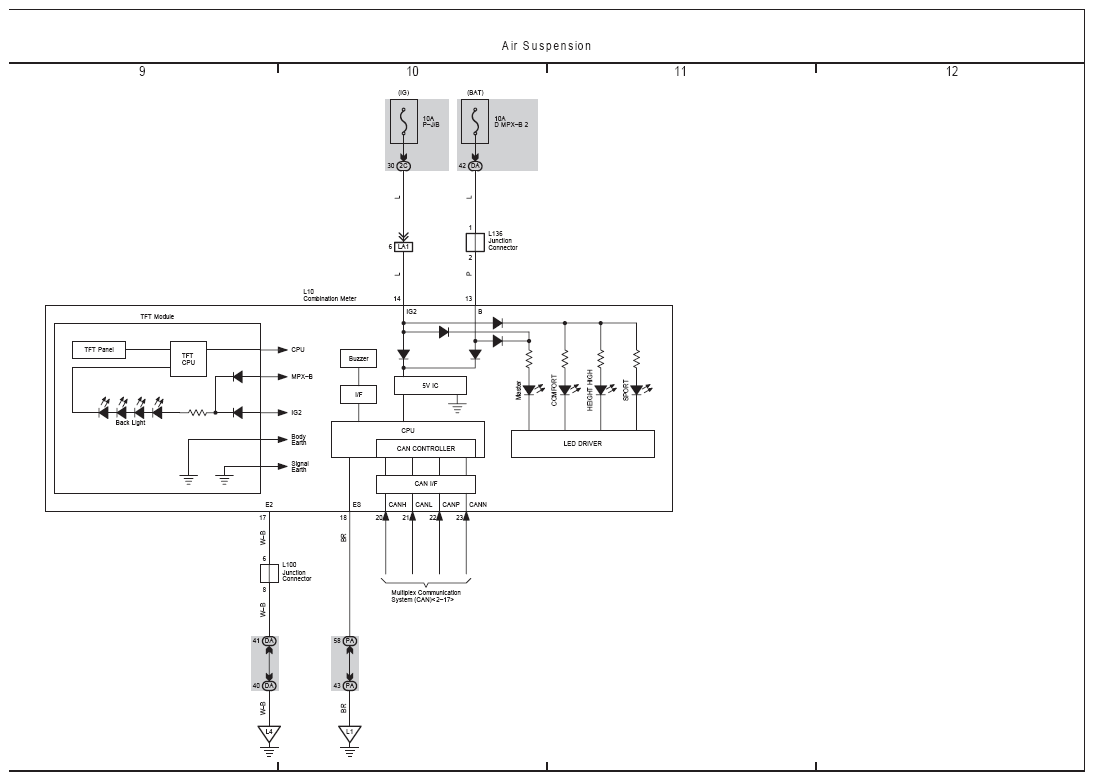

Fig 3: Air Suspension Electrical Wiring Diagram (3 Of 3)
G08941824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
