Rear Seat 4-Seater

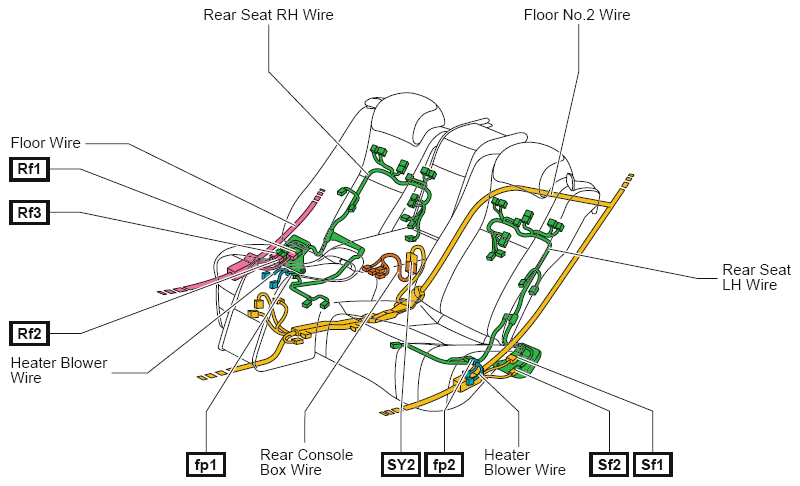

Fig 1: Locating Wiring Harnesses (Rear Seat 4-Seater)

G08940545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
