: Location of Connector Joining Wire Harness and Wire Harness: Overview

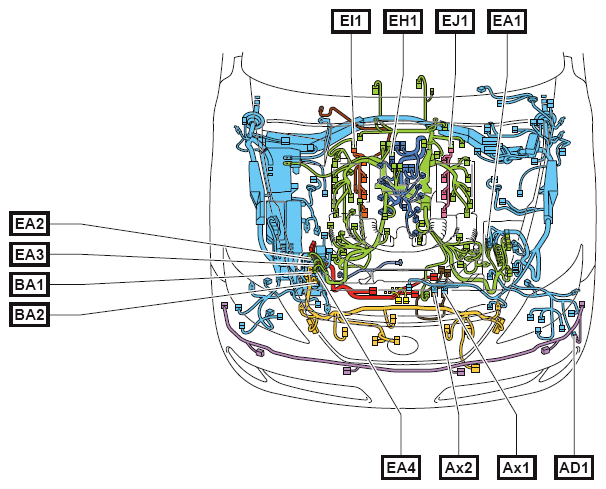

Fig 1: Locating Wiring Harnesses
G08940538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

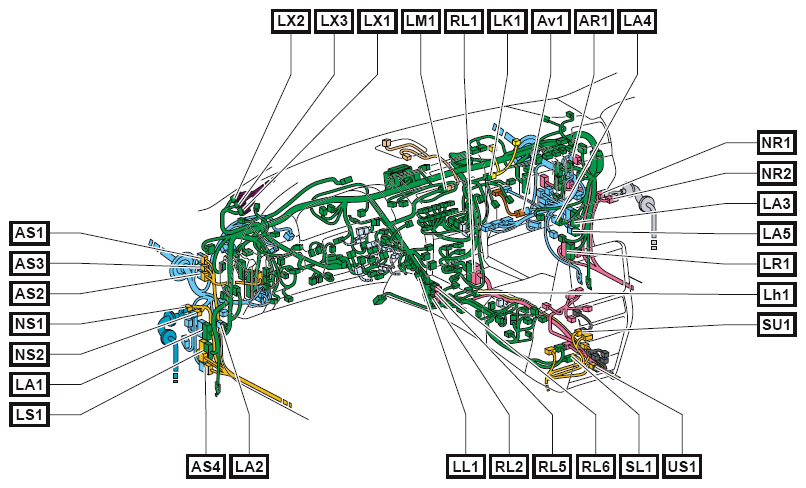

Fig 1: Locating Wiring Harnesses
G08940540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

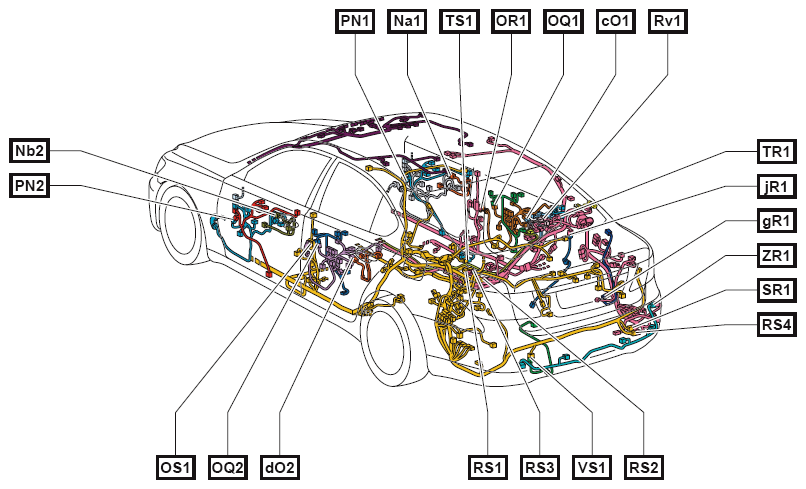

Fig 1: Locating Wiring Harnesses
G08940542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
