FRONT PROPELLER SHAFT ASSEMBLY (for AWD): Components: Illustration

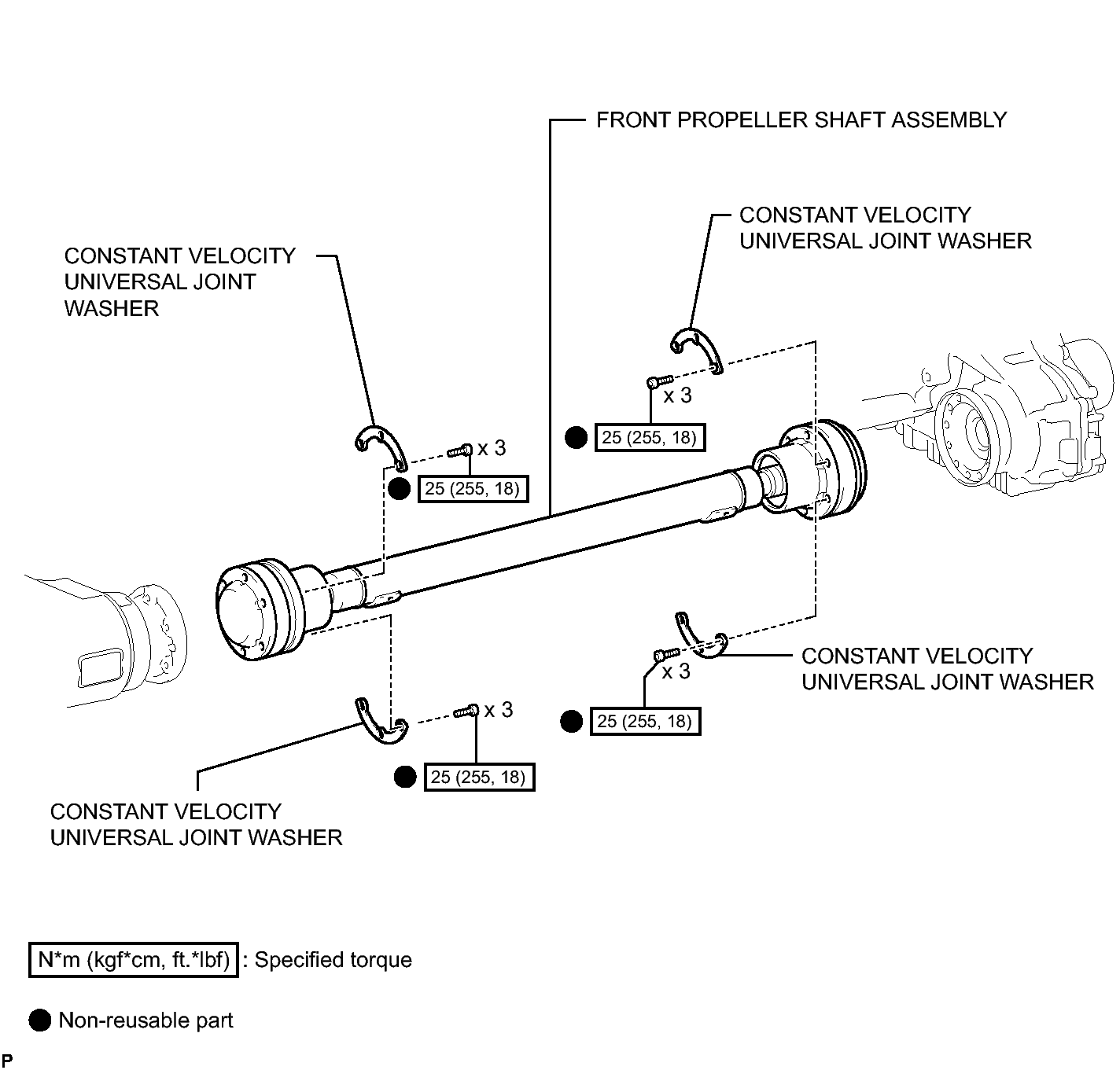

Fig 1: Identifying Front Propeller Shaft Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Propeller Shaft Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
