Electric Parking Brake Ecu: Components: Illustration

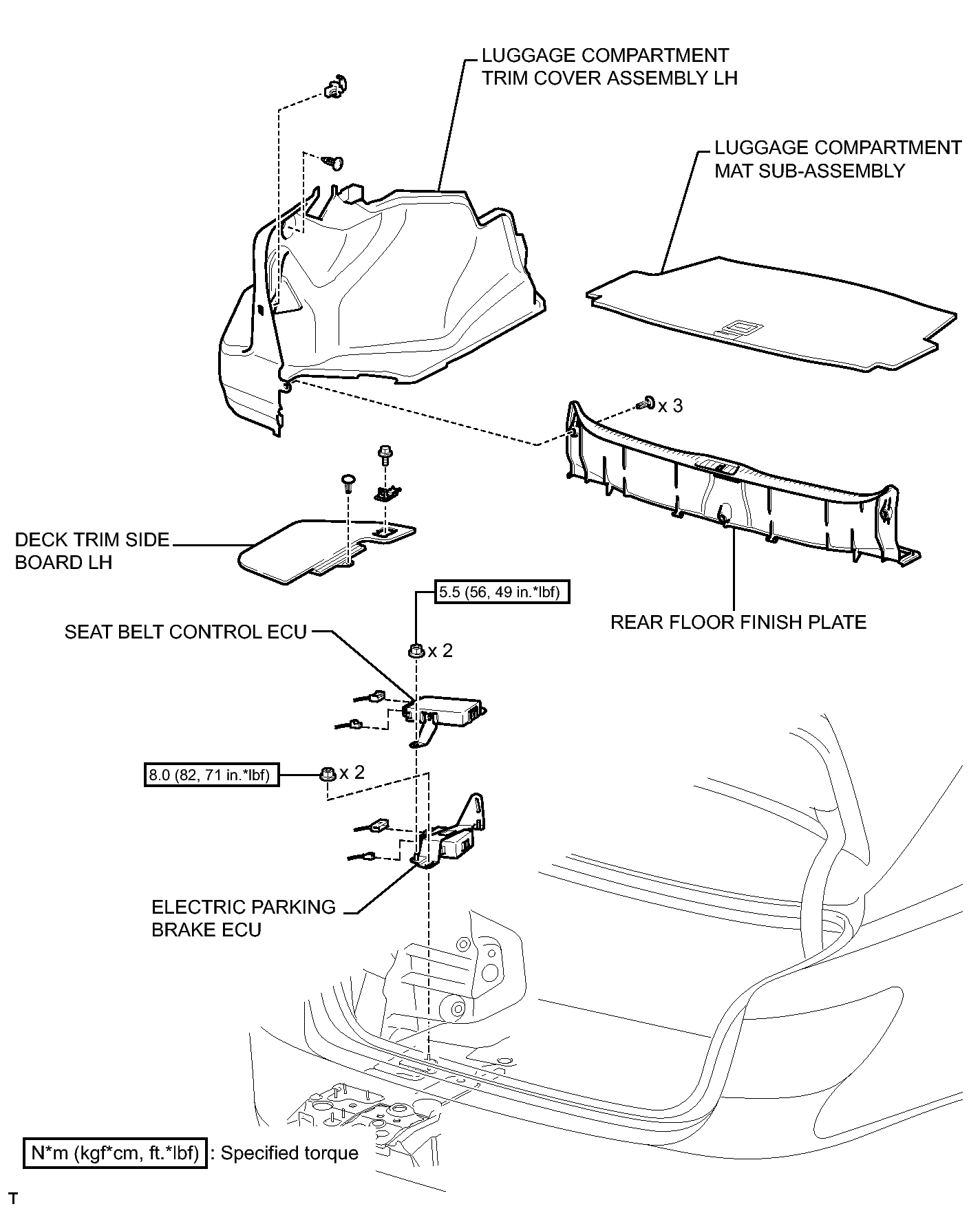

Fig 1: Identifying Electric Parking Brake ECU Replacement Components With Torque Specifications

GTY394416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
