Parts Location: Illustration

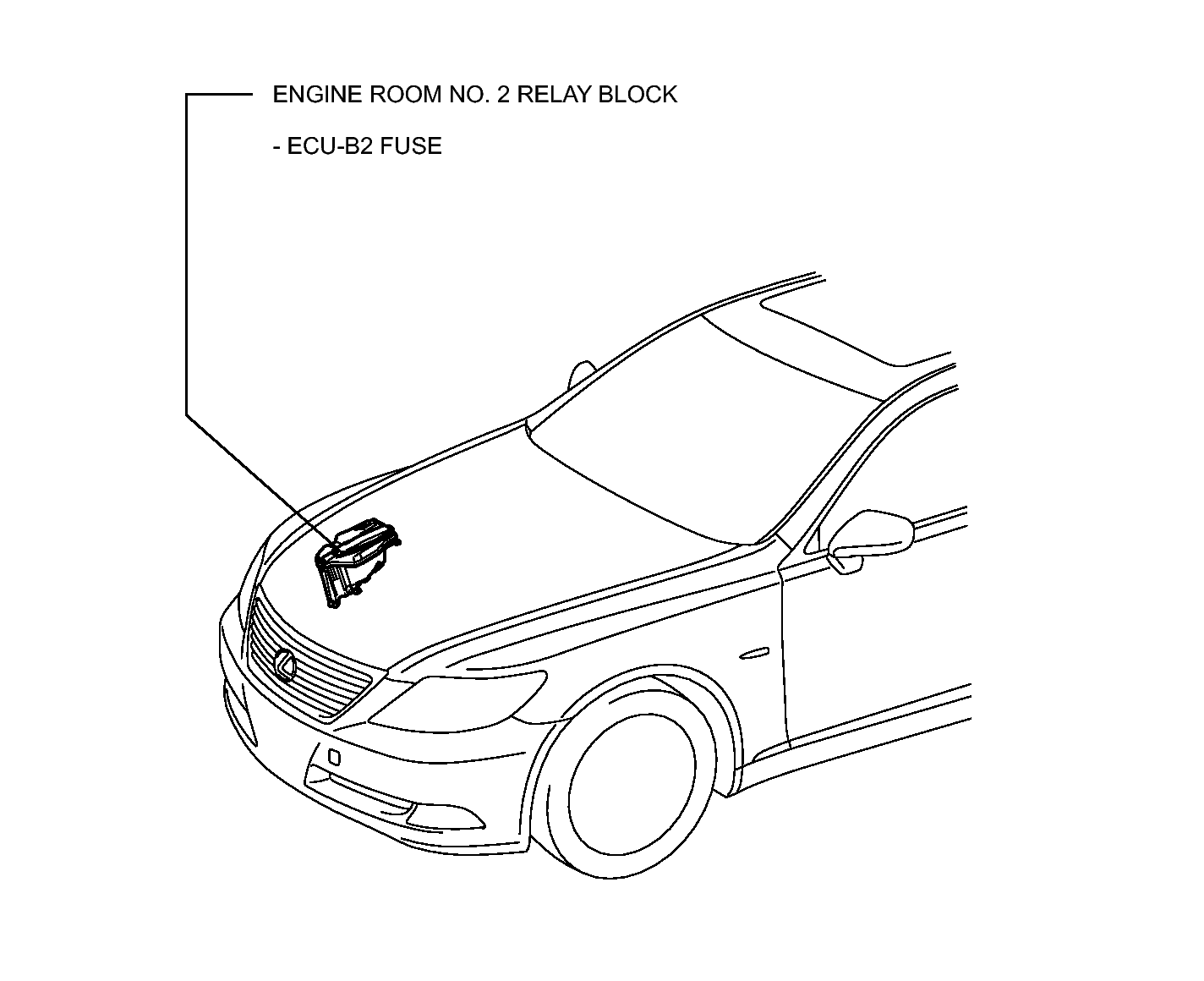

Fig 1: Identifying Electric Parking Brake System Components Location (1 Of 3)
GTY289356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

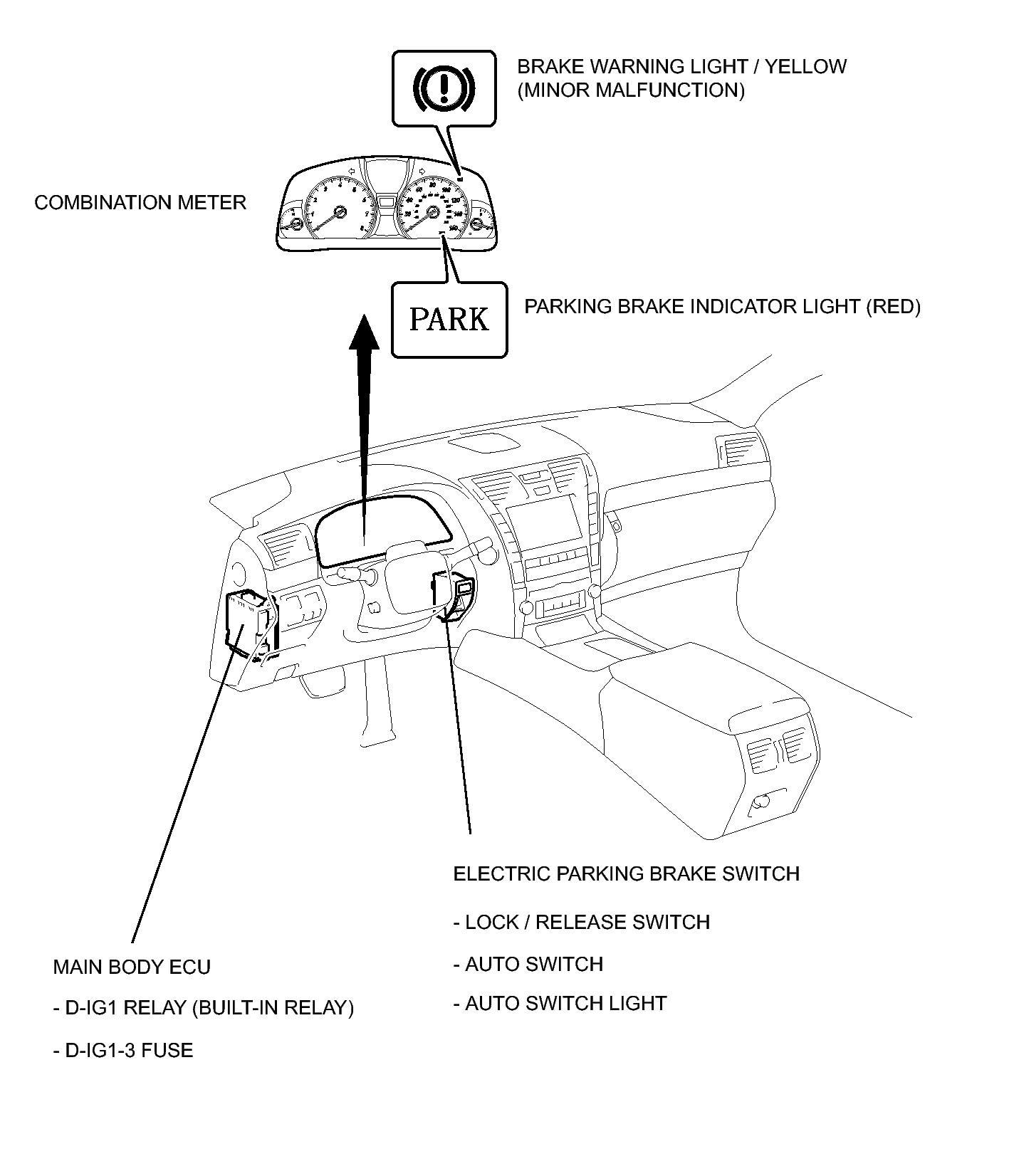

Fig 1: Identifying Electric Parking Brake System Components Location (2 Of 3)
GTY284744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

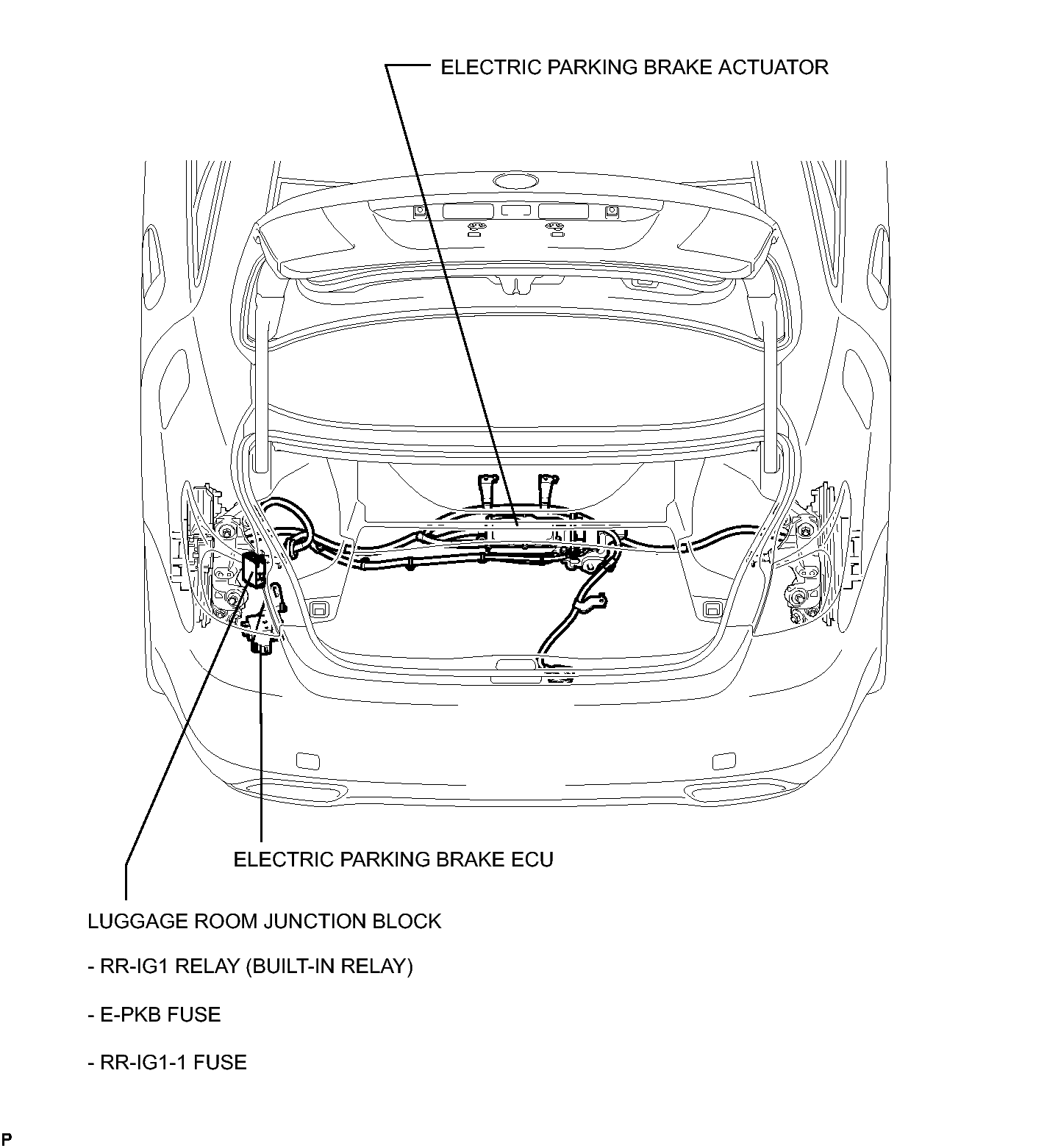

Fig 1: Identifying Electric Parking Brake System Components Location (3 Of 3)
GTY355525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
