DTC C13A4/32: Open or Short in Release Switch Circuit; DTC C13AC/34: Release Switch Circuit: Wiring Diagram

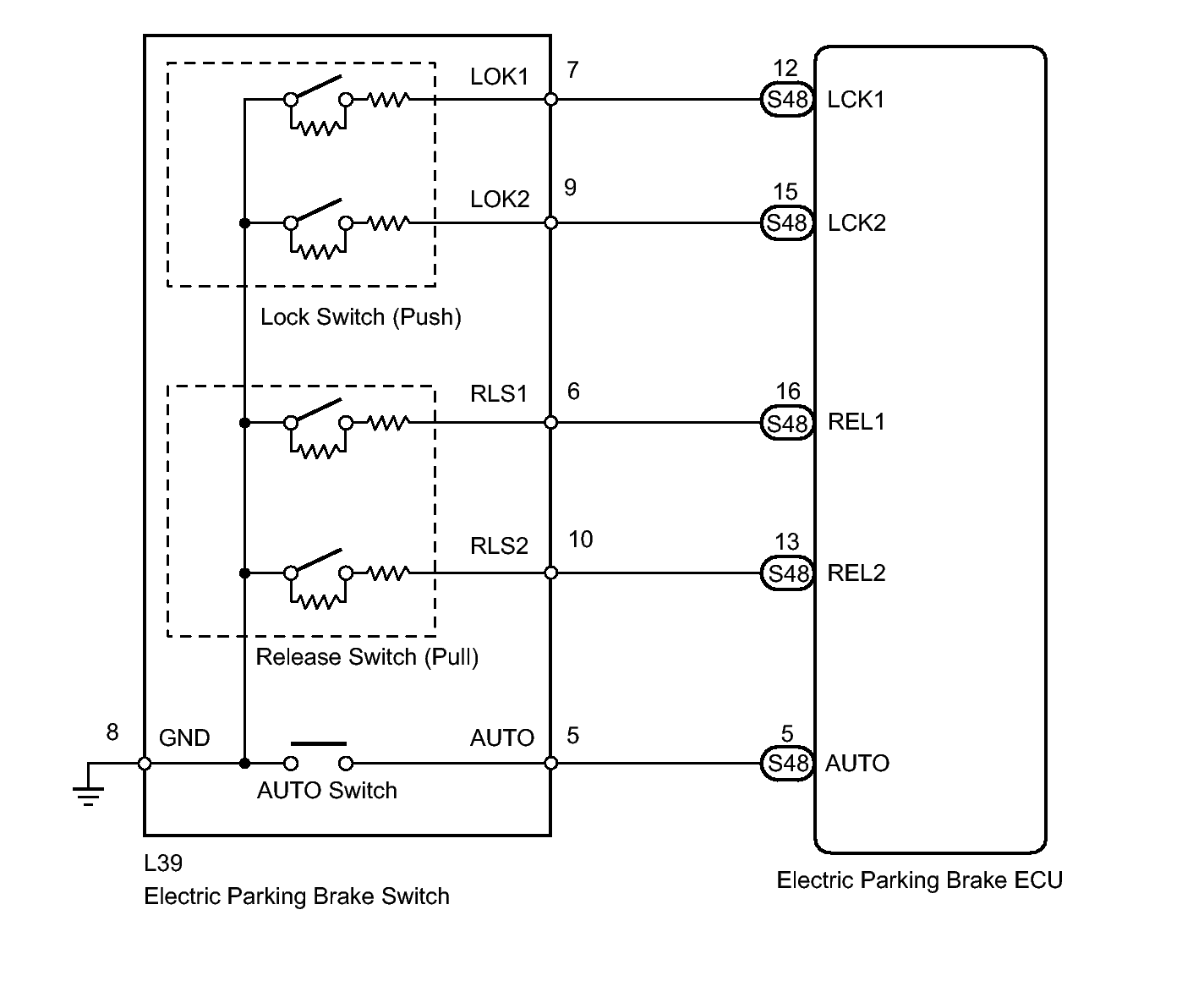

Fig 1: Electric Parking Brake Switch And ECU - Wiring Diagram
GTY261819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
