DTC C13A2/22: Engine / Power Switch Malfunction: Wiring Diagram

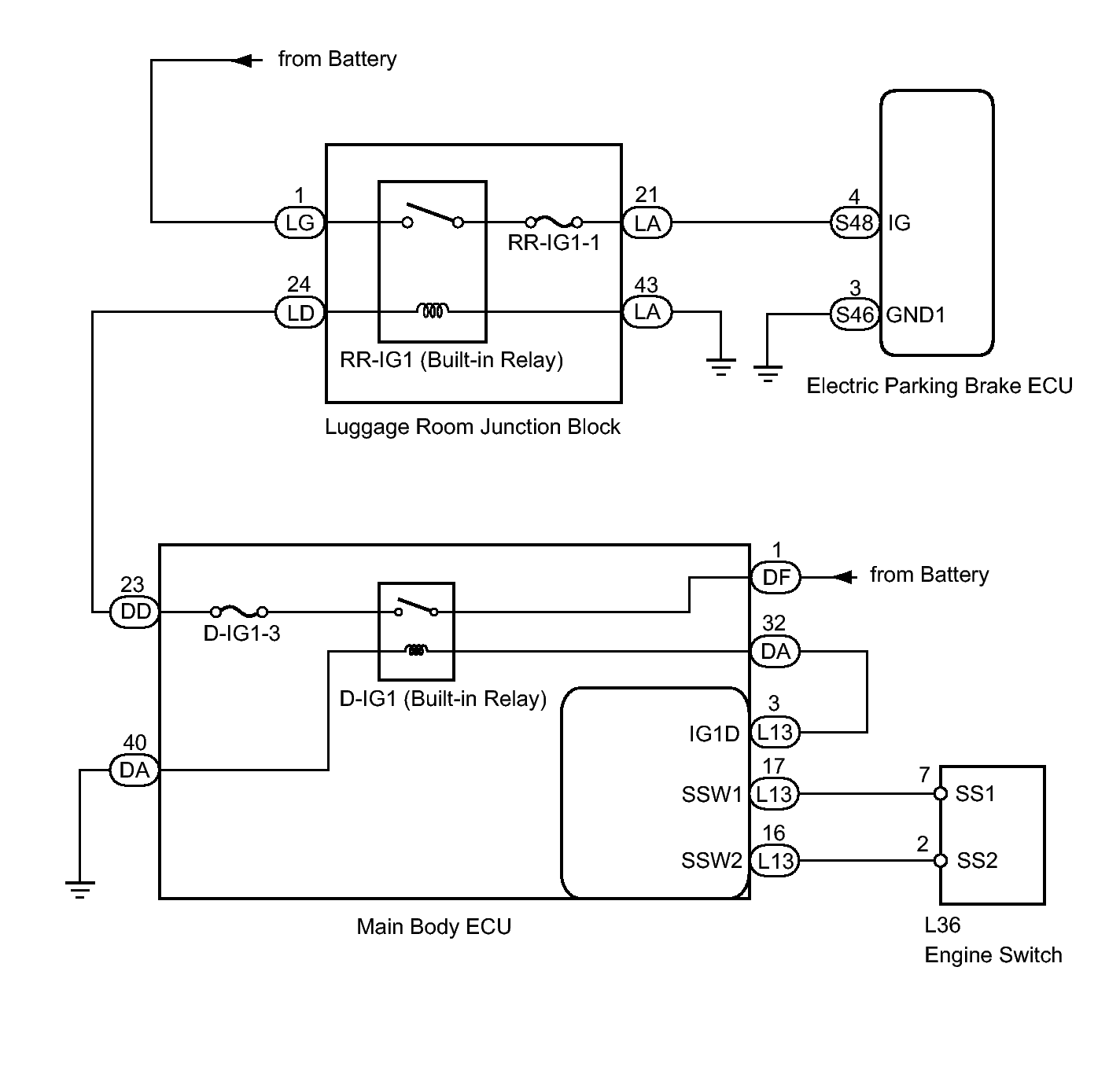

Fig 1: Identifying Main Body ECU & Engine Switch - Wiring Diagram

GTY284635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
