Electric Parking Brake System AUTO Function Circuit: Wiring Diagram

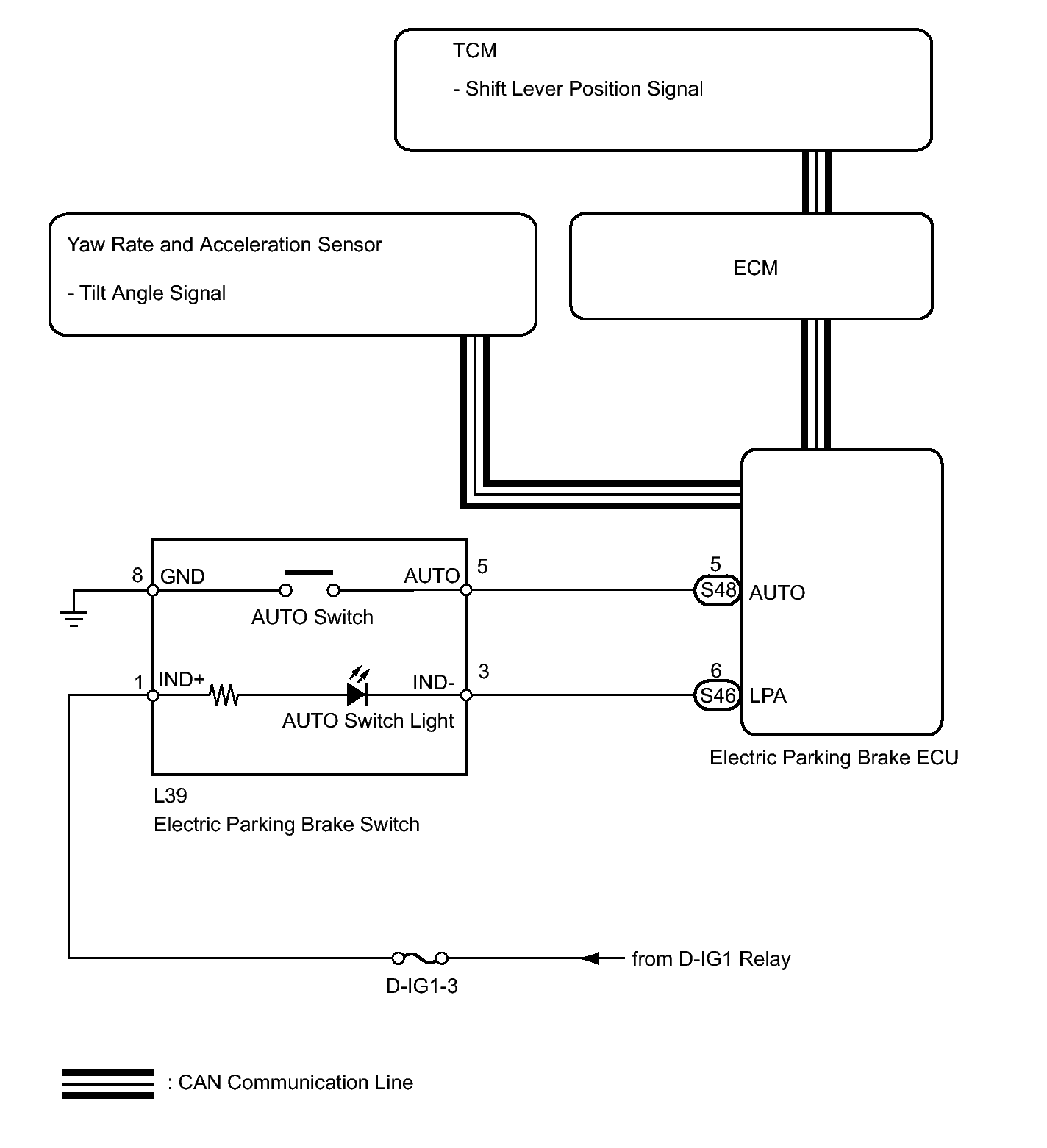

Fig 1: Electric Parking Brake ECU - Wiring Diagram

GTY289369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
