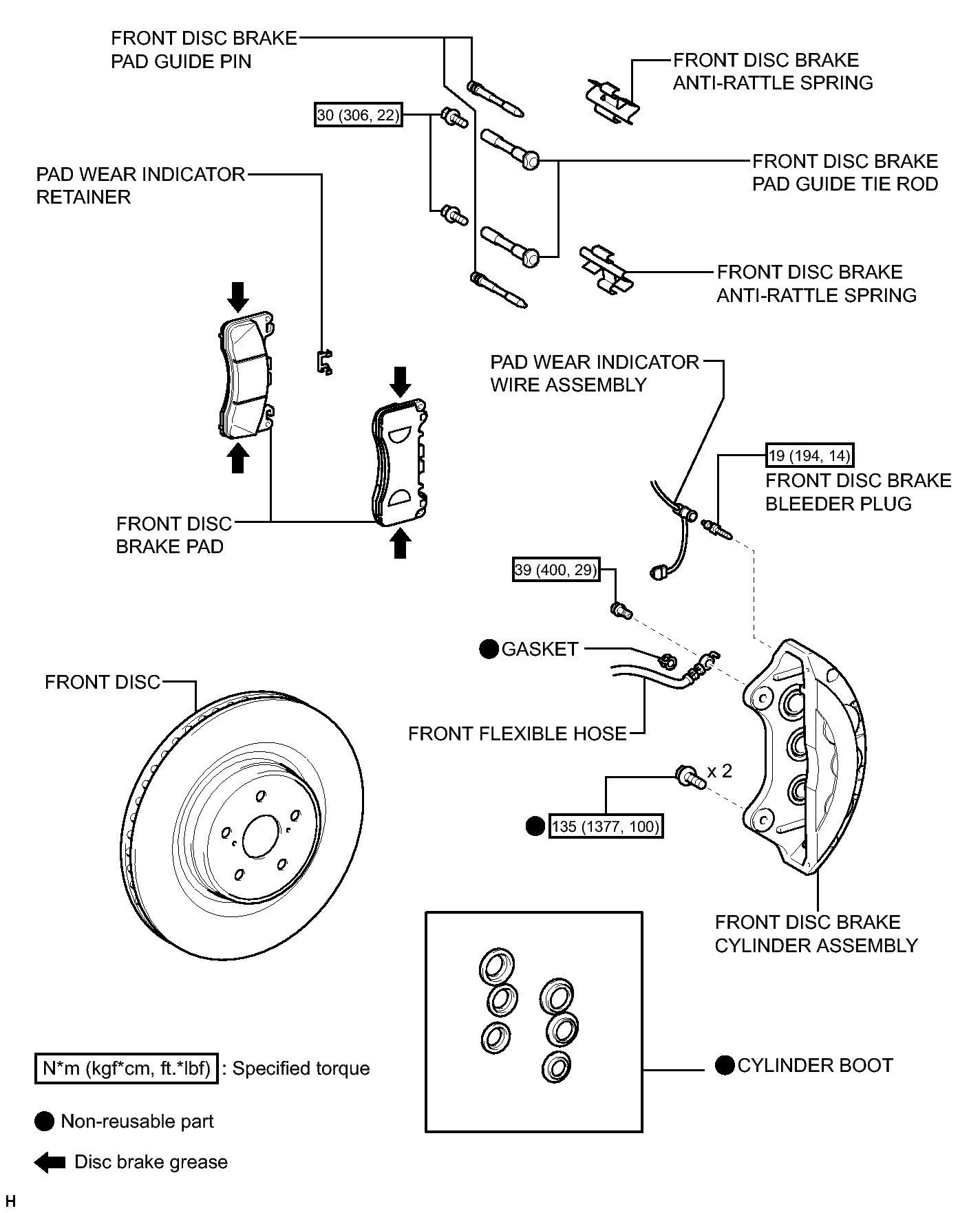

FRONT BRAKE (For 6-Pot Caliper): Components: Illustration

Fig 1: Identifying Front Brake (For 6-Pot Caliper) Replacement Components With Torque Specifications↓

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
