FRONT BRAKE (Except 6-Pot Caliper): Components: Illustration

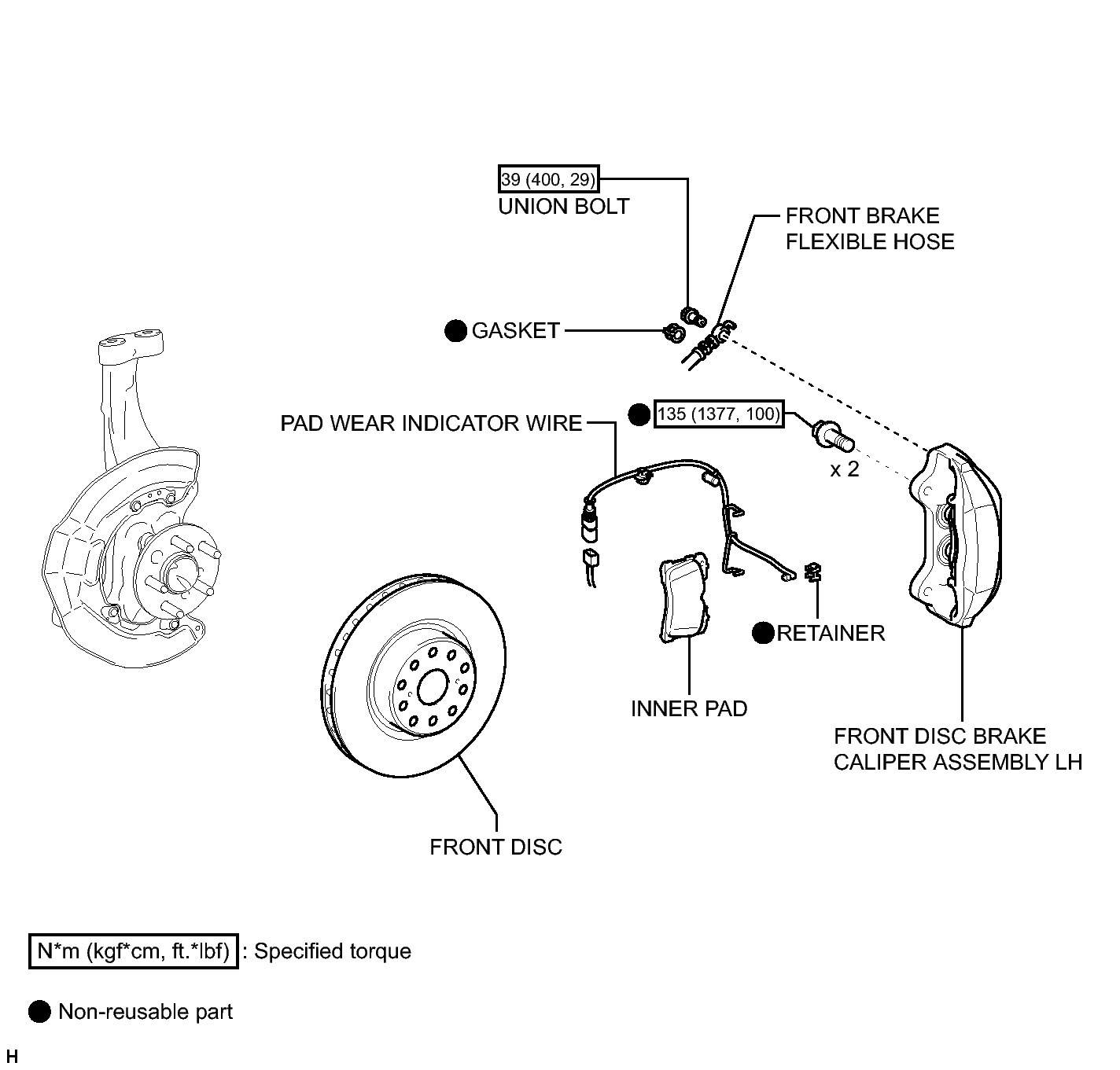

Fig 1: Identifying Front Brake (Except 6-Pot Caliper) Replacement Components With Torque Specifications (1 Of 2)
GTY276588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

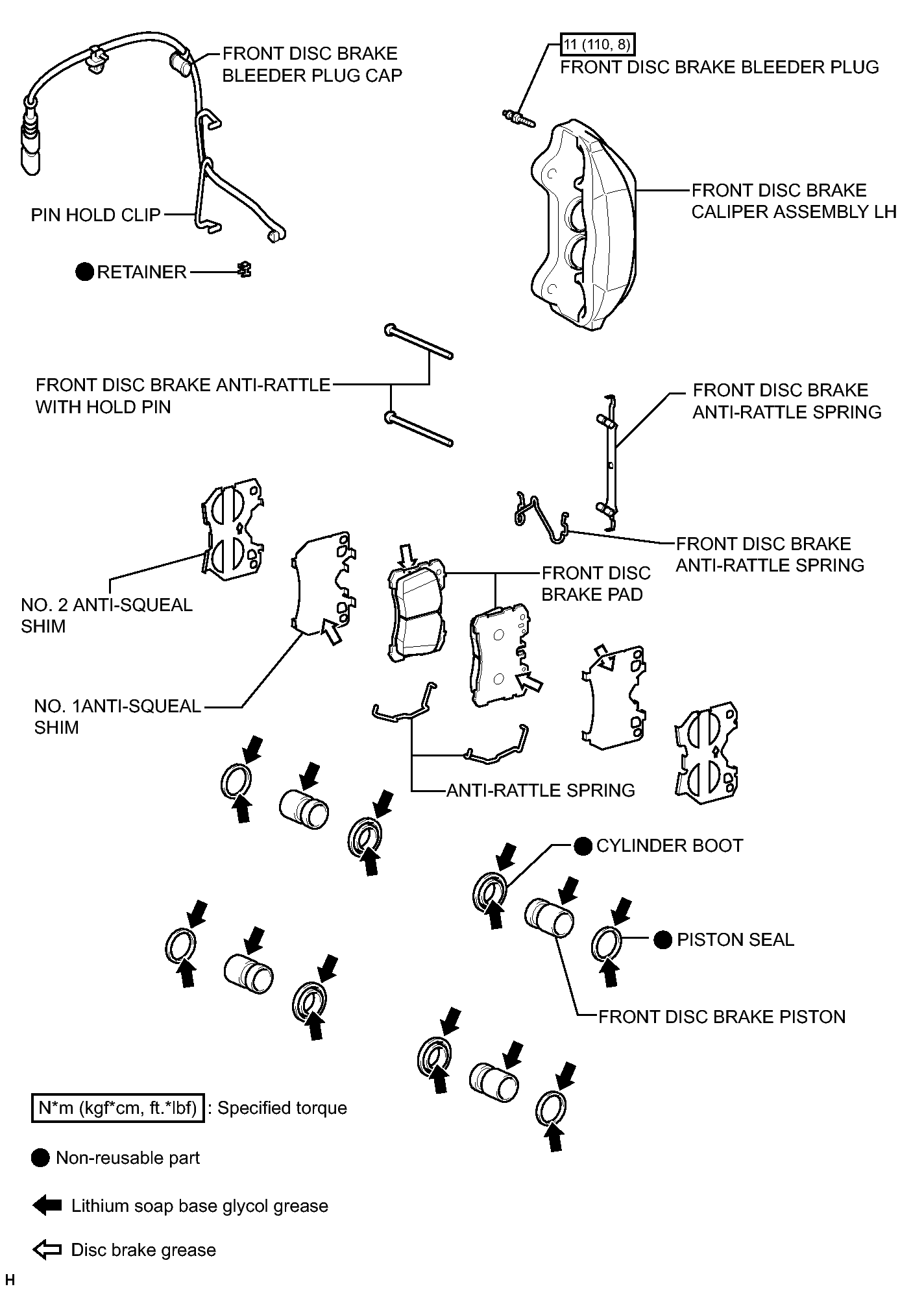

Fig 1: Identifying Front Brake (Except 6-Pot Caliper) Replacement Components With Torque Specifications (2 Of 2)
GTY353311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
