REAR POWER SEAT MOTOR ASSEMBLY (for Power Seat): Components: Illustration

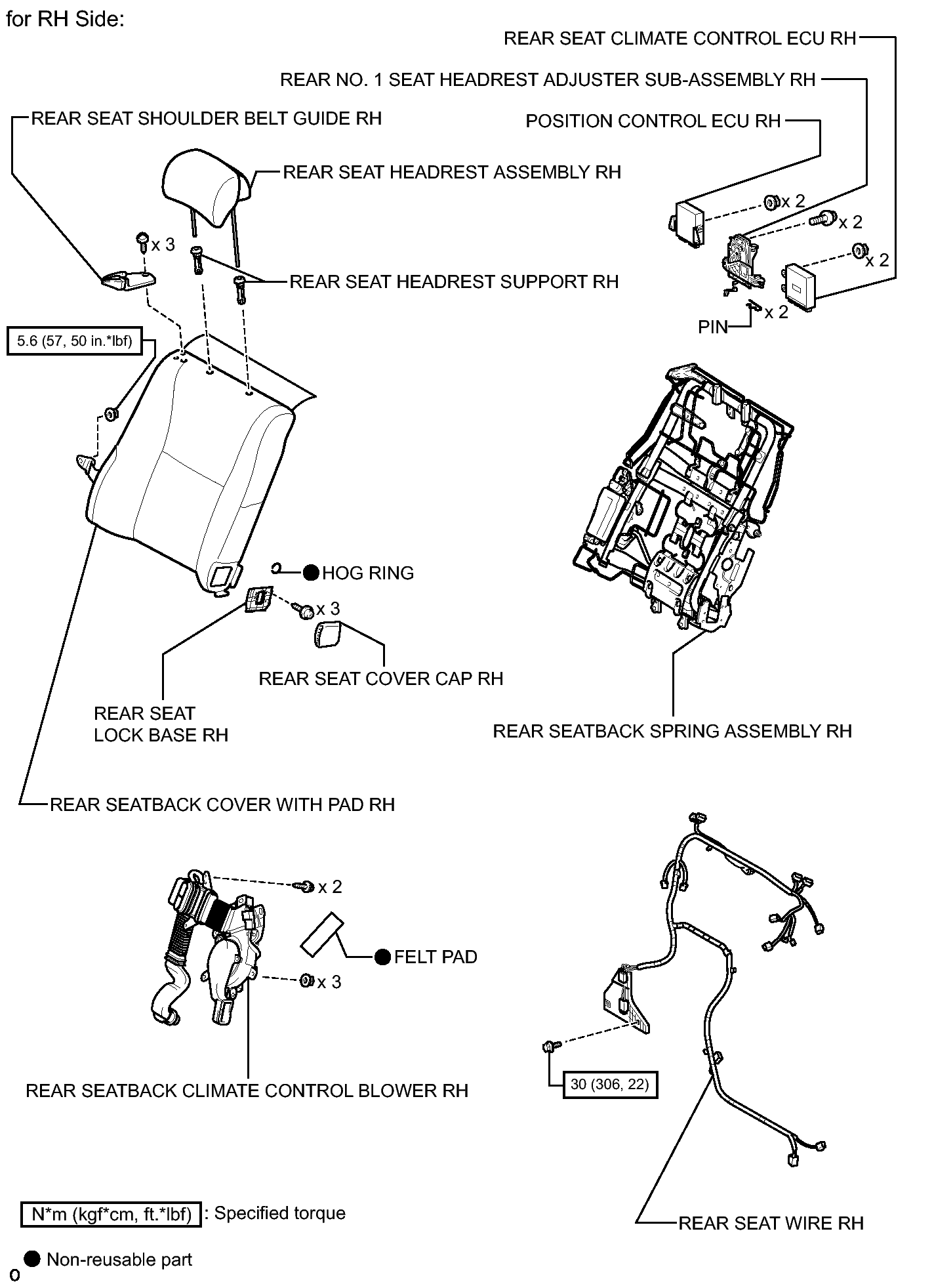

Fig 1: Identifying Rear Power Seat Motor Assembly (For Power Seat) Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

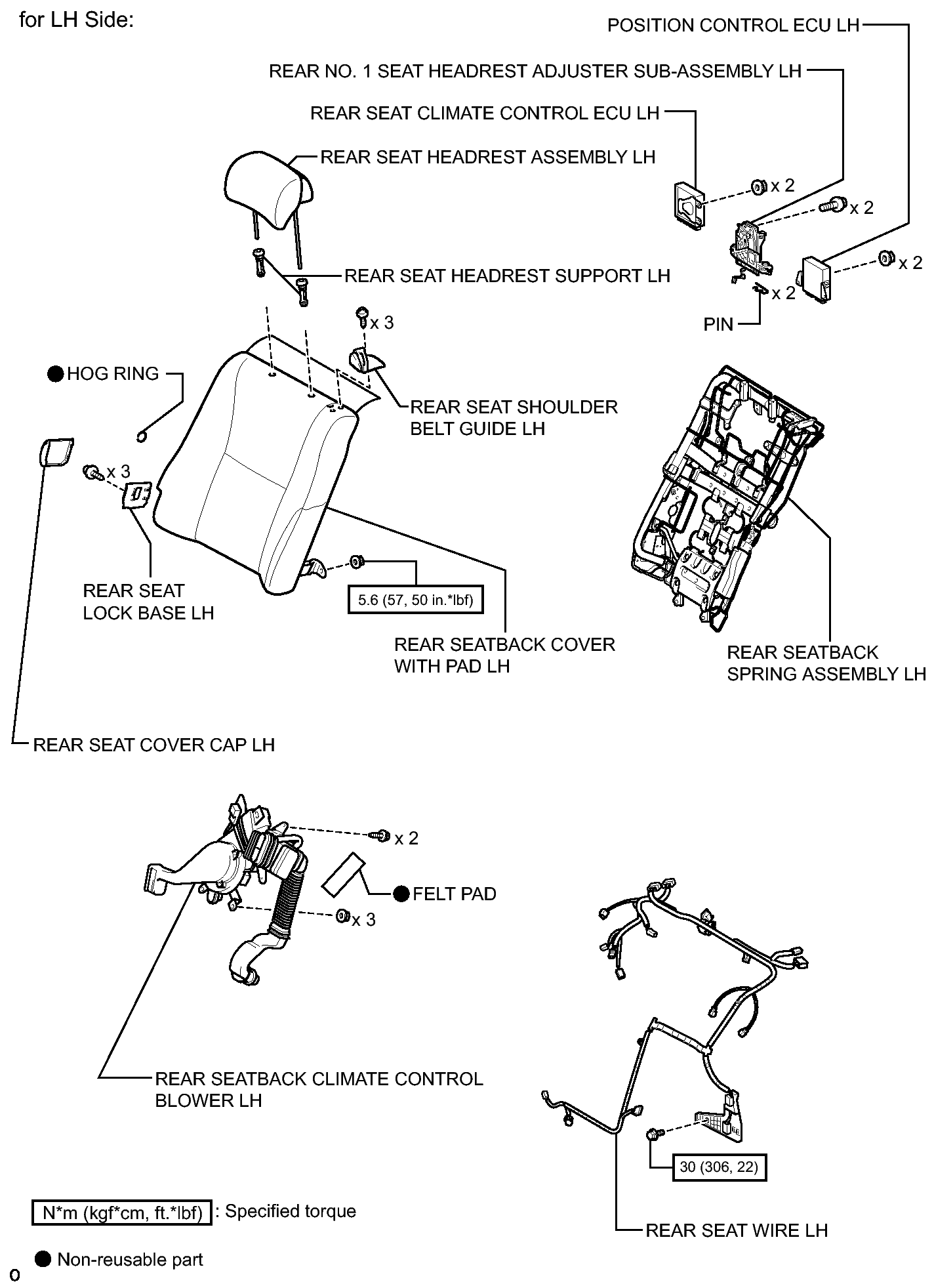

Fig 1: Identifying Rear Power Seat Motor Assembly (For Power Seat) Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

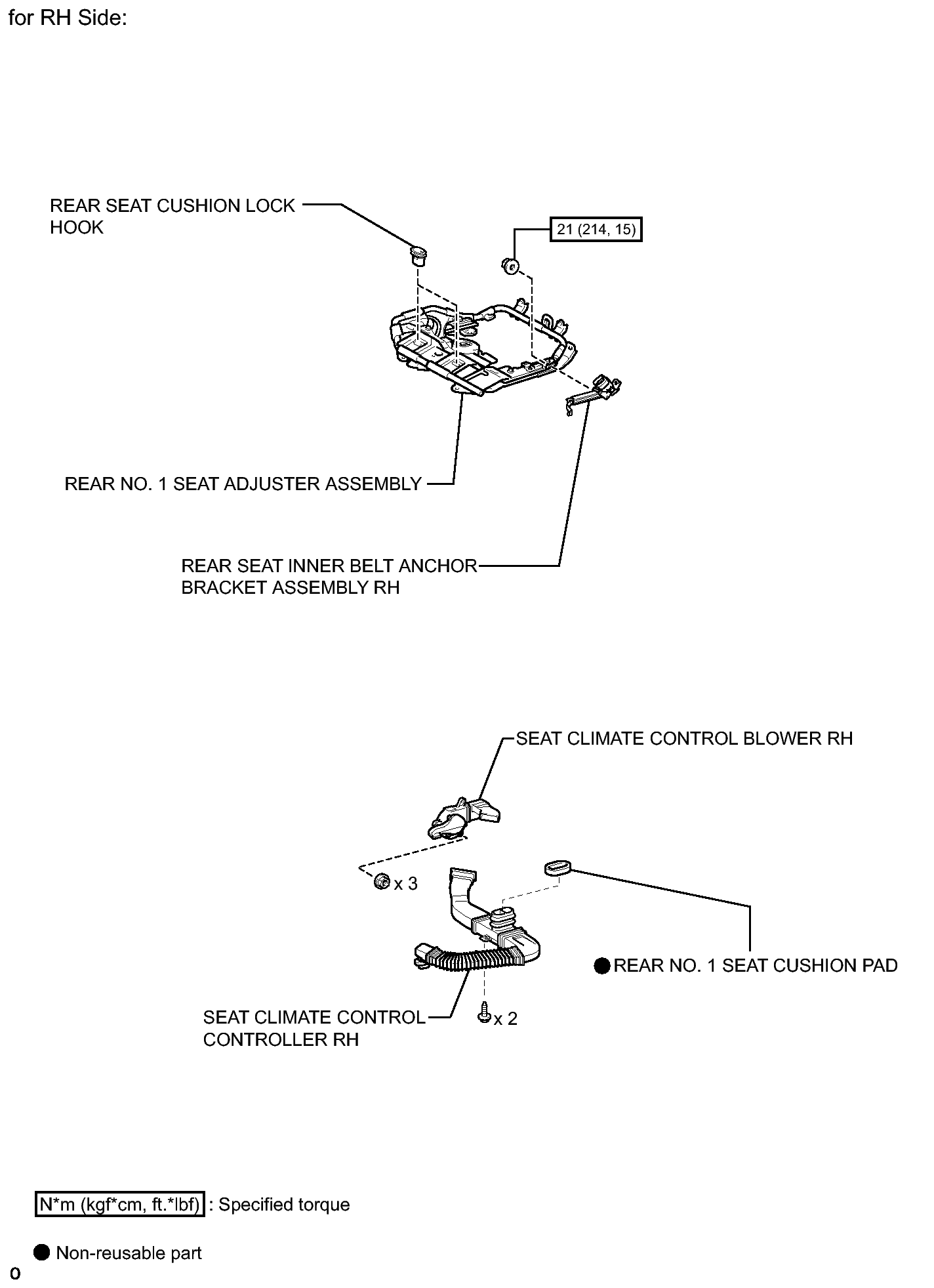

Fig 1: Identifying Rear Power Seat Motor Assembly (For Power Seat) Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

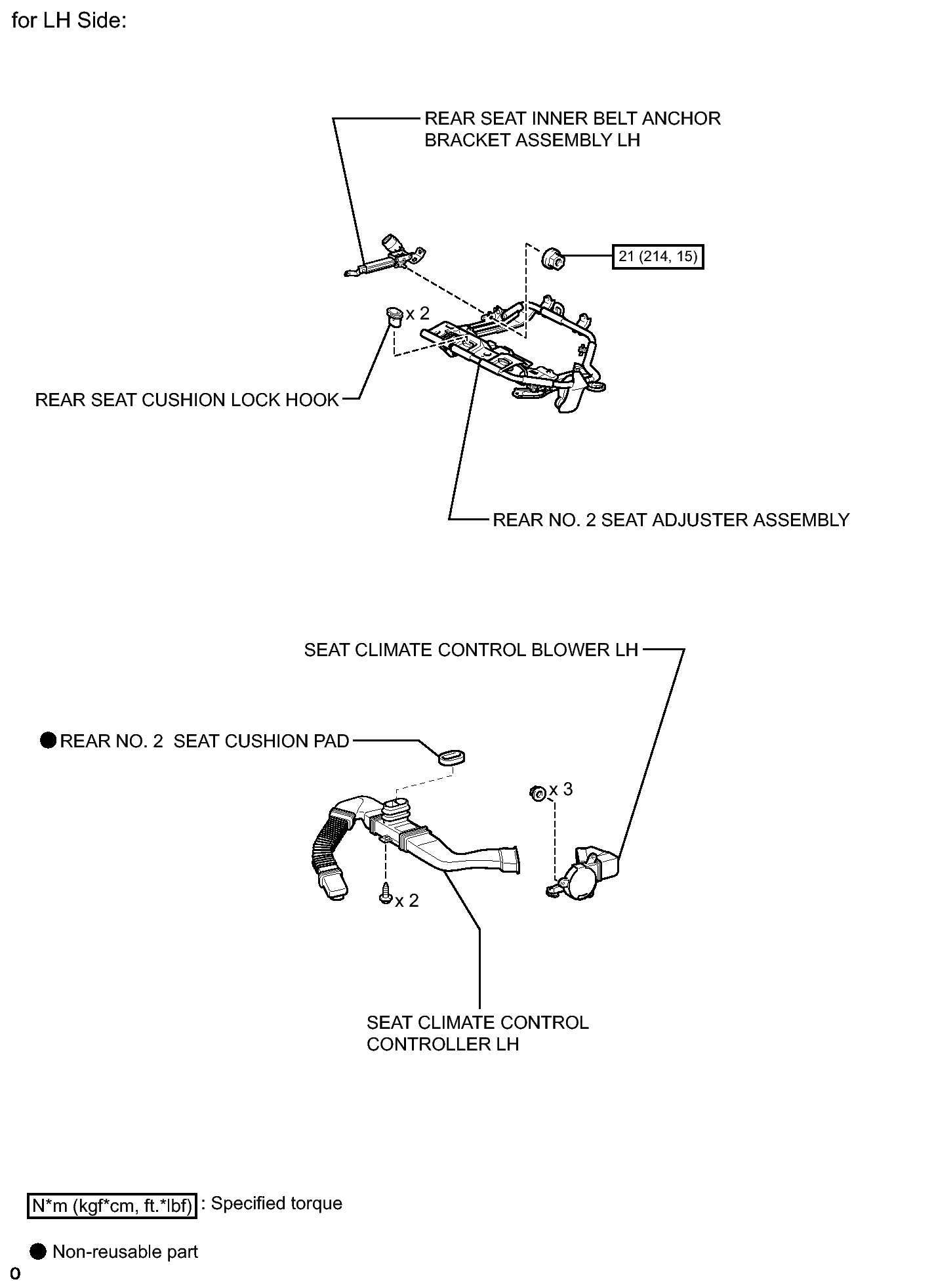

Fig 1: Identifying Rear Power Seat Motor Assembly (For Power Seat) Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

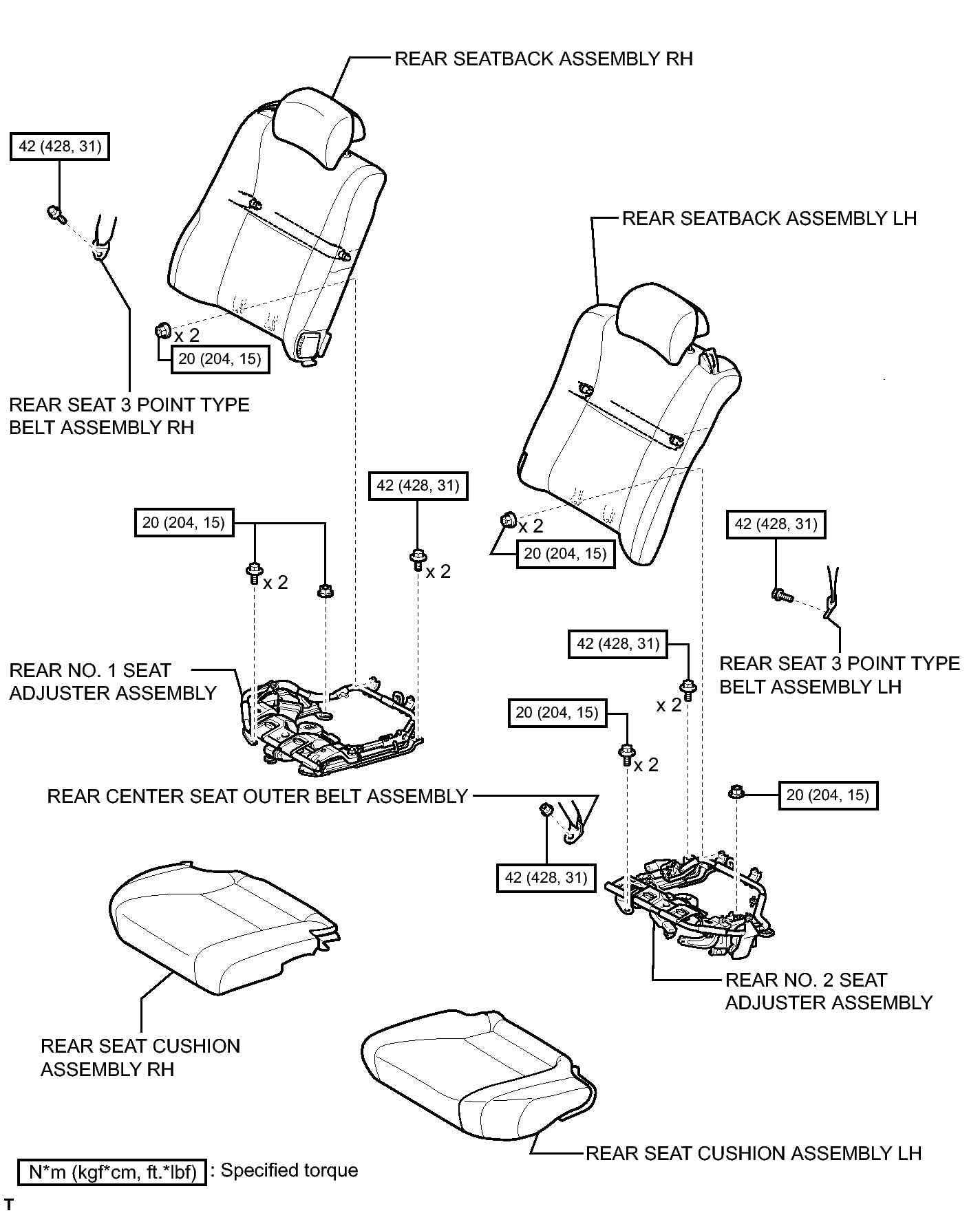

Fig 1: Identifying Rear Power Seat Motor Assembly (For Power Seat) Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
