REAR POWER SEAT MOTOR ASSEMBLY (for Ottoman): Removal: Removal

HINT:

• for Power Seat:

  Before removing the rear seat, make sure to move the seat 37 mm (1.46 in.) from the rearmost position.

• for Ottoman:

  Before removing the rear seat, make sure to move the seat 17 mm (0.67 in.) from the rearmost position.

1. REMOVE COWL TOP VENTILATOR LOUVER  . Refer to REMOVAL - Step 1
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   NOTE:

   • w/ Navigation System (for HDD):

     After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

     Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

     Condition	Waiting Time
     Vehicle enrolled in safety connect system	6 minutes
     Vehicle not enrolled in safety connect system	1 minute

   • When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
3. REMOVE REAR SEAT CUSHION ASSEMBLY LH  See step  2
4. REMOVE REAR SEAT CUSHION ASSEMBLY RH  See step  3
5. REMOVE REAR SEAT CUSHION AIRBAG ASSEMBLY RH  See step  4
6. REMOVE REAR SEATBACK ASSEMBLY LH  See step  6
7. REMOVE REAR SEAT CONSOLE BOX (w/ Rear Console Box)  . Refer to REMOVAL - Step 1
8. REMOVE REAR SEATBACK ASSEMBLY RH  See step  8
9. REMOVE REAR NO. 2 SEAT ADJUSTER ASSEMBLY
   1. w/ Center Seat:

      Remove the nut and anchor part of the rear seat outer belt assembly.

      Fig 1: Identifying Nut And Anchor Part Of Rear Seat Outer Belt Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 4 bolts, nut and seat adjuster.

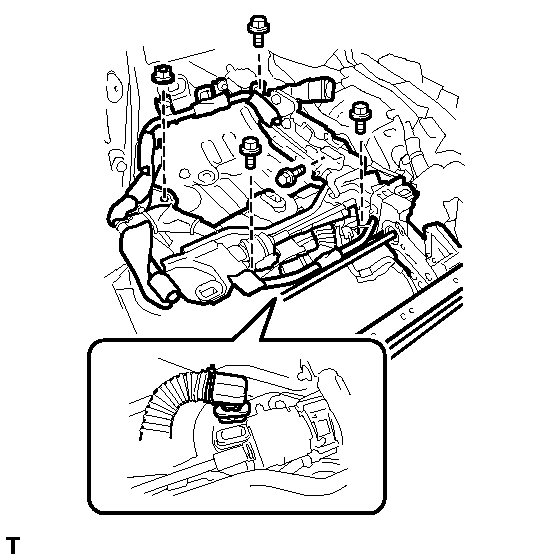

      Fig 2: Identifying Rear No. 2 Seat Adjuster Assembly And Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the vehicle body.

   3. Disconnect the air duct from the vehicle body.
10. REMOVE REAR SEAT INNER BELT ANCHOR BRACKET ASSEMBLY LH  See step  16
11. REMOVE SEAT CLIMATE CONTROL CONTROLLER LH  See step  17
12. REMOVE SEAT CLIMATE CONTROL BLOWER LH  See step  19
13. REMOVE REAR NO. 1 SEAT ADJUSTER ASSEMBLY

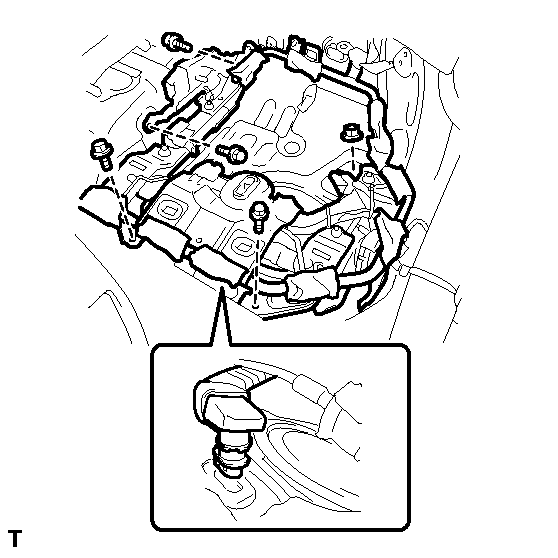

    Fig 3: Identifying Bolts, Nut And Seat Adjuster

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts, nut and seat adjuster.
       NOTE:

       Be careful not to damage the vehicle body.

    2. Disconnect the air duct from the vehicle body.
14. REMOVE REAR SEAT INNER BELT ANCHOR BRACKET ASSEMBLY RH  See step  18
15. REMOVE SEAT CLIMATE CONTROL CONTROLLER RH  See step  40
16. REMOVE SEAT CLIMATE CONTROL BLOWER RH  See step  42
17. REMOVE REAR SEATBACK ADJUSTER ASSEMBLY RH

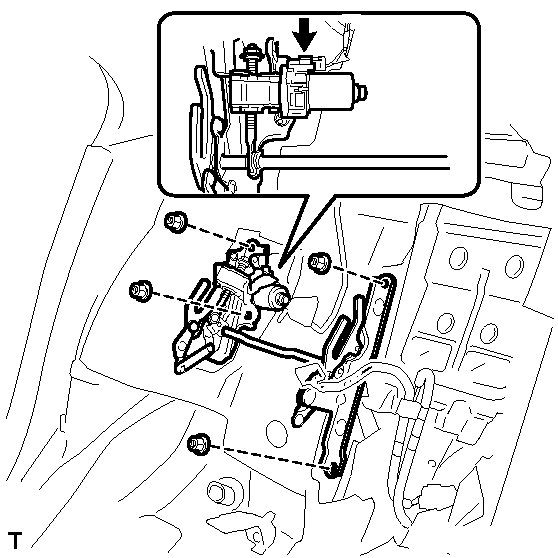

    Fig 4: Identifying Connector, Nuts & Seatback Adjuster RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the 4 nuts and seatback adjuster.
       NOTE:

       Be careful not to damage the vehicle body.

18. REMOVE REAR SEAT HEADREST ASSEMBLY LH  See step  4
19. REMOVE REAR SEAT HEADREST SUPPORT LH  See step  5
20. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
    1. Detach the wire harness clamp and disconnect the 2 connectors.
       Fig 5: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly, Wire Harness Clamp, Connectors, Bolts & Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
    3. Detach the 2 claws and remove the headrest adjuster.
21. REMOVE REAR SEAT SHOULDER BELT GUIDE LH  See step  3
22. REMOVE POSITION CONTROL ECU LH  See step  7
23. REMOVE REAR SEAT CLIMATE CONTROL ECU LH  See step  8
24. REMOVE REAR SEAT COVER CAP LH  See step  9
25. REMOVE REAR SEAT LOCK BASE LH  See step  10
26. REMOVE REAR SEATBACK COVER WITH PAD LH  See step  11
27. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER LH  See step  13
28. REMOVE REAR SEAT WIRE LH
    Fig 6: Identifying Rear Seat Wire, Connectors & Wire Harness Clamps LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors.
    2. Detach the wire harness clamps and remove the seat wire.
29. REMOVE REAR SEAT HEADREST ASSEMBLY RH  See step  25
30. REMOVE REAR SEAT HEADREST SUPPORT RH  See step  26
31. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

32. REMOVE REAR SEAT SHOULDER BELT GUIDE RH  See step  24
33. REMOVE POSITION CONTROL ECU RH  See step  28
34. REMOVE REAR SEAT CLIMATE CONTROL ECU RH  See step  29
35. REMOVE REAR SEAT COVER CAP RH  See step  30
36. REMOVE REAR SEAT LOCK BASE RH  See step  31
37. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER RH  See step  32
38. REMOVE REAR SEATBACK COVER WITH PAD RH  See step  33
39. REMOVE REAR SEAT WIRE RH  See step  35
40. REMOVE SUB SEATBACK PLATE SUB-ASSEMBLY
    1. Detach the 2 claws and disconnect the 2 air hoses.
       Fig 7: Identifying Claws, Upper Seatback Plate & Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 4 clamps and remove the upper part of the seatback plate.
    3. Detach the 2 hose clamps and disconnect the air hose.
       Fig 8: Identifying Hose Clamps, Air Hose, Clamps & Lower Seatback Plate

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the 4 clamps and remove the lower part of the seatback plate.
