LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Ottoman): Components: Illustration

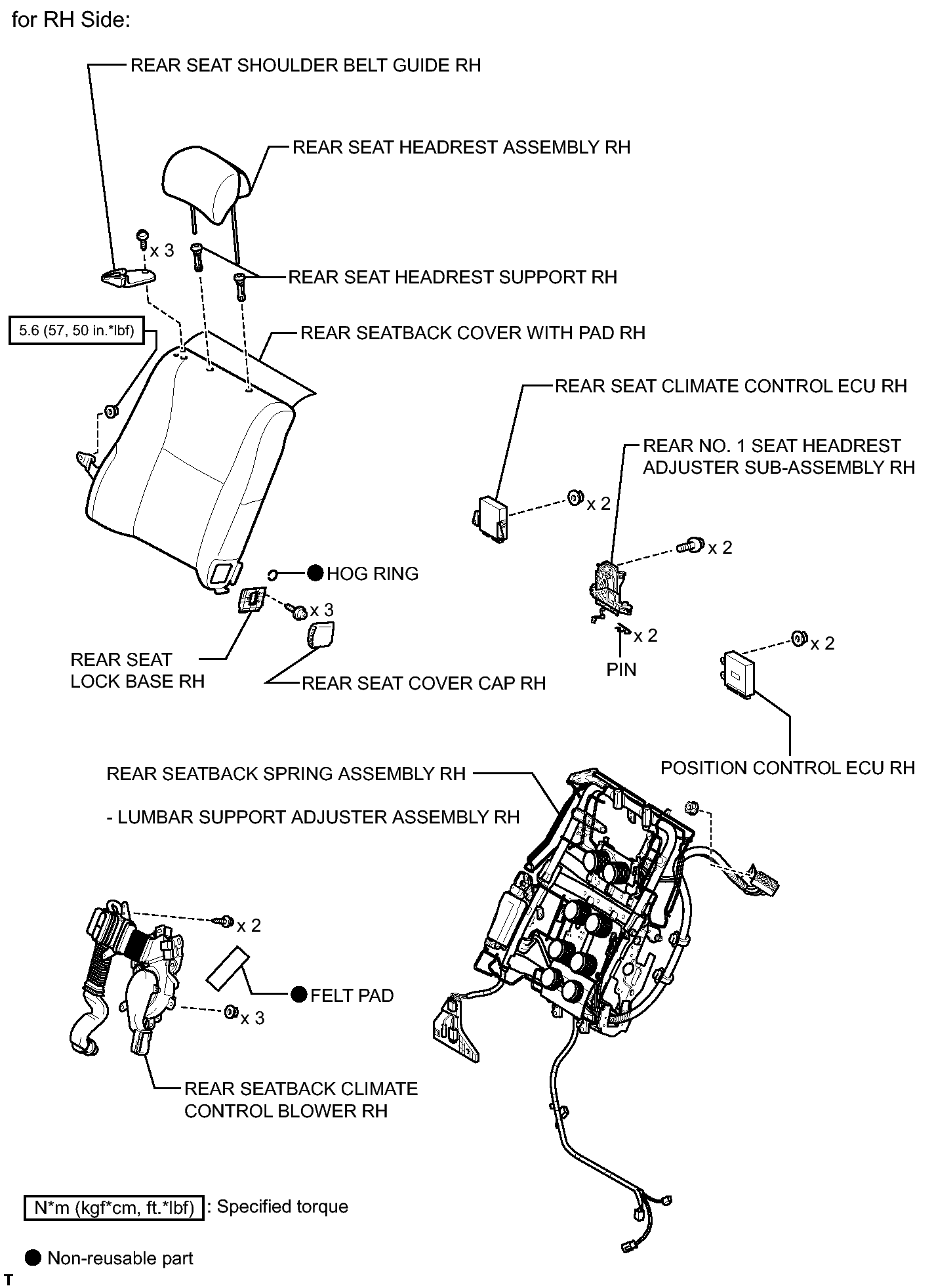

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Ottoman) Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

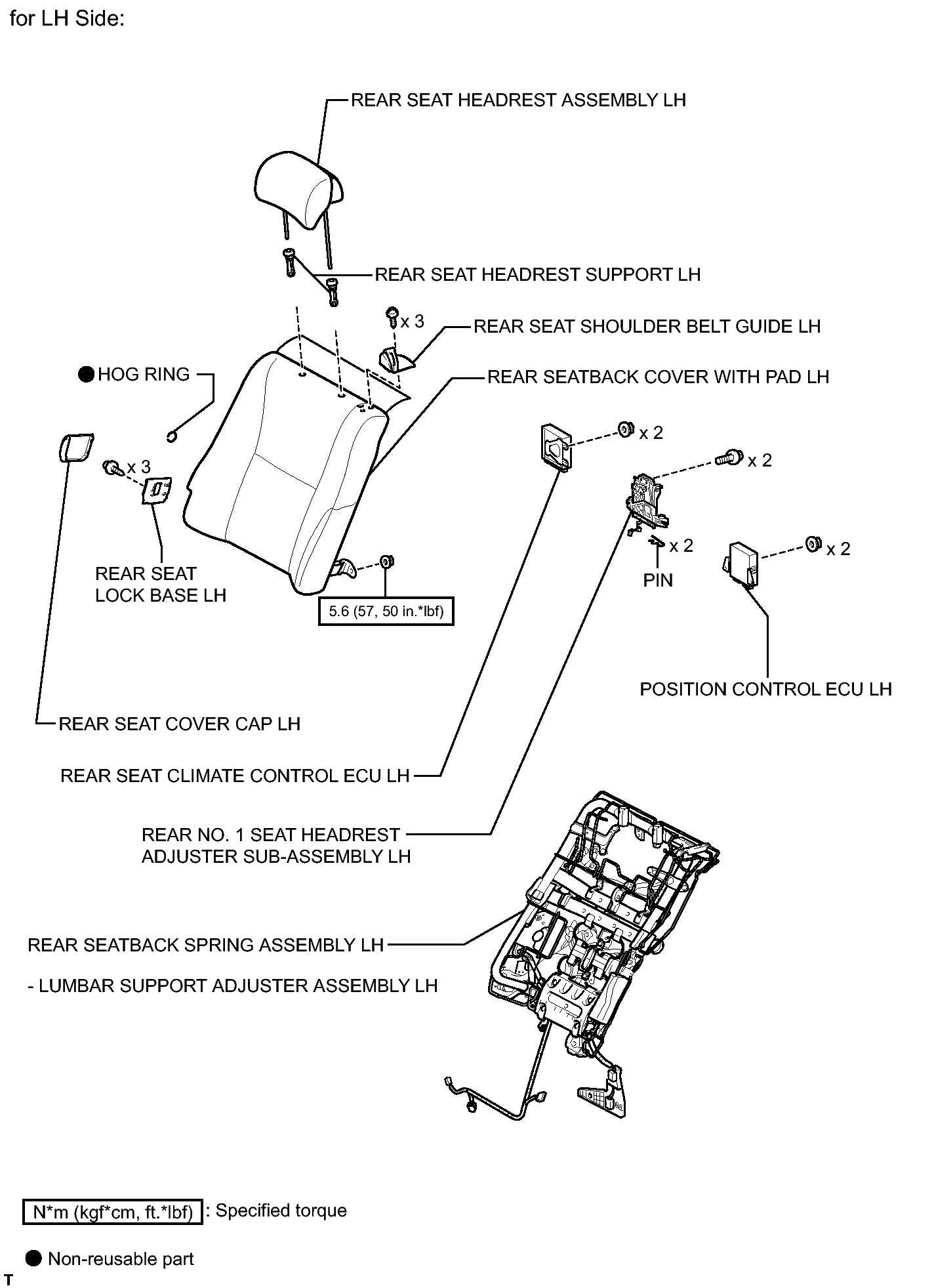

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Ottoman) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

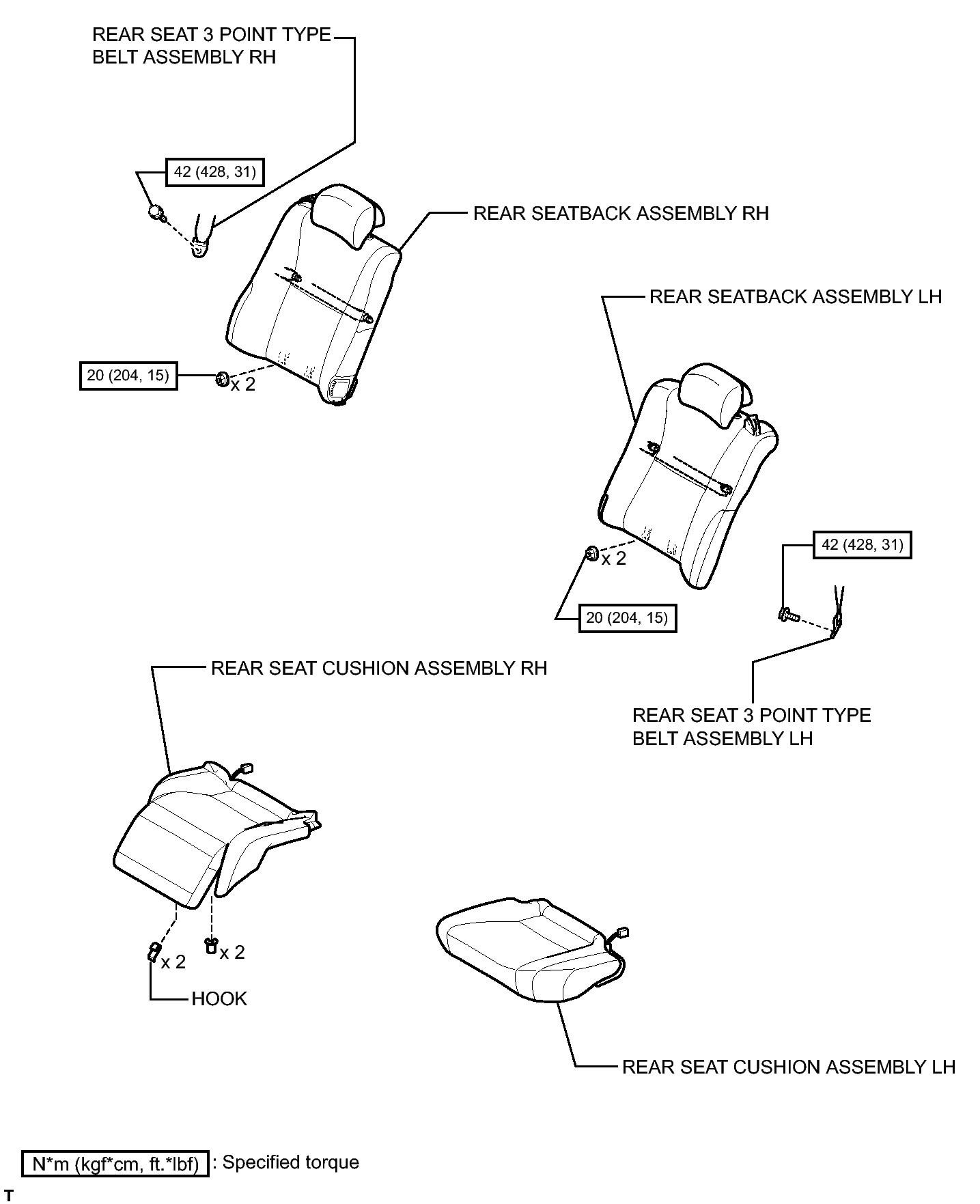

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Ottoman) Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

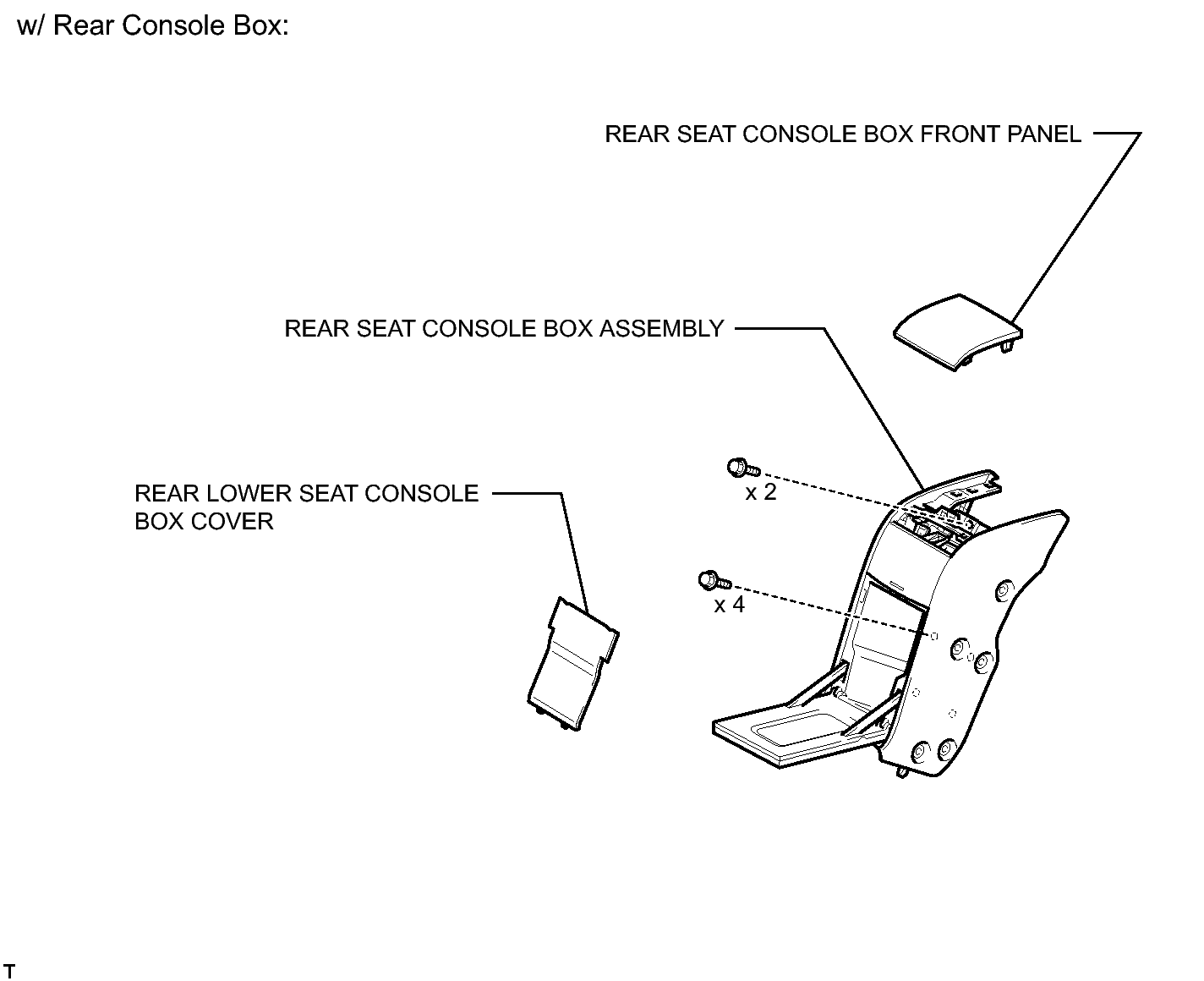

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Ottoman) Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
