Rear Right Seat's Seat Heater does not Operate: Wiring Diagram

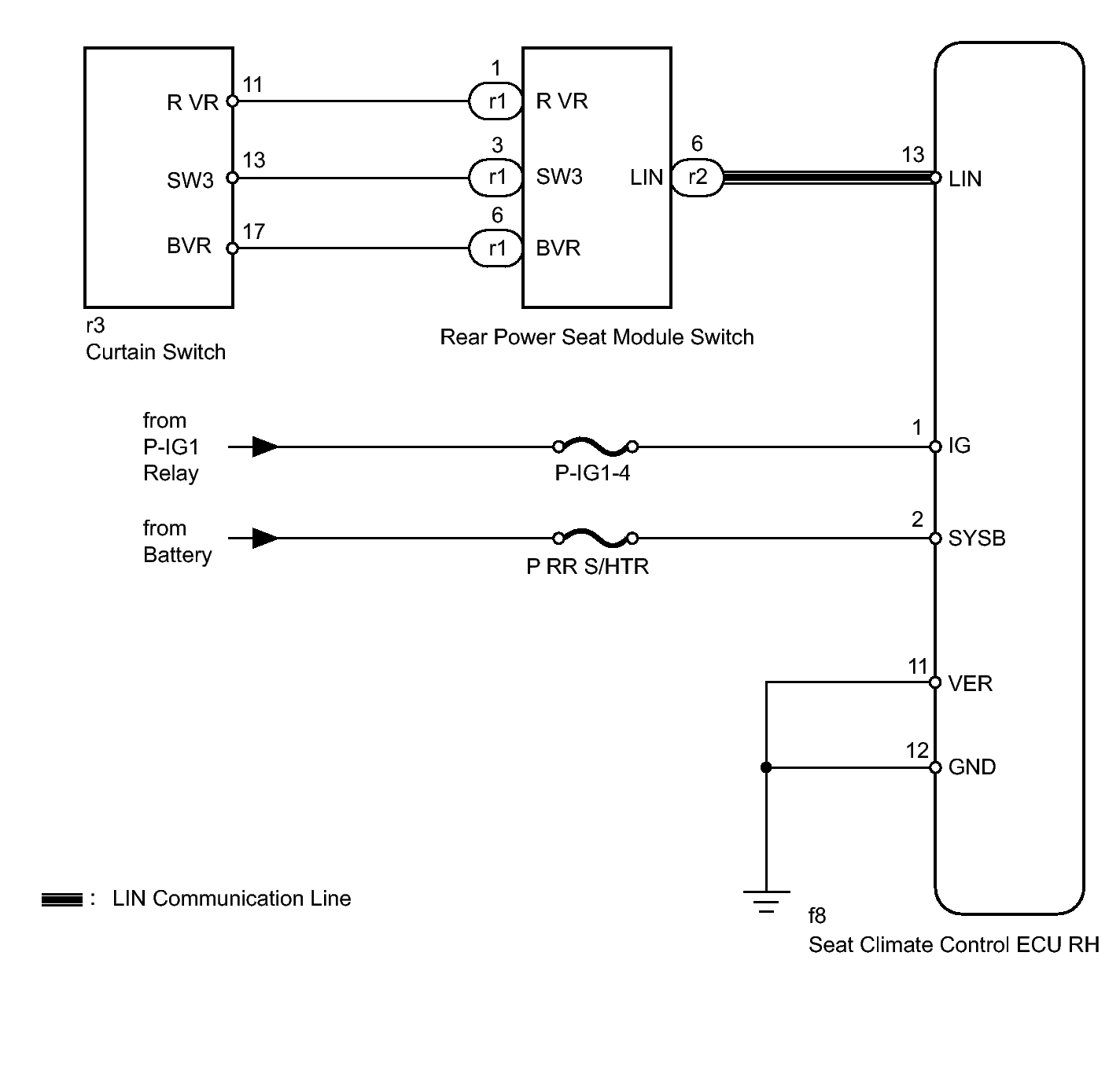

Fig 1: Rear Right Seat's Seat Heater Does Not Operate - Wiring Diagram

GTY288805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
