Rear Left Seat's Seat Heater does not Operate: Wiring Diagram

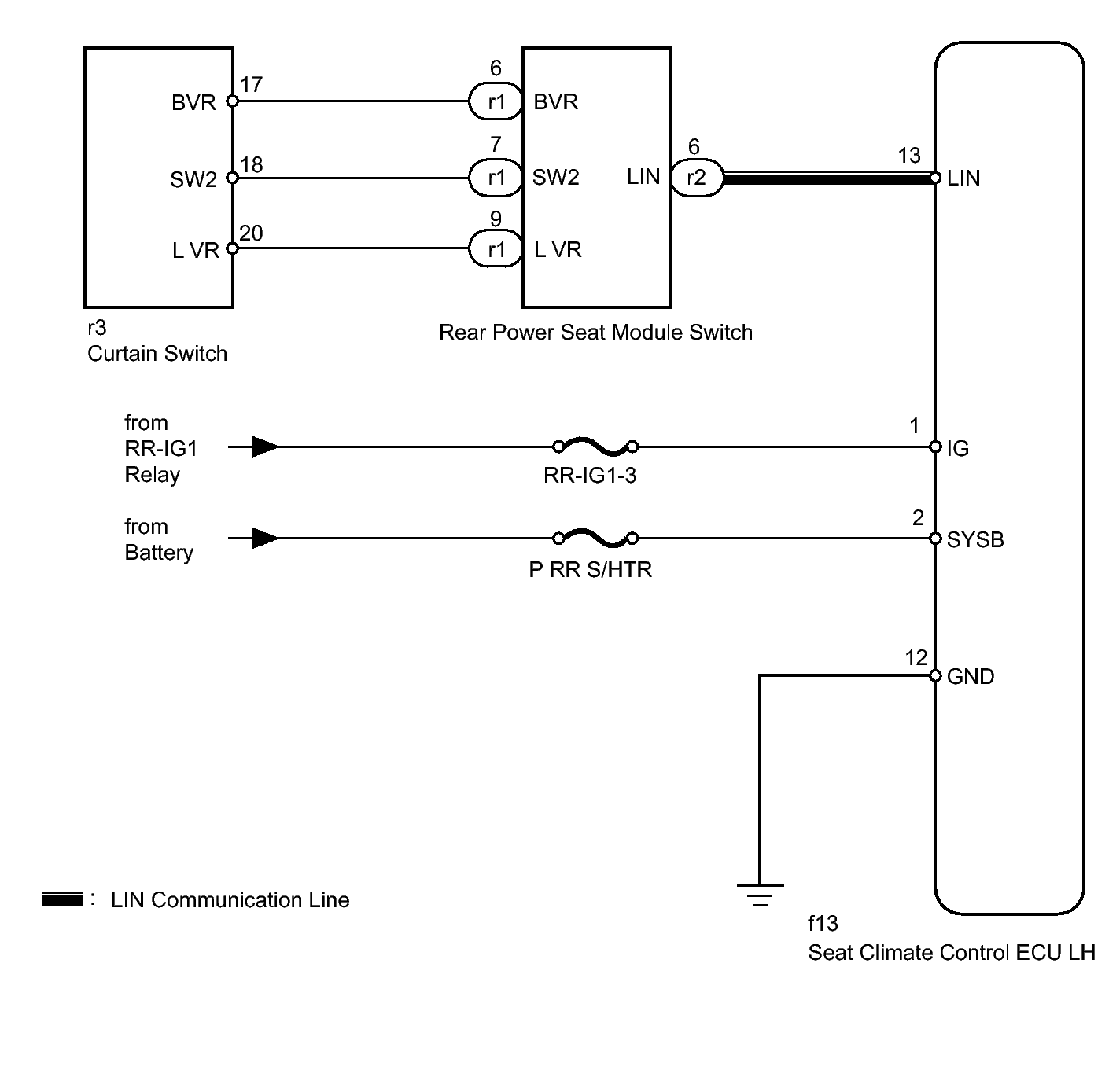

Fig 1: Rear Left Seat'S Seat Heater Does Not Operate - Wiring Diagram

GTY288804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
