Parts Location: Illustration

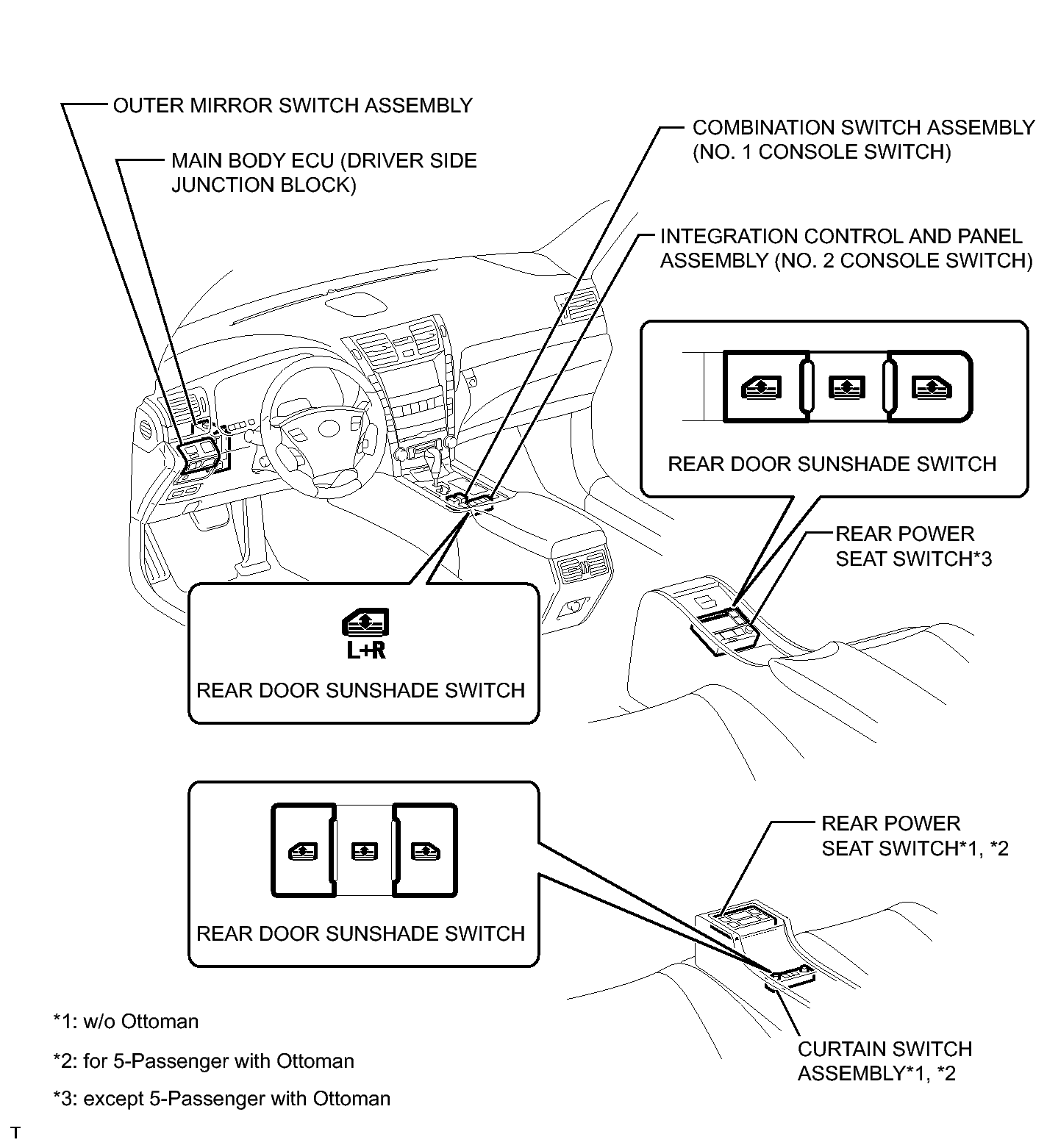

Fig 1: Identifying Rear Door Sunshade System Components Location (1 Of 2)
GTY282096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

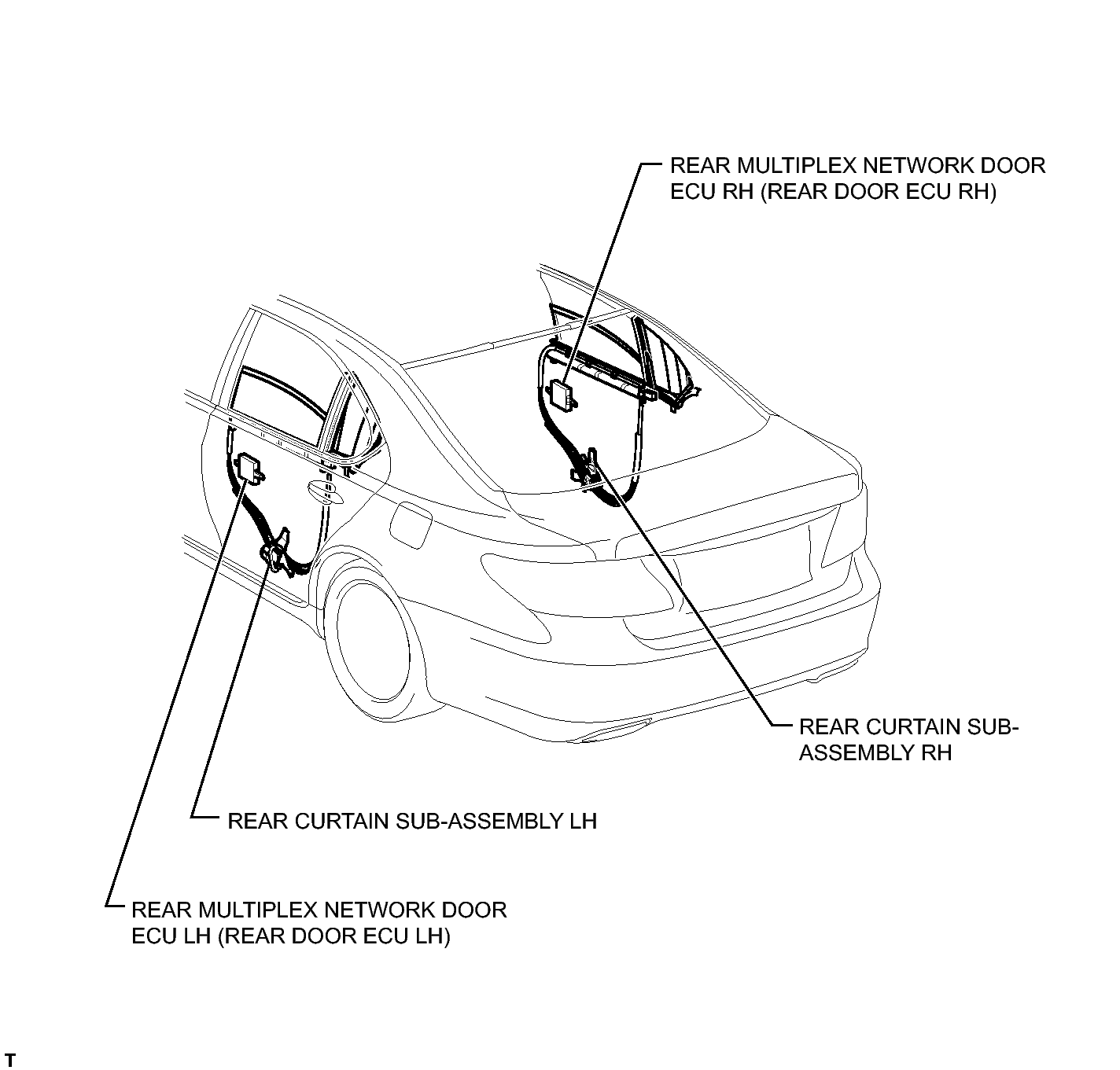

Fig 1: Identifying Rear Door Sunshade System Components Location (2 Of 2)
GTY279104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
