Fuel Lid Opener does not Operate: Wiring Diagram

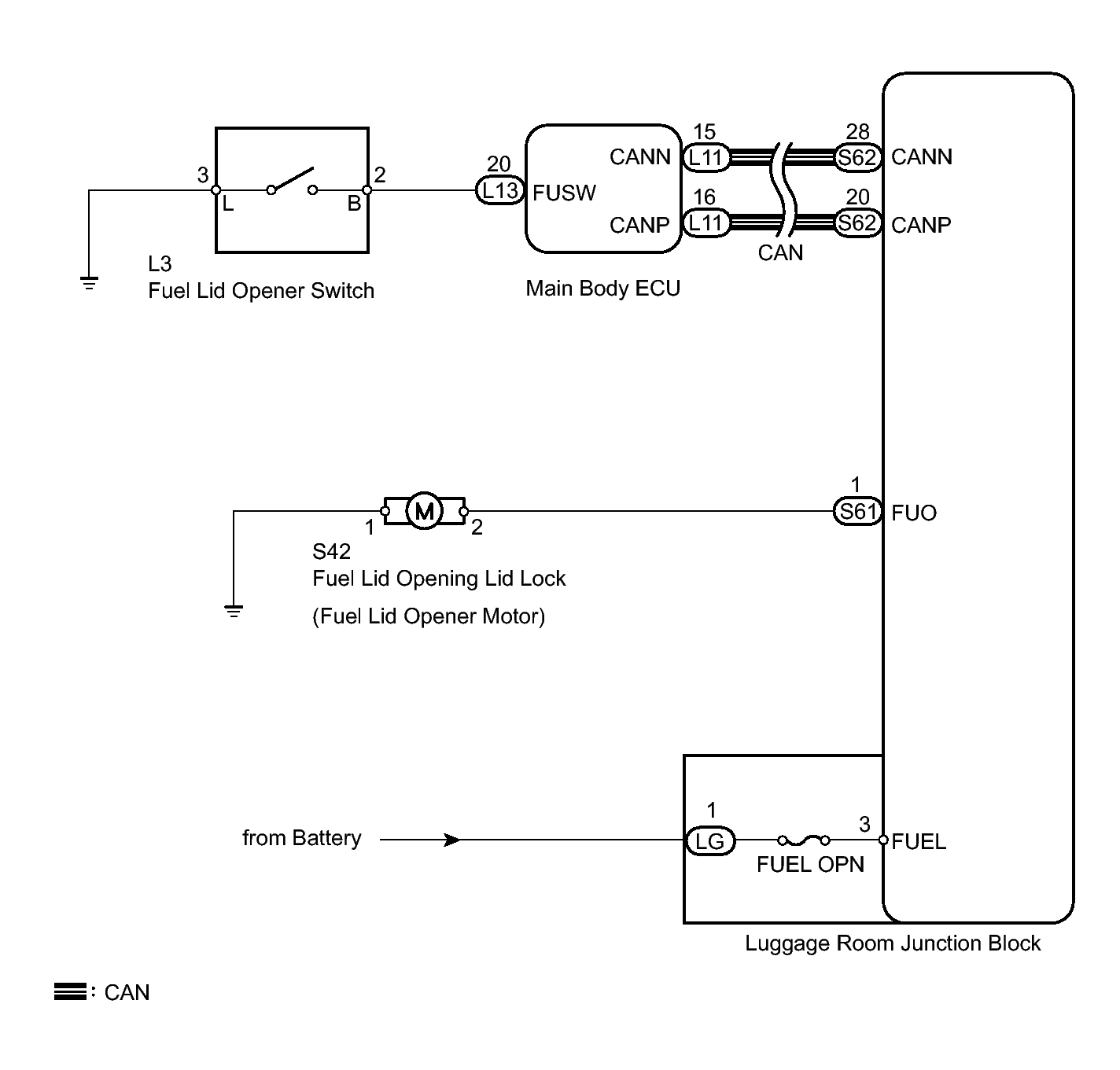

Fig 1: Luggage Room Junction Block - Wiring Diagram

GTY281176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
