Parts Location: Illustration

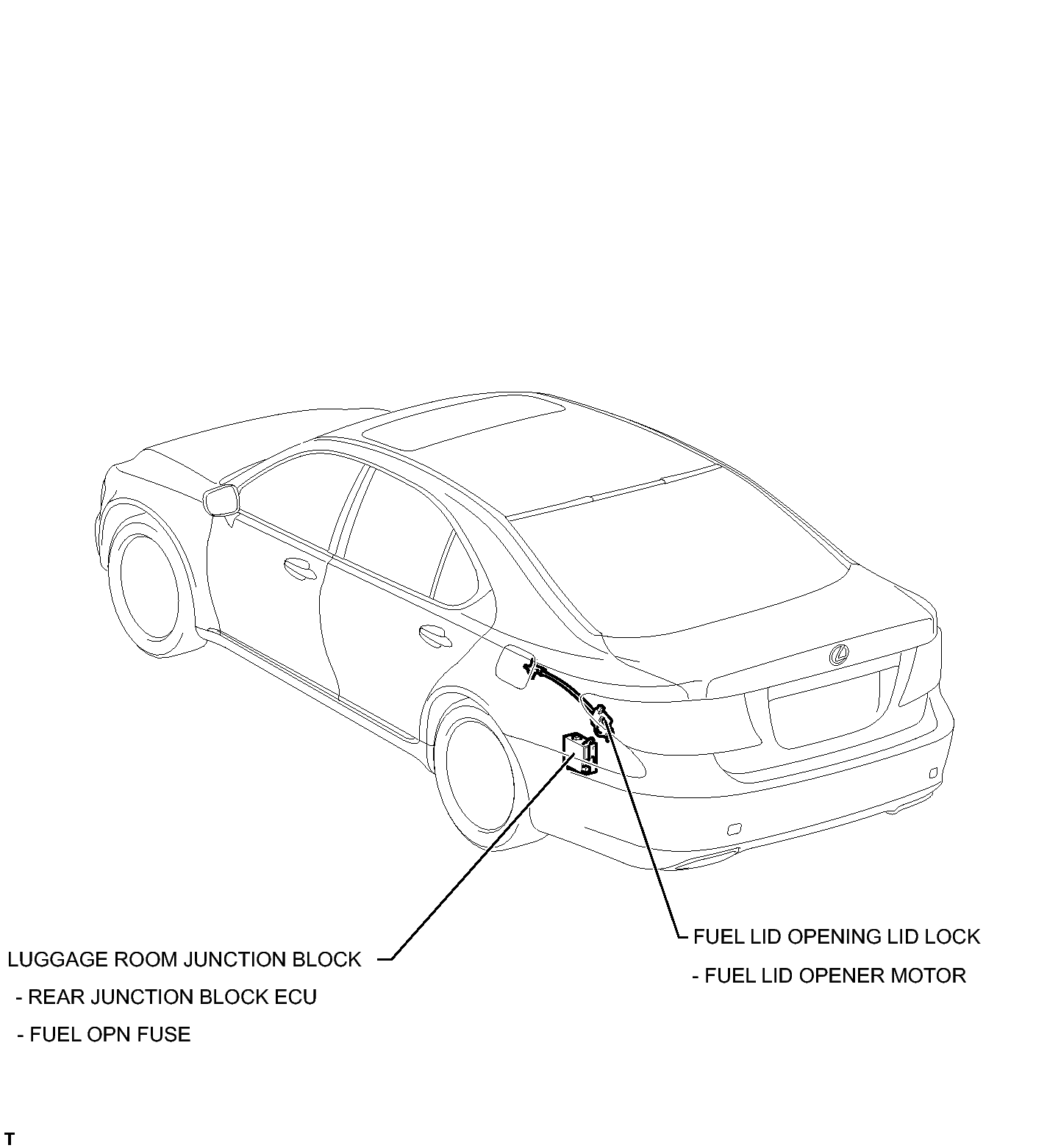

Fig 1: Identifying Fuel Lid Opener System Components Location (1 Of 2)
GTY288600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

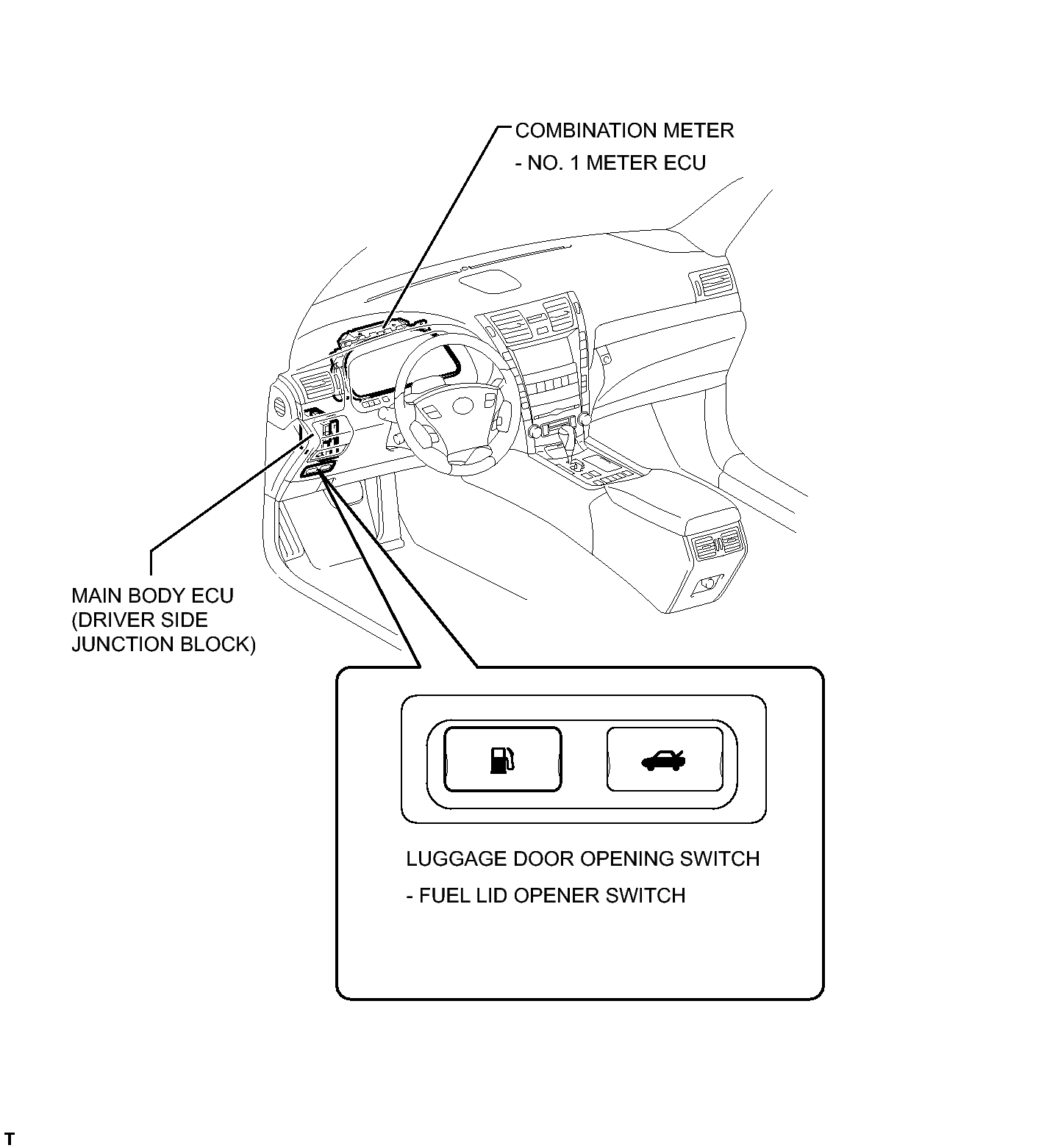

Fig 1: Identifying Fuel Lid Opener System Components Location (2 Of 2)
GTY287426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
