Parts Location: Illustration

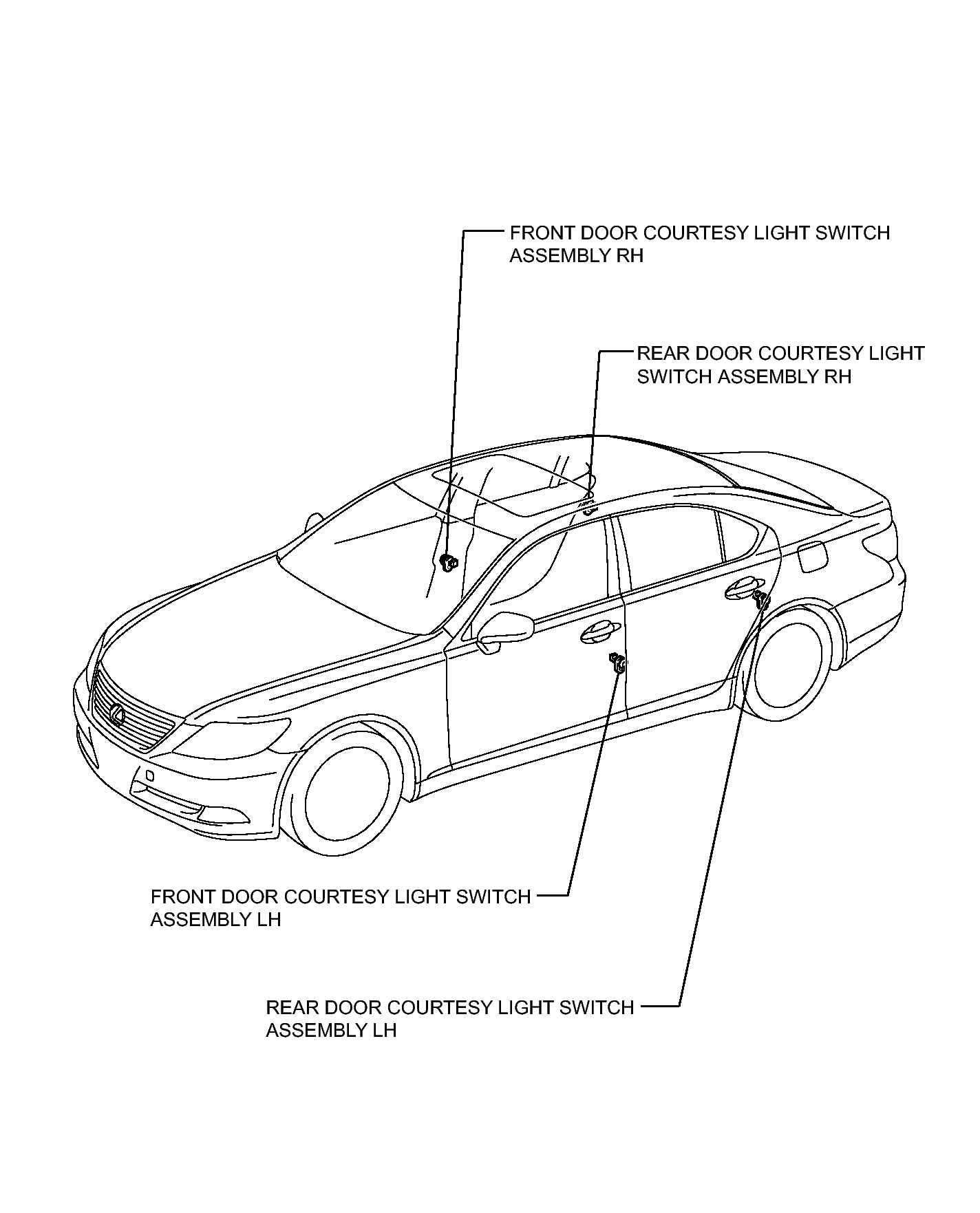

Fig 1: Identifying Door Closer System Components Location (1 Of 3)
GTY268309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

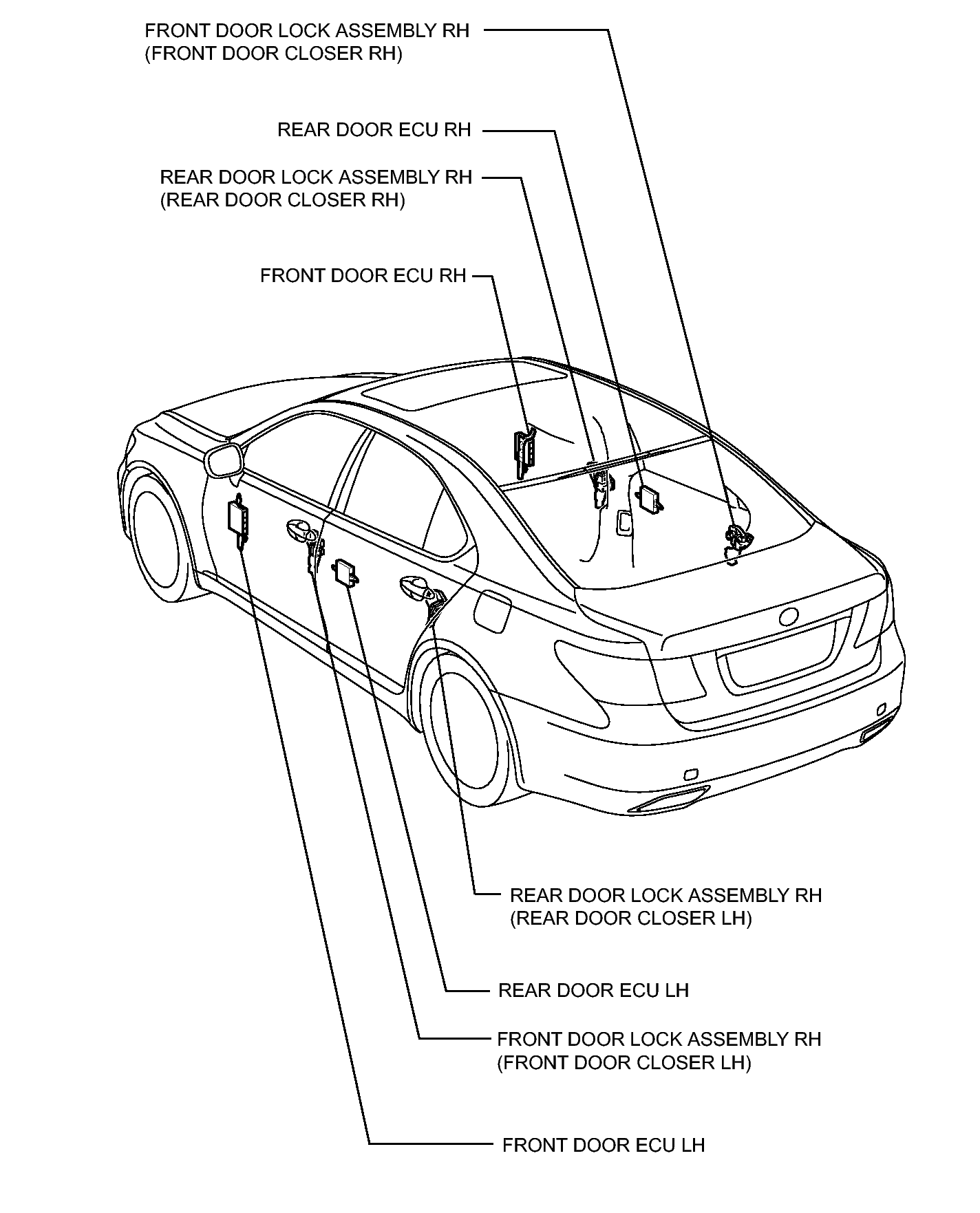

Fig 1: Identifying Door Closer System Components Location (2 Of 3)
GTY259203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

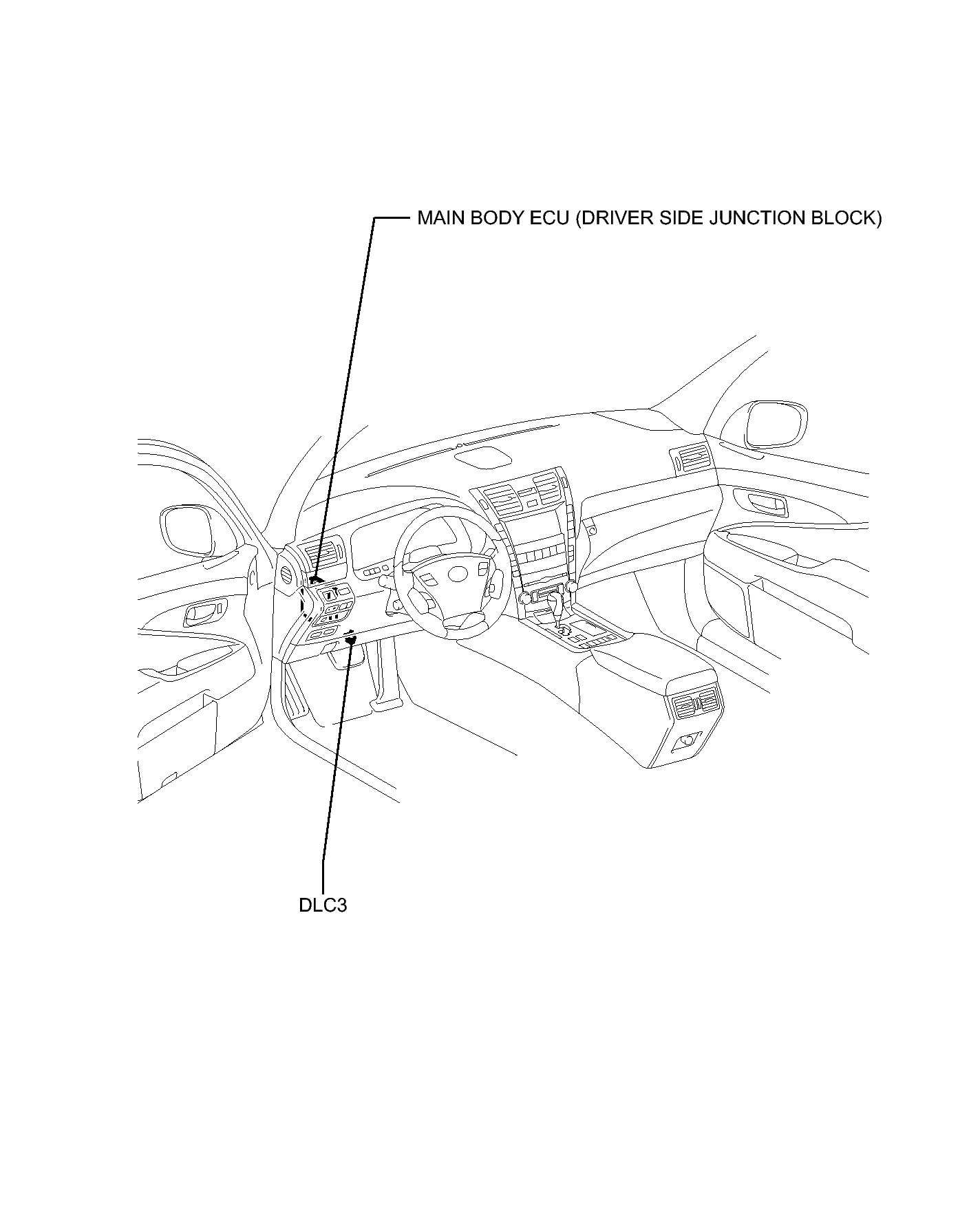

Fig 1: Identifying Door Closer System Components Location (3 Of 3)
GTY288818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
