Rear Door: Components: Illustration

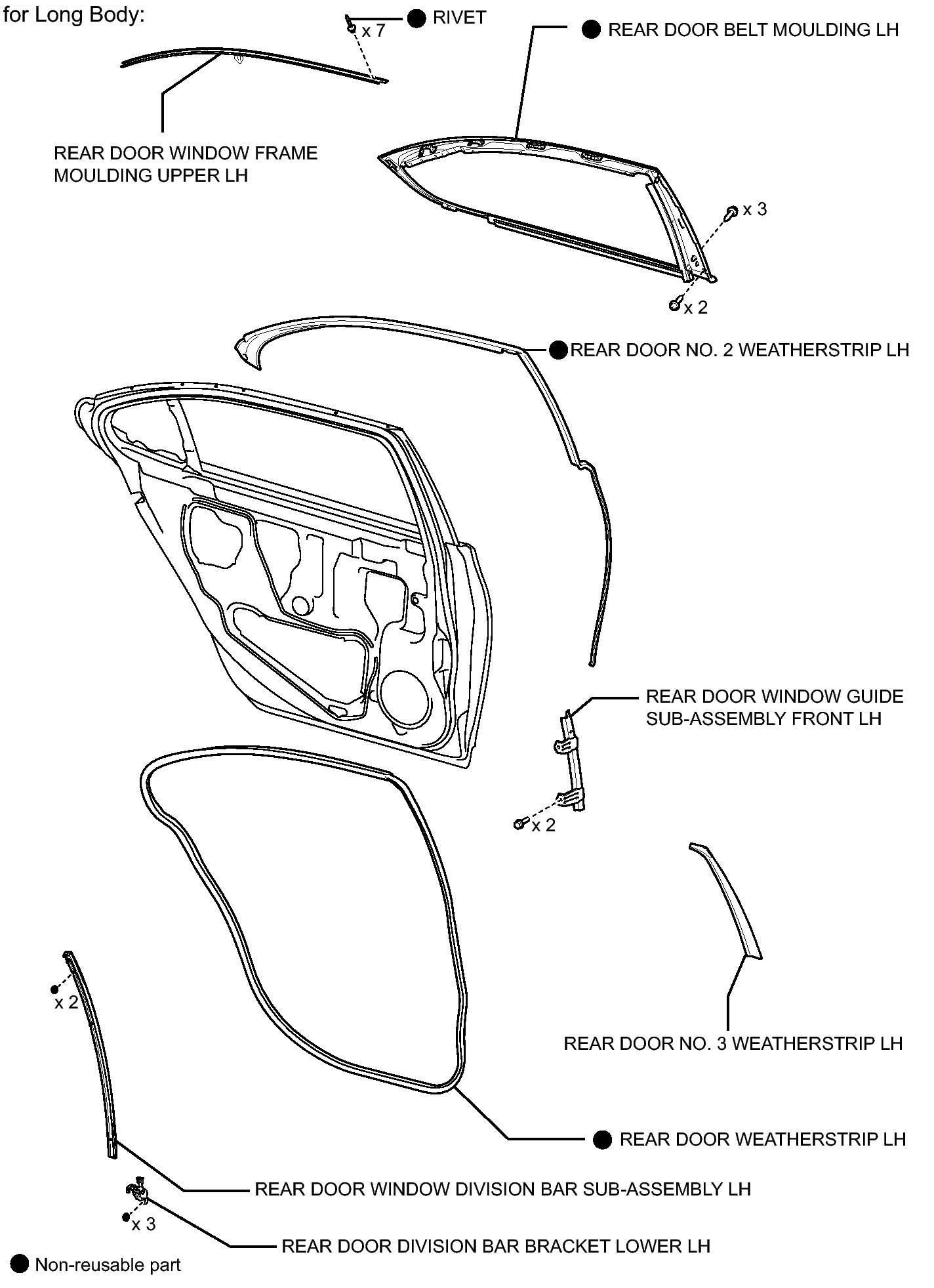

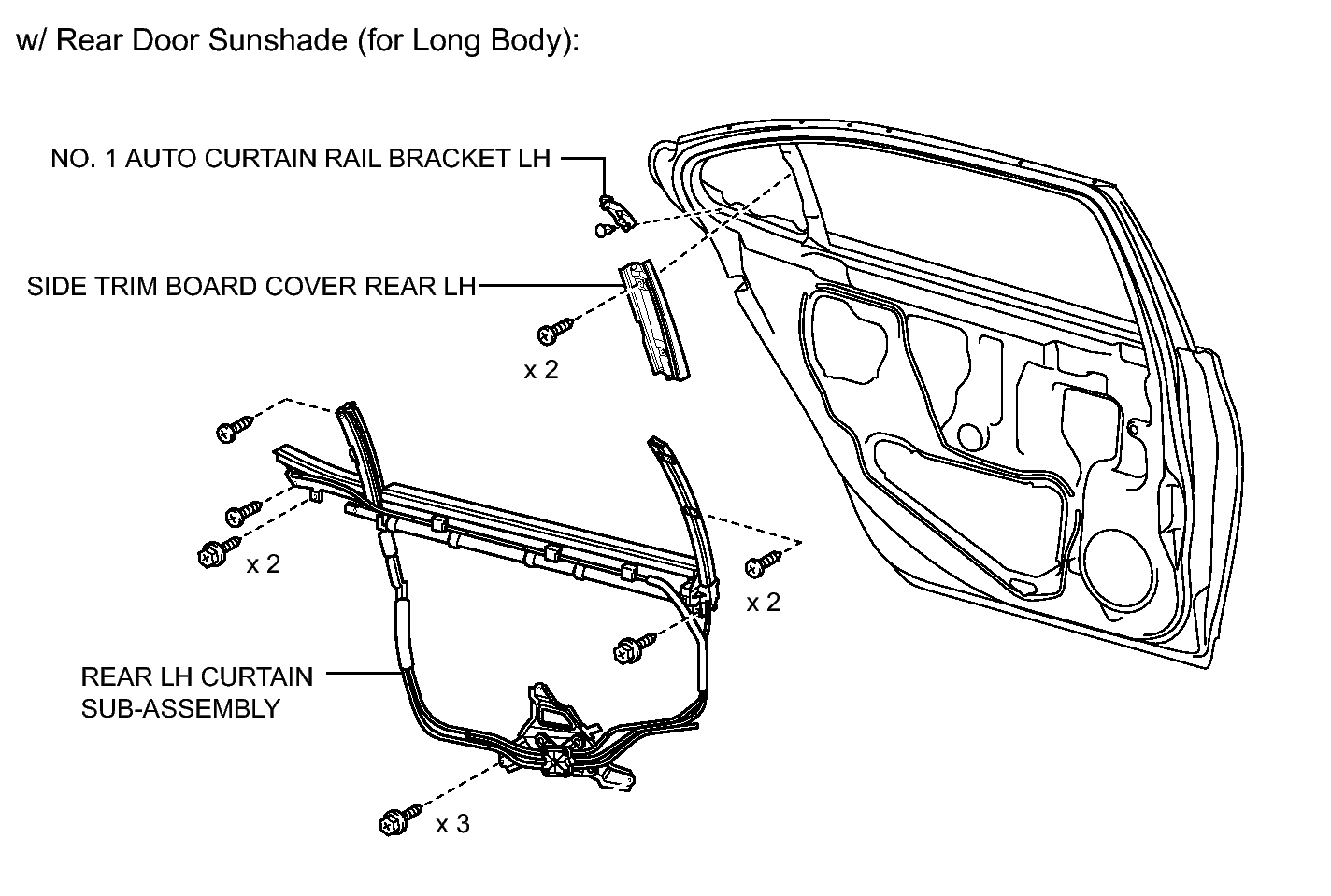

Fig 1: Identifying Rear Door Replacement Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

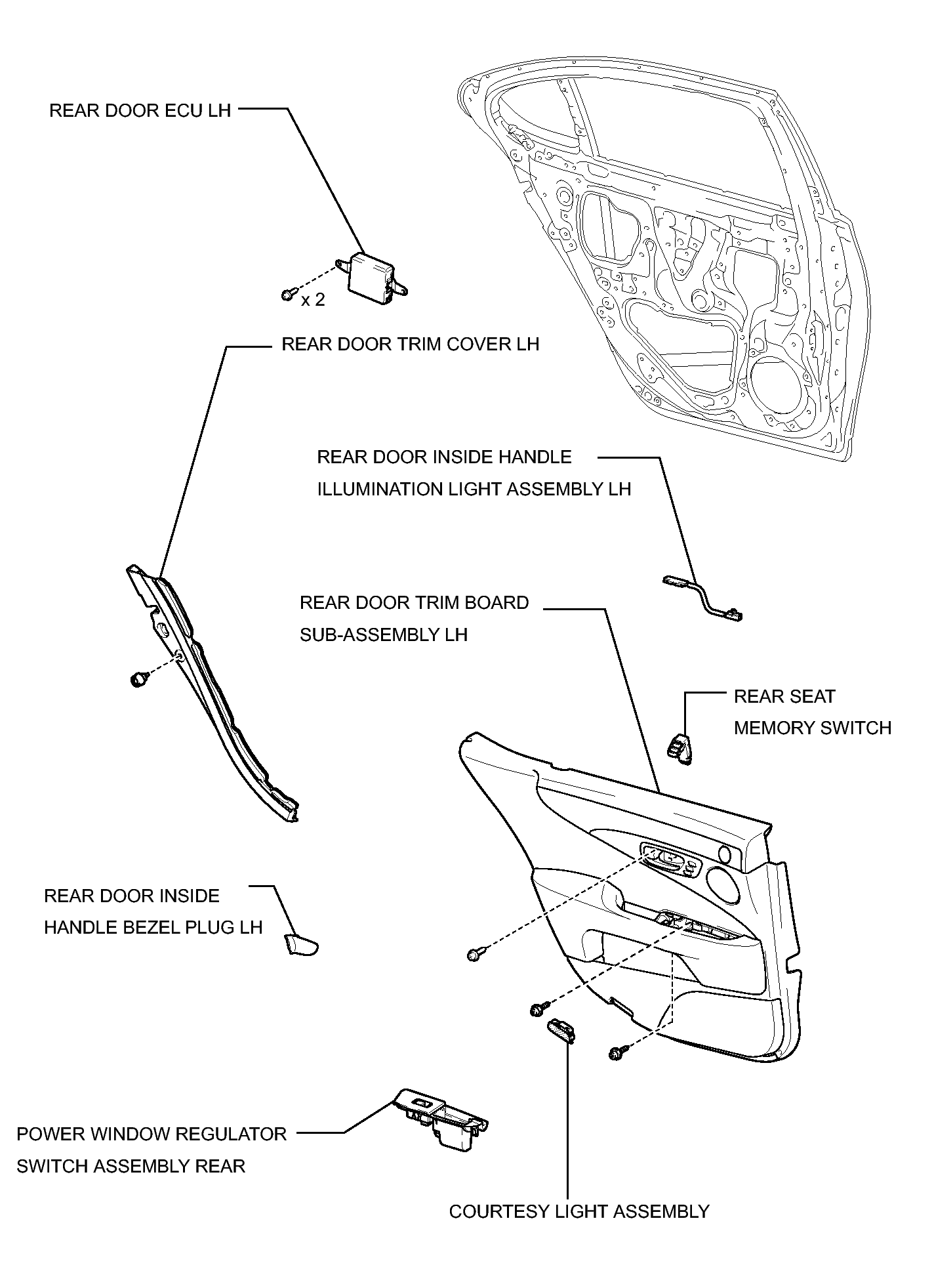

Fig 1: Identifying Rear Door Replacement Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

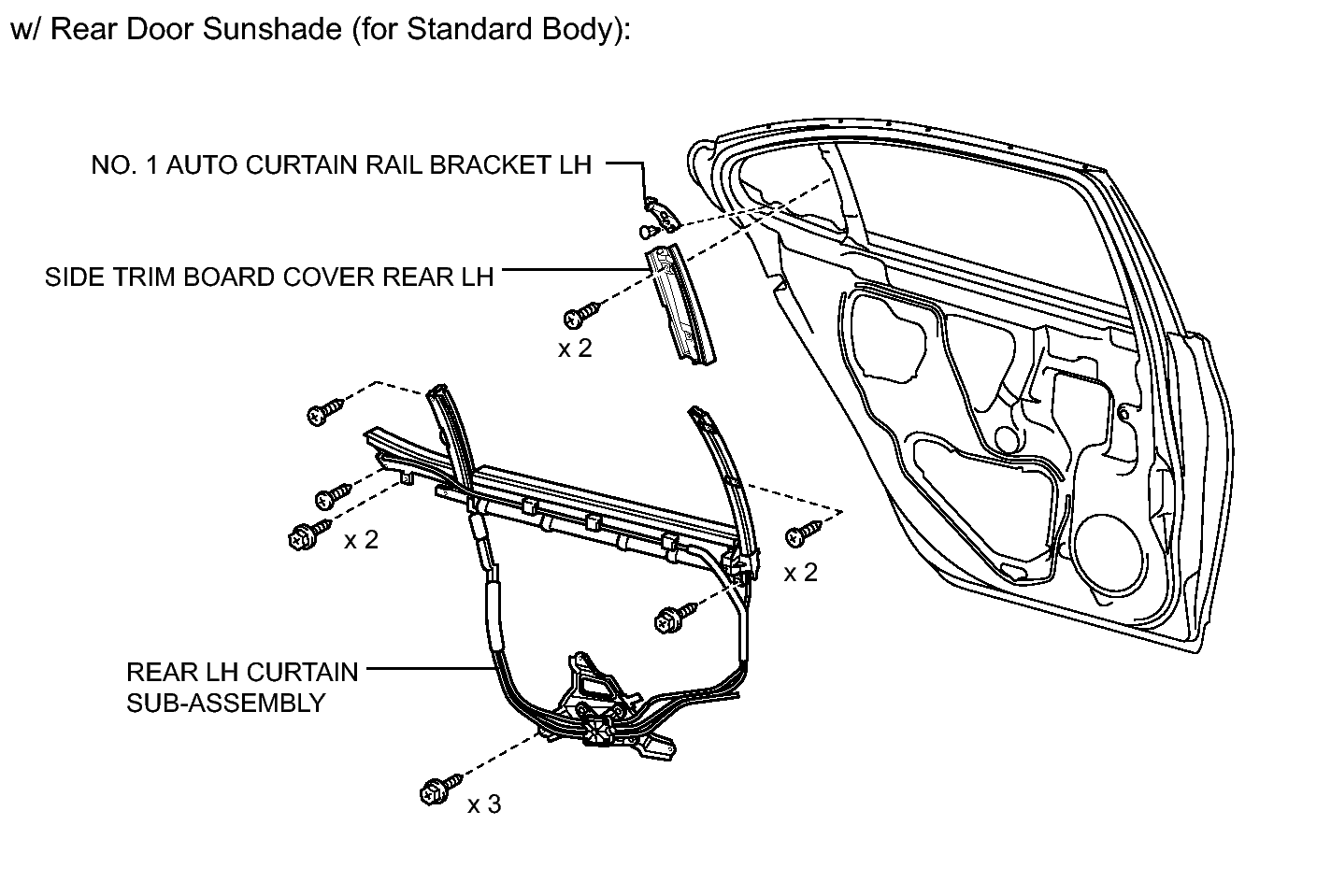

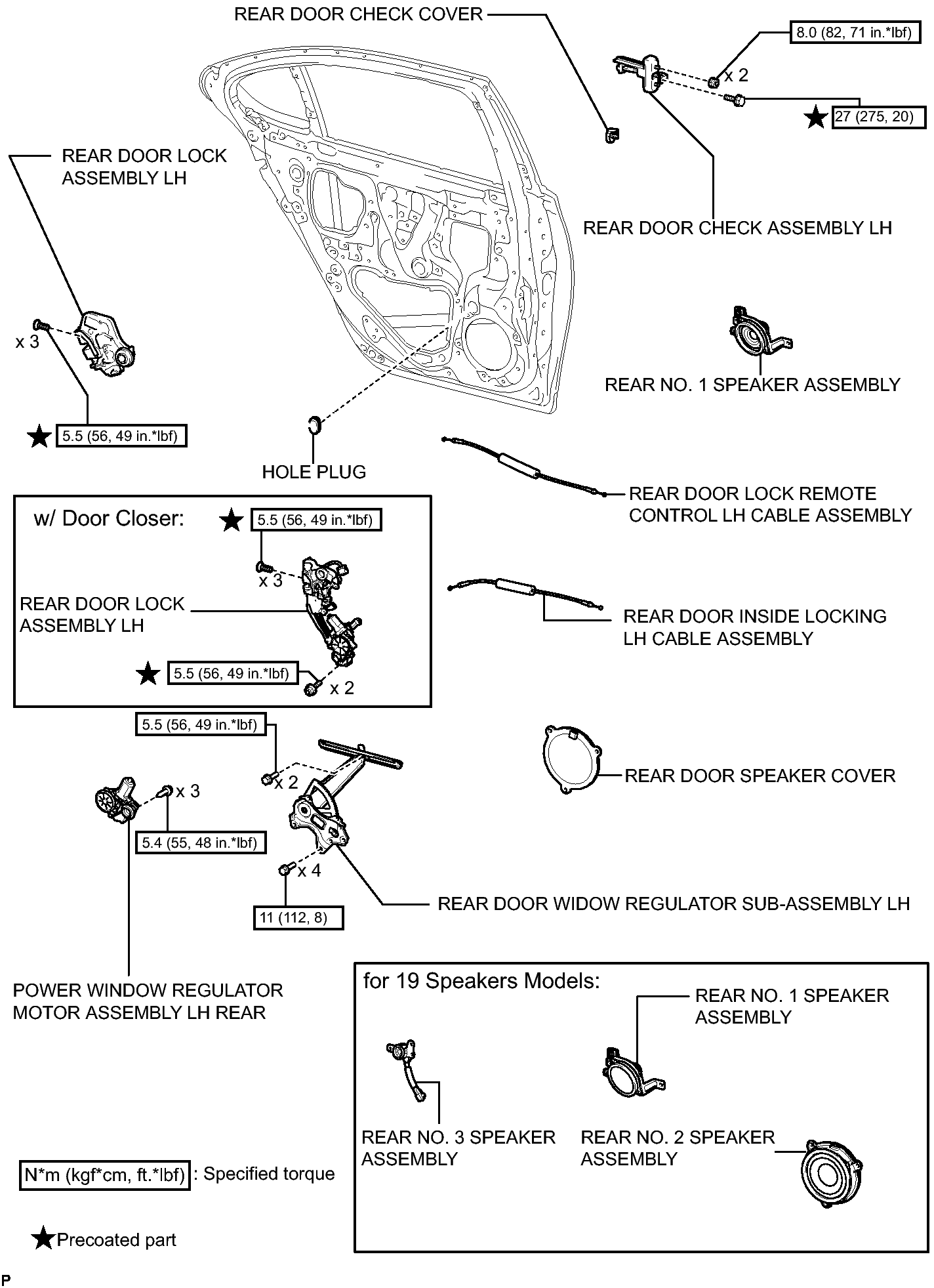

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Door Replacement Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

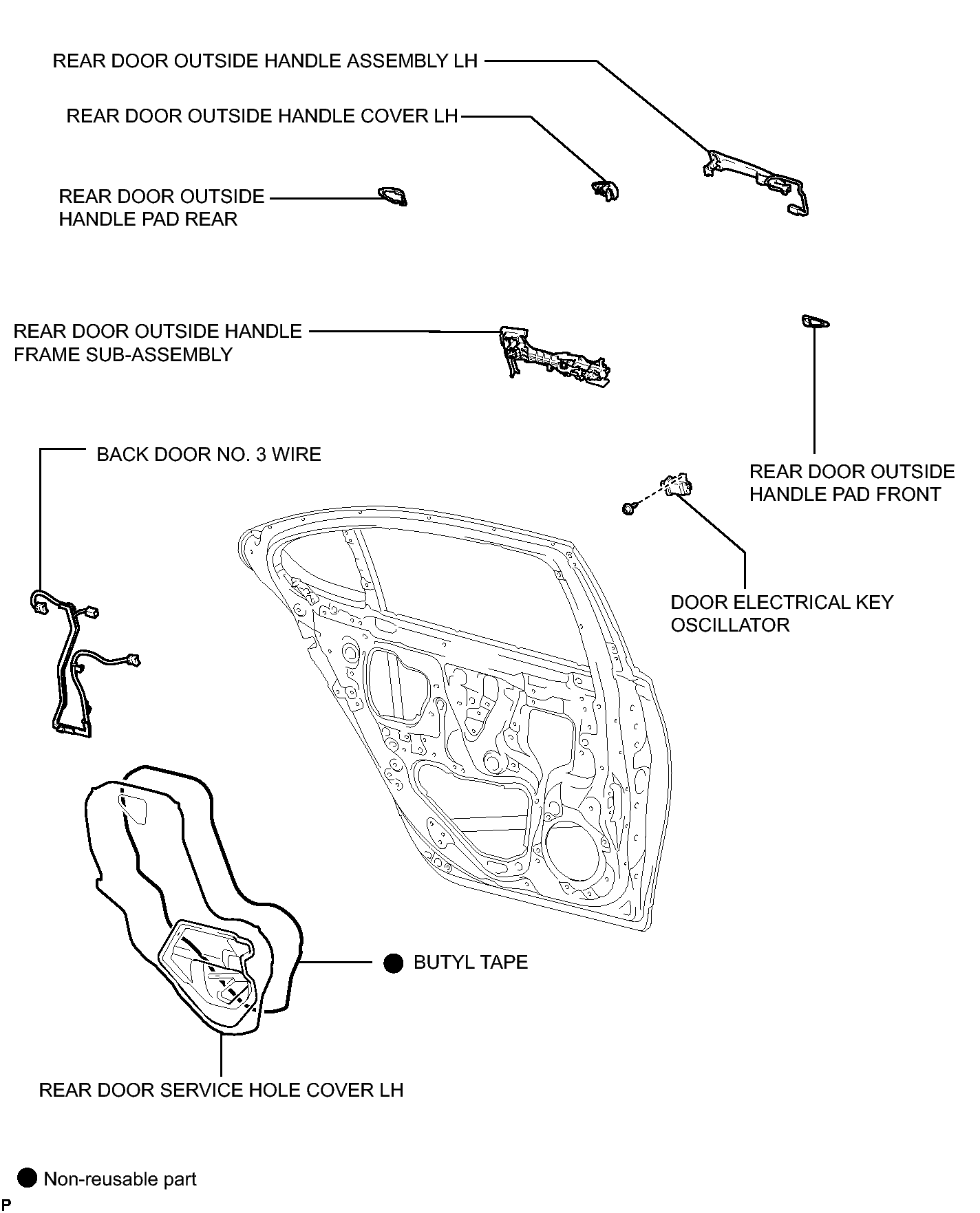

Fig 1: Identifying Rear Door Replacement Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

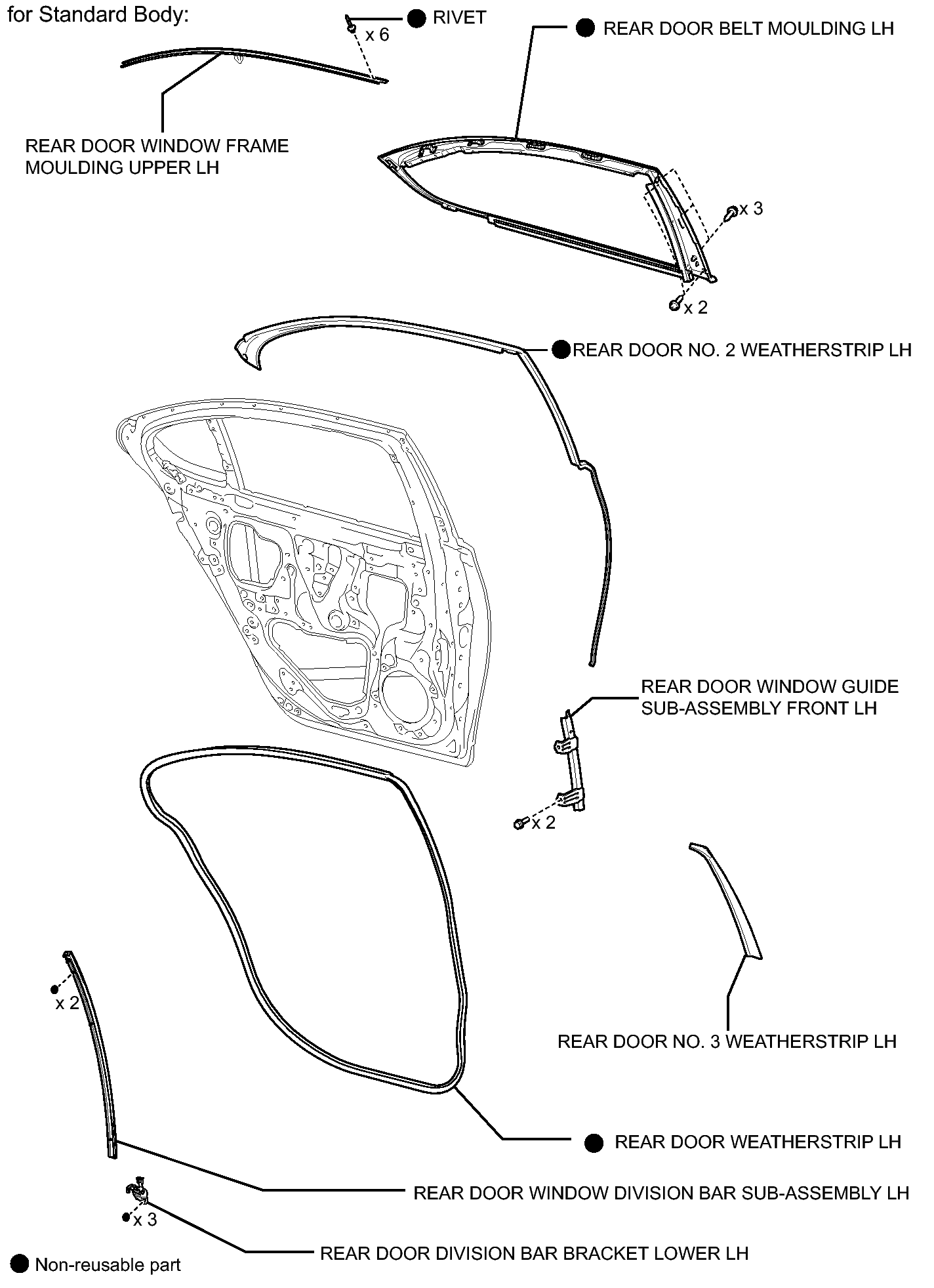

Fig 1: Identifying Rear Door Replacement Components (6 Of 9)

Fig 1: Identifying Rear Door Replacement Components (7 Of 9)

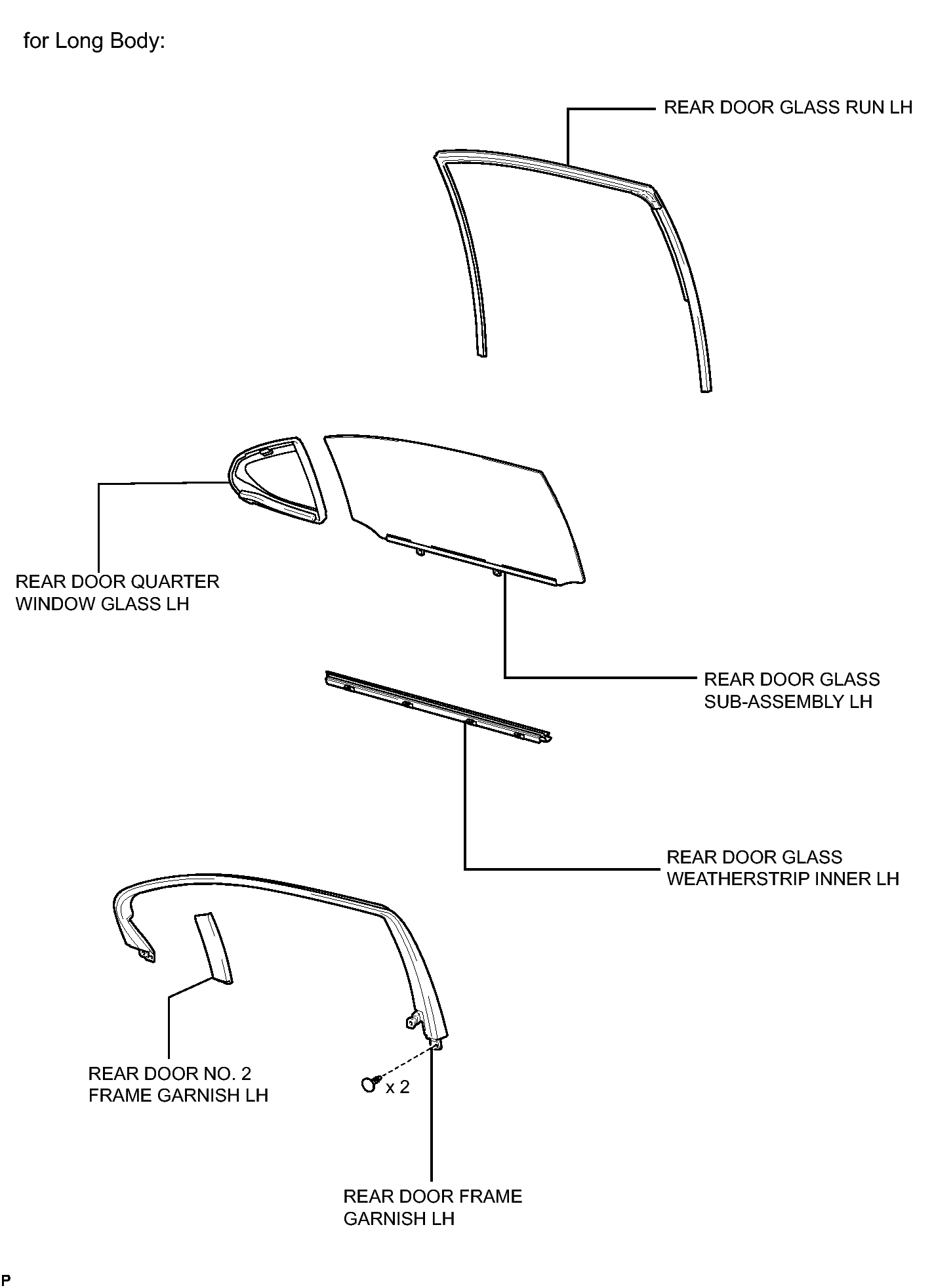

Fig 1: Identifying Rear Door Replacement Components (8 Of 9)

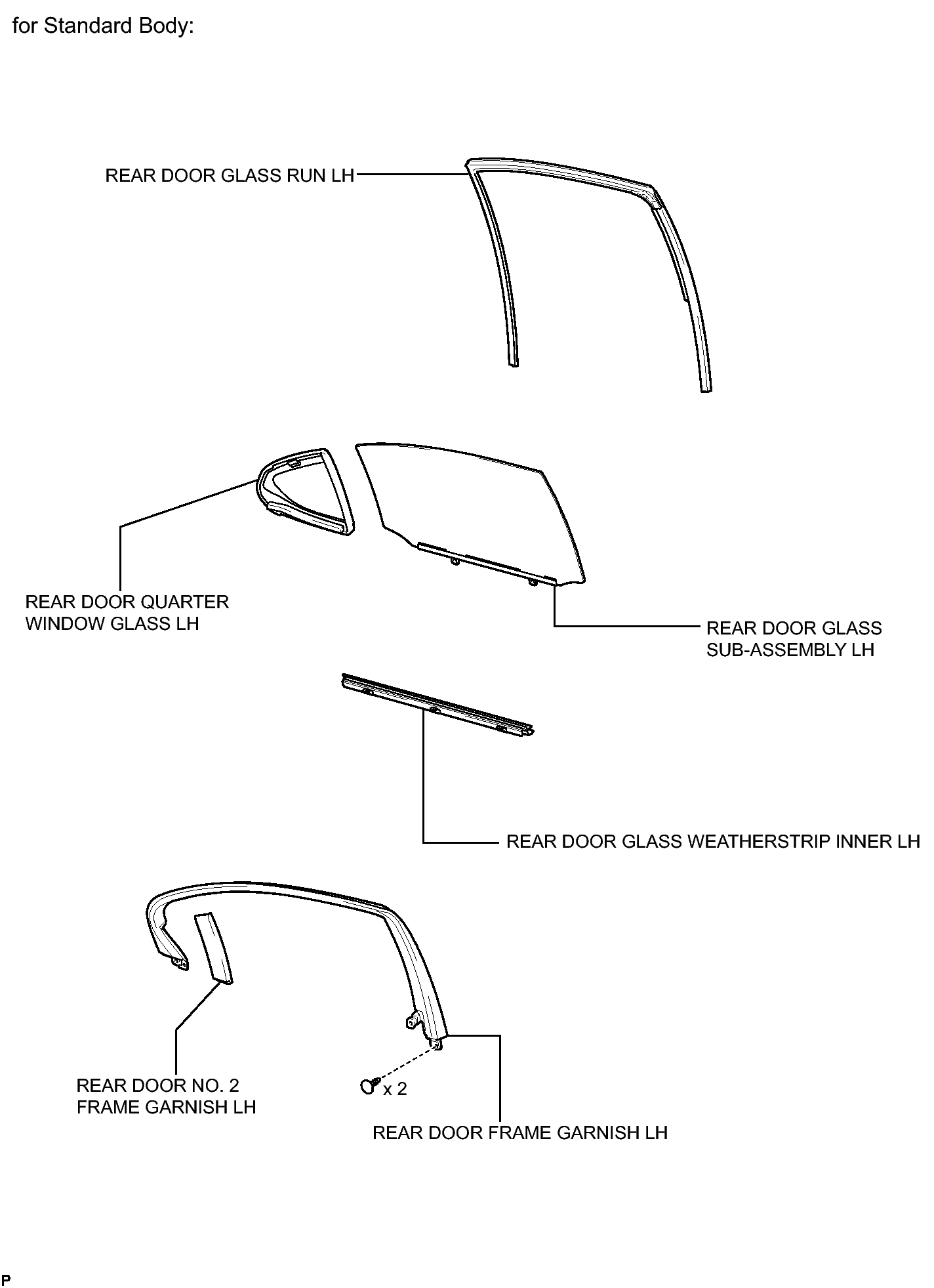

Fig 1: Identifying Rear Door Replacement Components (9 Of 9)
