Luggage Compartment Door: Components: Illustration

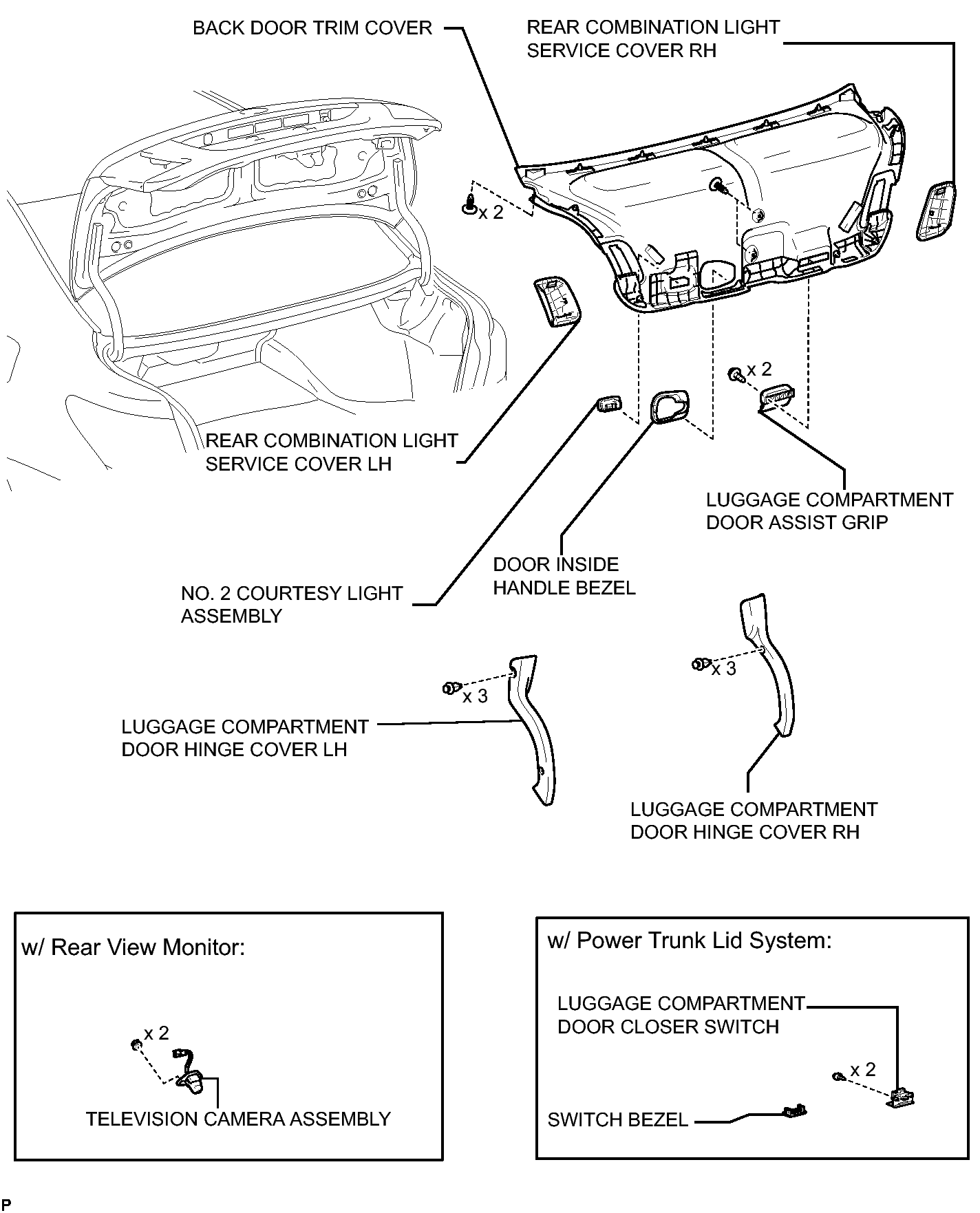

Fig 1: Identifying Luggage Compartment Door Replacement Components (1 Of 2)
GTY288766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

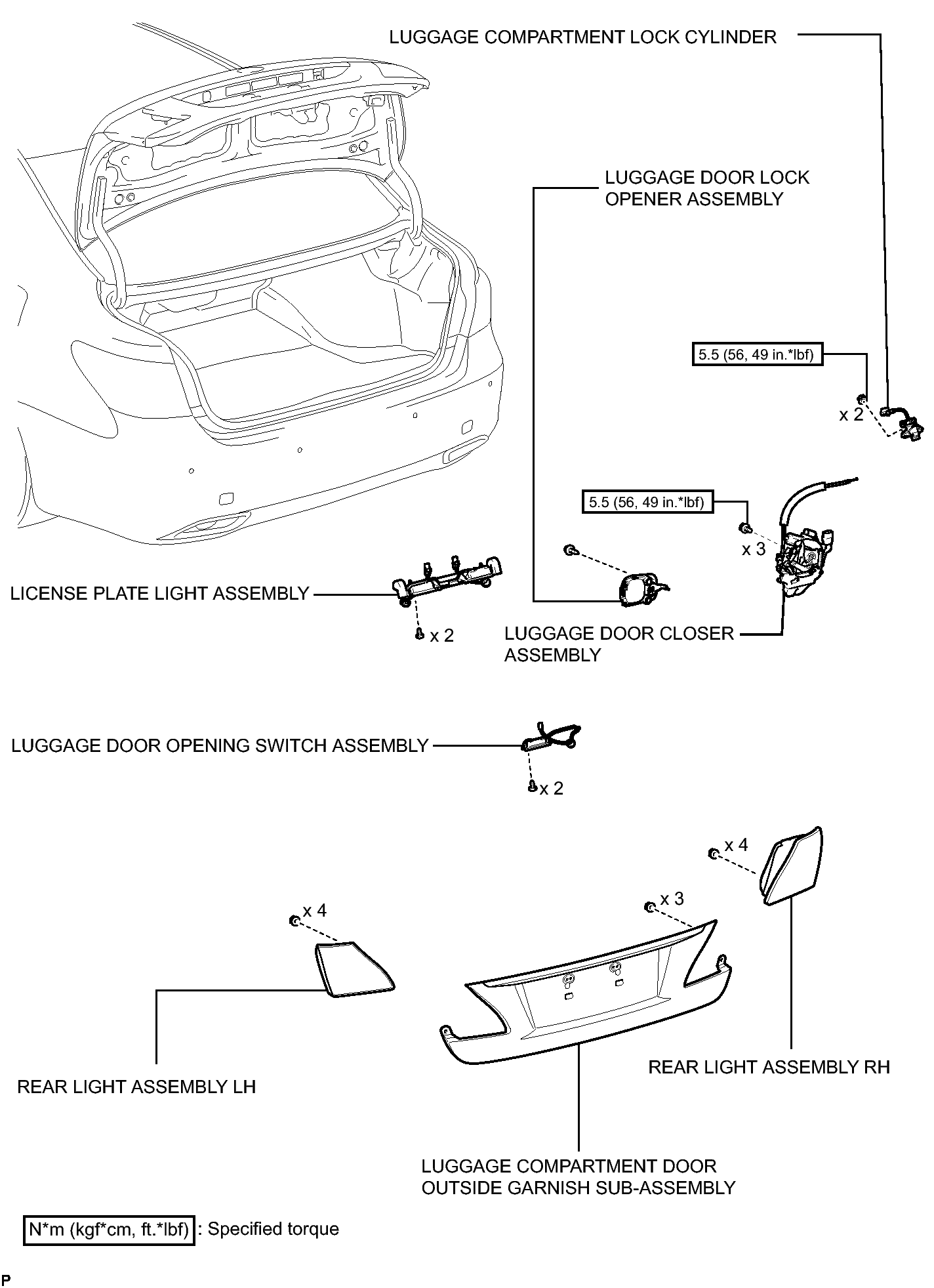

Fig 1: Identifying Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 2)
GTY266420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
