Luggage Compartment Door Opener Outer Switch: Components: Illustration

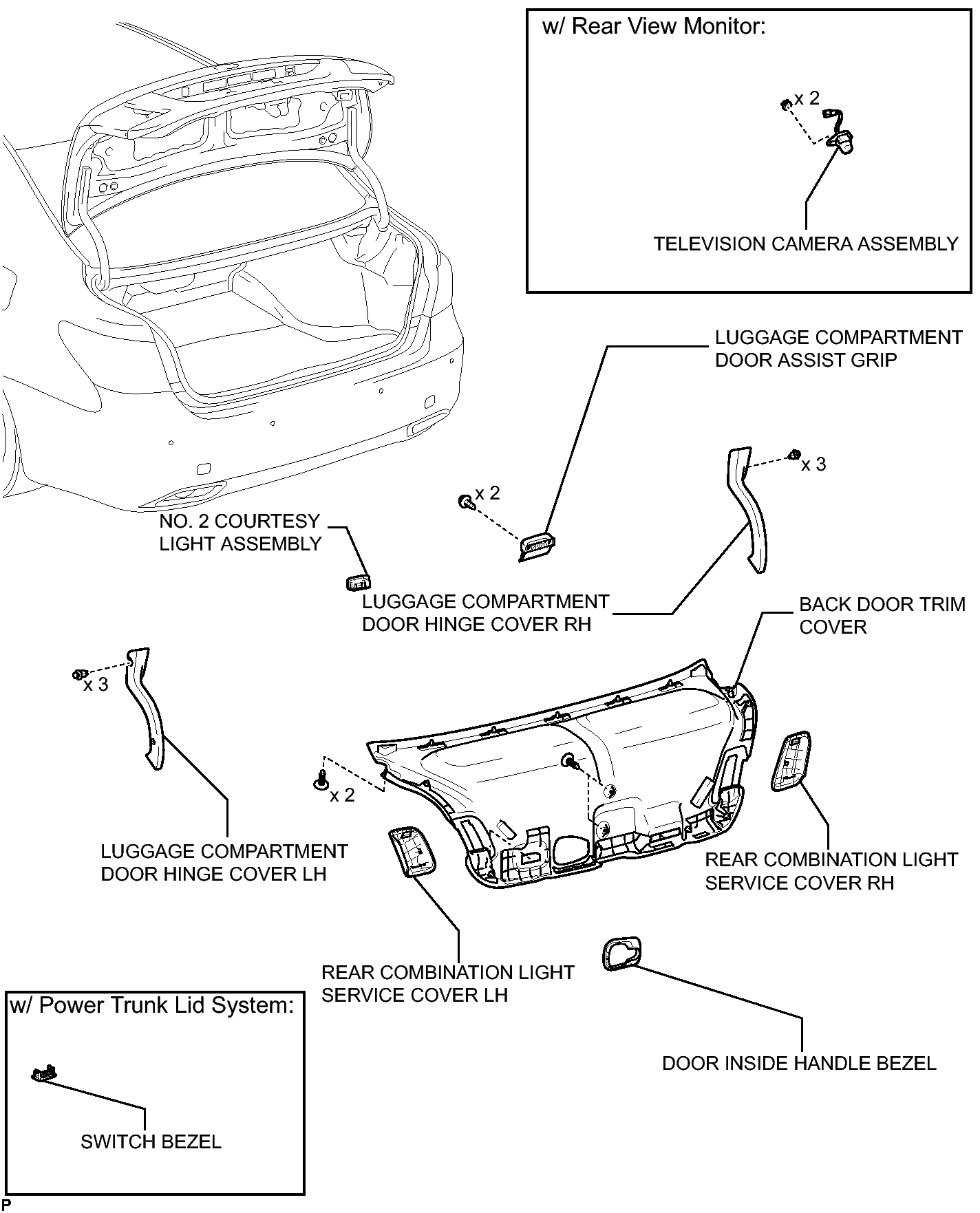

Fig 1: Identifying Luggage Compartment Door Opener Outer Switch Replacement Components (1 Of 2)
GTY286447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

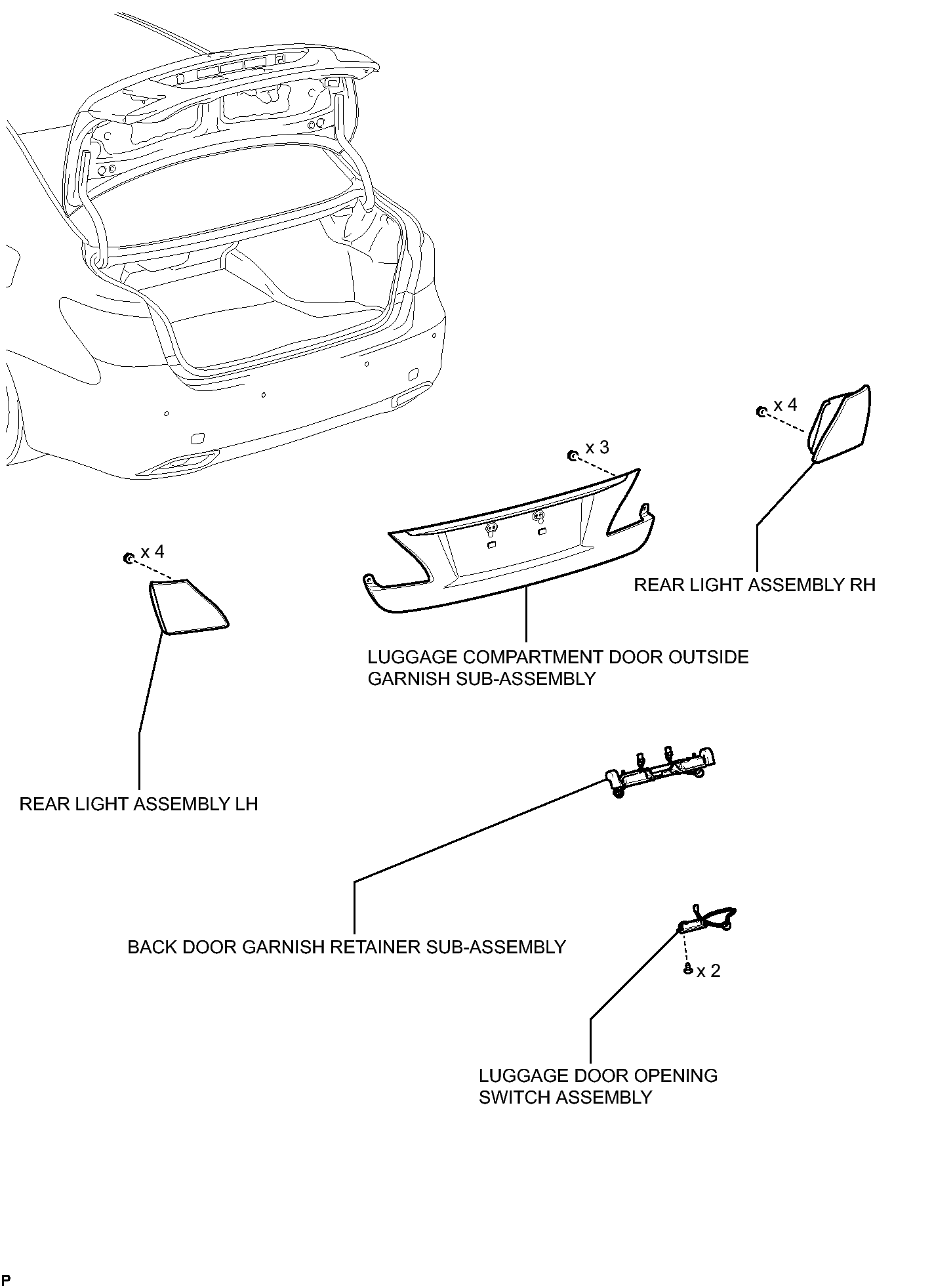

Fig 1: Identifying Luggage Compartment Door Opener Outer Switch Replacement Components (2 Of 2)
GTY254583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
