Luggage Compartment Door Closer Assembly: Components: Illustration

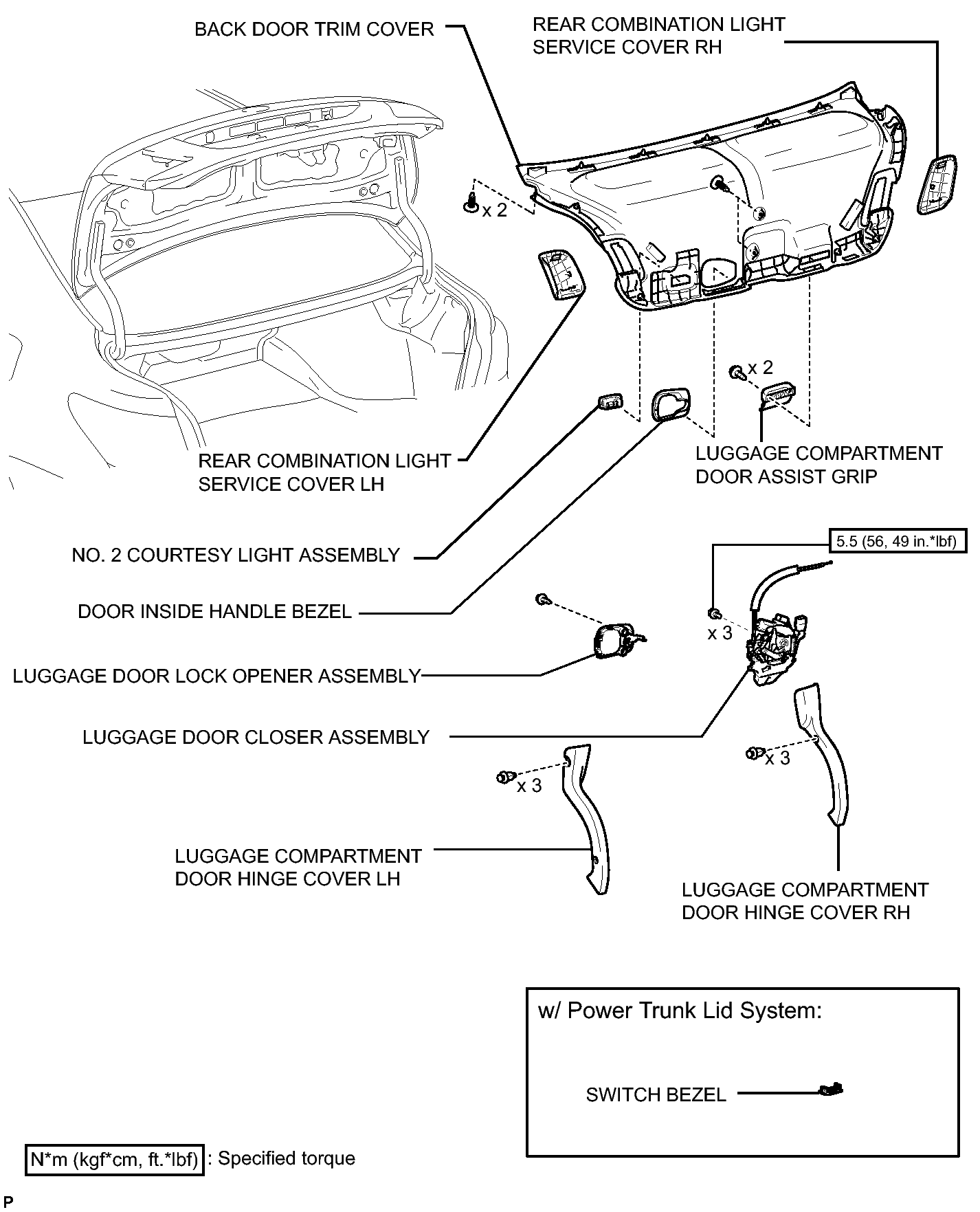

Fig 1: Identifying Luggage Compartment Door Closer Assembly Replacement Components With Torque Specifications
GTY288863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
