CLEARANCE WARNING BUZZER (for Rear Side): Components: Illustration

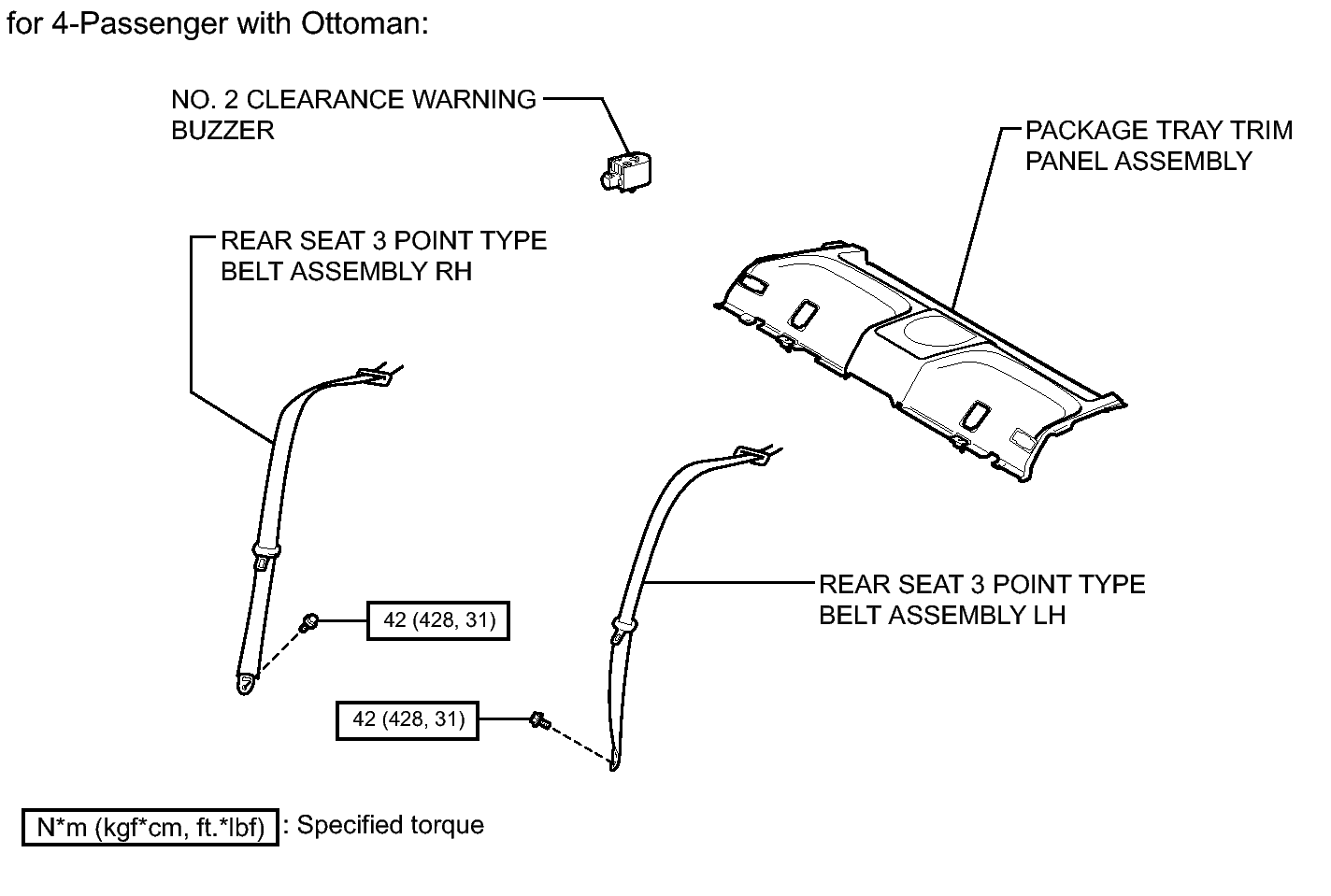

Fig 1: Identifying Clearance Warning Buzzer (For Rear Side) Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

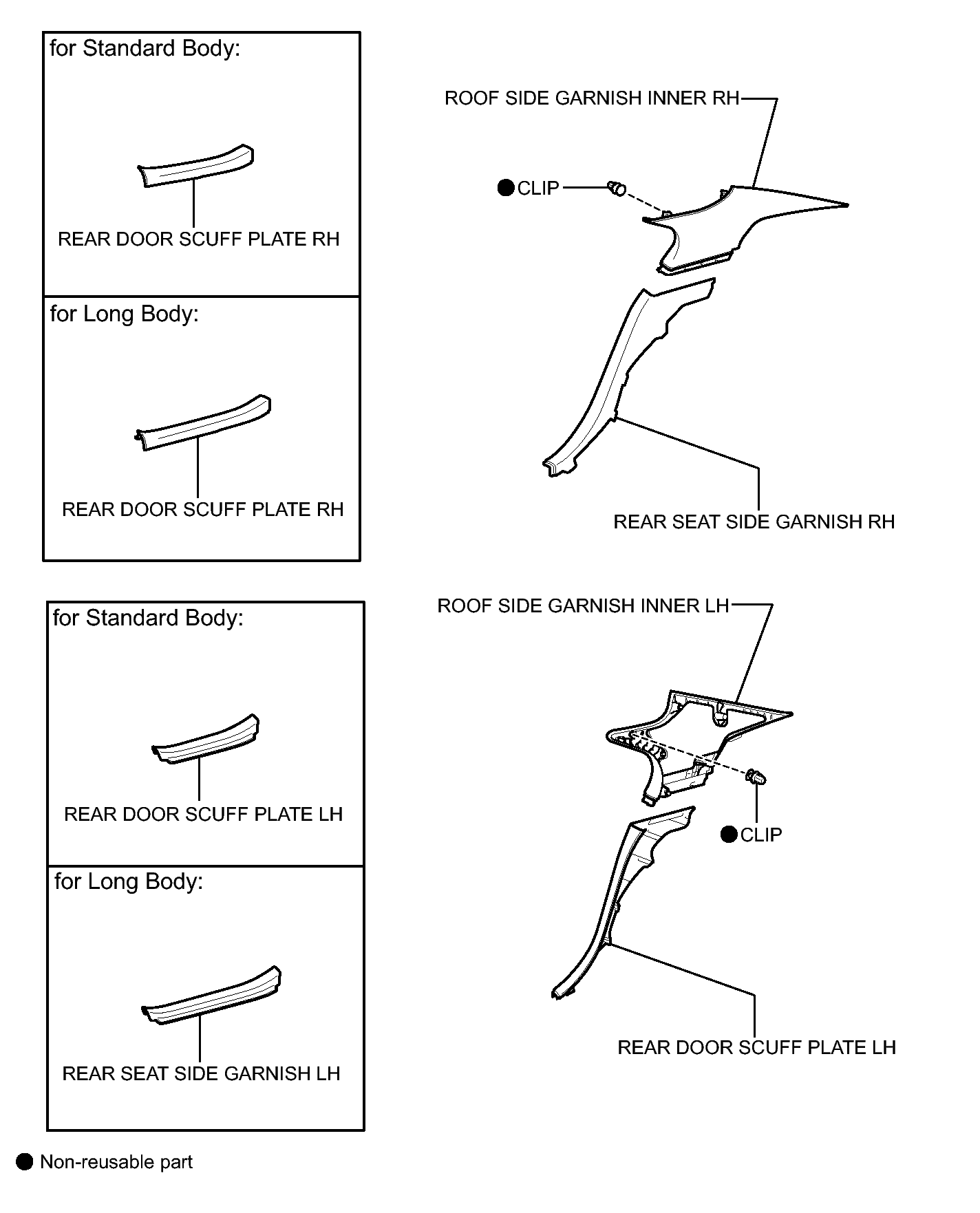

Fig 1: Identifying Clearance Warning Buzzer (For Rear Side) Replacement Components (2 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

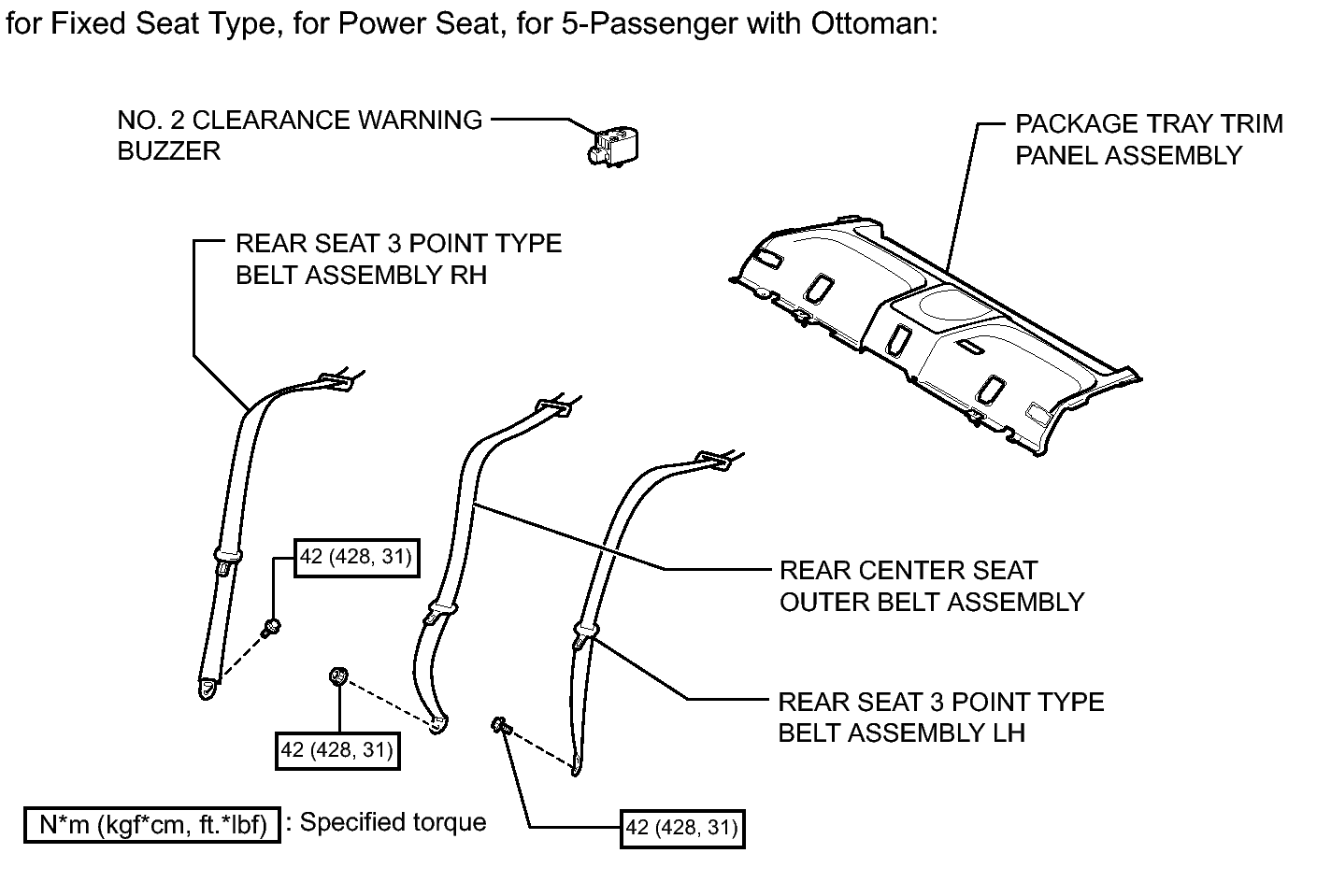

Fig 1: Identifying Clearance Warning Buzzer (For Rear Side) Replacement Components (3 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
