PARKING ASSIST ECU (W/ Advanced Parking Guidance System): Components: Illustration

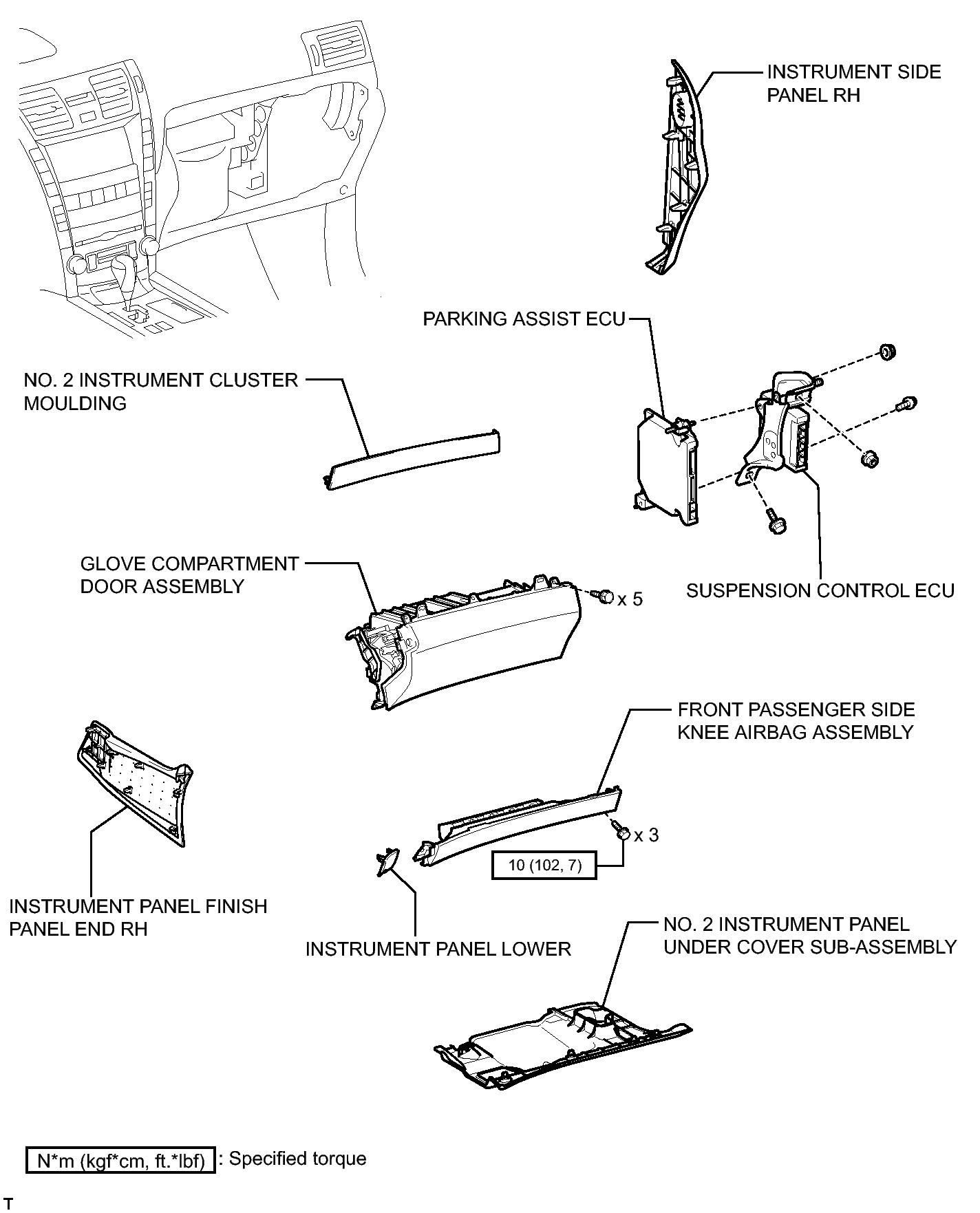

Fig 1: Parking Assist ECU (W/ Advanced Parking Guidance System) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
