CLEARANCE WARNING ECU (w/o Advanced Parking Guidance System): Components: Illustration

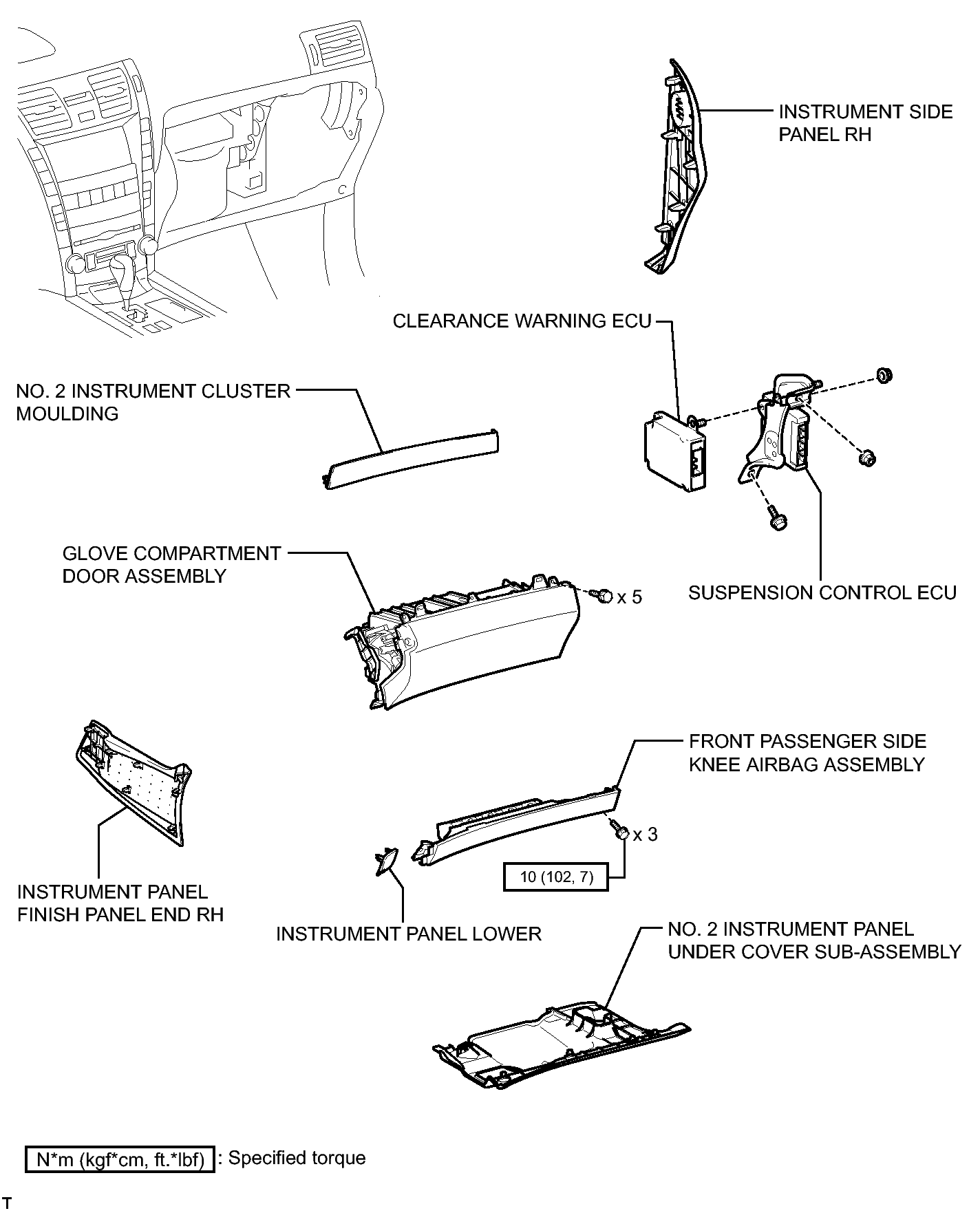

Fig 1: Identifying Clearance Warning ECU (W/o Advanced Parking Guidance System) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
