SEAT HEATER SWITCH (for Rear Side): Components: Illustration

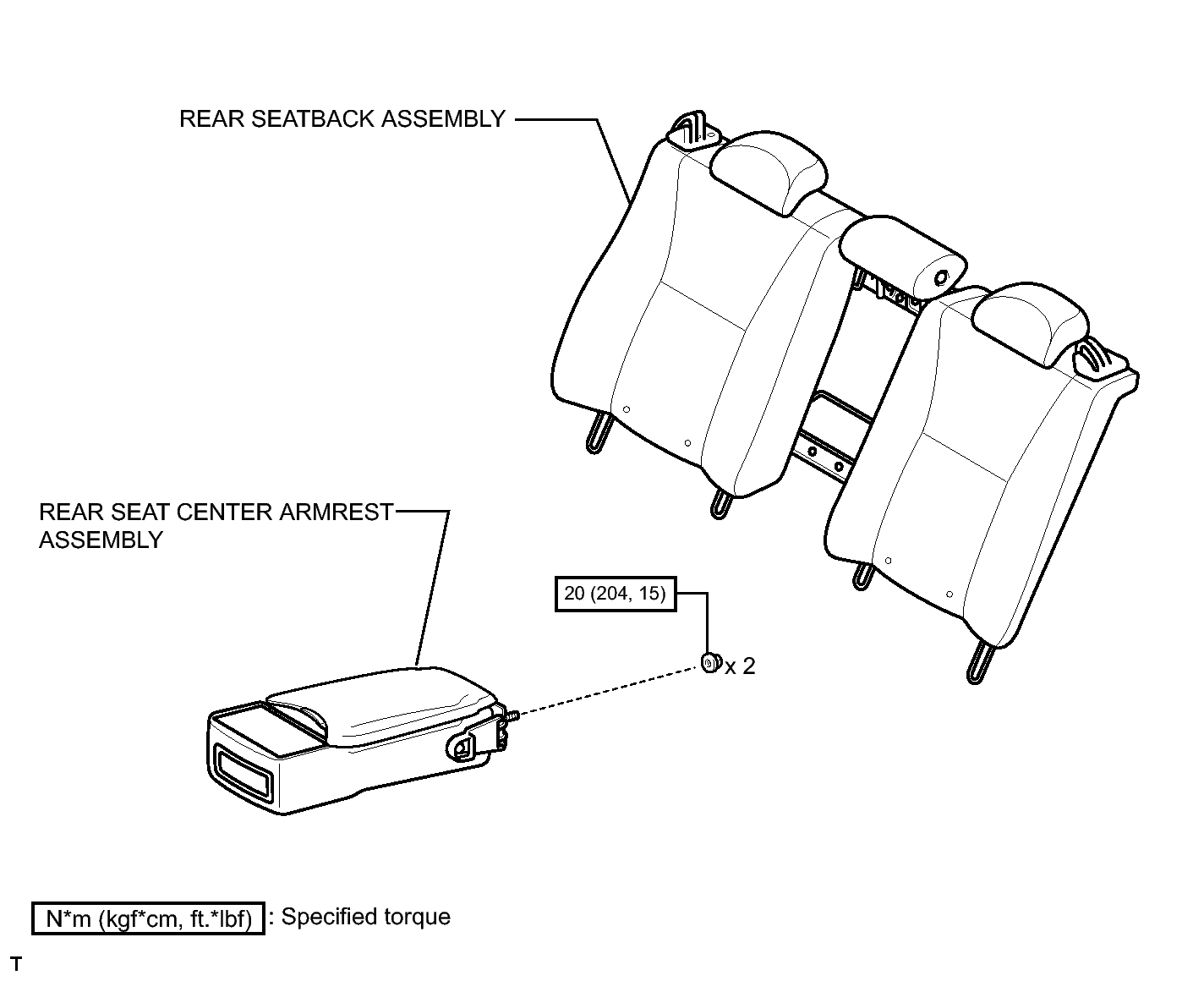

Fig 1: Identifying Seat Heater Switch (For Rear Side) Replacement Components With Torque Specifications (1 Of 2)
GTY268689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

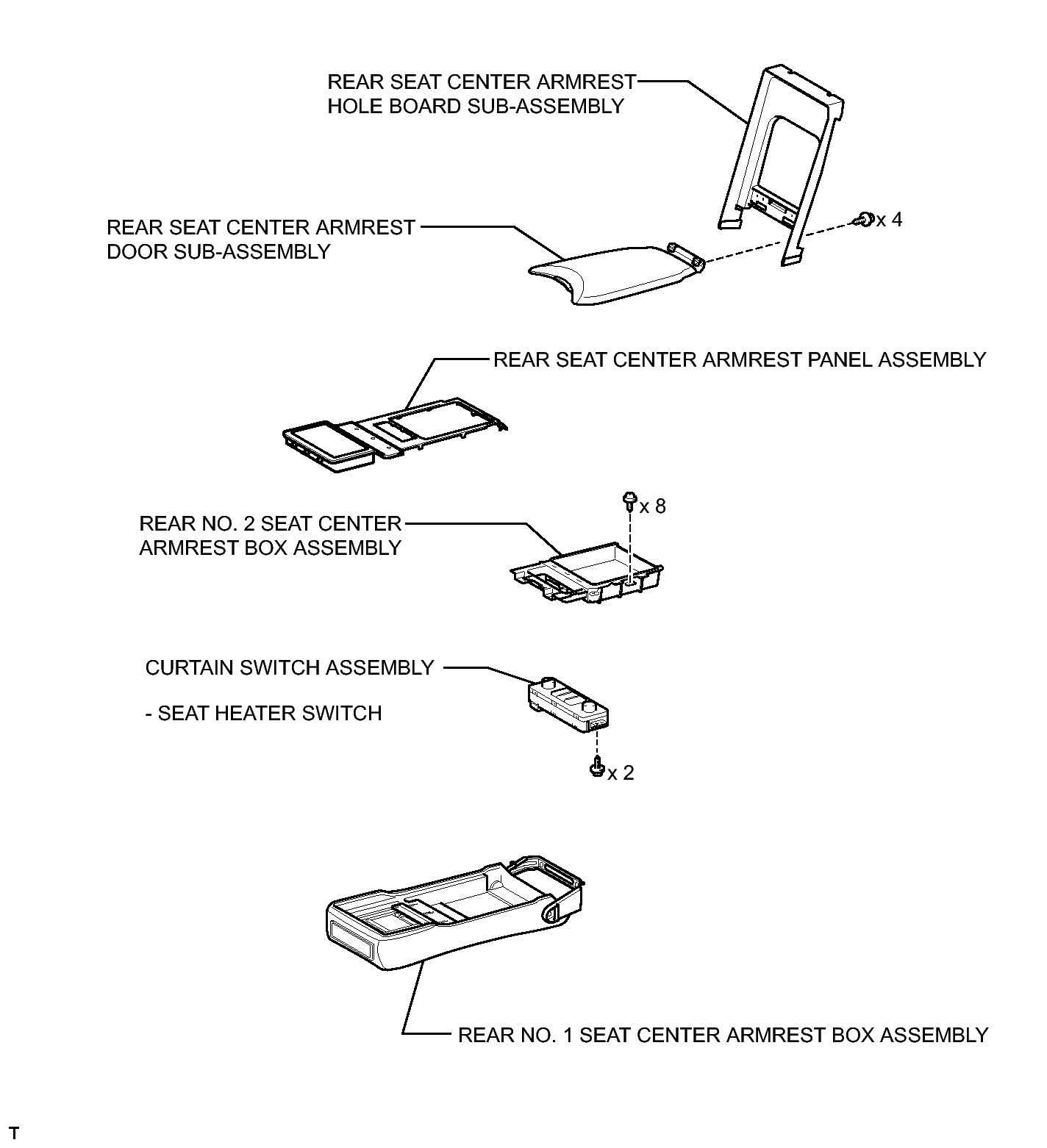

Fig 1: Identifying Seat Heater Switch (For Rear Side) Replacement Components (2 Of 2)
GTY281747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
