REAR SEAT ASSEMBLY (for Power Seat): Components: Illustration

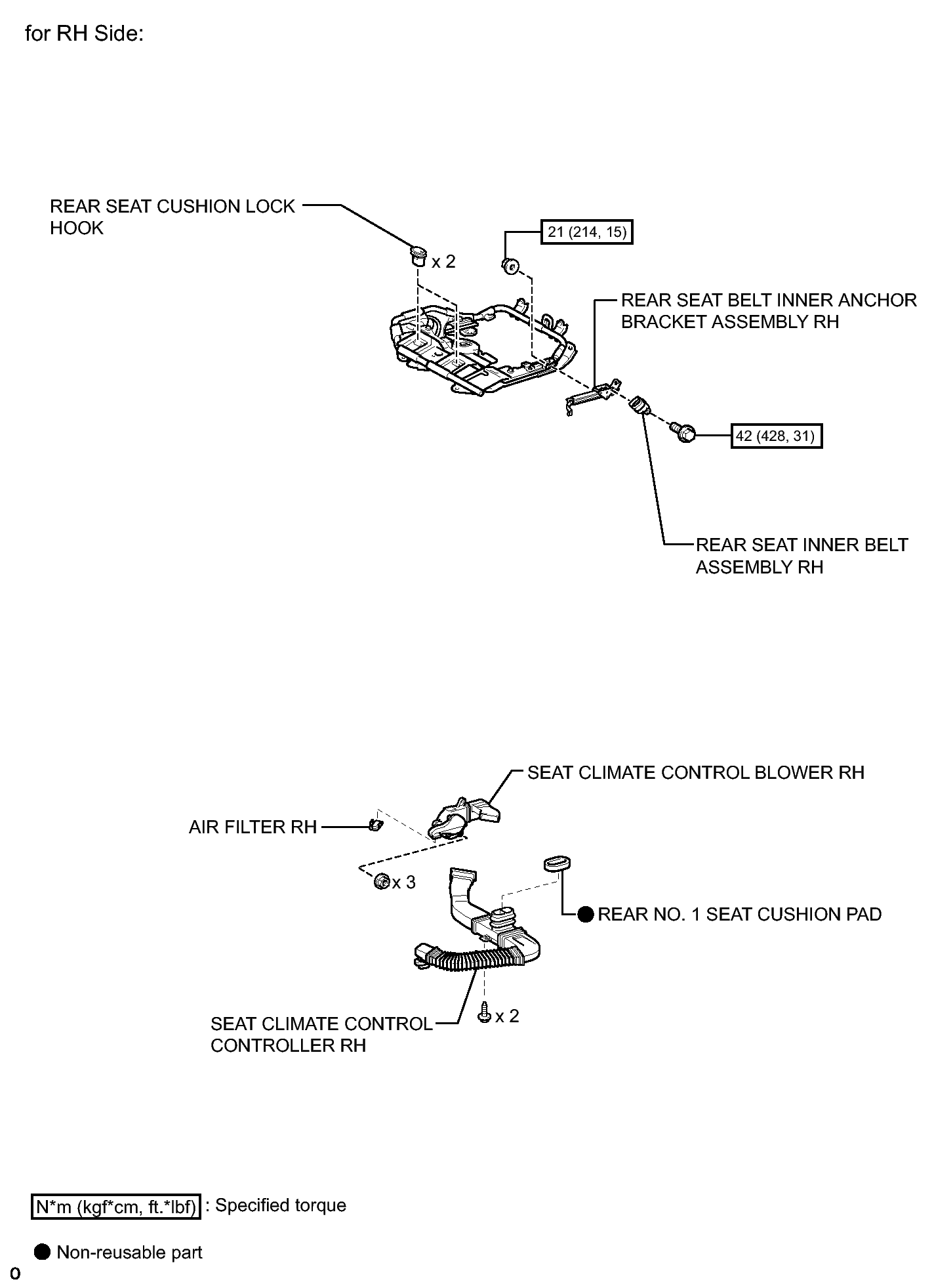

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

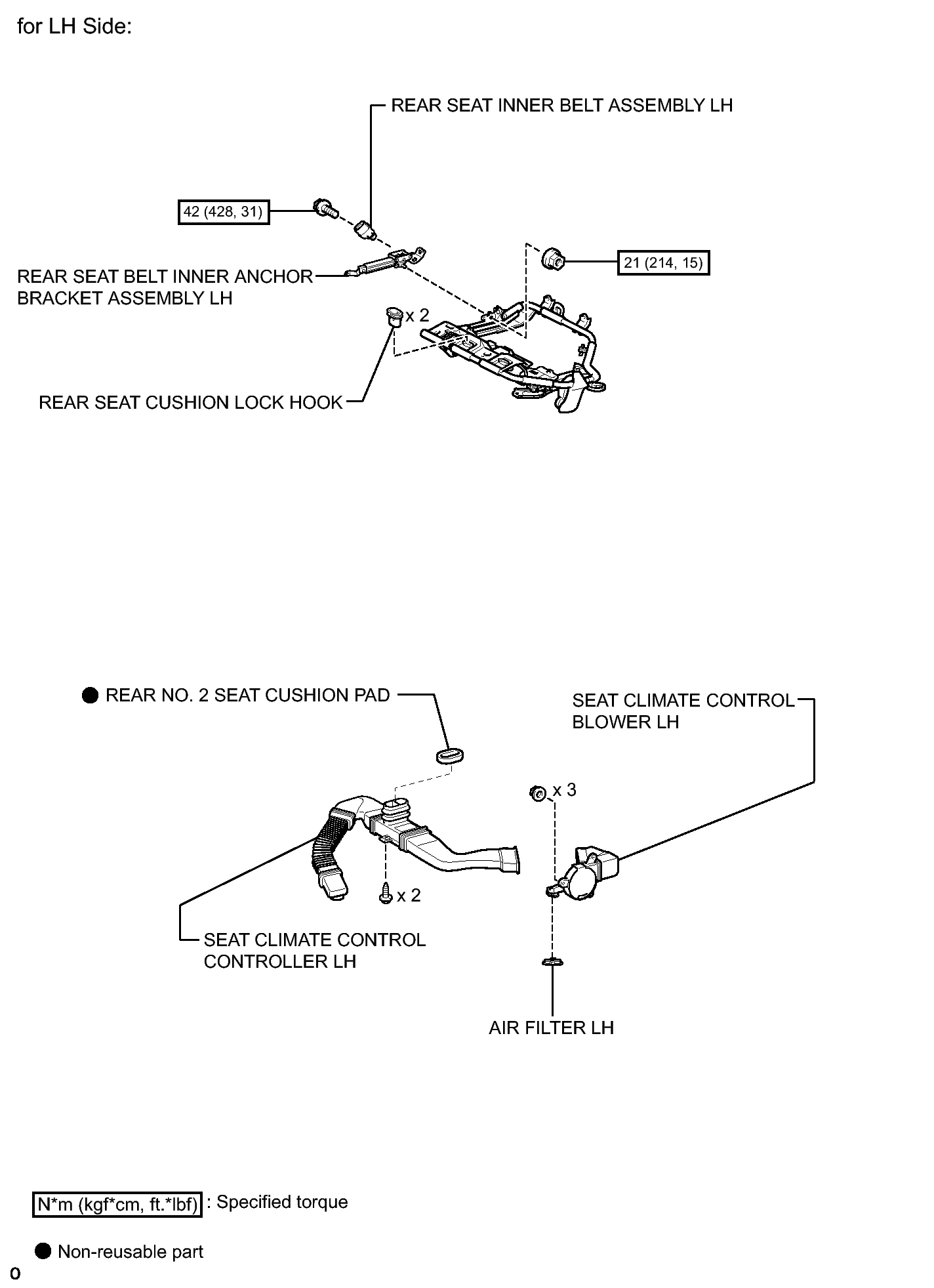

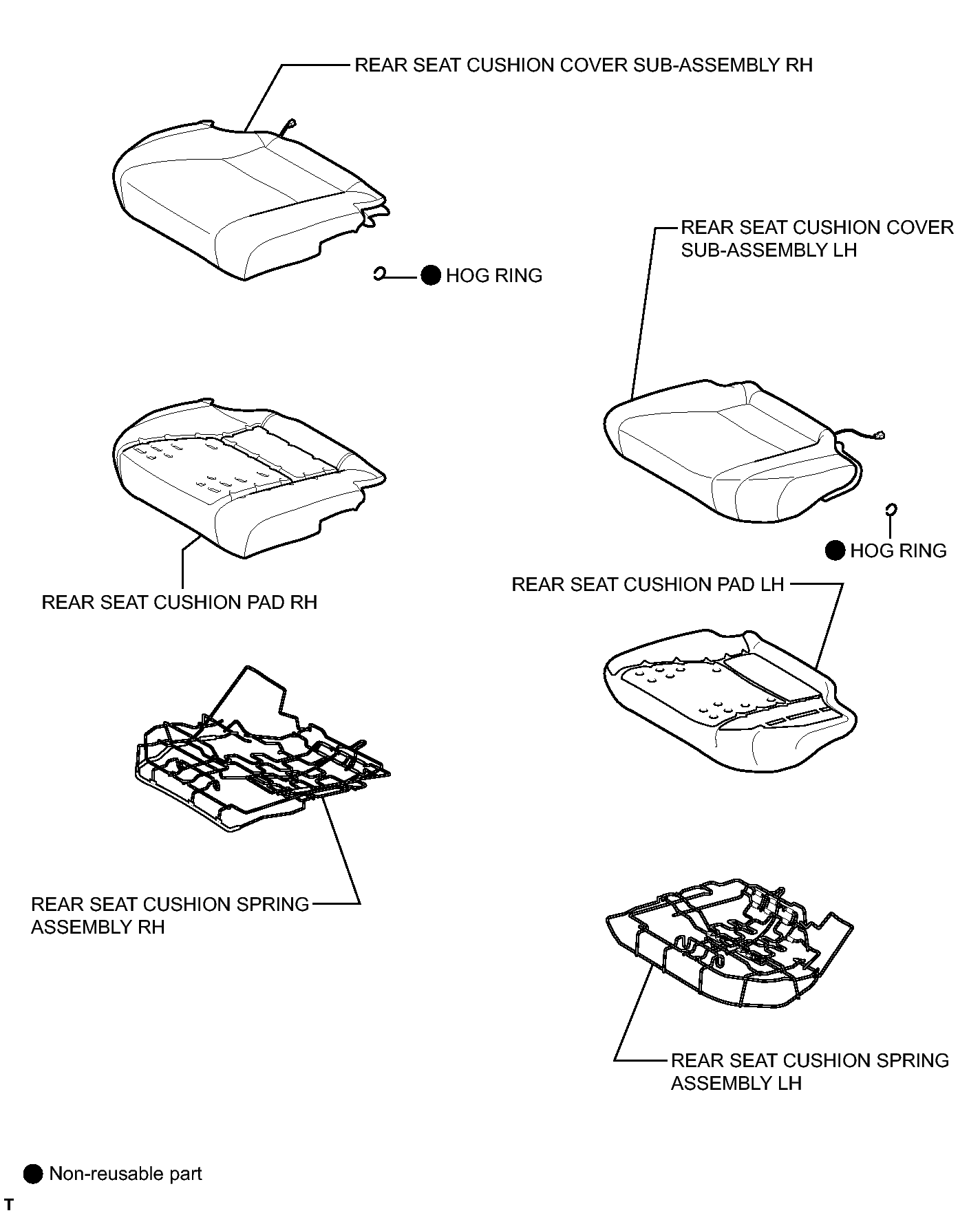

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

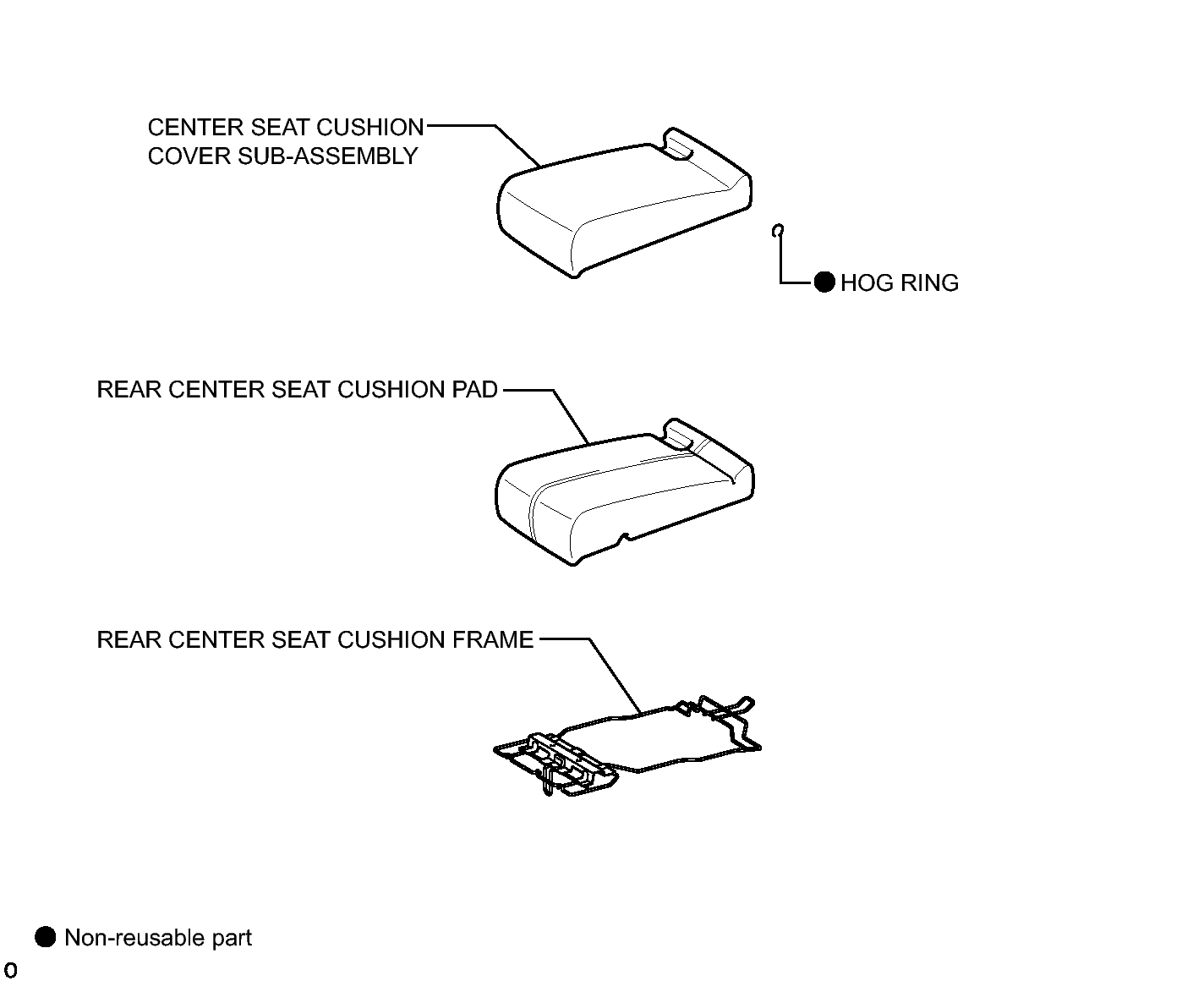

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

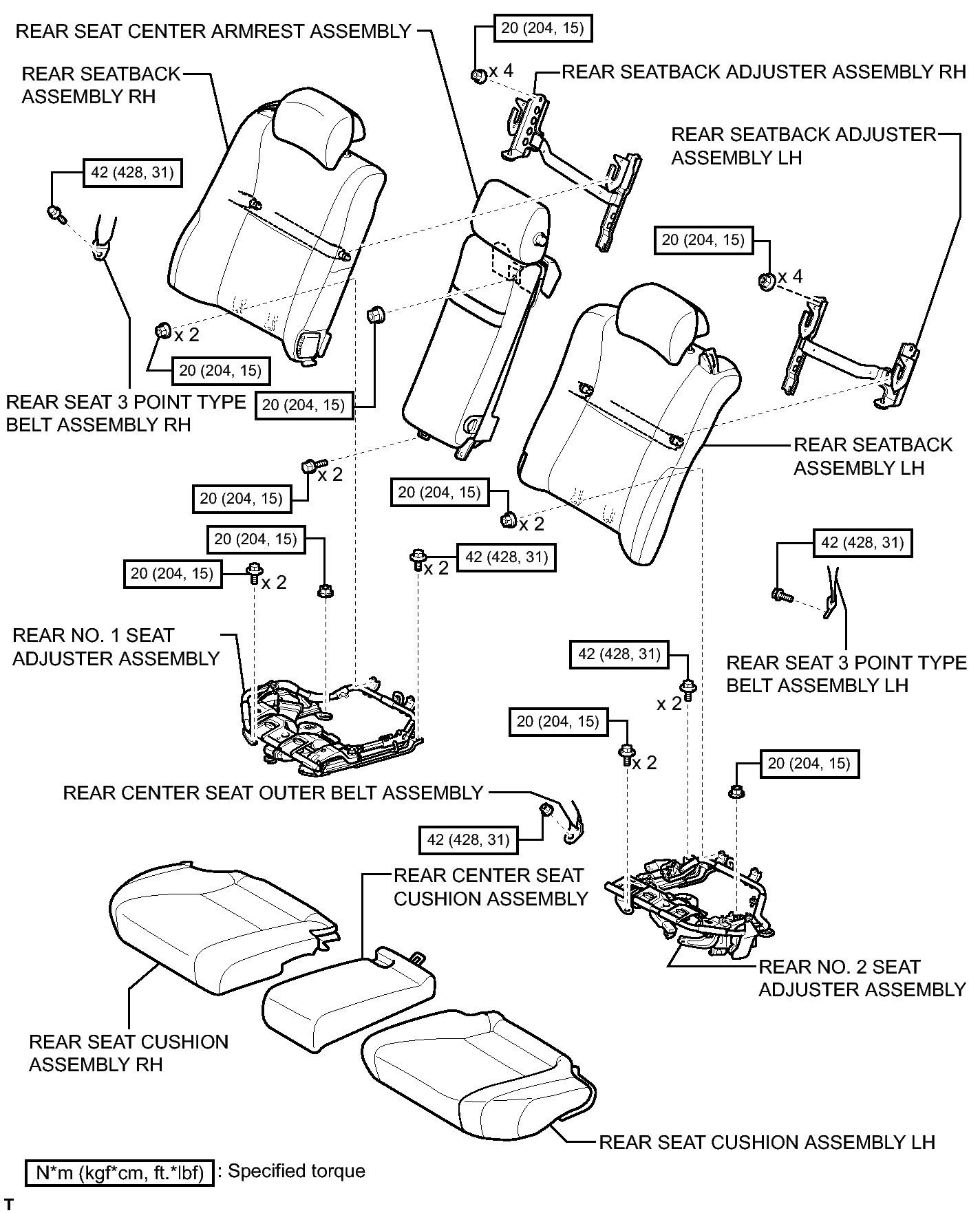

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

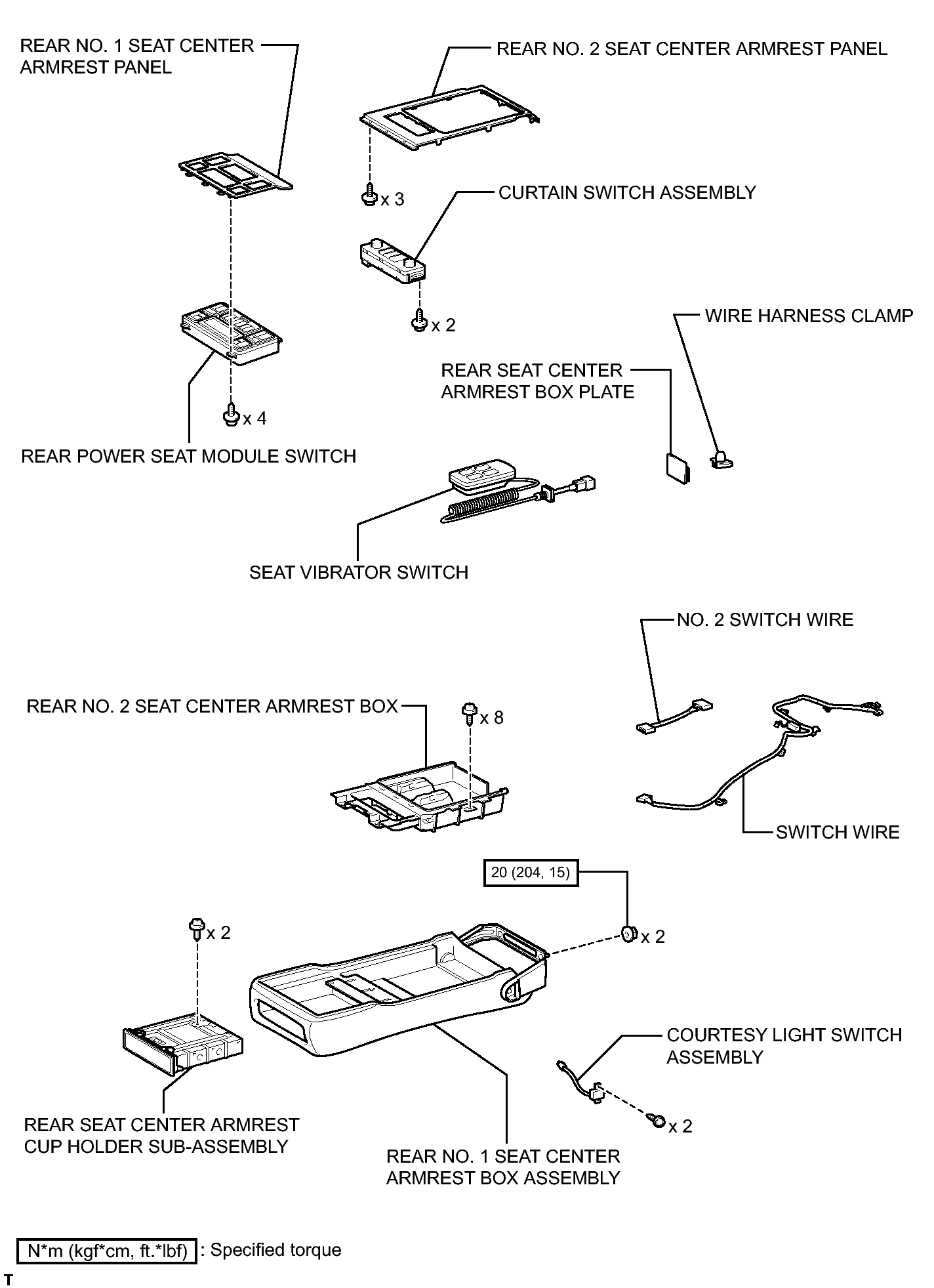

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

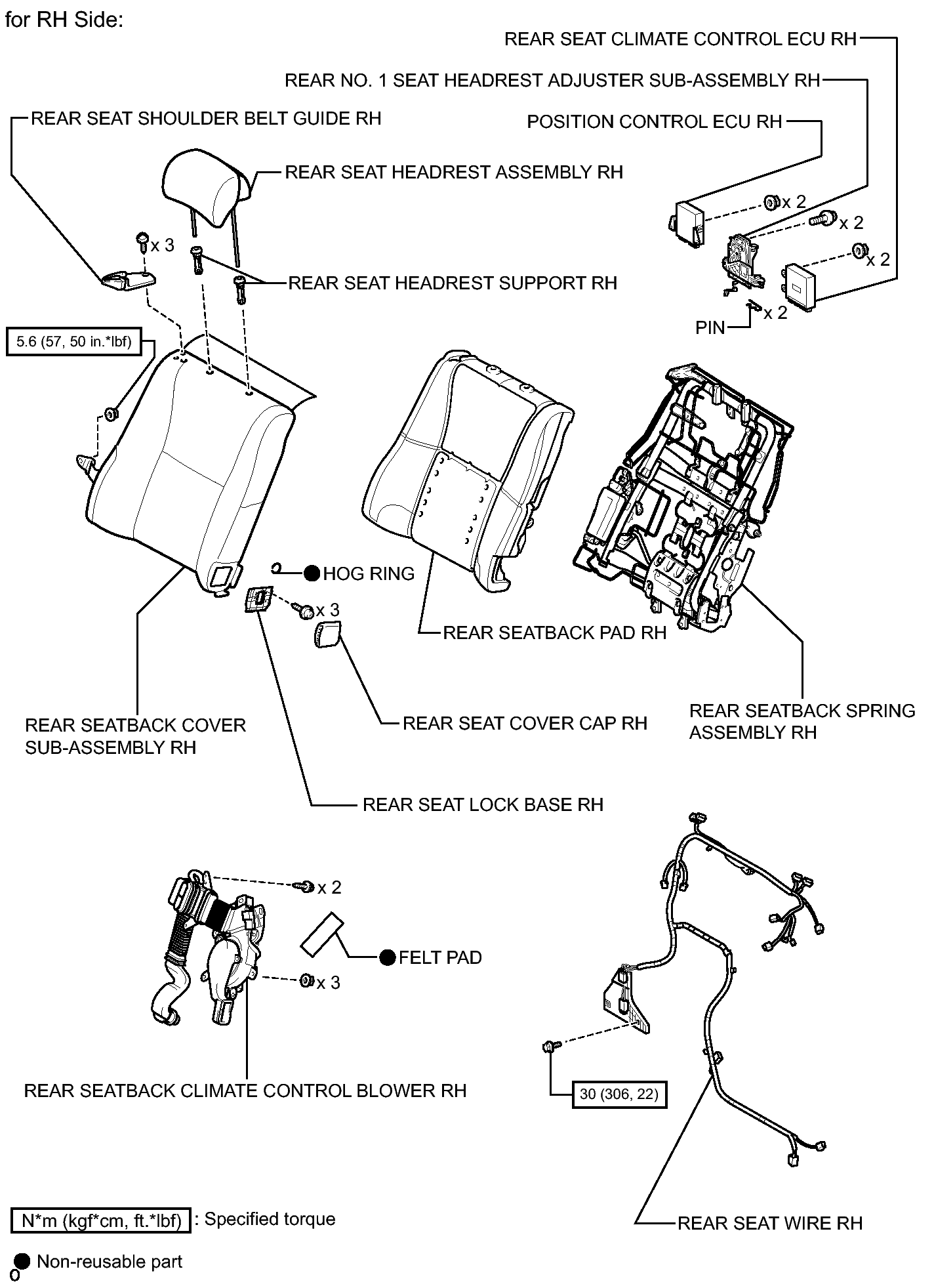

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

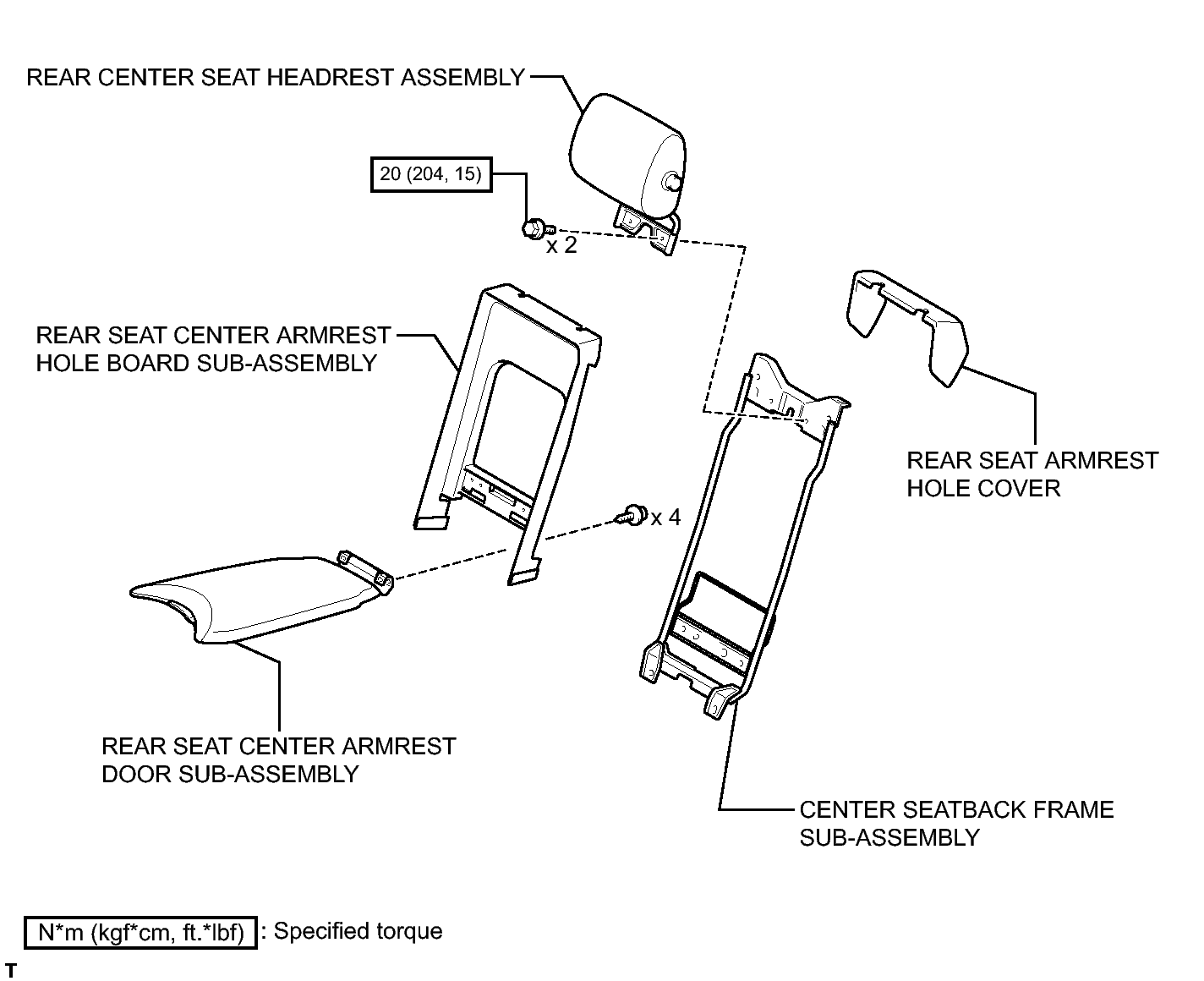

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components (7 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

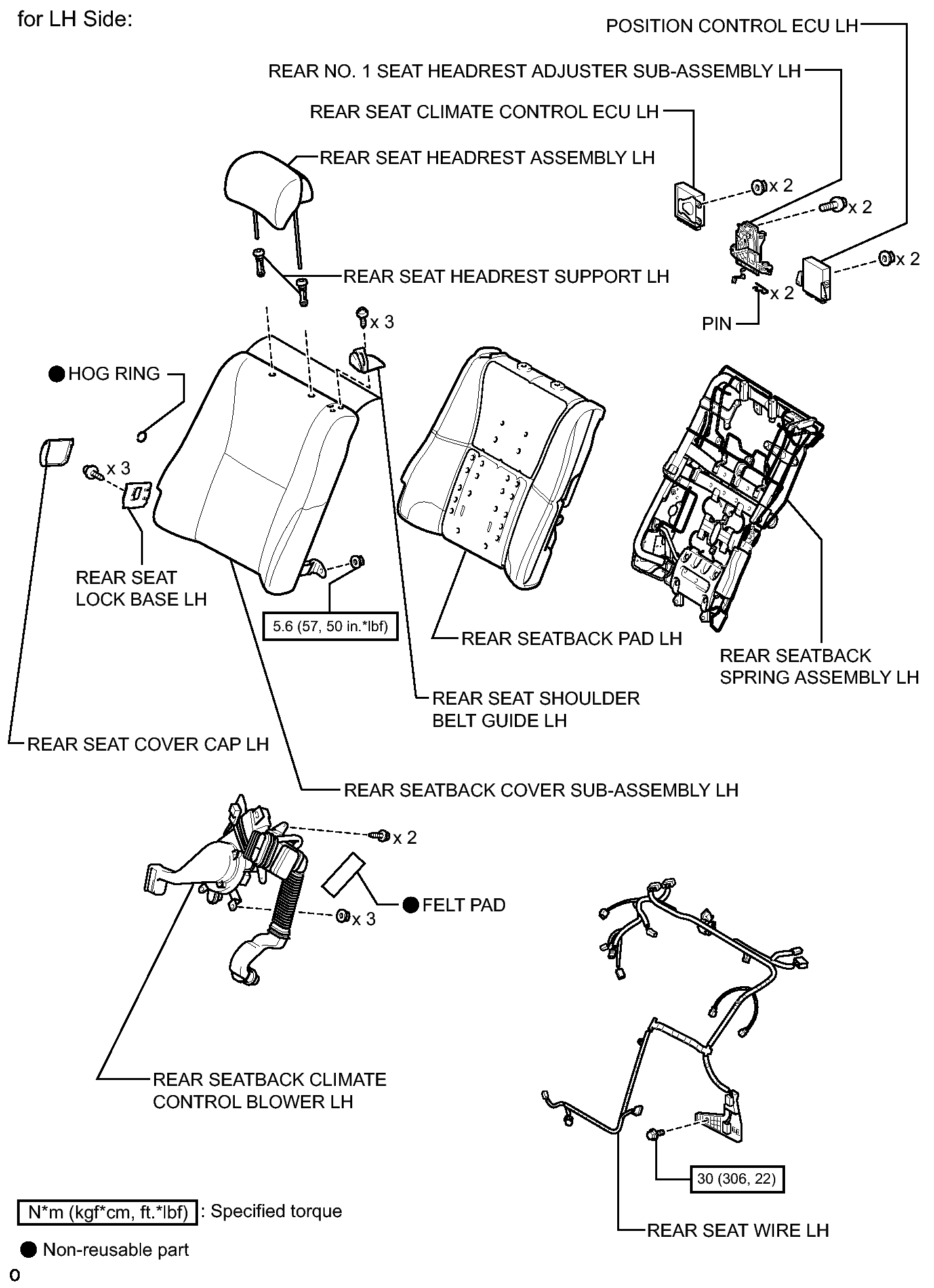

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (9 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
