LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Power Seat): Components: Illustration

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Power Seat) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

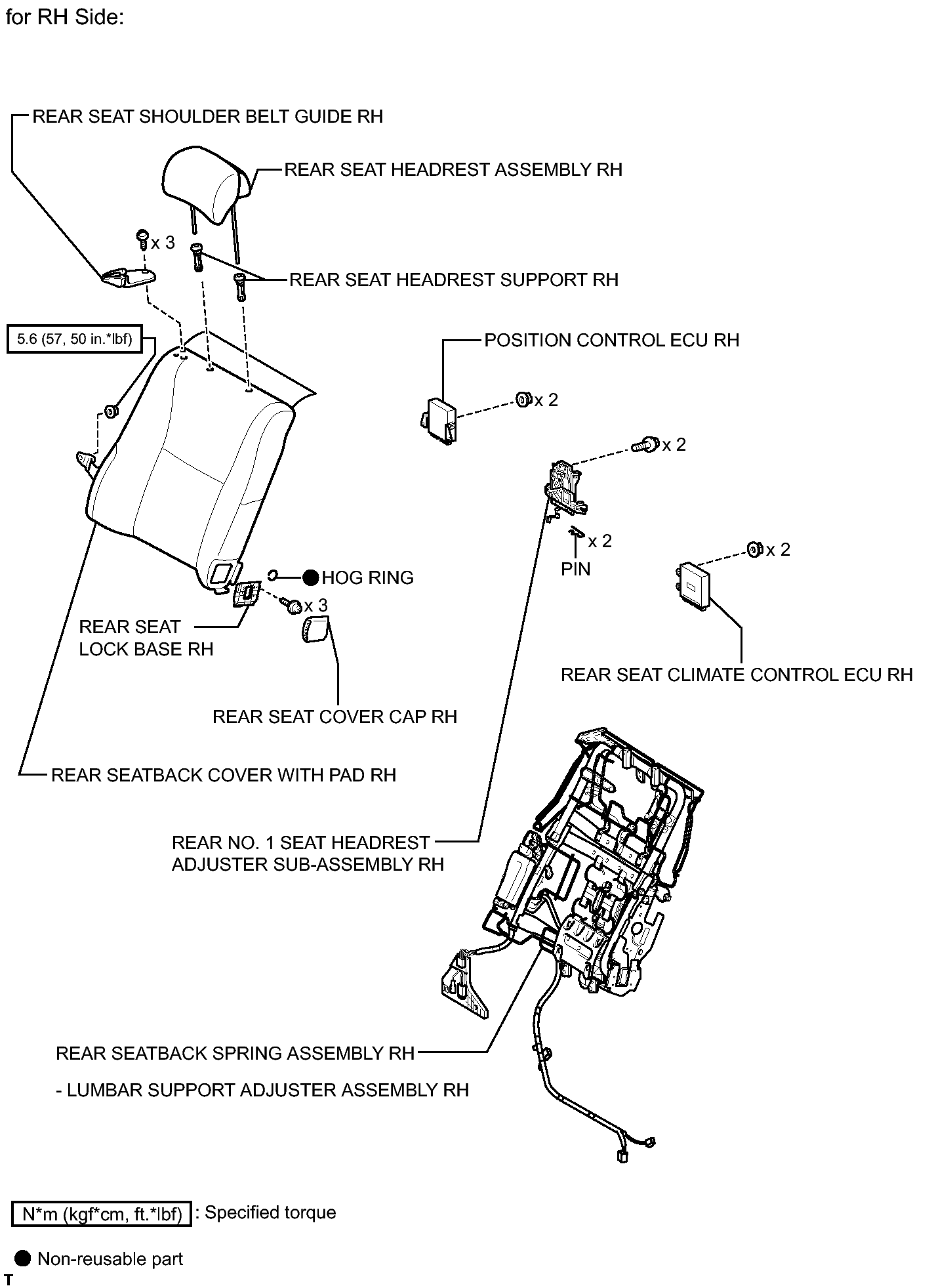

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Power Seat) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

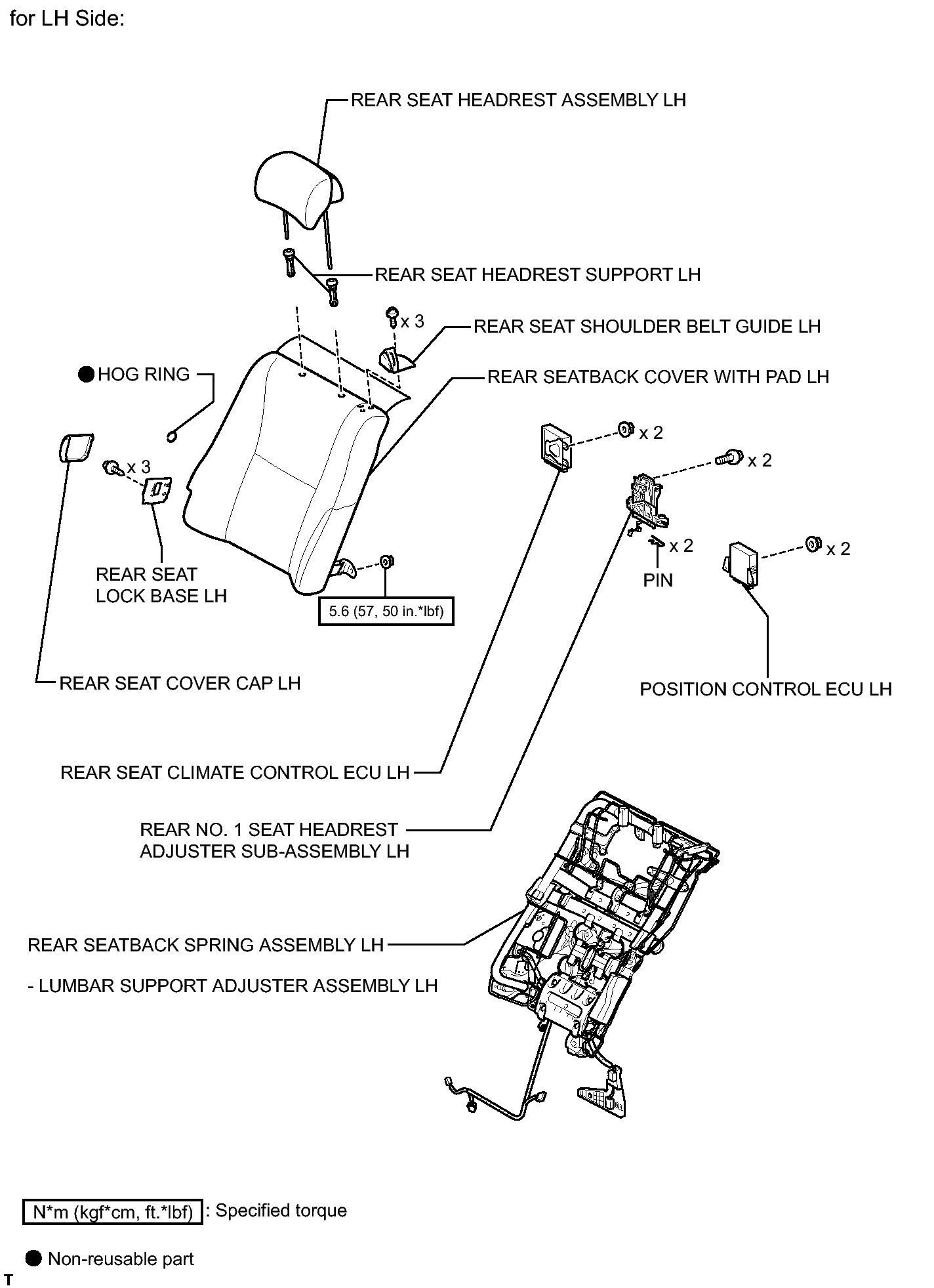

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Power Seat) Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
